torna kullanılmış satılık (2,999)

Graziano SAG180 Lathe Type: Lathe Manufacturer: Graziano Model: SAG180 Year of manufacture: 1987 Turning length: 1500 mm Turning Ø: 450 mm Speed range: up to 1500 rpm Engine power: 7.5 kW Electric connection: 380 V Distance between centers: up to 1500 mm, allowing work on medium-length parts Approx. machine weight: 1700 kg Approx. dimensions (L x W x H): 2800 x 1300 x 1400 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-45225-32

turning diameter over bed:1000 mmturning diameter over slide rest:745 mmturning length:3000 mmturning speed range:4,5 - 900 U/minspindle bore:110 mmmax. workpiece weight between centres:12500 kgtotal power requirement:30 kWweight of the machine ca.:9 tdimensions of the machine ca.:5,2 x 2,3 x 2 m3-axes digital readoutrapid feed, feed at upper support 350 mm 1 fixed steadyface plate diameter 1000 mmcoolant attachment

turning diameter:275 mmturning length:900 mmspindle passage:65 mmpower capacity at 100 % load:25/20 kWspindle turning speed range:1 - 5000 U/minspindle diameter in front bearing:110 mmc-axis:1 - 500 U/min.number of workpiece supports:4 tool turret:1 x-axis:290 mmy-axis:165 mmz-axis:360 mmb-axis:360 °rapid speed:18/30 m/minnumber of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mmtoolpiece turning speed range:8000 / 2000 U/minpower capacity:25% ED 5,8 kWtool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mmz-axis:600/950 mmy-axis:+/- 60 mmrapid speed:18/15/30 m/minnumber of driven tools:10 mmtoolpiece turning speed range:1 - 6000 U/minpower capacity:25% ED 5,8 kWtool taper:DIN 69880 40 x 63 total power requirement:95 kWweight of the machine ca.:16 tdimensions of the machine ca.:10,0 x 3,5 x 3,0 mwith CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000,Main and Sub spindle with C-axis1  ...

Collection by Appointment Only. This item is sold ex-foundation and consequently, all the logistical arrangements, including dismantling, packing loading the goods, transport, customs, and delivery to the final destination, are the responsibility of the Buyer. Auction-ID: A7-45162-5

turning diameter:830 mmturning length:4000 mmturning diameter over bed slide:540 mmspindle bore:130 mmturning speed range:2 - 1600 U/minrapid speed:4 / 5 m/minfeed speeds:1 - 2000 mm/mintotal power requirement:55 kWweight of the machine ca.:7,5 tdimensions of the machine ca.:7 x 2,2 x 2 mwith Teach In controll R&D MTC-KMULTIFIX toolpost size Dcoolant attachment

turning diameter:500 mmturning length:1500 mmturning diameter over bed slide:290 spindle bore:71 mmturning speed range:3 - 2800 U/minrapid speed:10 / 5 m/minfeed speeds:1 - 2000 mm/mintotal power requirement:22 kWweight of the machine ca.:3,2 tdimensions of the machine ca.:3,0 x 1,6 x 2 mwith Teach In controll R&D MTC-KPARAT toolpost 1 fixed steday dia. 100 mm4 jaw face plate dia. 500 mmcoolant attachment

turning diameter over bed:340 mmturning diameter over slide rest:190 mmturning length:700 mmspindle bore:50 mmspindle turning speed range:40 - 3000 U/mintotal power requirement:6 kWweight of the machine ca.:1,2 tdimensions of the machine ca.:2 x 1 x 1,6 m

turning diameter:500 mmturning length:1500 mmspindle motor:16 kWSpindle RPM:1 - 2500 1/mintaper in tailstock MT:5 tailstock quill stroke:160 mmtailstock quill diameter:70 mmtotal power requirement:22 kWweight of the machine ca.:3,2 tdimensions of the machine ca.:3,2 x 1,8 x 1,4 mMachine with Heidenhain Manual plus control- Multifix quick tool change device- 3-jaw chuck- sliding splash door- various accessories.

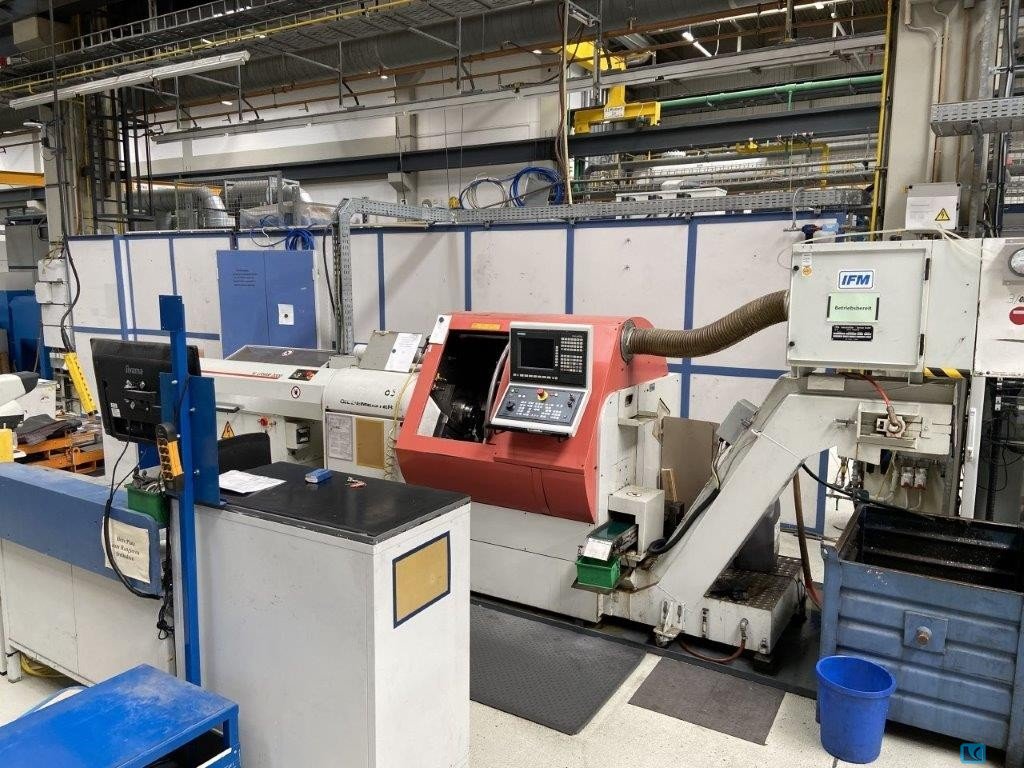

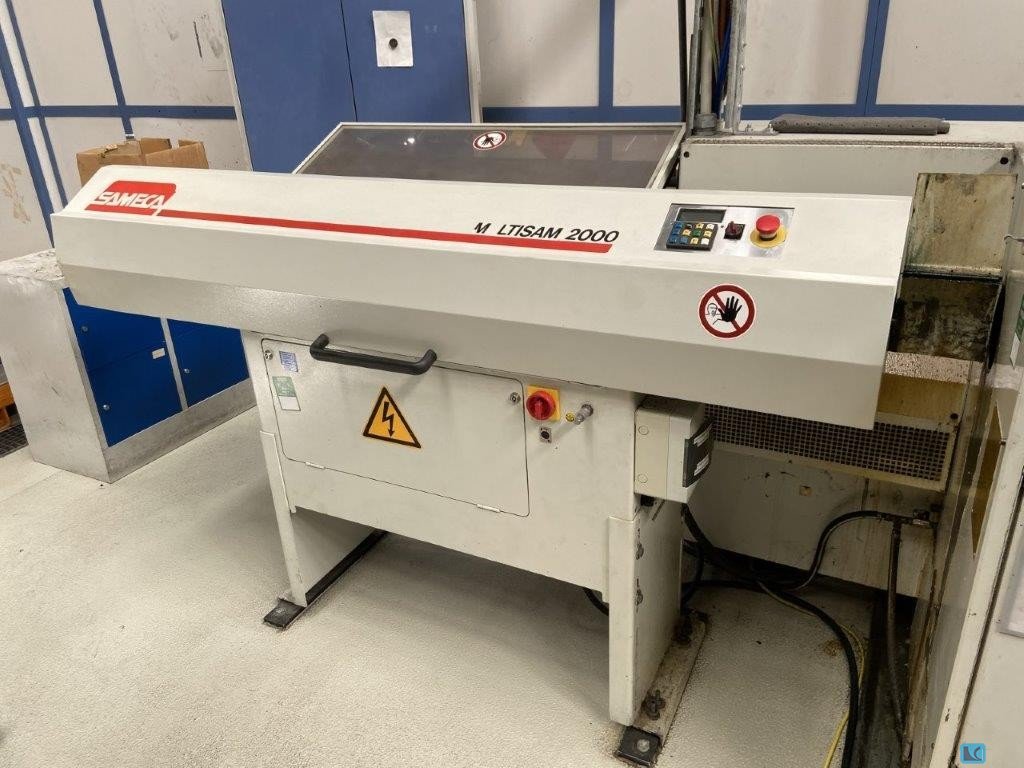

turning diameter:65 mmturning length:80 mmtotal power requirement:30 kWspindle bore:79 mmspeeds:25 - 4500 U/minslide I - cross travel:155 mmslide II - cross travel:82 mmlongitudinal traverse (z-axis):280 / 130 mmweight of the machine ca.:6,5 tdimensions of the machine ca.:10,8 x 3,8 x 1,8 mwith bar feeder, chip conveyor and diverse accessories

turning diameter:800 mmturning length:2965 mmmax. turning dia. over saddle:520 mmspindle bore:92 mmturning speed range:3 - 1800 U/minspindle head:Größe 11 total power requirement:37 kWweight of the machine ca.:6,5 tdimensions of the machine ca.:5,2 x 2,2 x 1,9 mTeach In Control MTC-K3-jaw chuck ROTAS Dia. 400 mmface plate RÖHM Dia. 630 mm4-station toolholder system PARAT 1 fixed steady coolant attachment and chip conveyor

turning diameter over bed:500 mmturning diameter over slide rest:310 mmturning length:1500 mmspindle turning speed range:7 - 710 U/minfeed range:5,6 - 224 mm/mintotal power requirement:15 kWweight of the machine ca.:3,7 tdimensions of the machine ca.:2,9 x 1,4 x 1,6 mMachine with 2-axis digital readout- MULTIFIX quick tool change device- 3-jaw chuck

turning diameter over bed:570 mmturning diameter over slide rest:365 mmturning length:2000 mmfeed per revolution:0,06 - 58 / 0,03 - 28 mmspindle turning speed range:11,2 - 2240 U/minspindle bore:62 mmspindle head:8 nach DIN 55022 total power requirement:15 kWweight of the machine ca.:4,8 tdimensions of the machine ca.:4,5 x 1,5 x 1,4 mwith digital readout HEIDENHAINrapid feed, MULTIFIX toolholder system fixed steady dia. 160 mm 3 jaw chuck RÖHM TR 250 coolant attachmentdiverse toolholders, diverse jaws

turning diameter:1250 mmturning length:6000 mmspindle bore:130 mmTurning rate:5 - 710 U/min.turning diameter over bed slide:850 total power requirement:37/52 kWweight of the machine ca.:16 tdimensions of the machine ca.:12 x 4 x 2 mTeach In Controll HEIDENHAIN1 fixed steady

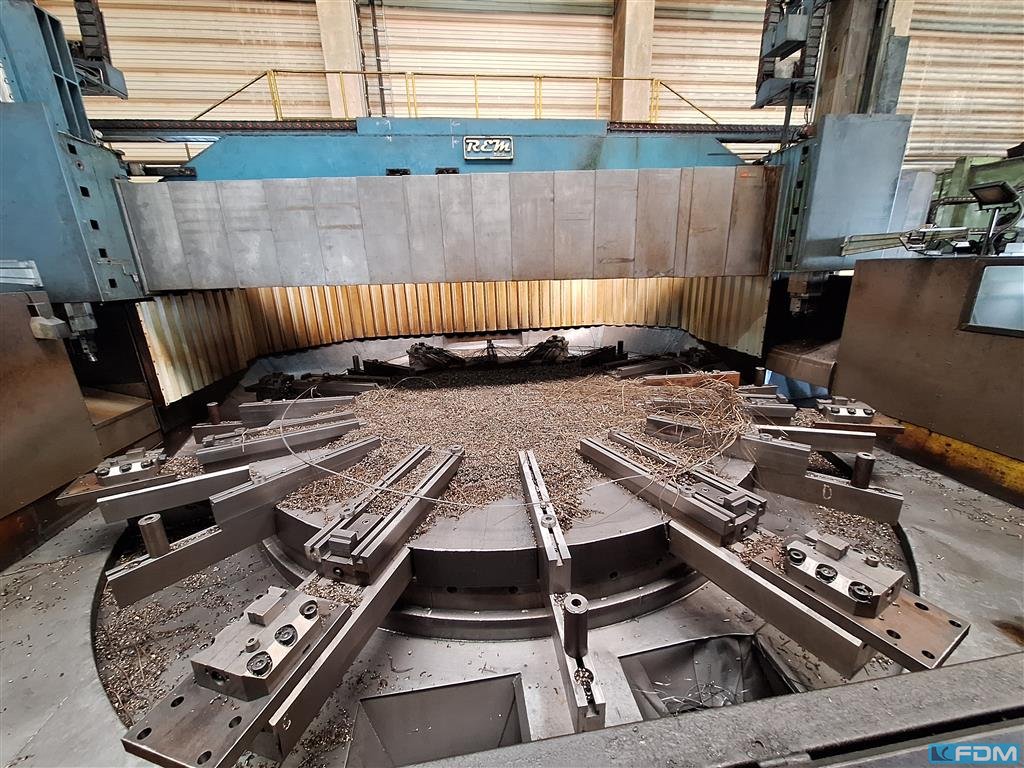

faceplate diameter:4000 mmswing diameter:4300 mmturning height:330 mmfaceplate turning speed range:1 - 92 U/minworkpiece weight:18 tfeeds:1 - 4000 mm/minmain drive motor:55 kWtotal power requirement:85 kVAweight of the machine ca.:64 tdimensions of the machine ca.:90, x 7,2 x 5,5 mwith CNC SIEMENS 840 D for 4 axis2 Vertical Supports tool Basic holderchip conveyor

faceplate diameter:4770 mmswing diameter:7000 mmturning height:1000 mmslide stroke:1000 mmworkpiece weight max.:100000 kgfaceplate turning speed range:2 - 20 U/minfeed speeds:1 - 10000 mm/minrapid traverse:10 m/minram head dimension:250 x 250 mmmain drive:100 kWtotal power requirement:200 kWwith CNC SIEMENS 840 D2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpmChip conveyor and coolant attachment

turning diameter:325 mmturning length:600 mmtotal power requirement:35 kWspindle drive:25 kWspindle turning speed range:5000 U/minspeeds of tool:4500 U/minrapid traverse X-axis:60 m/mindiverse toolholders:VDI 40 rapid traverse Z-axis:45 m/minweight of the machine ca.:6,5 tdimensions of the machine ca.:3,5 x 2,5 x 2,1 mMachine with SIEMENS 840 D control power line with shopturn- C and Y-axis, driven tools- bar loader IRCO ILS-RBK- coolant device with coolant throough revolving head- Revolver- counter spindle- chip conveyor- collet clamping - part catcher

turning diameter:626 mmturning length:3000 mmTurning diameter:600 mmspindle bore:100 mmspindle turning speed range:2800 U/minweight of the machine ca.:18 tMachine overhold and retrofit in 2003 with SIEMENS 840 D control- NC steady rest- 12-fold revolving head- splash doors- tailstock- coolant device

faceplate diameter:2500 mmswing diameter:2500 mmswing diameter:2500 mmturning height:2500 mmturning speed range - faceplate:1,8 - 140 U/minworkpiece weight max.:15.000 kgfeeds: 0,03 - 6,3 mm/Urapid speed:2 m/mincross rail adjustment:2150 mmmax. ram stroke:1500 mmpower capacity:55 kWweight of the machine ca.:32 tdimensions of the machine ca.:4,1 x 7,6 x 6,0 m1 turret head1 RAM head

turning diameter over bed:930 mmturning diameter over slide rest:630 mmturning length:6000 mmturning dia. in gap:1250 mmspindle bore:95 mmturning speed range:8 - 800 U/mintotal power requirement:25 kWdimensions of the machine ca.:9 x 2 x 1,9 mfaceplate 2 steadiescoolant attachment taper turning attachment

faceplate diameter:1600 mmswing diameter:1800 mmturning height:1500 mmmax. ram stroke:1200 mmfaceplate turning speed range -stepless-:2,5 - 250 U/minworkpiece weight max.:10.000 kgram head dimension:240 x 240 mmfeed range:1 - 3000 mm/minpower capacity:45 kWweight of the machine ca.:20 tmodernized and overhauled in 2010 with CNC SIEMENS 840 D12 positions automatic toolchangertelescopic coverssplash guardingchip conveyorcoolant attachmentdiverse toolholders

faceplate diameter:5000 mmswing diameter:6100 mmturning height:2400 mmram stroke each side:1490 mmram head dimension:340 x 340 mmmax. workpiece weight:100.000 kgtotal power requirement:100 kWweight of the machine ca.:155 tfaceplate turning speed range:0,4 - 50 U/minwith 2 x 2 axes CNC SIEMENS 840 D

Auction-ID: A1-45239-2126

turning diameter:445 mmturning length:2000 mmturning diameter over bed slide:660 spindle bore:65 mmspindle speeds::16 - 3150 U/min.rapid motion - x-axis:10 mm/minrapid traverse Z-axis:15 m/mintotal power requirement:34 kWweight of the machine ca.:7,5 tdimensions of the machine ca.:6 x 2,5 x 2,2 mwith CNC Control TX 8 DC-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mmtailstock, steady as NC-axisdiverse driven toolholdersdiverse turning toolholderschip conveyor and coolant attachment

turning diameter over bed:3800 mmturning diameter over slide rest:3200 mmturning length:12000 mmfaceplate turning speed range -stepless-:2 - 200 U/minmax. workpiece weight:90.000 kgbed width:4000 mm2 steadies

turning diameter over bed:1450 mmturning diameter over slide rest:1000 mmturning length:8000 mmspindle bore:160 mmturning speed range:2,8 - 560 U/minbed width:850 mmfaceplate diameter max.:1400 mmturning diameter in the gap:1800 mmlength of gap:600 mmdimensions of the machine ca.:12 x 2 x 2,5 mwith Digital Readout2 fixed steadies dia 1070 mmchip conveyor

turning diameter over bed:400 mmturning diameter over slide rest:250 mmturning length:1000 mmmax swing over gap:520 mmHeight of centres:200 mmcrossed path:230 mmbed width:218 mmmain spindle bore:52 mmspindle size:MK 6 speeds::55-2000 U/minturning angle of tool post:90 gradtail stock:50 mmtaper in tailstock:MK 4 threading metric:0,4-7 mmthreading WHITWORTH:4-60 TPI total power requirement:2,2 kWdimensions of the machine ca.:1940 x 820 x 1545 mmweight of the machine ca.:750 kgtailstock quill:110 mmtapping modul:0,4-3 mmtapping diametral:8-84 Gang/Zoll

turning diameter:200 mmswing diameter:260 mmturning height:200 mmTool table:1054 x 400 mmDimensions (L/W/H):2200 x 2300 x 2300 mmweight:3300 kgslide travel radial ( X-axis ):520 mmslide travel axial ( Z-axis ):200 mmno pallet circulating belt, no C-axis, no driven tools

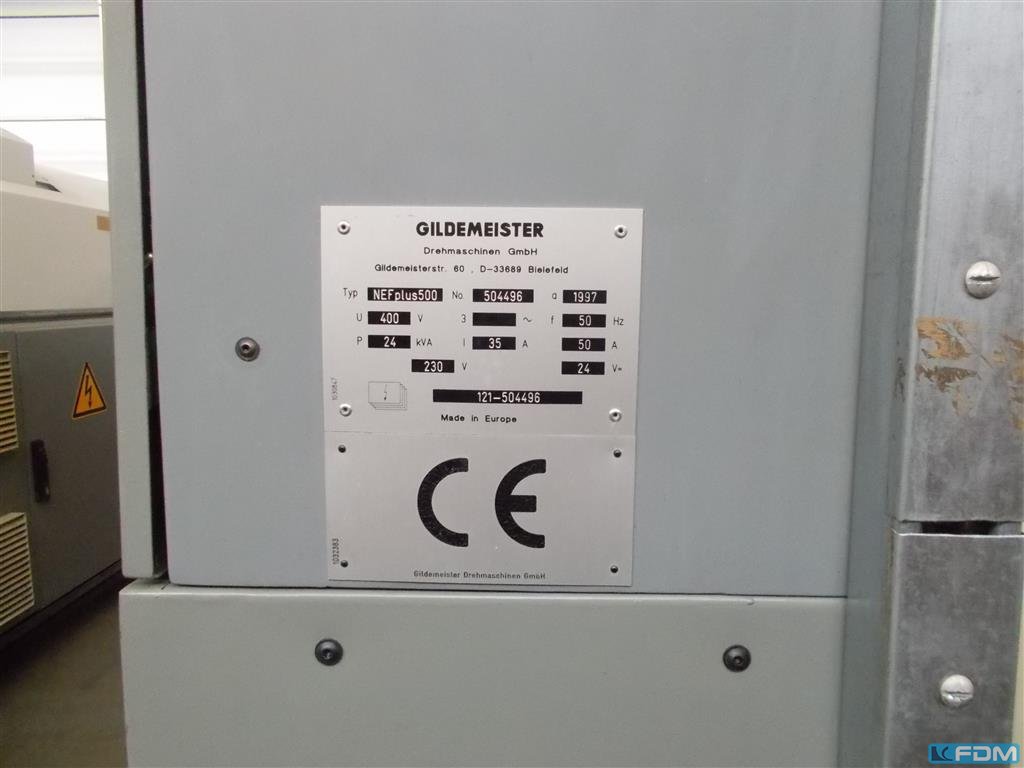

turning diameter:500 mmturning length:1000 mmcontrol:MANUAL PLUS Grundig total power requirement:24 kVAweight of the machine ca.:2650 kgdimensions of the machine ca.:2500 x 1750 x 1850 mmswing diameter over face slide:290 mmchuck:Ø max. 260 mmcross movement:260 mmspindle head:DIN 55027 Größe 8 spindle bore diameter:70 mmrapid travel - longitudinal/face:8 /6 m/minspindle speeds::8 - 2800 tailstock travel:180 mmtailstock quill taper MT:5 Documents:vorhanden

: neu : Bulgarien : 55100 €: 1041.39 €: 600 mm: 2000 mm: 300 mm: 80 mm: 400 mm: 400 mm: 8 : 90 MK: 3 : 20 - 100, 80 - 400, 400 - U/Min: 120 : 64 : 0.5 - 120 mm: 60 - 1/4 Gänge/: 0.125 - 30 : 315 mm: 130 mm: 90 mm: 5 MK: 230 mm: 11 kW: 3600 mm: 1500 mm: 1650 mm: 3110 kgIn contrast to the universal lathes, here the adjustment of the revolutions is infinitely variable by means of a frequency inverter.It is possible to ensure a ",constant cutting speed", (V-const), i.e. when changing the diameter to be machined, the speed remains unchanged and thus a higher accuracy and smoothness of the surface is achieved. At the customer&apos,s request, the machines can be manufactured with a reading of the linear displacement and positioning by mounting a digital display.driven by variable speed control (3 steps)3-axes digital readout Fagor with CSS (constant surface speed)quick change toolp ...

turning length:800 mmtotal power requirement:380 Vweight of the machine ca.:1400 kgdimensions of the machine ca.:2200 x 1200 x 1300 mcentre height:160 mmchucking diameter:150 mm
