delik işleme değirmenleri ve işleme merkezleri kullanılmış satılık (3,233)

: gebraucht : 2889J : China : 150 €: 1 : 125 mm: 44 mm: 100 mm: 16 kgMINT CONDITIONturning basefor drilling-, shaping- and milling machinesmechanical clampingvice bocy made of cast iron(Sample photo)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

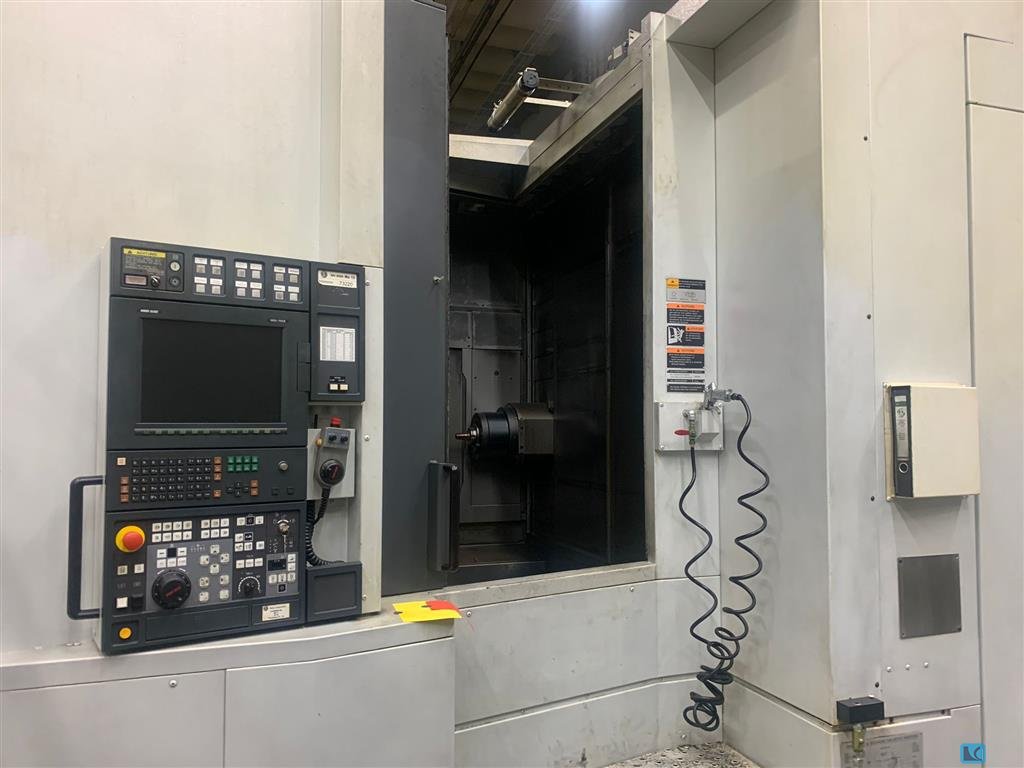

x-travel:800 mmy-travel:800 mmz-travel:800 mmturning speeds:35-10.000 1/minspindle:37 / 30 kWmax. torque on the spindle:525 / 206 NmTool bore:BT 50 rapid traverse:60 m/mintool change unit:160 Pos.size of pallet:500 X 500 mmcontrol:MAZATROL 640M Nexus c-axis:0,001° x 360.000 workpiece weight:1.000 kgworkpiece height max.:1.000 mminterference area:900 mm2 pcs. horizontal machining centers (HCN 6000-II + HCN 6000, 2005), interlinked with pallet pool (16 pallets) MAZAK FMS,2 pallet changer,chipconveyor,coolant device with internal coolant supply,

x-travel:410 mmy-travel:610 mmz-travel:500 mmturning speeds:15000 1/mintool adaptor:SK 40 control:iTNC 530 HEIDENHAIN smart NC table::320 x 320 mmtable load:100 kgtool change unit:48 Pos.total power requirement:35 kVAweight of the machine ca.:7,4 tdimensions of the machine ca.:4,15 x 3,8 x 3,28 m5-axis simultaneously machining center,NC-round-swivelling table, C-axis 360°, B-axis +30/-120°,chipconveyor,3D touchprobe,internal coolant supply 20bar,el. handwheel,kinematicsopt,meter readings:approx. 9.600h "machine on", approx.3.500h "spindle on"

x-travel:2300 mmy-travel:1200 mmz-travel:600 mmturning speeds:30-10.000 1/minmax. torque on the spindle:254 / 159 Nmcontrol:HEIDENHAIN TNC 430 tool taper:SK 40 tool change unit:60 Pos.spindle:40 / 25 kWfixed working table:surface area:1.100 x 1.100 mmrotary table:1.100 x 1.100 mmrapid traverse:30 m/mintotal power requirement:69 kVAweight of the machine ca.:20 tuniversal machining center with indexing head (2,5°),NC-rotary table, max. table load 1.500kg,internal coolant supply 30 bar, paper filter,el. handwheel,chipconveyor,automatic doors,flush gun,no touch probe available,approx. 81.400 h main swich onapprox. 72.200 h control onapprox. 26.700 h program running on machine under power , for functional testing

x-travel:800 mmy-travel:700 mmz-travel:600 mmtable load capacity:800 kgcontrol:SIEMENS 840D shopmill turning speeds:12.000 1/mintool adaptor:HSK 63 rapid traverse:50 m/mintool change unit:30 Pos.electr. connected load with add. coolant:56 kVAweight of the machine ca.:9,5 ttransport measurements machine:4 x 2,5 x 2,75 m5 Axis simultaneously machining center,Baxis (NC-head) and NC- rotary-swivelling-table dia 900/630mm,internal cooling device 40 bar, 600lprepared for 3D-touchprobe HEIDENHAIN TS 641 (without touchprobe),prepared for el. handwheel (without handwheel),mode 4,approx. 85.000 h mainswich ON , approx. 55.000 h Spindle ON (last spindle change in nJuly 2021 at approx. 50.000h)

x-travel:2600 mmy-travel:1100 mmz-travel:900 mmtable surface area:3200 x 1100 mmrotary table diameter:1050 mmtable load:1,2 tcontrol:Heidenhain iTNC 530 HSCI ergoline 19" turning speeds:20 - 14.000 1/mintaper ISO:SK 40 tool change unit:30 Pos.rapid traverse:40 m/minspindle:14 / 19 kWtotal connected load:46 kVAweight of the machine ca.:25 tdimensions of the machine ca.:6,70 x 3,40 x 2,95 m5-axis universal machining center,rigid table with integrated NC-rotary table left side and B-axis in milling head,direct measuring system,Swarf Conveyer,Rotoclear3D Touch probe HEIDENHAIN TS 649,BLUM laser,mode 4,prepared for 3D quick set (software yes, hardware no),NO INTERNAL COOLANT SUPPLY (upgrade on request, additional costs 15.000?)approx. 70.500 h machine on, approx. 14.000 h Programm runlast known spindle change in 2021

x-travel:730 mmy-travel:560 mmz-travel:560 mmturning speeds:18.000 1/mincontrol:HEIDENHAIN iTNC 530 tool adaptor:SK 40 tool magazin::24 Pos.total power requirement:52 kVAweight of the machine ca.:6,7 t5-axis simultaneously, NC-roundtable (dia 600mm) integrated in rigid table (1.000 x 600mm),max. table load 500kg,controlled NC-milling head (B-axis), -120 to +30°,3D touch probe TS 640,BLUM laser,el. hadwheel,mode 4,safety package for power failure,chipconveyor,NO INTERNAL COOLANT SUPPLY !approx. 87.000h "machine on", approx. 15.000h "program run"latest known spindle change: 2022

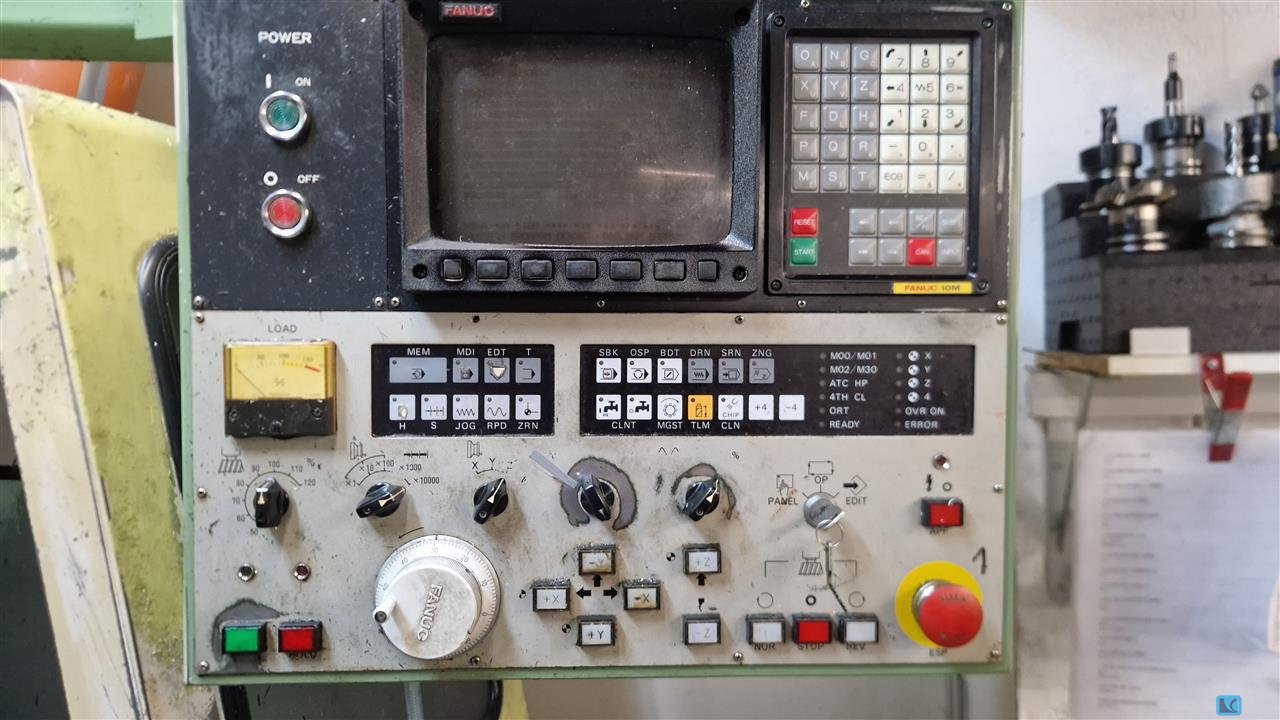

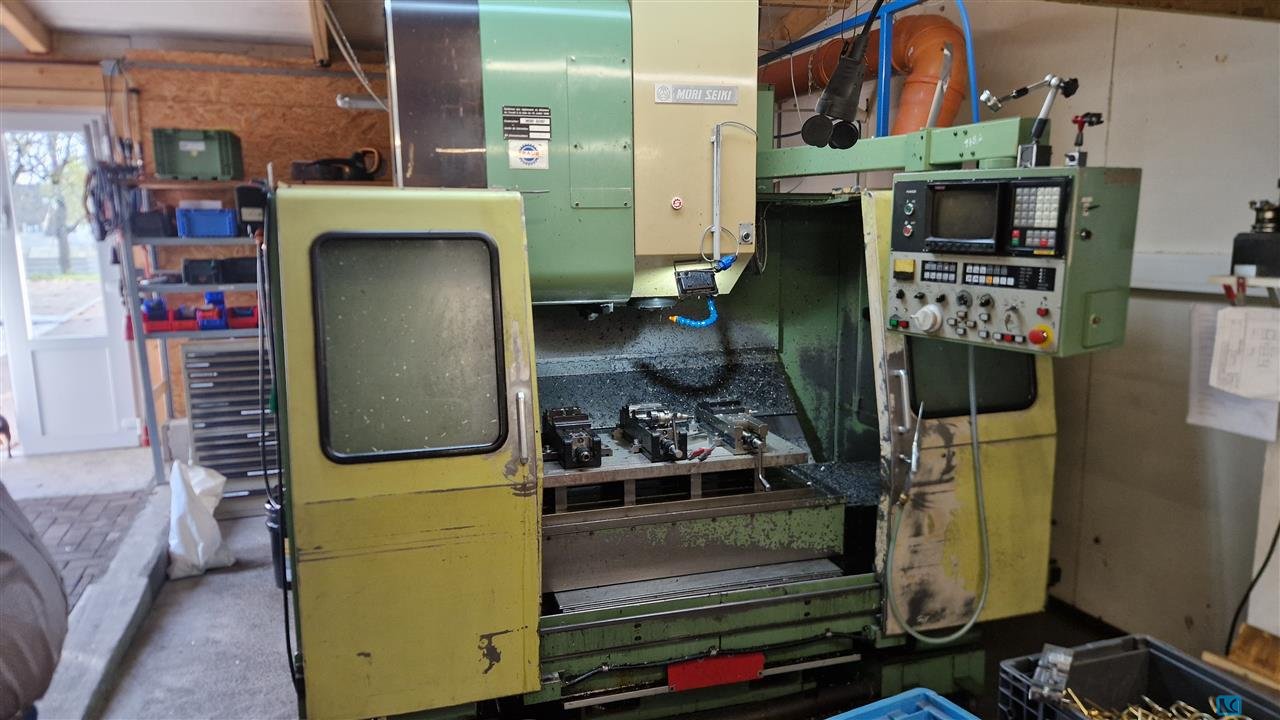

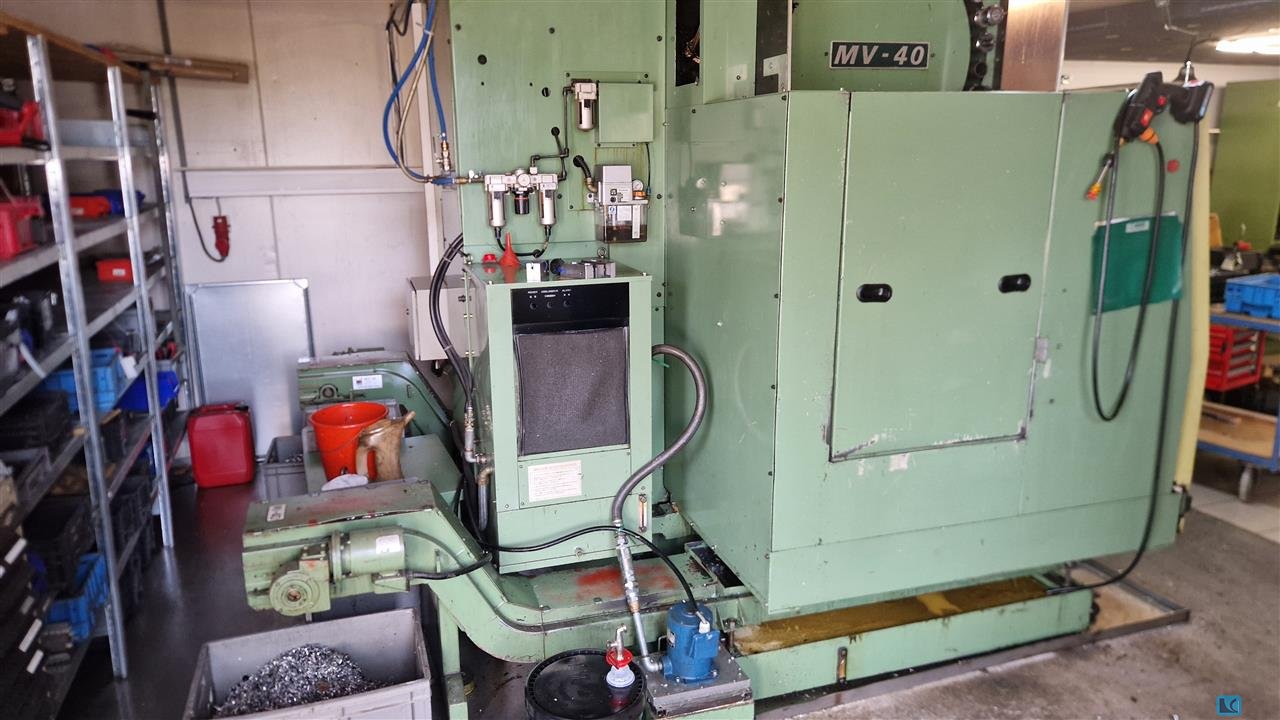

x-travel:800 mmy-travel:410 mmz-travel:510 mmcontrol:Fanuc 10 MA rapid travel x/y/z:20/20/15 mm/mintable surface area:1100 x 450 mmtool taper:BT 40 tool magazin::30 BT 40 max. tool length:250 mmmax. tool weight:8 kgpower requirement:7,5/5,5 kWturning speed range:6000 1/minweight of the machine ca.:6,3 tUnder offer is a complete CNC tool shop, which will be given up due to old age of owner.The Mori Seiki is still highly accurate. All existing tool holders, tools, drills, vices etc. come with the machine.All measuring devices also come with the machine.Upon request orders for parts to be made can be passed on to new owner.This is a low cost all inclusive opportunity for a "Startup"

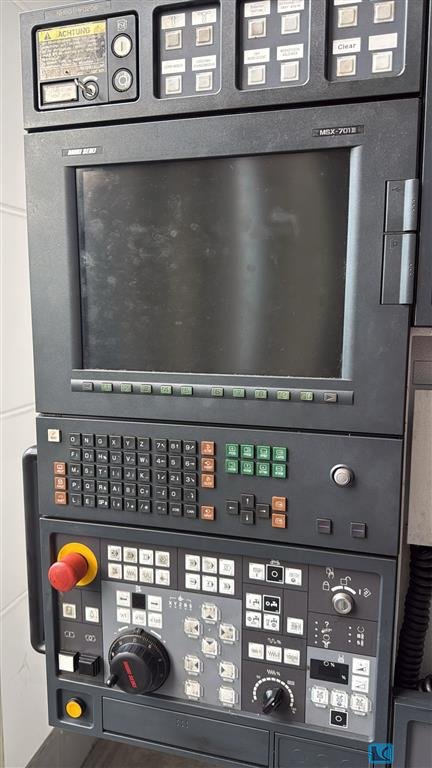

x-travel:1400 mmy-travel:1200 mmz-travel:1350 mmcontrol:MSX- 701 Mapps III table surface area:800 x 800 mmrapid traverse:50 m/mintable rotating:360.000 x 0,001 B-Achse °table load:2,0 tnumbers of pallets:2 turning speed range:8000 1/minpower capacity - milling spindle:37 kWno. of tools in the magazine:60 Stücktool taper:HSK-A 100 weight:31 tdimensions:5,9 x 3,48 x 3,68 mEquipment:- Thru-the-spindel coolant system Mayfran Consep 2000 70 bar with chipconveyor - Helical cutting + Synchronized tapping- Parts program memory 1 MB - Knoll 70 bar high pressure and filter system- Electrostatic oil dust collector LTA- elect. hand wheel- renishaw probe- abso- scale i X/Y/Z- axis- 5 free m- funktions- 48 extra off sets- dual ballscrews on X/Y/Z- axis

x-travel:560 mmy-travel:560 mmz-travel:660 mmcontrol:Celos Siemens 840D SL Operate ERGOline Multitouch turning speeds:20 - 20.000 1/minspindle drive:25/ 35 kWmax. torque on the spindle:86 / 130 tool taper:HSK-A63 Number of tool station:60 diameter of tools max.:70 mmTool diameter with no neighbouring tools:170 mmtool length - max.:450 mmweight of tools max.:12 kgnumbers of pallets:2 Pallet dimension:400 x 400 mmmax. workpiece diameter:630 mmworkpiece height max.:900 mmtable load:400 kgrapid travel x/y/z:60 m/minFeed x/y/z:60 m/mininternal coolant system feed:70 barweight of the machine ca.:8,5 tdimensions:3200 x 4800 x 2900 mmRenishaw probe (spindle):Vorbereitung / preparation only Horizontal machining center with Siemens - Celos control, full b-axis, tool magazine with 123 pos. HSK-A 63, coolant through spindle 40 bar.The machine has just received a new milling spindle.

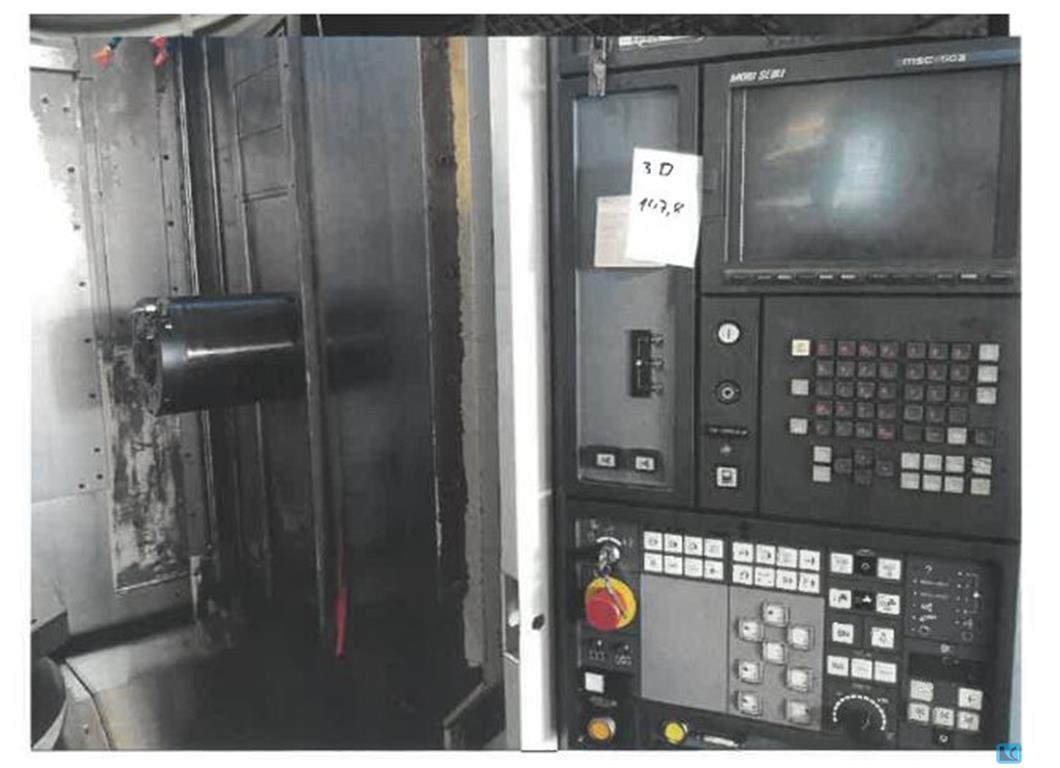

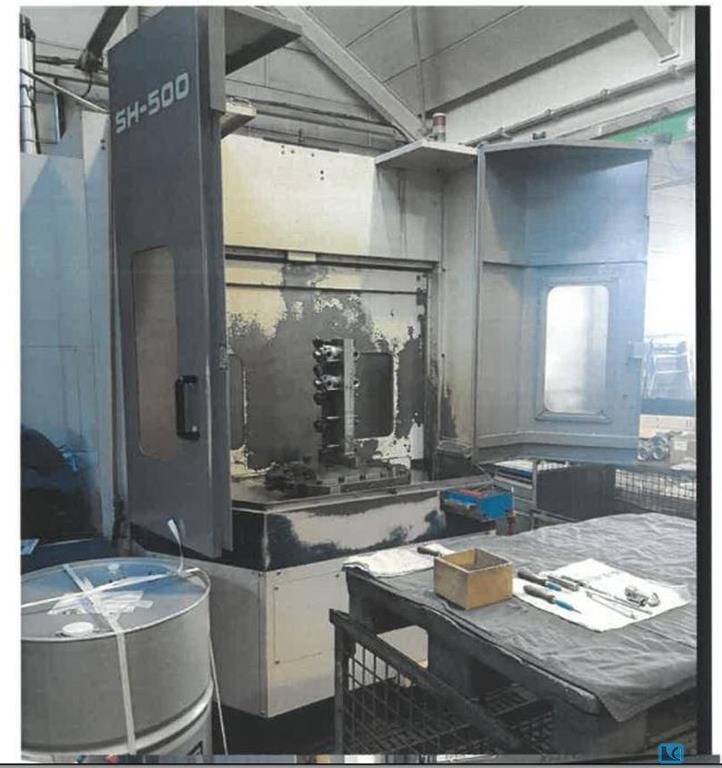

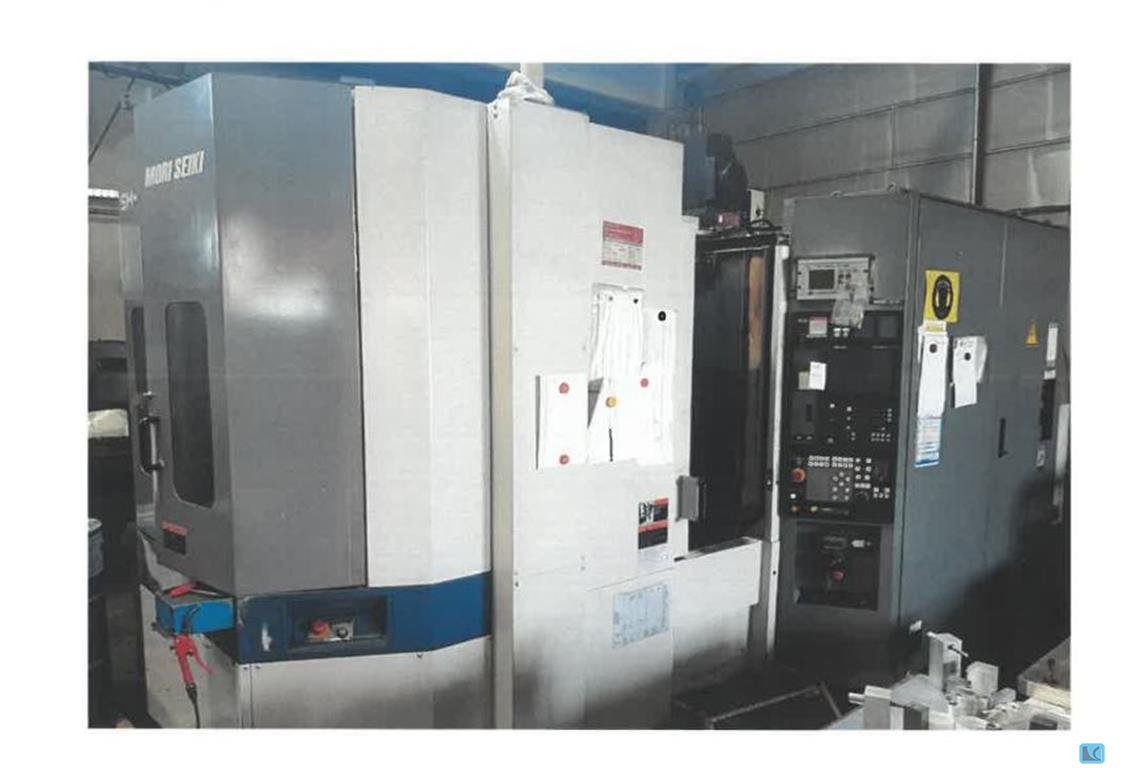

x-travel:630 mmy-travel:600 mmz-travel:650 mmcontrol:MSC 502 (Fanuc 16) Spindle RPM:12000 1/minspindle drive:22 / 18,5 kWrapid travel x/y/z:32 m/minPallet dimension:500x500 mmnumbers of pallets:2 table load:0,5 tworking diameter:max. 610 mmNumber of tool station:60 BT40max. tool length:360 mmmax. tool weight:12 kgtool changing time:1,3 secB-axis positioning (non continuous):1 total power requirement:50 kVAweight of the machine ca.:14 tdimensions of the machine ca.:3,3 x 5,8 x 3,2 mspindle load monitor:Typ C This horizontal machining center comes with a pallet changer with 2 pallets, and has the following options:ATC 60 tool stations, High pressure coolant trough spindle interface,

x-travel:630 mmy-travel:630 mmz-travel:630 mmcontrol:Unipro 90 Pallet changer 2x:400 x 500 workpiece - installed height:800 mmmax. clampable workpiece diameter:720 - 850 mmspindle taper::SK 40 spindle turning speed - stepless:10 - 8000 1/minSpindle power:20 / 30 kWSpindle Torque:95/143 Nmtool magazin::80 SK 40total power requirement:55 kWweight of the machine ca.:11 tMachine with Unipro 90 control for 5 axis- twin palette changer- tool magazine 80 HSK-A 63 - coolant device with coolant through spindle 7 pressure levels- full A & B-axis- chip conveyor

x-travel:1530 mmy-travel:530 mmz-travel:465 mmside by side, right side fixed table X =:925 mmside by side left side 2 axis table X =:780 mmcontrol:Heidenhain TNC 640 tool magazin::122 SK 40 spindle turning speed - stepless:12.000 1/minSpindle Torque:120 Nmpower capacity:22 kWFixed Table Dimensions:920 x 540 mmTable load fixed table:2000 kgMax. parts size on fixed table:900 x 500 x 400 mmDiameter of integrated 2-axis rotary table:650 mmTable load rotary table:500 kgB-axis swivel angle:-90°/+110° ° / degMax. parts size on rotary table:600 x 500 x 400 mmMax. Parts size over both tables:1500 x 500 x 400 mminternal coolant system feed:70 bar barweight of the machine ca.:10,5 tdimensions of the machine ca.:3,65 x 2,53 x 2,81 mpendant hand wheel:HR 510 FS Measuring probe for work piece:Blum TC 52 The SpinnerU5 1530 5-axis machine with Heidenhain iTNC 640 control is as new, in excelllent con ...

x-travel:800 mmy-travel:950 mmz-travel:1020 mmcontrol:Sinumerik 840D sl MDynamics Operate turning speeds:10.000 1/minSpindle power:26/20 kWmax. torque on the spindle:340/262 Nmtool taper:HSK-A 100 tool change unit:120 (2x60) Pos.Pallet changer 2x:630 x 630 mmtable load capacity:800 kgweight of the machine ca.:20 tdimensions of the machine ca.:3,3 x 6,15 x 3,2 m6-axis simultaneous horizontal machining center with controlled swivel-rotary table (A/B-axis), Swivel table can swing overhead (180°), that means the part is hanging down overhead and chips don?t accumulate on pallet, they can fall free into the chip conveyorCNC controlled U-axis enables radial movement of tool for variable spindling diamenter.twin pallet changer 630 x 630 mm6 hydraulic couplings for pallet fixture clamping with rotary joint in A and B-axisspecial hydraulic pump for fixturecoolant through spindle (10-80bar), one ...

table length:2200 mmtable width:2500 mmtable load:16 ttotal power requirement:6,5 kWfeed speeds:1,25 - 160 mm/minrapid traverse speed:2000 mm/minlongitudinal adjustment:1500 mmweight of the machine ca.:12 tdimensions of the machine ca.:4,1 x 2,65 x 0,95 mTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2024, Josef Weber. All rights reserved.

x-travel:2500 mmy-travel:1000 mmz-travel:750 mmtable surface area:3220 x 1000 mmWorkpiece weight approx.:3000 kgspindle taper ISO:50 milling spindle turning speeds:20 - 5000 U/minfeed speeds:1- 30000 mm/minrapid traverse:30 m/mintotal power requirement:40 kWdimensions of the machine ca.:6,9 x 4,1 x 3,7 mweight of the machine ca.:21 twith CNC HEIDENHAIN TNC 42630-pockets autom. toolchangerRENISHAW measuring probecoolant attachment with TSC and chip conveyordiverse toolholders

spindle diameter:150 mmx-travel:10000 mmy-travel:2500 mmbore spindle stroke:700 mmram stroke:700 dimension of the ram:340 x 340 mmspindle taper ISO:50 Speed of boring spindles:1,25 - 1250 U/min.feed speeds infinitely variable:1 - 5000 mm/minrapid traverse:5 m/mintotal power requirement:120 kWweight of the machine ca.:115 tdimensions of the machine ca.:15,1 x 10 x 6,4 mwith CNC SIEMENS 840 Dsl complete retrofit in 2010FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity,longitudinal movement 2500 mm,angular milling head 4 x 90°universal milling headfloor plate area ca. 12000 x 6000 mm ( 72 m²)chip conveyor and coolant attachmentaerostatic guideways

x-travel:600 mmy-travel:580 mmz-travel:580 mmnumbers of pallets:2 pallet size::400 x 400 mmmax. workpiece weight:400 kgspindle taper ISO:40 spindle speeds::35 - 12000 feed speeds:1 - 50000 mm/minrapid speed:50 m/mintotal power requirement:25 kWweight of the machine ca.:12 tdimensions of the machine ca.:3,6 x 3,6 x 2,9 mwith CNC SEICOS 16 M ( FANUC base )autom. toolchanger 61-pocketspallet indexing 1°chip conveyor and coolant attachmentexhausterclamping cube and diverse toolholders

x-travel:600 mmy-travel:580 mmz-travel:530 mmdistance spindle center to column:630 mmdistance spindle center to table:100-600 mmmilling feed range:1-10.000 mm/minmax. table load:200/100 kgmax. tool weight:8 kgpositioning accuracy:+/- 0,01 mm:8000/15000 1/minspindle drive:7,5/11,5 /5,5 kWrepeating accuracy:+/- 0,008 mmweight of the machine ca.:7,4 / 7,65 tBrand-new CNC vertical machining center with CNC control FANUC or HEIDENHAINWarranty: 12 monthsMore information can be found in the Appendix.

spindle diameter:150 mmx-travel:3000 mmy-travel:2000 mmspindle stroke:700 mmdimension of the ram:340 x 340 mmram stroke:700 column travel:1500 mmspindle taper ISO:50 bore spindle turning speed range:3,2 - 1600 U/mintable surface area:2000 x 2500 mmmax. table load:25000 kgrapid speed:5 / 10 m/minfeed speeds:1 - 5000 mm/mintotal power requirement:100 kWweight of the machine ca.:57 tdimensions of the machine ca.:8,4 x 6,8 x 5,9 mwith CNC SIEMENS 840 Dfull B-axisaerostatic guidewaysfacing head ( 3,2 - 140 rpm )angular milling head 1000 Nmcoolant attahcmnet with internal cooling supply

x-travel:800/945 mmy-travel:800 mmz-travel:600 mmspindle motor:27 kWspindle turning speed range:10 - 8000 U/minspindle taper ISO:40 c-axis:360.000 x 0,001 table load capacity:600 kgtable clamping surface::800 630 mmtotal power requirement:55 kWweight of the machine ca.:16 tMachine with Heidenhain iTNC 530 CNC control for 5 axis- pendulum operation with turn- swivil table left and fixed table right- tool changer for 30 tools- coolant device, chip conveyor- complete splash housing

spindle diameter:130 mmspindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-travel:1000 mmw-axis:1075 mmtable surface area:2000 x 1800 mmworkpiece weight max.:8000 kgspindle turning speed range:4,5 x 900 U/minspindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/minfaceplate diameter:785 mmrapid traverse::5000 mm/mintotal power requirement:40 kWweight of the machine ca.:35 tdimensions of the machine ca.:5,5 x 6,9 x 5,2 mMachine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds- table indexing 4 x 90°- facing head 785 mm- exhauster- various arbors and tooling

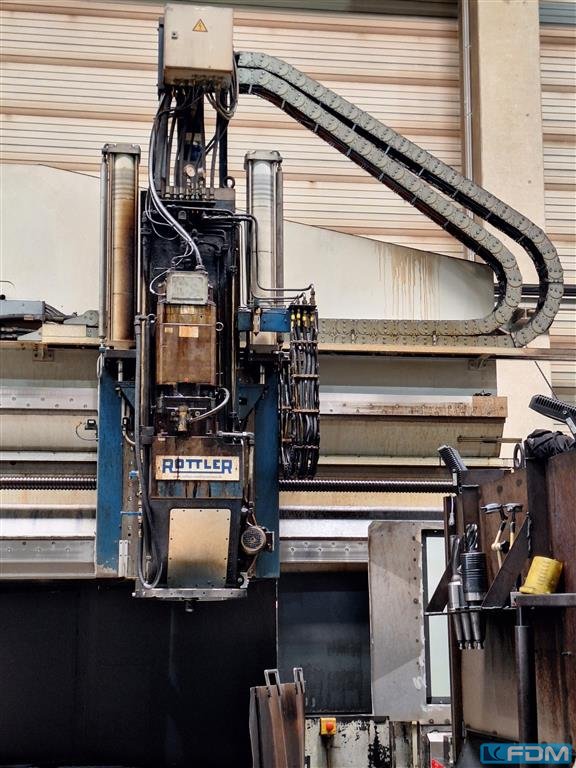

bore capacity in steel (diameter):100 mmmax. pitch circle:7000 mmnumber of spindles:2 bore spindle turning speed range:1 - 3000 U/minhigh speed spindle taper ISO:50 bore slide stroke:900 mmfeed speeds:1 - 6000 mm/minmax. workpiece weight:18000 kgtotal power requirement:125 kWdimensions of the machine ca.:13 x 11 x 5,1 mwith CNC SIEMENS 840 DWorkpiece clamping up to dia. 7000 mmThe machine is equipped with 2 drilling spindle supports and through spindle coolant (50 bar)both supports can drill simultaneously. Spindle taper SK 50, 2 stages 1 -600 rpm 1650 Nm and 1 - 3000 rpm. 300 NmChip conveyor and coolant device

x-travel:2200 mmy-travel:2200 mmz-travel:1400 mmspindle taper ISO:50 spindle diameter in front bearing:110 mmspindle turning speed range:45 - 6000 U/minpallet table size:1000 x 1250 mmpallet worktable capacity:6000 kgfeed range:1 - 60000 rapid traverse:60 m/minspindle drive motor:27 kWdimensions of the machine ca.:15 x 8,5 x 5,7 mtotal power requirement:133 kVAweight of the machine ca.:50 tMachine with SIEMENS 840 D control- full B-axis- palette changer for 3 palettes- tool changer for 244 tools- coolant through spindle- max. workpiece swing 2200 mm

x-travel:1800 mmy-travel:1600 mmz-travel:1400 mmB-axis (table):360° size of pallet:1000 x 1250 mmworkpiece swing dia.:2100 mmworkpiece weight:3500 kgspindle taper ISO:50 spindle drive motor:37 kWspindle turning speed range:25 - 10000 U/minfeed range:40/50 m/minrapid power traverse circular:10 U/mintotal power requirement:90 kVAweight of the machine ca.:43 tdimensions of the machine ca.:11 x 9 x 4,5 mMachine with SIemens 840 D control for 4 axis- full B-axis- palette changer- tool changer for 150 tools- coolant device with coolant through spindle- chip conveyor

x-travel:630 mmy-travel:630 mmz-travel:630 mmpallet size::400 x 500 mmspindle taper::HSK 63spindle turning speed - stepless:10 - 16000 U/mintotal power requirement:55 kWweight of the machine ca.:11 tMachine with SIEMENS 840 D control for 4 axis- digital drives- palette changer 4-fold- tool changer 160-fold - coolant device with coolant through spindle- full B-axis- chip conveyor- hydr. workpiece clamping

spindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-axis:1520 mmw-axis:1000 mmtable surface area:2000 x 1800 mmworkpiece weight:8 tspindle motor:18 kWspindle taper ISO:50 spindle turning speed range:4,5 - 900 U/minfaceplate diameter:785 mmrapid traverse:5 m/mintotal power requirement:40 kWdimensions of the machine ca.:5,5 x 6,9 x 5,2 mweight of the machine ca.:35 tMachine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control- inf. variable spindle spped- 4 x 90° table positioning- diverse toolholders- dDust exhauster

spindle diameter:120 mmx-travel:1250 mmy-travel:1250 mmz-travel:800 mmW-axis (spindle longitudinal):600 mmSpeed of boring spindles:1- 2000 U/min.spindle taper ISO:50 table surface area:1000 x 1000 mmtotal power requirement:55 kWweight of the machine ca.:18 twith CNC HEIDENHAIN TNC 426autom. toolchnager 40-pocketscoolant attachment

spindle diameter:200 mmx-travel:10000 mmy-travel:4000 mmz-axis:1500 mmW-axis (spindle longitudinal):1000 mmbore spindle turning speed range:1 - 2000 U/mindimension of the ram:600 x 530 mmhigh speed spindle taper ISO:60/50 rapid motion - x-axis:8000 mm/minrapid motion - y-axis:8000 mm/minrapid traverse Z-axis:5 m/mintotal power requirement:120 kWweight of the machine ca.:135 tdimensions of the machine ca.:16,0 x 5,0 x 10,0 mwith CNC Steuerung HEIDENHAIN iTNC 530hydrostatic guideways x and Y- axisautom. toolchanger 40-pocketsautom. Pickup Station for angular milling head, universal milling head and facing headrotary table 3000 x 3000 mm , max load 60 to.v-axis 2500 mmchip conveyor and coolant attachment

x-travel:1100 mmy-travel:900 mmz-travel:1250 mmb-axis:360 000 x 0,001 °milling head speed:1 - 10000 U/minspindle taper: ISO:50 rapid traverse:60 m/minpallet size::630 x 630 total power requirement:37 kWweight of the machine ca.:25 twith CNC control SIEMENS 840 Dautom. toolchanger 165 pockets twin pallets 630 x 630 mm max. pallet load 1500 kgthrough spindle coolantchip conveyor and coolant attachment make KNOLL
