Cnc çevrim tornalama makineleri WEILER E80 x 3000
metal çalışma makineleri / torna / Cnc çevrim tornalama makineleri
centre height: 400 mmcentre distance: 3.000 mmmax. swing over bed: 810 mmmax. swing over facing slide: 510 mmmax. swing-dia. in gap: 850 mmcontrol: WEILER max. workpiece weight: 3.800 kgspindle diameter in front bearing: 150 mmspindle bore: 106 mmfaceplate diameter: 630 mmworktool system: Parat ...
Üretici: WEILER
model:E80 x 3000
Makine türü: Cnc çevrim tornalama makineleri
madde-No: 169555272
miktar: 1
tarih: 08.06.2026
Üretim yılı: 2000
yer: Werksstandort, unter Strom
fiyat:
Stoktaki makine:evet
Seller-item-No.:2026-1874
centre height: 400 mm
centre distance: 3.000 mm
max. swing over bed: 810 mm
max. swing over facing slide: 510 mm
max. swing-dia. in gap: 850 mm
control: WEILER
max. workpiece weight: 3.800 kg
spindle diameter in front bearing: 150 mm
spindle bore: 106 mm
faceplate diameter: 630 mm
worktool system: Parat
tailstock quill taper MT: 6
dia. of quill: 115 mm
spindle turning speed - stepless: 1 - 1.800 U/min

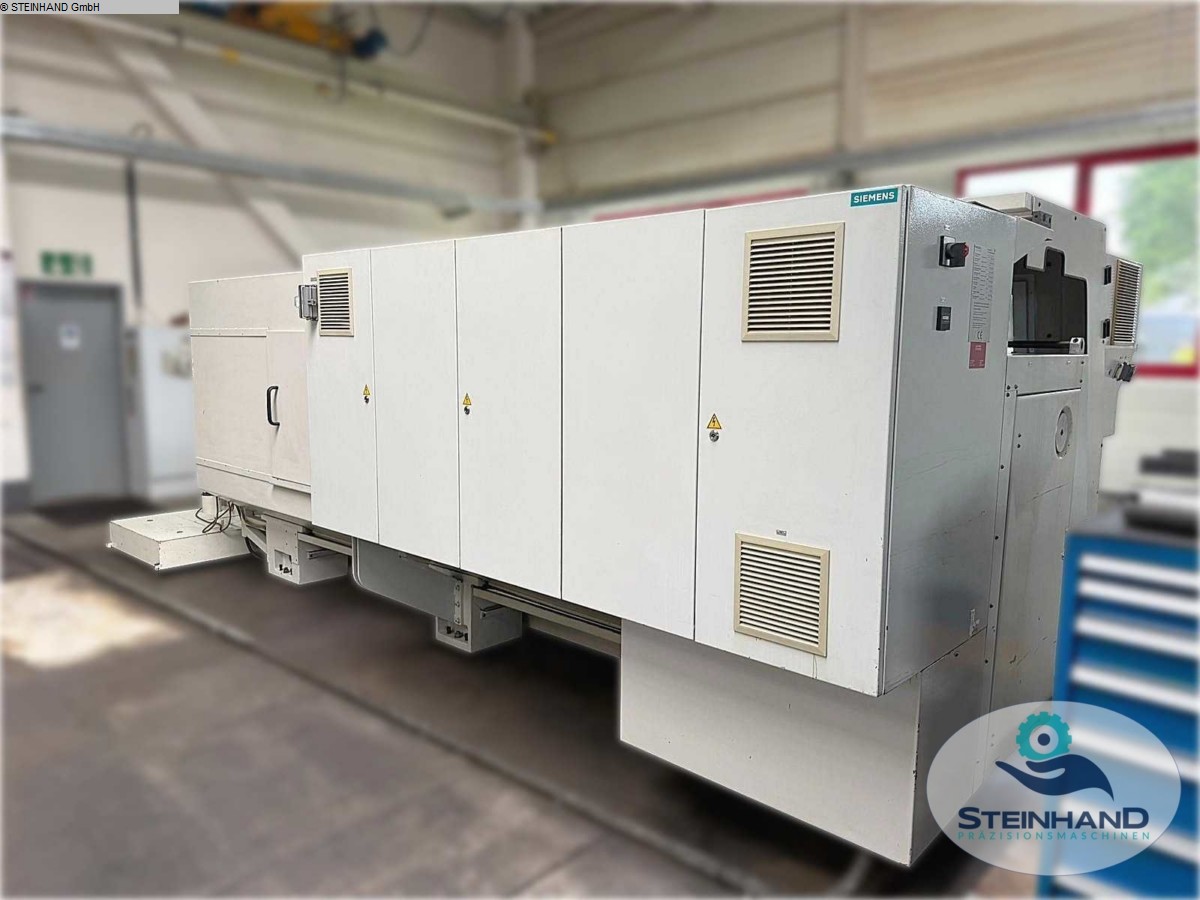

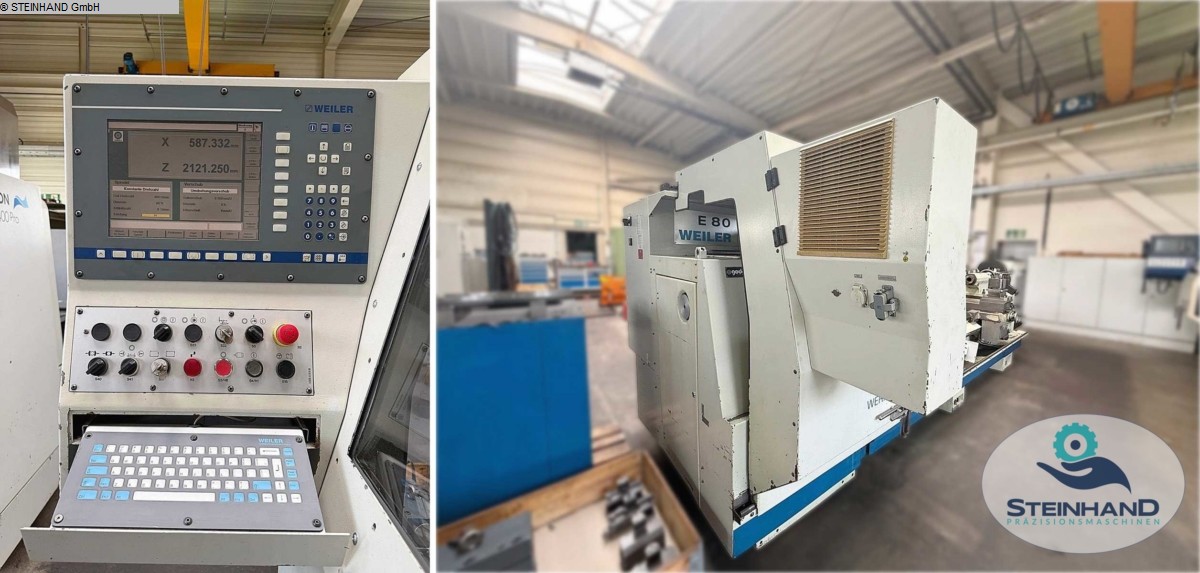

Lathe - cycle-controlled | WEILER - E80 x 3000 equipped with 630mm faceplate, 400mm SCHUNK ROTA-S plus chuck, boring bar attachment, PARAT tool system as well as a chip conveyor.
A comprehensive tool package is included in the scope of delivery.
The machine video from the production plant will be shared on request.
The machine is in good condition and can be inspected under power at any time.
Please refer to further technical details in the attachement of the offer.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
#Tags: E-80 | E 80 | E80 x 3000 | E80x3000 | E 80 x 3000
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
centre distance: 3.000 mm
max. swing over bed: 810 mm
max. swing over facing slide: 510 mm
max. swing-dia. in gap: 850 mm
control: WEILER
max. workpiece weight: 3.800 kg
spindle diameter in front bearing: 150 mm
spindle bore: 106 mm
faceplate diameter: 630 mm
worktool system: Parat
tailstock quill taper MT: 6
dia. of quill: 115 mm
spindle turning speed - stepless: 1 - 1.800 U/min
Lathe - cycle-controlled | WEILER - E80 x 3000 equipped with 630mm faceplate, 400mm SCHUNK ROTA-S plus chuck, boring bar attachment, PARAT tool system as well as a chip conveyor.
A comprehensive tool package is included in the scope of delivery.
The machine video from the production plant will be shared on request.
The machine is in good condition and can be inspected under power at any time.
Please refer to further technical details in the attachement of the offer.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
#Tags: E-80 | E 80 | E80 x 3000 | E80x3000 | E 80 x 3000
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
