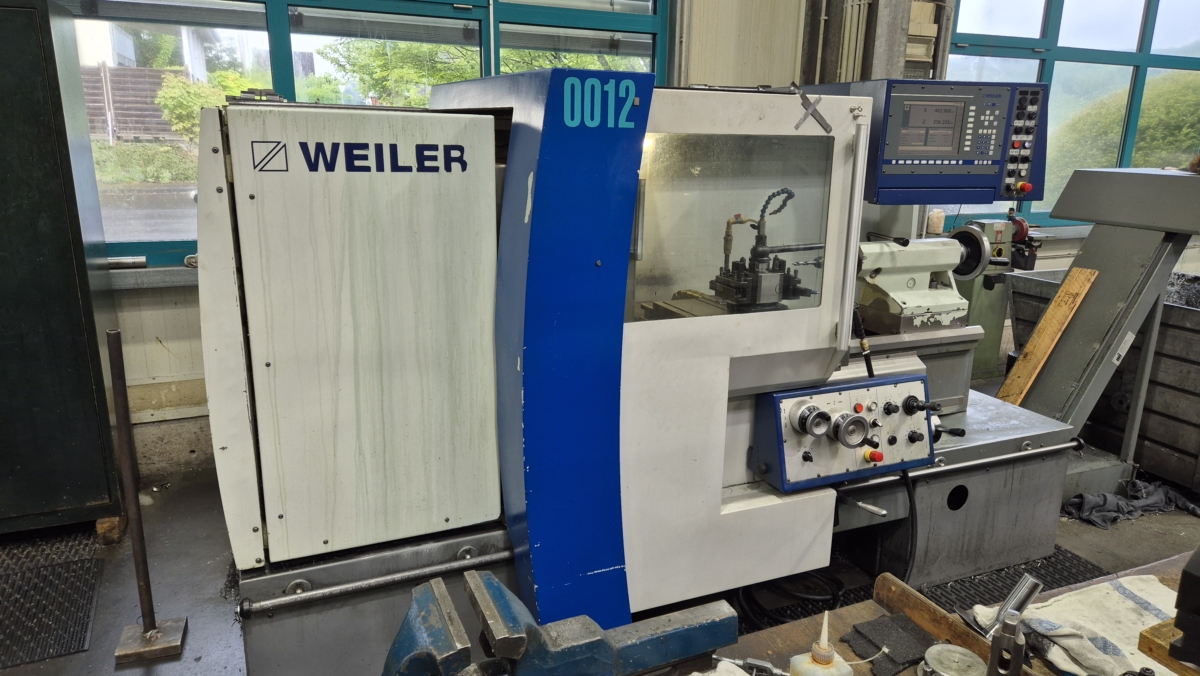

Cnc çevrim tornalama makineleri WEILER E55 x 1000
metal çalışma makineleri / torna / Cnc çevrim tornalama makineleri
turning diameter: 570 mmturning length: 1000 mmcontrol: WEILER D3 swing diameter over slide rest: 325 mmSwing in gap: 600 mmlength of gap: 140 mmspindle bore: 83 mmspindle diameter in front bearing: 120 mmface stroke: 340 mmlongitudinal stroke: 1100 mmworkpiece weight max.: 1200 kgspindle turning ...
Üretici: WEILER
model:E55 x 1000
Makine türü: Cnc çevrim tornalama makineleri
madde-No: 169631825
miktar: 1
tarih: 08.06.2026
Üretim yılı: 2006
yer: Monheim am Rhein
fiyat:
Stoktaki makine:evet
Seller-item-No.:1022-2438
turning diameter: 570 mm
turning length: 1000 mm
control: WEILER D3
swing diameter over slide rest: 325 mm
Swing in gap: 600 mm
length of gap: 140 mm
spindle bore: 83 mm
spindle diameter in front bearing: 120 mm
face stroke: 340 mm
longitudinal stroke: 1100 mm
workpiece weight max.: 1200 kg
spindle turning speed - stepless: 1 - 2500 U/min
transmission ratio: 2
rapid travel - longitudinal/face: 10 / 5 m/min
main drive motor: (60/100 % ED) 20 / 17 kW
tailstock quill diameter: 80 mm
tailstock quill stroke: 200 mm
tailstock quill taper MT: 5
weight of the machine ca.: 3,8 t
dimensions of the machine ca.: 2,95 x 1,90 x 1,82 m

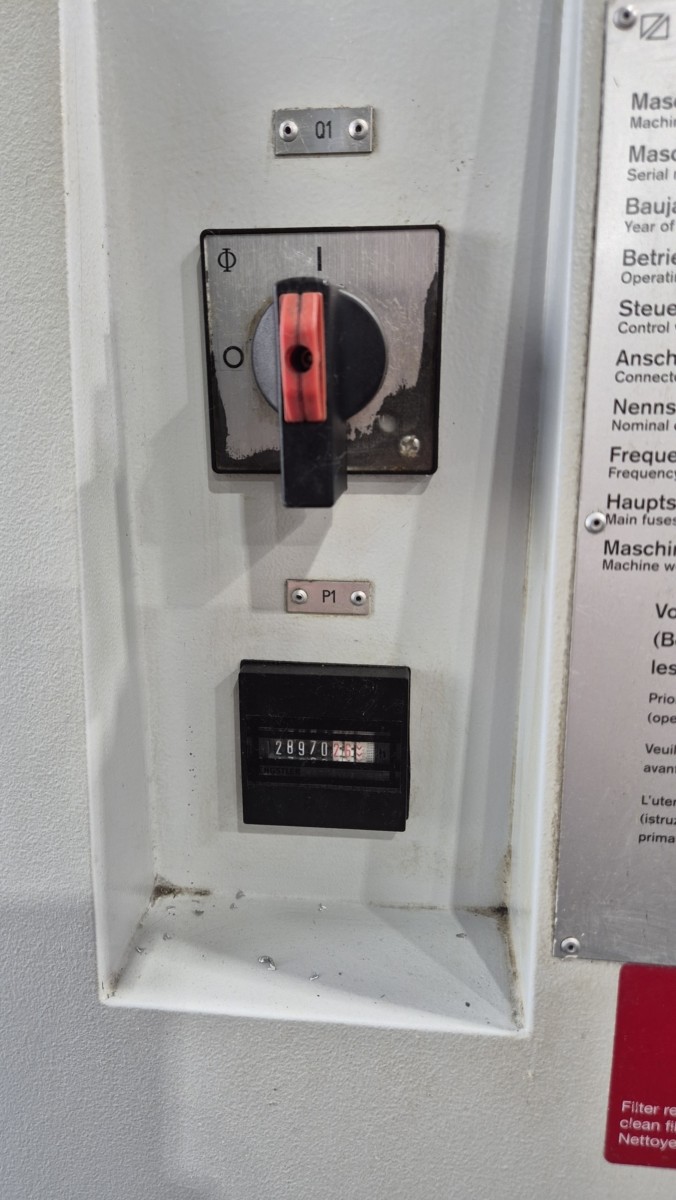

Switch-on hours (date 18. May 2026): 28.970 h
Control WEILER D3
Chip conveyor
Toolholder Multifix with several inserts
3-jaw chuck SCHUNK ROTA-S plus 315-92
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning length: 1000 mm
control: WEILER D3
swing diameter over slide rest: 325 mm
Swing in gap: 600 mm
length of gap: 140 mm
spindle bore: 83 mm
spindle diameter in front bearing: 120 mm
face stroke: 340 mm
longitudinal stroke: 1100 mm
workpiece weight max.: 1200 kg
spindle turning speed - stepless: 1 - 2500 U/min
transmission ratio: 2
rapid travel - longitudinal/face: 10 / 5 m/min
main drive motor: (60/100 % ED) 20 / 17 kW
tailstock quill diameter: 80 mm
tailstock quill stroke: 200 mm
tailstock quill taper MT: 5
weight of the machine ca.: 3,8 t
dimensions of the machine ca.: 2,95 x 1,90 x 1,82 m
Switch-on hours (date 18. May 2026): 28.970 h
Control WEILER D3
Chip conveyor
Toolholder Multifix with several inserts
3-jaw chuck SCHUNK ROTA-S plus 315-92
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
