Kaynak sistemi TRUMPF TruLaser Robot 5020

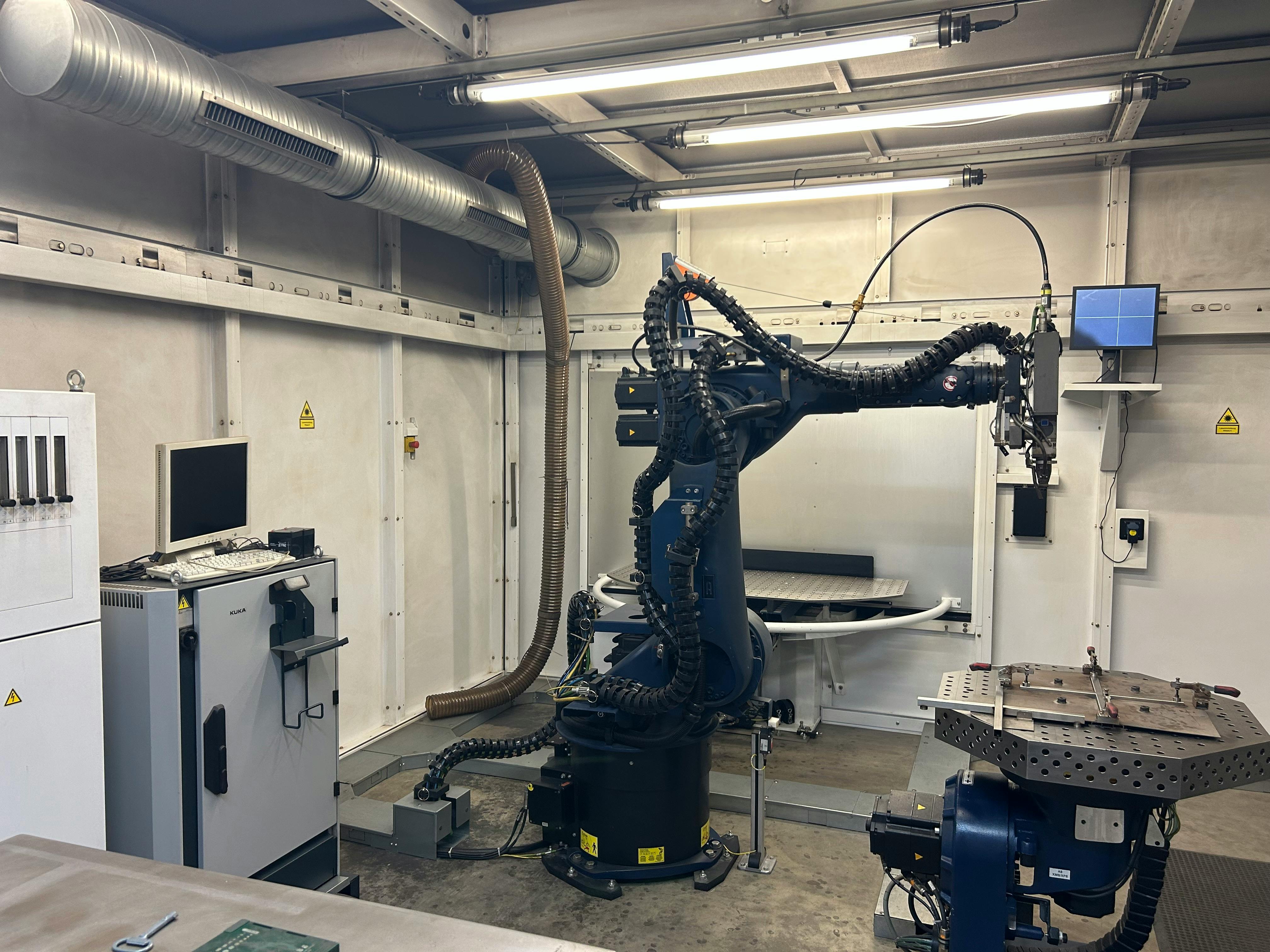

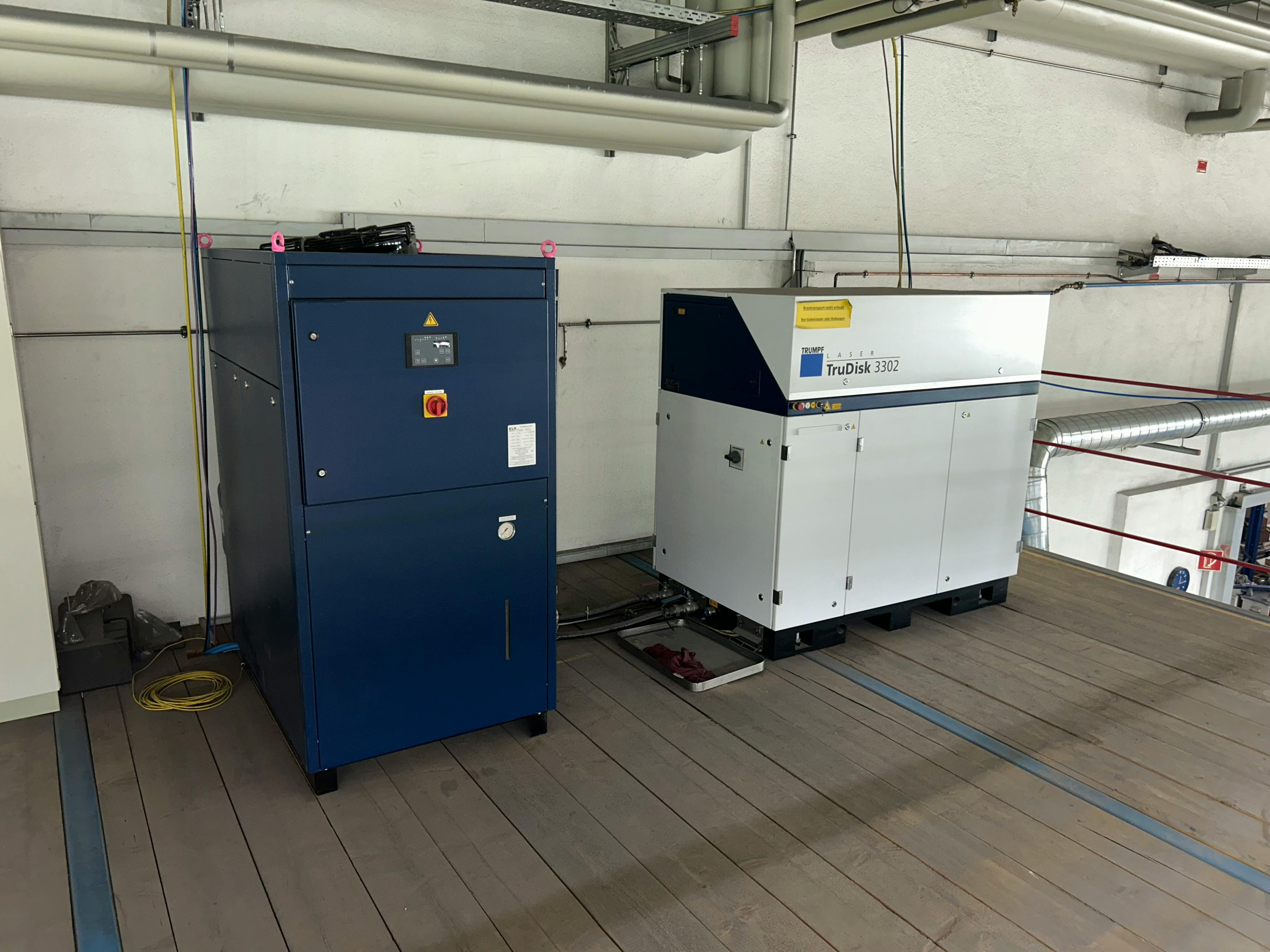

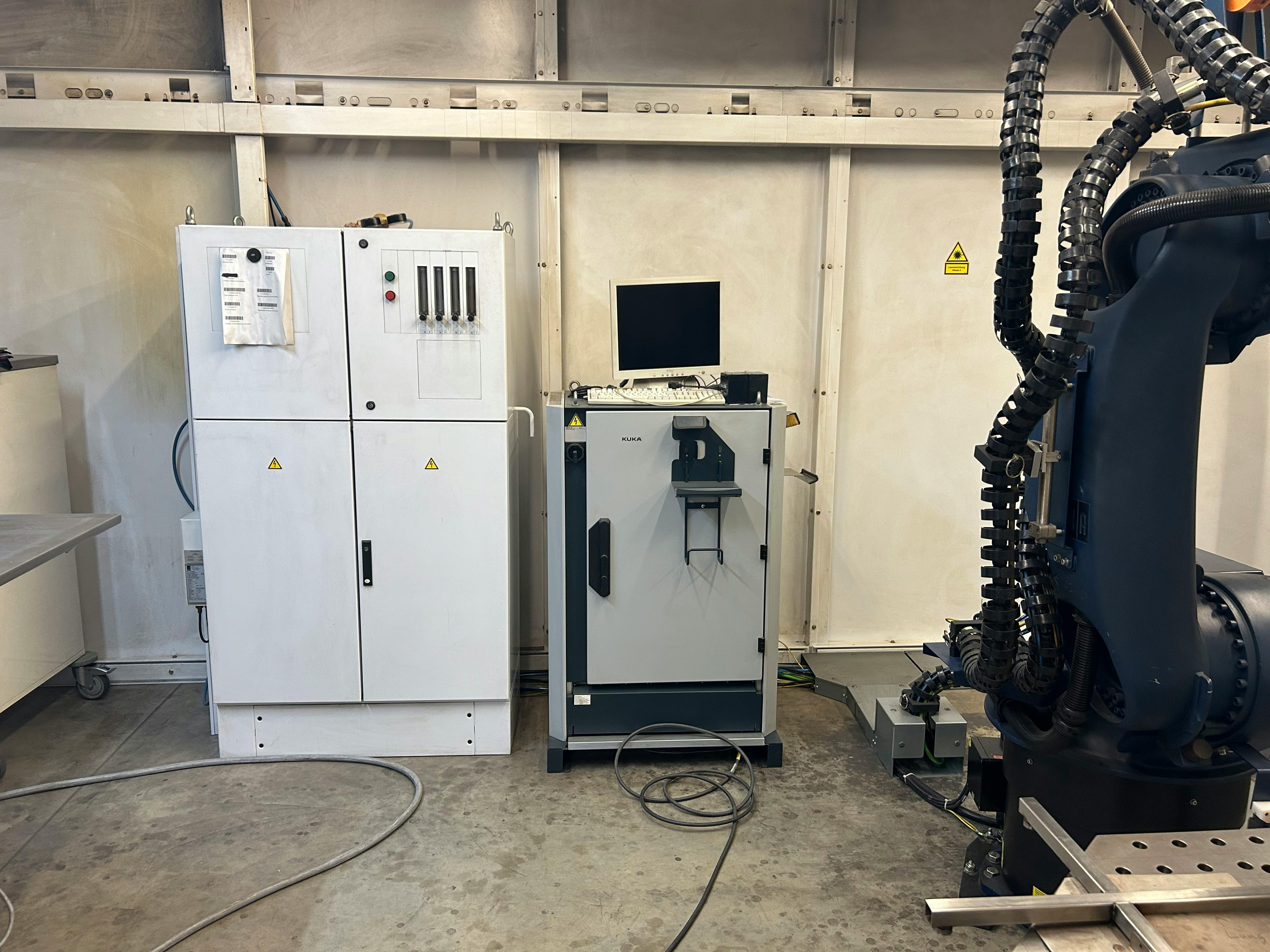

Trumpf TruLaser Robot 5020Year of manuf. : 2010 ____________Description:TruDisk 3302 laser system:- TRUMPF TruDisk 3302 with a beam quality of 8 mm mrad:- Output power of 3.3 kW at the workpiece:- Laser system with 1 cavity:- Beam delivery system comprising an optical assembly for a single optical path, a fast switch (50 ms switching time) and a pilot laser including electrical control:- Integrated power supply and real-time capable control system for the evaluation and visualisation of operational data:- Fast laser power control:- TruControl 1000 control system:- Storage capacity for 199 laser programmes:- Safety monitoring in accordance with laser safety class 1, including a central safety lock:- Protection class IP54:- 10.4 panel computer with TFT touchscreenExtension of the beam path:Plus 1 additional laser light cable output, including interface card:consisting of::# Optical assembly on base plate with fast switch:# Beam safety switch after coupling, if the output is not connected to an LLKKUKA Roboter KR 30 HA (High Accuracy) inkl. KRC2:- Six-axis industrial robot mechanics with articulated kinematics:- Three-phase servo drives for 6 degrees of freedom – maintenance-free and protected against overload:- Absolute position measurement:- The K-IRL programming language enables, amongst other things, a flexible programme structure, freely selectable programme/variable names, etc.:- Telediagnostics moduleDKP 400.1 Rotate-Tilt Positioner:- Rotation and tilting of workpiece clamping devices in relation:to the robot’s position:- Fully interpolated integration of the rotation and tilt axes:as the 7th and 8th NC axes3D clamping plate 800 x 100:- Demmeler System:Clamping of fixtures via 3D worktable, hole pitch 16:mm / grid 50x50 mm 2, SW 800x100Two-station rotary table:- Manual two-station rotary table, each side of which can accommodate one component clamping fixture:- Light-tight integration into the safety enclosure:- The fixtures are connected via two support rails eachLaser Welding Technology Package:- Manual two-station rotary table designed to accommodate one component clamping fixture on each machining side:- The fixtures are connected via two support rails each:with a 16 mm diameter and 100 mm hole pattern::Standard cabin:- Dimensions (L/W/H) 4800 mm x 7000 mm x 3200 mm:- Automatic sliding door at the front 2000 mm x 2300 mm:- 1 laser safety screen:- Cab lighting
seller offer No. resale 89-001768
