torna kullanılmış satılık (3,121)

This 8s Muratec MW 40 was manufactured in 2019. It features a twin-spindle configuration with automatic loading and unloading capabilities. The machine includes 2 C-axes and 2 Y-axes, providing versatile machining options. With a total of 7 turning holders and 6 boring holders, it is designed for efficient part handling. If you are looking to get high-quality turning and milling capabilities, consider the Muratec MW 40 turn-mill centre we have for sale. Contact us for further details.

Horizontal turning machine manufactured in 1998. This MORI SEIKI CL 150 features a maximum turning diameter of 400 mm and a maximum turning length of 303 mm. It includes a spindle speed range of 60 - 6000 rpm and a turret with 12 stations for efficient tool management. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI CL 150 machine we have for sale. Contact us for further details.

This 9-axis Index C100 was manufactured in 2012. It features a robust cast iron machine frame and a powerful main spindle with a maximum speed of 7000 rpm and a bar diameter of 42 mm. The machine includes three turrets with live tools, offering versatile machining capabilities. If you are looking to get high-quality turning capabilities, consider the Index C100 horizontal turning machine we have for sale. Contact us for further details regarding this machine.

BOEHRINGER 800 YAŞINDA Hassas torna tezgahı Burada olağanüstü iyi bir hassas torna makinesi sunuyoruz. Bu makine muhtemelen bu sınıfta yapılmış en iyi Alman torna tezgahıdır. Üretim yılı 1989 3 eksenli Dijital Ekran HEIDENHAIN Model ND 780 Orta yüksekliği 400 mm Yatak üzerindeki çevre çapı 820 mm Yüz kaydırması üzerinden çevre çapı 515 mm Merkez genişliği yaklaşık 2.200 mm Tur uzunluğu yaklaşık 2.000 mm etkinlikte Bar Geçidi 128 mm 11 numaralı DIN55022 mil başı Sürüş gücü 30 kW Maksimum tork 6.300 Nm 24 hız: 7.1 – 1.400 rpm. 60 düz besleme 0.05 – 28 mm/devir 60 boylamasına besleme 0.06 – 56 mm/devir Uzunlamasına enine beslemede hızlı geçiş Motorlu üst destek Kuyruk kısmı quill strok 280 mm Kuyruk Konisi MK 6 Alan gereksinimi LxWxH yaklaşık 6.700 mm x 2.500 mm x 2.250 mm Ağırlığı yaklaşık 7.5 ...

Teknik veriler: Üretici: VOEST-ALPINE Tip: DA 260/71 Spindle Hız: 21 – 1.500 rpm Mil çapı: 71 mm Turlama çapı: 520 mm Merkez genişliği: 1.000 mm Araçlar Araç tutucu: Multifix B Tailstock: MK5 Durum Durum: Kullanıldı Fonksiyonel: Test edilmiş ve tam işlevsel Diğer ekipman ve aksesuarlar şunları içeriyordu: Soğutma Sıvısı Kurulumu Besleme koruması Multifix Kaset B (8 parça) Çene çakması 315 mm Çeşitli ara kılıflar, uçlar, matkap çakmaları

Kontroller: Mitsubishi, ağırlık: 2.2t. Ekipman: kılavuz burçlu ana mil, karşı mil, iki C ekseni, birkaç tahrik edilmiş alet, ön işleme ve arka yan işleme, çapraz işleme için alet bloğu, otomatik parça tutucu, bar besleme bağlantısı, orijinal ayar aletleriyle birlikte alet dolabı, mil izleme EWL 4444, yüksek basınçlı soğutma sıvısı kaynağı, ekstraksiyon bağlantısı. Sahada inceleme yapılabilir.

Kontroller: Mitsubishi, ağırlık: 2.53t. Ekipman: karşı mil, tahrikli alet istasyonlu alet tareti, tahrik edilmiş aletlerle lineer sürgü, bar besleyici arayüzü, alet seti ve ayar aletleri, mil izleme EWL 4444. Sahada inceleme yapılabilir.

Maksimum dönüş çapı: 12mm, maksimum torlama uzunluğu: 200mm, nominal akım: 40A, ana gerilim: 200V, bağlı yük: 8kVA, ağırlık: 2.1t, alt mil, sürülen aletler, bar besleyici. Sahada inceleme yapılabilir.

Equipment: main spindle, counter spindle, upper and lower tool turret or upper and lower machining unit, parts catcher, workpiece conveyor, coolant/filter system, separate coolant or hydraulic tank, bar feeder, handheld control unit. Bar diameter: 65mm, full load current: AC 194/176A, main switch power connection: 200A, connected load: 67.2kVA, control: FANUC Series 18i-TB, weight: 8.5t, operating hours control on: 89,800h, automatic time: 68,024h, feed time: 32,377h, including AME HA 180-4 cyclone filter system with two coolant pumps 2x 5/25bar, the machine was completely overhauled in 2024 and is fully functional. An on site inspection is possible.

This Weiler E30 was manufactured in 1990. A robust horizontal turning machine featuring a spindle bore of 42mm and a swing diameter over bed of 330mm. It supports a wide range of thread cutting, from metric to DP thread, and includes a Multifix holder B. Ideal for detailed and versatile turning operations. Contact us for more information about this machine.

This 4-axis DOOSAN Lynx 220 LMS was manufactured in 2013. It features a Fanuc 31 i control unit and comes equipped with a short bar loader/bar feeder. If you are looking to get high-quality turning capabilities, consider the DOOSAN Lynx 220 LMS machine we have for sale. Contact us for further details.

This 4-axis Okuma LB3000II-MYC 950 was manufactured in 2020. It features a maximum turning diameter of 340 mm and a maximum turning length of 950 mm. The machine is equipped with a robust main spindle power of 30 kW and a maximum spindle speed of 4,200 rpm. If you are looking to get high-quality turning capabilities, consider the Okuma LB3000II-MYC 950 horizontal turning machine we have for sale. Contact us for further details.

Genel Üretici: Citizen Tip: K 12 VIIP Yapım Yılı: 2005 Kontrol: Fanuc 30i-A Aks sayısı: 7 Dış çap: 12 mm Tur uzunluğu: 200 mm İplik çapı: 8 m Mil Geçidi: 20 mm Spindle Hız: 200 – 10.000 t/dakika Kanal çapı: 5 m Alt iğne Hız: 0 – 10.000 t/d Karşı işleme için iş parçası uzunluğu: 80 mm Araç Taşıyıcı Sürülen alet sayısı: 4 Sürülen aletlerin hızı: 6.000 t/dakika Sürüş Bağlantı 50 Hz 3x: 400 volt Mil motoru: 3.7 kW Boyutlar ve ağırlık Boyutlar: 2.020 mm x 1.070 mm x 1.680 mm Ağırlık: yaklaşık 2.250 kg Durum Durum: Kullanıldı Fonksiyonel: Test edilmiş ve tam işlevsel Diğer ekipman ve aksesuarlar şunları içeriyordu: Bar Besleyici Iemca Genius 118 32U

Genel Üretici: Citizen Tip: Cincom R 07 VI Üretim Yılı: 2016 Kontrol: Fanuc 30i-A Aks sayısı: 6 Turlama çapı: 7 mm Turlama uzunluğu: 40 mm İplik çapı: 4 m Mil geçişi: 12 mm Spindle Hız: 0 – 16.000 rpm Mil gücü: 1.1 kW Alt iğne Hız: 0 – 10.000 rpm Manyetik uzunluğu: 40 mm C ekseni: 1 Kanal çapı: 3 m Araç Taşıyıcı Miktar: 2 İstasyon sayısı: 13 Torna aletleri: 5 Delme aletleri: 4 Takım sapı kesiti: 8 mm Karşı işlem Araç sayısı: 4 Sürüş Bağlantı 50 Hz 3x: 400 volt Alt mil gücü: 0,5 kW Toplam güç gereksinimi: 4 kVA Boyutlar ve ağırlık Boyutlar: 1.465 mm x 560 mm x 1.410 mm Ağırlık: yaklaşık 950 kg Durum Durum: Kullanıldı Fonksiyonel: Test edilmiş ve tam işlevsel Diğer ekipman ve aksesuarlar şunları içeriyordu: Pnömatik iş parçası çıkarımı LNS Tryton 112 Diğer mini ...

Horizontal turning machine manufactured in 1990. This DMG Mori Seiki SL00 features a Kitagawa power chuck and includes a bar collet chuck for enhanced versatility. If you are looking to get high-quality turning capabilities, consider the DMG Mori Seiki SL00 machine we have for sale. Contact us for further details.

This MORI SEIKI SL 1000 was manufactured in 2000. It features a robust Kitagawa Power Chuck and extensive tool holders, making it suitable for various turning applications. With a machine weight of 2160 kg and a rated power of 23 kVA, it offers reliable performance. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI SL 1000 horizontal turning machine we have for sale. Contact us for further details.

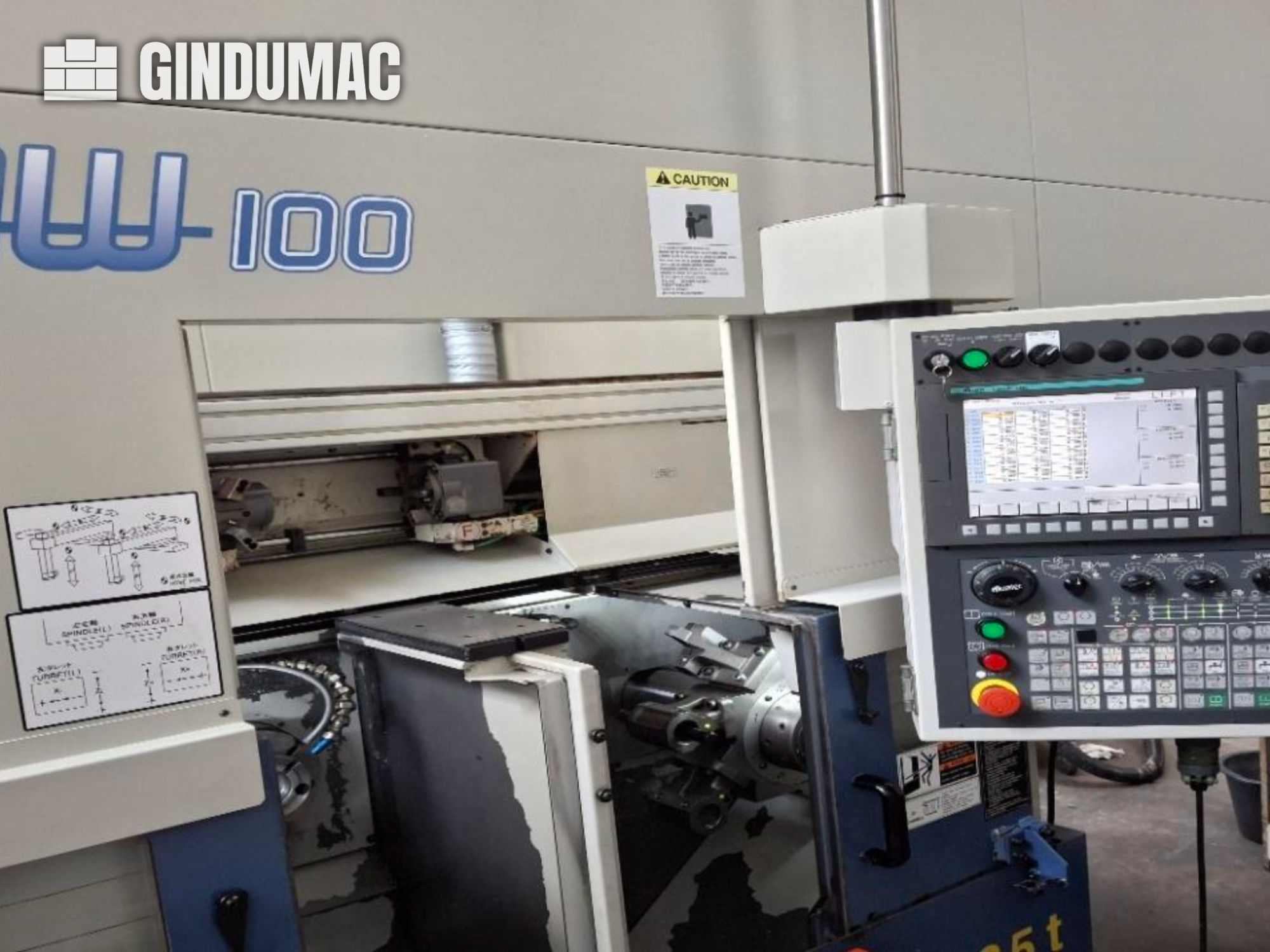

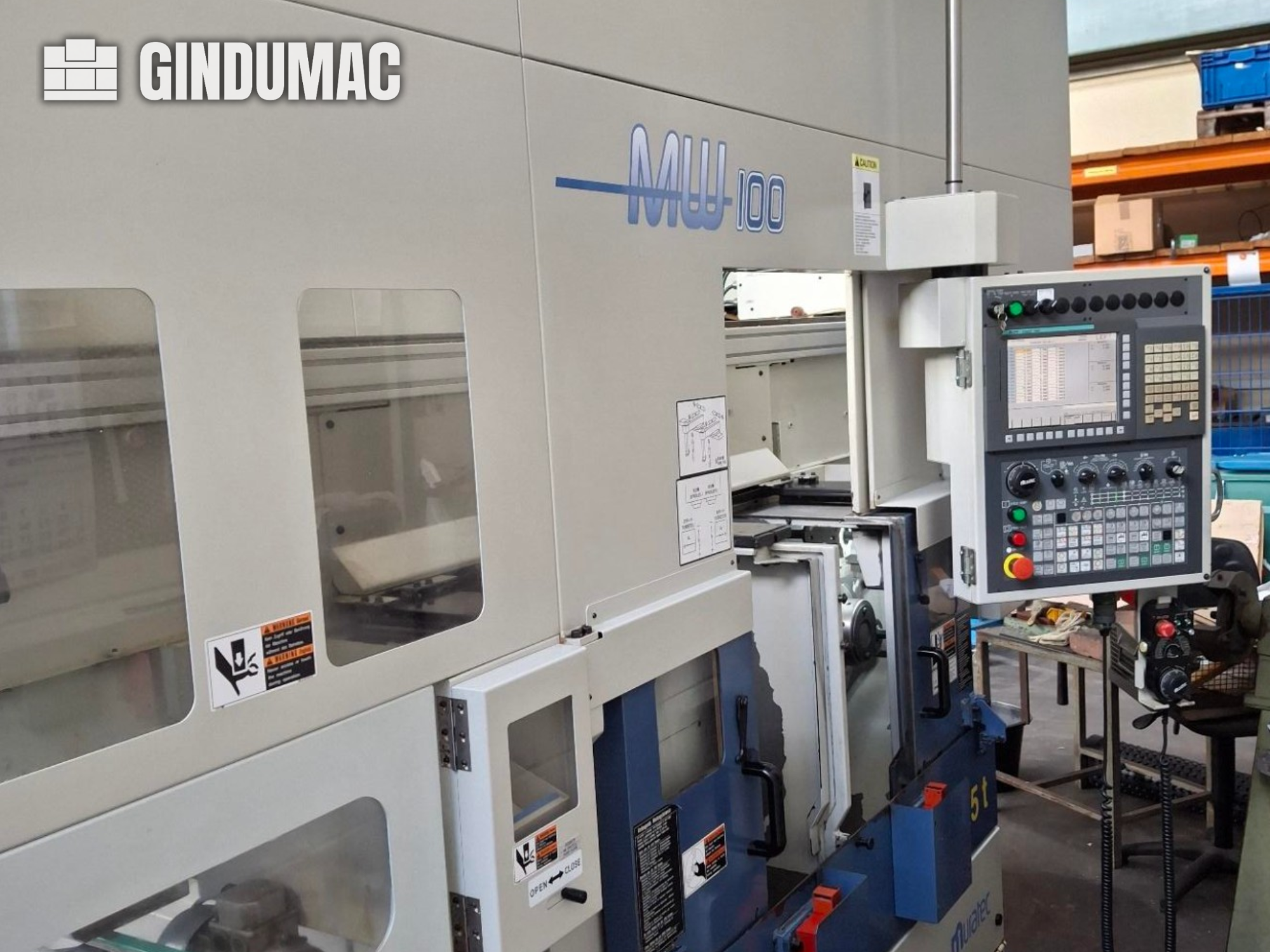

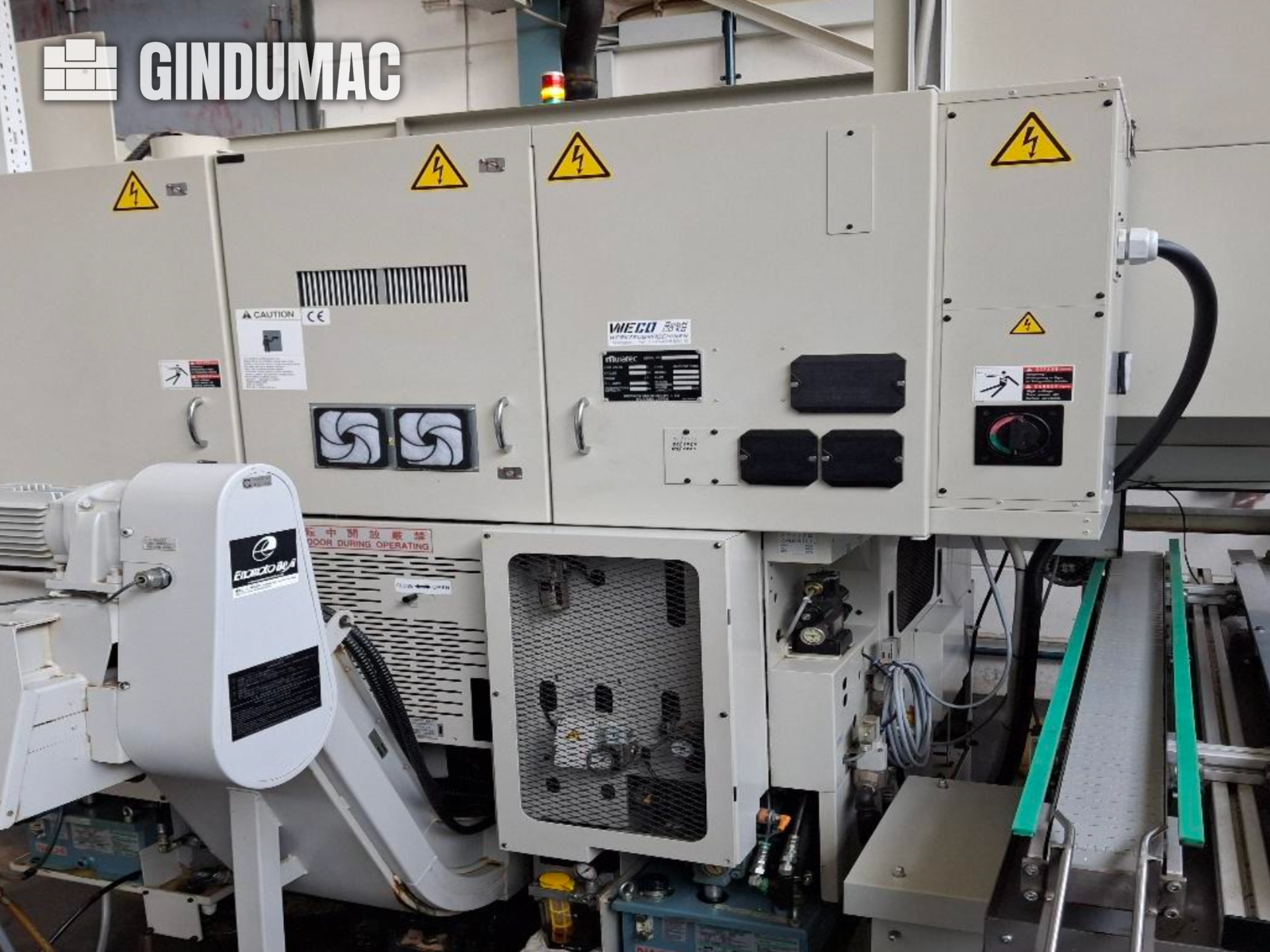

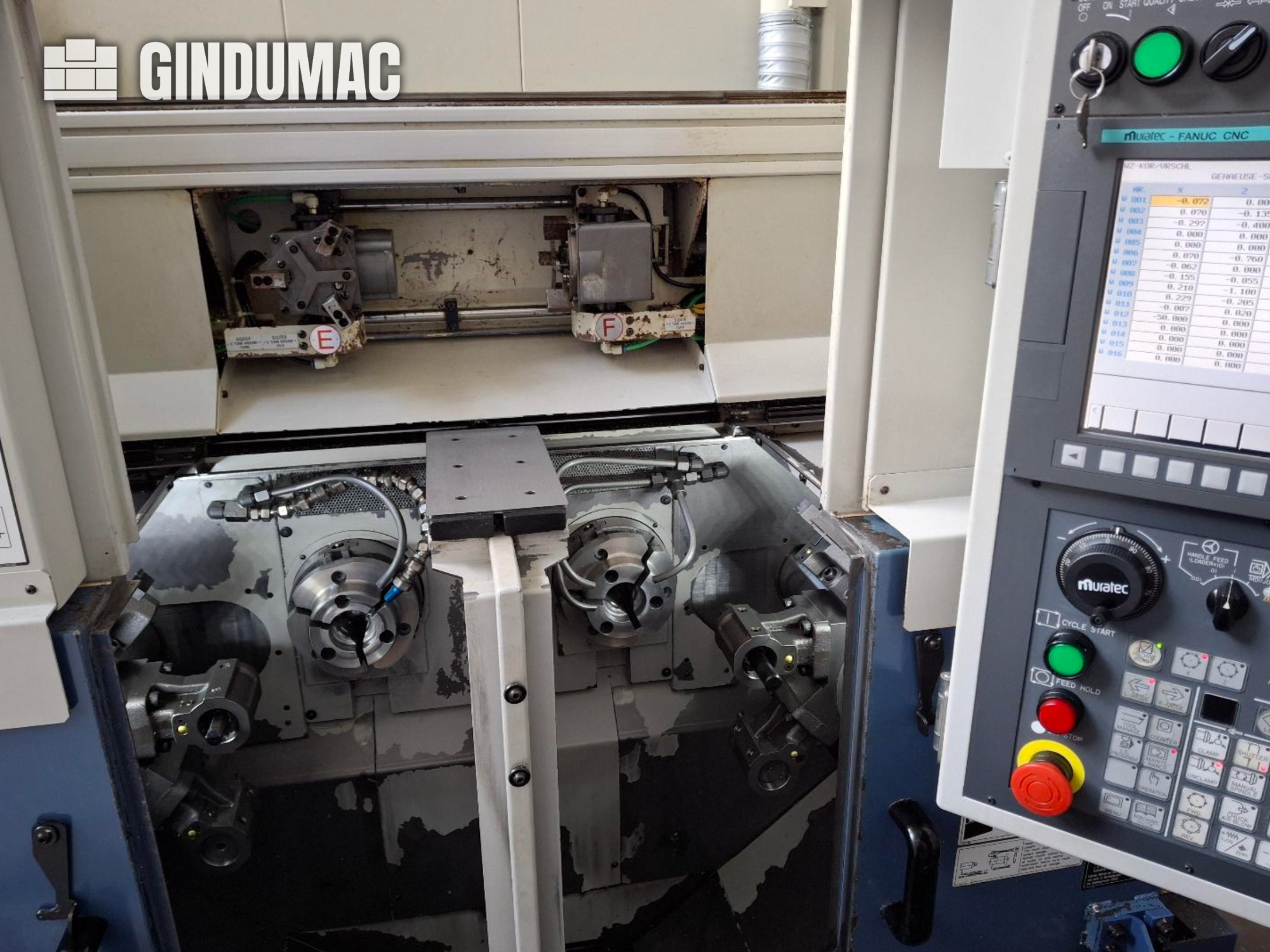

This 4-axis Muratec MW 100 GT multi-spindle turning machine was manufactured in 2012. It features a maximum turning diameter of 168 mm and a turning length of 145 mm. The machine is equipped with two turrets, each with 8 stations, and a gantry loader for efficient operation. If you are looking to get high-quality turning capabilities, consider the Muratec MW 100 GT machine we have for sale. Contact us for further details.

Horizontal turning machine manufactured in 2006. This DOOSAN Puma 240 MB features driven tools and is equipped with a Fanuc 0iTC control unit. If you are looking to get high-quality turning capabilities, consider the DOOSAN Puma 240 MB machine we have for sale. Contact us for further details.

Horizontal turning machine manufactured in 1999. This DAEWOO EcoTurn 200 features a reliable Fanuc 18 T control system, ensuring efficient operation. If you are looking to get high-quality turning capabilities, consider the DAEWOO EcoTurn 200 machine we have for sale. Contact us for further details.

Horizontal turning machine manufactured in 1991. This Gildemeister CTX 400 features a reliable EPL 2 control system, ensuring efficient operation. If you are looking to get high-quality turning capabilities, consider the Gildemeister CTX 400 machine we have for sale. Contact us for further details.

Horizontal turning machine manufactured in 1993. This Gildemeister CTX 400 is in good condition and fully functional, featuring EPL 2 control. It comes with an extraction hose/pipe connected to the side enclosure. If you are looking to get high-quality turning capabilities, consider the Gildemeister CTX 400 machine we have for sale. Contact us for further details.

Horizontal turning machine manufactured in 2000. This DAEWOO Puma 350 features a reliable Fanuc 18T control system, ensuring efficient operation. If you are looking to get high-quality turning capabilities, consider the DAEWOO Puma 350 machine we have for sale. Contact us for further details.

This Takamaz XT 6 was manufactured in 2020. It features a maximum turning diameter of Ø180 mm and a maximum turning length of 240 mm. If you are looking to get high-quality turning capabilities, consider the Takamaz XT 6 horizontal turning machine we have for sale. Contact us for further details.

Horizontal turning machine manufactured in 2016. This Citizen MIYANO GN 3200 features a maximum machining diameter of 45 mm and a maximum machining length of 50 mm. It includes a spindle speed range of 8,000 rpm and a slide travel of 180 mm in the X-axis and 200 mm in the Z-axis. If you are looking to get high-quality turning capabilities, consider the Citizen MIYANO GN 3200 machine we have for sale. Contact us for further details.

Horizontal turning machine manufactured in 2016. This Takamaz ESL 10 features a robust configuration with optional Fanuc Drives, Spindle Orientation, and a Power Chuck. If you are looking to get high-quality turning capabilities, consider the Takamaz ESL 10 machine we have for sale. Contact us for further details.

Horizontal turning machine manufactured in 2017. This Citizen MIYANO VC-03 features a maximum turning diameter of 45 mm and a turning length of 50 mm. It includes a rapid traverse rate of 20 m/min for the X-axis and 30 m/min for the Z-axis, along with a robust spindle speed of up to 8000 min⁻¹. If you are looking to get high-quality turning capabilities, consider the Citizen MIYANO VC-03 machine we have for sale. Contact us for further details.

Horizontal turning machine manufactured in 1996. This SPINNER SB-CNC features an X-axis travel of 250 mm and a Z-axis travel of 285 mm. The main spindle operates at a speed of 8,000 U/min. If you are looking to get high-quality turning capabilities, consider the SPINNER SB-CNC machine we have for sale. Contact us for further details.

Horizontal turning machine manufactured in 1996. This MORI SEIKI CL 15 features a Z-axis travel of 371 mm and a spindle speed of 6,000 rpm. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI CL 15 machine we have for sale. Contact us for further details.

Horizontal turning machine manufactured in 2003. This MORI SEIKI CL 1500 T features a Kitagawa power chuck and includes a tailstock, tool measuring system, and tool holders. With production hours of 1523, this machine offers reliable performance for turning applications. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI CL 1500 T machine we have for sale. Contact us for further details.

Two Schütte six-spindle turning machines including one Iemca bar feeder are available. 1) Schütte SF 42, year of manufacture: 1977, number of spindles: 6, max. bar capacity: 42mm, max. longitudinal slide stroke: 125mm, speed: 2240rpm, machine dimensions X/Y/Z: approx. 6500mm/1400mm/2200mm, weight: approx. 10000kg. Including pick-off spindle, cams, collets, chip conveyor, oil mist extraction system and Iemca PRA40/33/P bar feeder. 2) Schütte SF 51 DNT, year of manufacture: 1987, max. bar capacity: 51mm, number of spindles: 6, max. turning length: 102mm, max. drilling depth: 102mm, spindle circle diameter: 340mm. Including pick-off spindle, CNC cross slide in position 4, cams, collets, auxiliary coolant pump and chip conveyor. Documentation available. An on-site inspection is possible.
