SPINNER VC 750

x-travel: 760 mm
y-travel: 460 mm
z-travel: 460 mm
control: TNC 620 Heidenhain
Main spindle::
turning speed range - main spindle: max. 12.000 min/-1
power capacity - main spindel: 14 / 10 kW
Torque: 89 / 63,7 Nm
tool taper: SK 40
work table::
table surface area: 900 x 410 mm
max. table load: 350 kg
T-slots: 4x
Tool-Presetter::
number of toolpositions: 24 pos.
max. tool diameter: 130 mm
max. tool length: 200 mm
max. tool weight: 8,0 kg
feeds::
rapid traverse ( X / Y / Z ): 36 m/min
total power requirement: 20 kVA
weight of the machine ca.: 3,3 t
dimensions of the machine ca.: 3,0 x 2,5 x 2,9 m
Documents: digital
Chip-Tray:
Automatic Tool Changer:
Coolantsystem:
interface 4. axis:
work light:

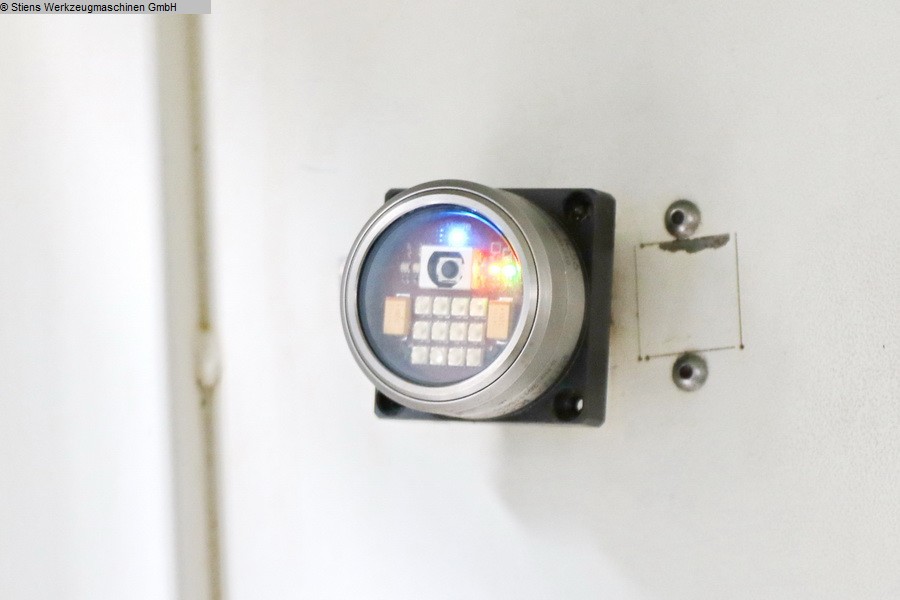

test probe: Blum TC 50
elektr. hand wheel: integriert / integrated
Tailstock: TTS-125

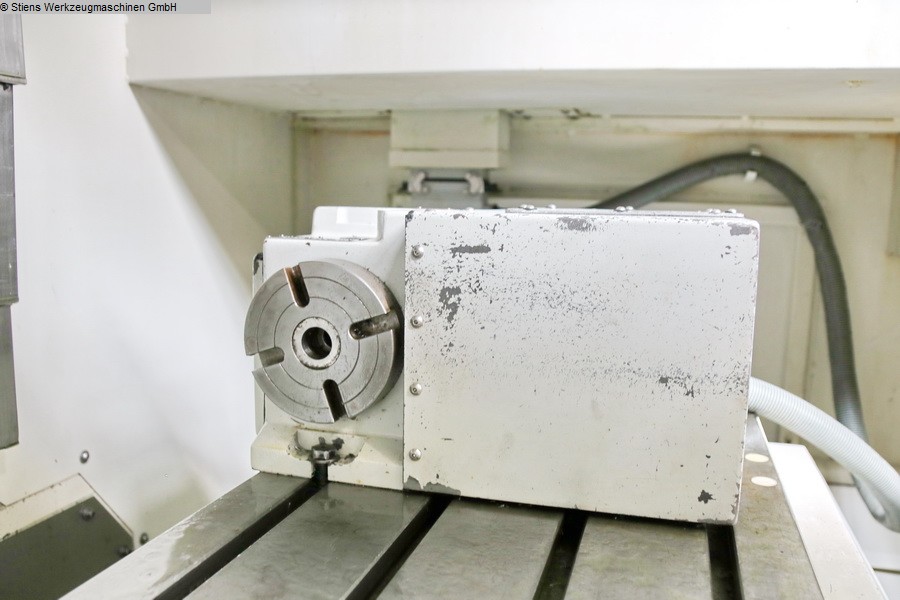

indexing attachment:

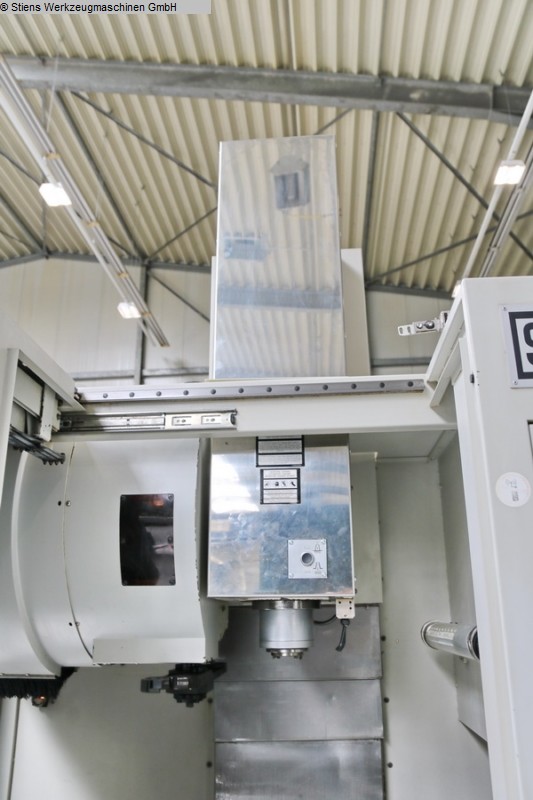

CNC Machiningcenter Vertical
SPINNER - VC 750



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1039-9470
