Sterilizer Tetra therm NG - 6.3T UTH SIEMENS Aseptic Flex

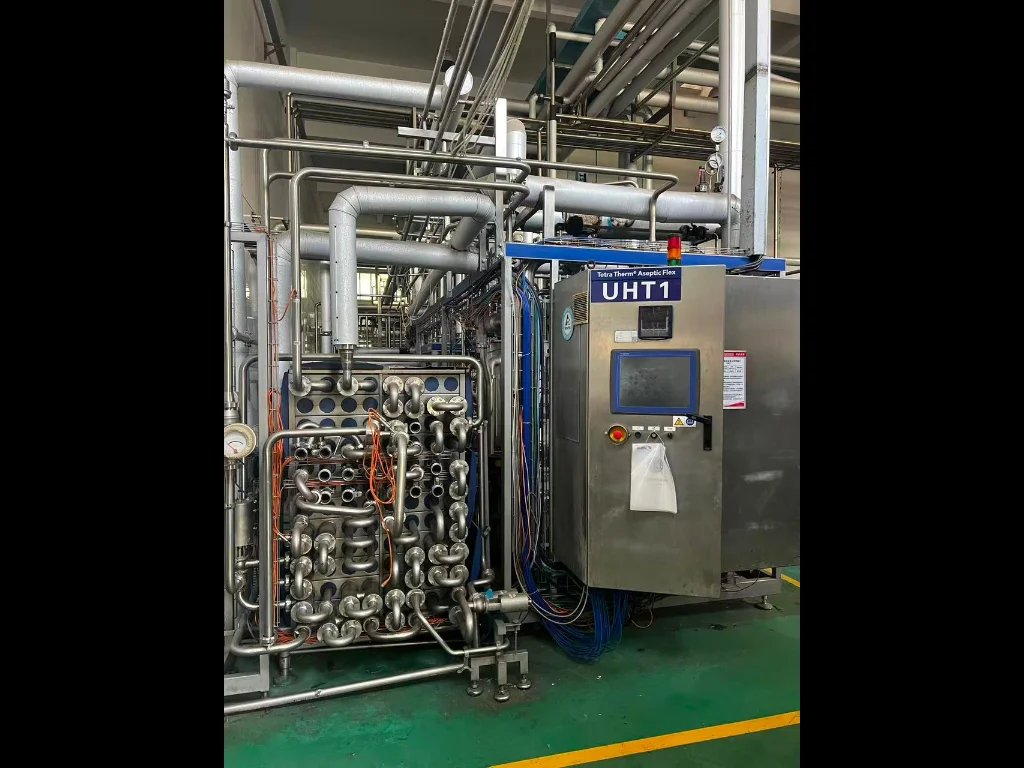

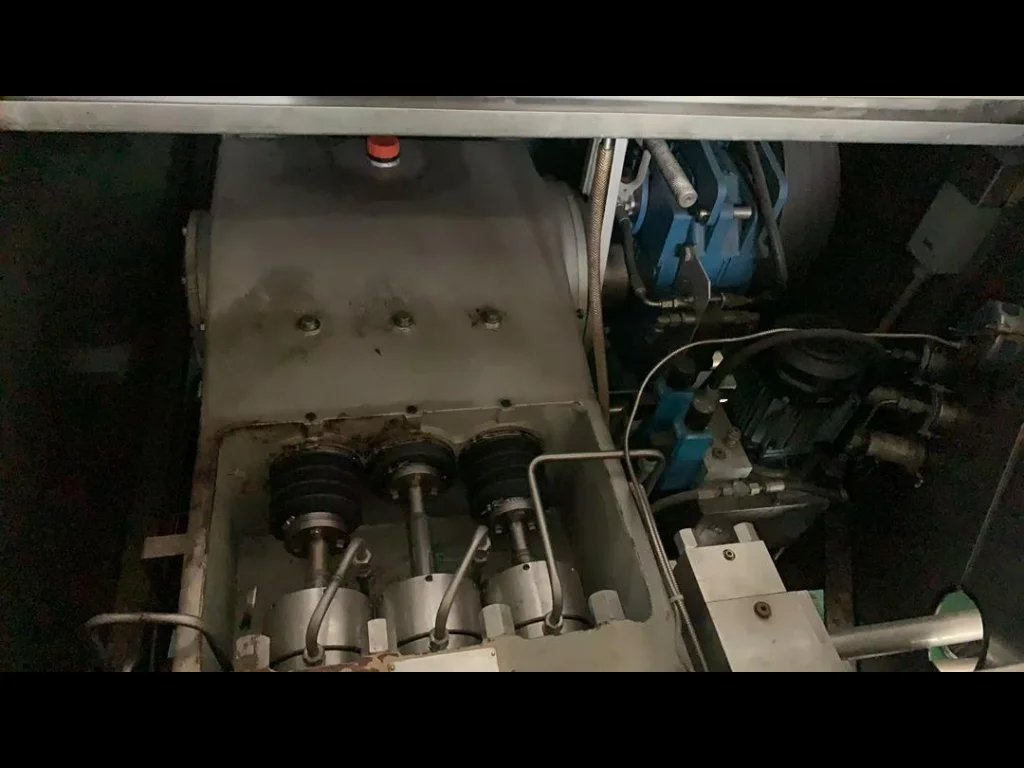

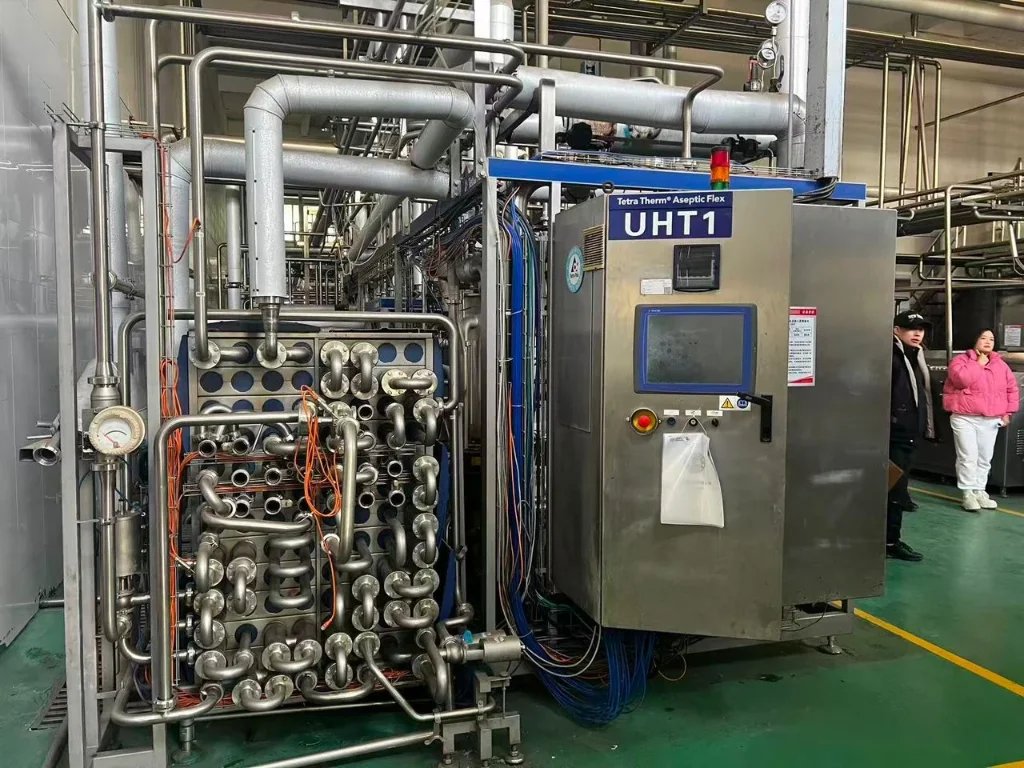

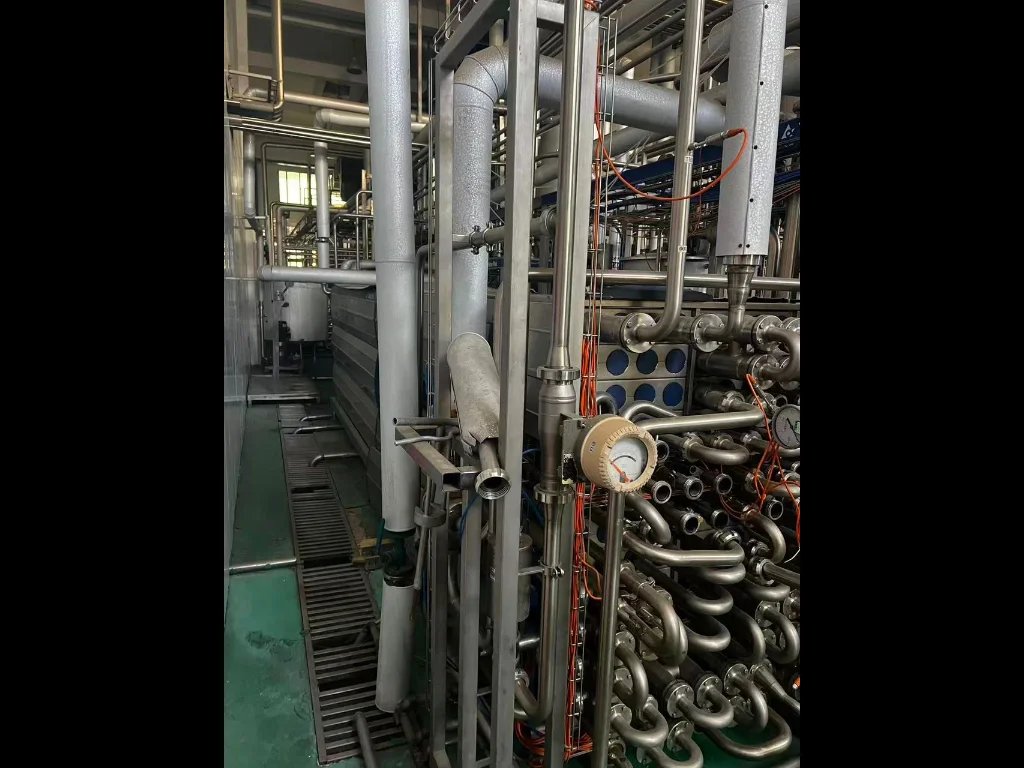

Sterilizer Tetra therm aseptic flex NG - 6.3T UTH with homogenizerTechnical Specifications & Performance DataThis Flash Pasteurizer and UHT sterilizer is engineered for high-efficiency thermal processing across dairy and beverage applications. The configuration described as 6.3T UHT + HOMO indicates a continuous aseptic module with integrated homogenizer capability and a maximum process temperature up to 144°C. Designed around tubular or plate heat exchangers, it delivers stable performance with precise thermal control.Process type: Indirect, continuous UHT in aseptic conditionsHeat exchanger configuration: Tubular or plateCapacity range (standard fixed modules): 4,000–32,000 L/hTurndown option: up to 1:3 with split heater and F0 control availableMax process temperature: 144°CElectrical power (excluding homogenizer): 23–60 kWUtilities consumption (reference tubular HX with product-to-product regeneration): Rinse water 1,000–2,000 L/h; Cooling water 0–100 L/h during production and 500 L/h during cooling; Steam 22 kg/h typical (110 kg/h peak during heat-up); Instrument air 50 Nl/minVoltage / Frequency: 400 V / 50 HzModel/Configuration: Tetra Therm Aseptic Flex, 6.3T UHT + HOMOMaterials: Product piping in stainless steel AISI 316Approximate layout dimensions (14,000 L/h reference module): Length 12,350 mm; Width 5,400 mm; Height up to 3,165 mmAdvanced Automation & Control SystemsThe system is fully automated and structured into defined operating phases for consistent product quality and simplified operation. It integrates modern PLC control and operator-friendly HMI to ensure repeatability, traceability, and safety.Operating phases: Pre-sterilization, Production, AIC (aseptic intermediate cleaning), CIP (clean-in-place)PLC: Allen Bradley CompactLogix or Siemens S7HMI: TPOP operator interfaceElectrical: 400 V, 50 HzAutomation features: Frame-mounted frequency converters, prewired power and signal cablingSafety and monitoring options: Conductivity meter for CIP control, differential pressure gauge, UPS, turbidity meter for phase fine-tuning, paperless data recorderQuick optimization: Swing-bend sections for manual thermal-area adjustment; F0 control optionProduction Line Integration CapabilitiesThis UHT Flash Pasteurizer integrates seamlessly within industrial packaging and beverage production plants. It can be paired upstream with deaeration and mixing and downstream with aseptic holding, sterile tanks, and filling monoblocks in a used bottling line or second hand processing setup.Inline/standalone: Operates as a standalone thermal unit or integrated within a complete beverage production lineUpstream options: Deaeration module (eco-mode available), product preparation, split heater for high-viscosity productsDownstream compatibility: Aseptic tanks, sterile manifolds, aseptic filling machines for PET, Glass, or carton systemsFormat flexibility: Suited to a wide viscosity range, including fiber-containing juices with tubular backflush CIPMachine Condition & Maintenance HistoryThe unit is offered as-is with no missing parts. The configuration corresponds to a new model specification with homogenizer capability. Overall presentation indicates a system suitable for recommissioning and integration into beverage production or dairy processing lines.Operational Performance & VersatilityOptimized for a broad product portfolio, the system maintains product quality through precise thermal profiles and controlled residence time. Energy-saving features and advanced cleaning options enhance uptime and reduce operating costs for industrial packaging and processing operations.Product applications: Milk, flavored milk, cream, drinking yogurt, buffalo milk, formulated dairy; fruit juices; soy milk; tea; coffeeSpecial product treatments: Extra holding tube up to 30 s; product-to-product tubular sections suitable for fibers; additional heating section for drinking yogurt with automatic on/off homogenization at 75°CEnergy efficiency options: Additional regenerative tubes, aseptic hibernation mode, tubular HX insulationFinal cooling options: Additional tubular section (to below 30°C) or plate section (to below 10°C)Homogenizer integration: Aseptic, non-aseptic, swing-bend interchangeable, or split; optional timing pump with flow control and automatic CIP of the dampenerInstallation Requirements & Site PreparationPlan the installation area to accommodate service access and utility routing. The layout references provided for a 14,000 L/h module can be scaled to the selected capacity.Space envelope (reference): 12,350 mm (L) x 5,400 mm (W) x up to 3,165 mm (H)Electrical supply: 400 V, 50 Hz, up to 60 kW (excluding homogenizer)Steam: 7 bar, approx. 22 kg/h typical; 110 kg/h peak during heat-upCooling water: 300 kPa, 20°C; 0–100 L/h during production; 500 L/h during coolingRinse/CIP water: 300 kPa; 1,000–2,000 L/h during CIP rinseInstrument air: 50 Nl/minSafety Standards & Compliance CertificationThe unit is designed for hygienic process
seller offer No. resale PST33
