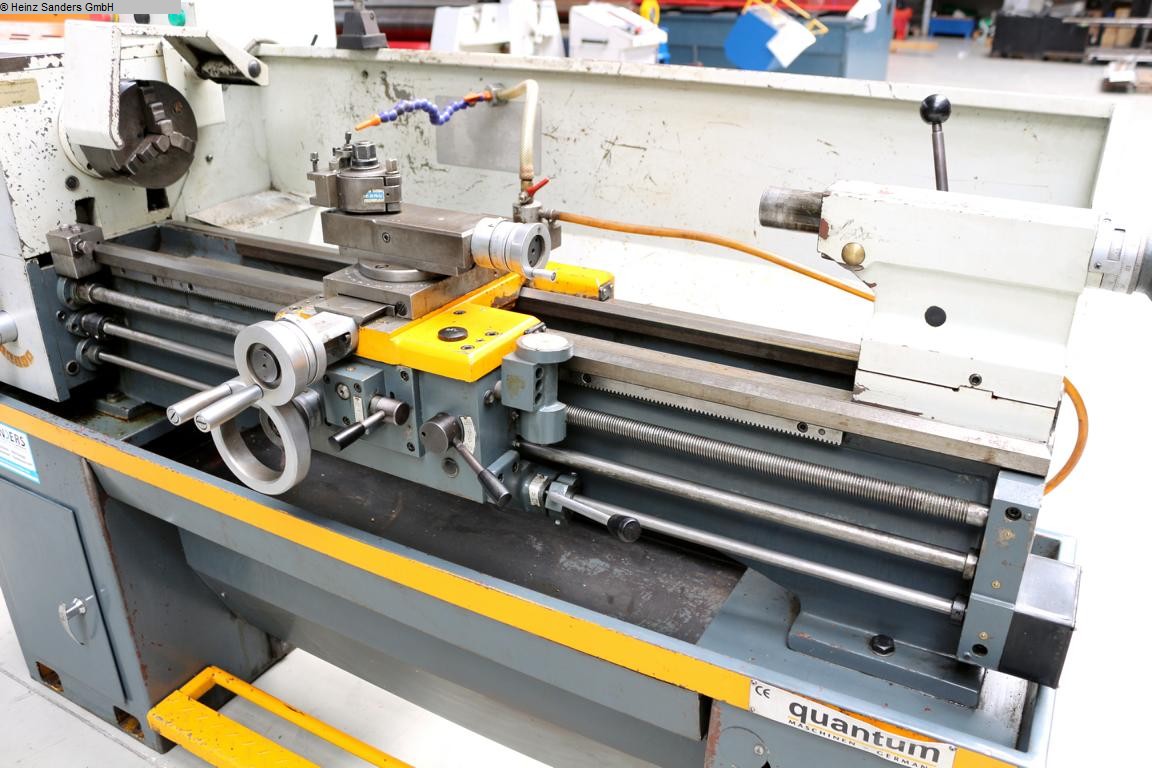

QUANTUM D 330 x 1000

turning length: 1000 mm
turning diameter: 330 mm
turning dia. over face-slide: 198 mm
turning dia. in gap: 476 mm
spindle bore: 38.0 mm
turning speeds: 70 - 2000 U/min
bed width: 180 mm
spindle taper: DIN ISO 702-2 Nr. 4
taper in tailstock: 3 MK
quill travel: 110 mm
total power requirement: 1.5 kW
weight of the machine ca.: ca. 610 kg.
range L-W-H: 1930 x 755 x 1300 mm
Features
- Ideal for technical schools, repair shops, and training workshops
- Modern main spindle bearing assembly with precision-grade angular contact ball bearings
- Single-lever chuck for the tailstock, adjustable for taper turning
- Hardened and ground gears and shafts in the gearhead
- Optimally suited for machining steel, non-ferrous materials, and plastics
- Removable bridge for machining workpieces with large
. diameters
- To minimize the effects of vibration, the solid prismatic bed
. is additionally equipped with ribs

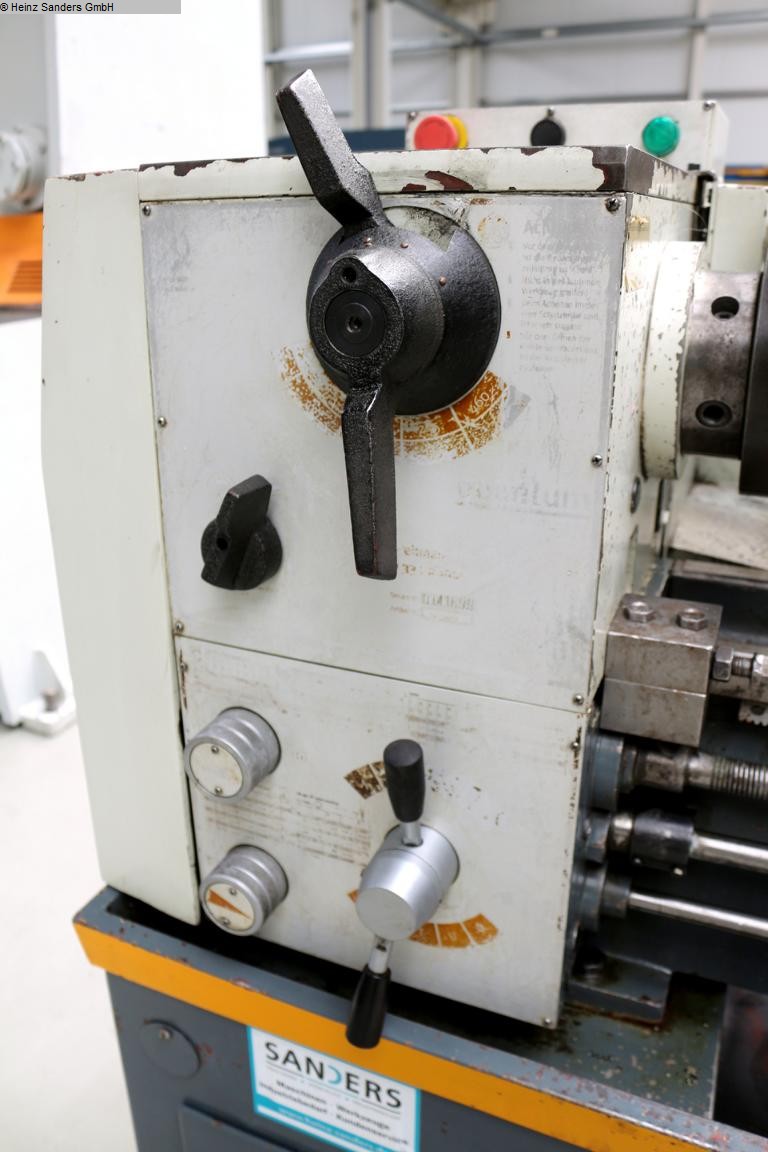

- The speed and feed rate adjustment is simple in design, smooth-operating, and
. can be shifted precisely

Scope of delivery:
- 3-jaw chuck
- MULTI-FIX tool holder with insert
- Safety guard for the 3-jaw chuck
- Slip clutch
- Coolant system
- Foot pedal with brake function, CE-compliant
- Rear splash guard
- Machine light
- Base frame
