Bant testereleri PEGAS 290 x 320 SHI-LR-F

cutting diameter: 290 mm
capacity 90 degrees: flat: 320 x 290 mm
capacity 45 degrees: flat: re 240 x 150 mm
capacity 45 degrees: round: re 240 mm
capacity 60 degrees: flat: re 150 x 180 mm
capacity 60 degrees: round: re 150 mm
capacity 45 degrees: flat: li 240 x 100 mm
capacity 45 degrees: round: li 240 mm
turning speed range:: 20 - 100 m/min
saw band length: 3100 x 27 x 0.9 mm
power capacity: 2.4 kW
weight of the machine ca.: 570 kg
range L-W-H: 1800 x 950 x 1550 mm
Current list price: approx. 12.000 euros
Special price upon request

Features:
- Semi-automatic electro-hydraulic band saw (INDUSTRIE)
- Suitable for single-piece and small-batch production
- Large, ball-bearing-mounted cast-iron rotary table
For miter cuts from 45° left to 60° right

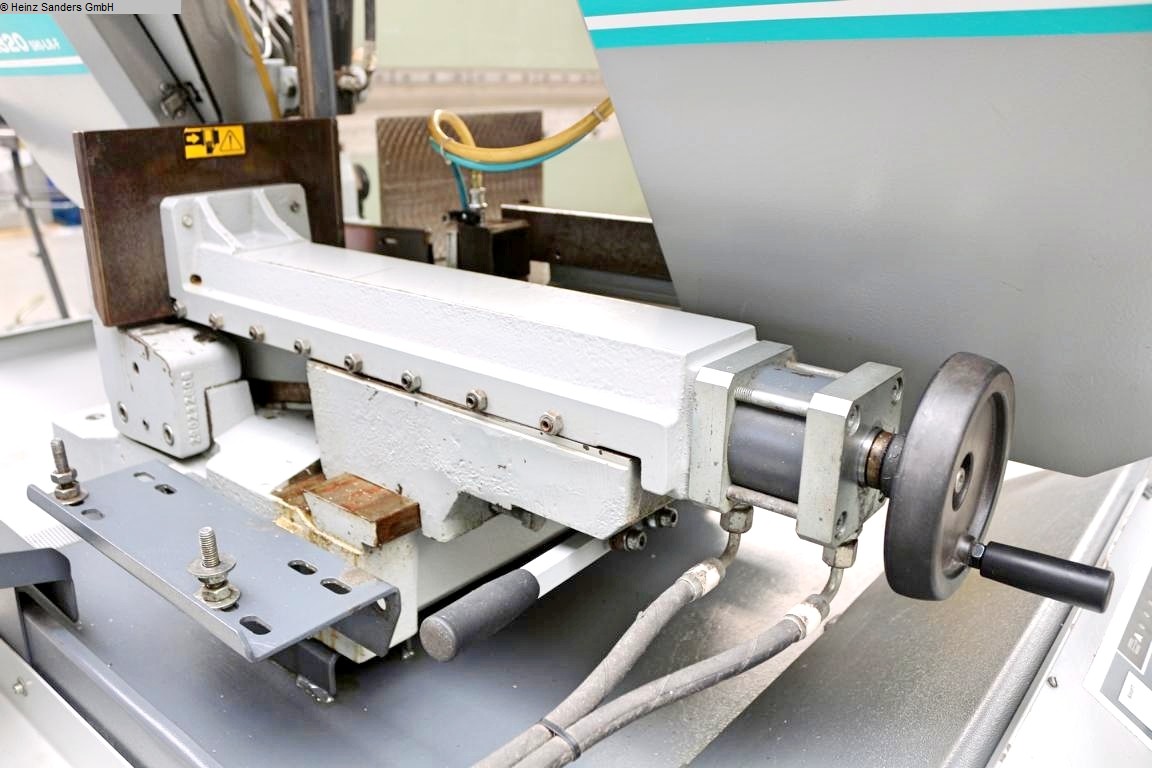

- Hydraulic cutting feed Material clamping
- Continuously variable band speed (Model F)
- Ergonomic control panel

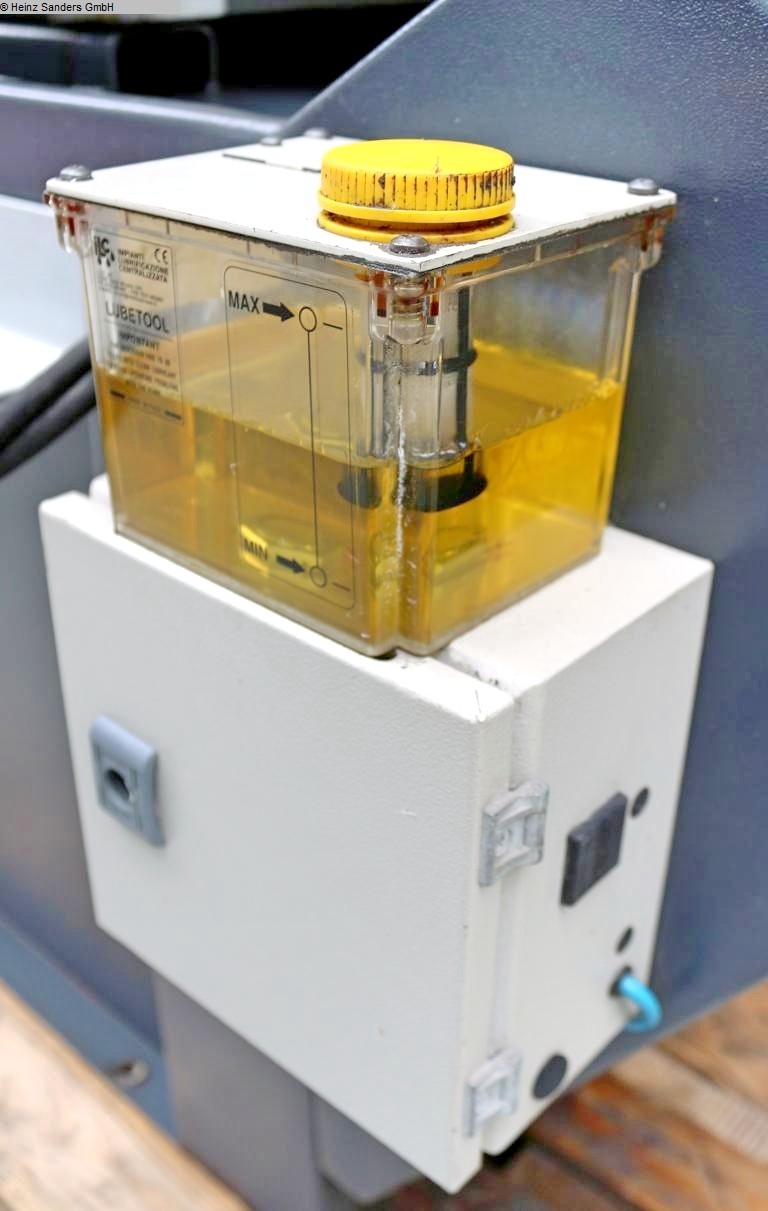

- Micro-spray lubrication system (spray oiler)
- 2x PEGAS roller conveyor
- Operating instructions in German

Semi-automatic work cycle:
After the cycle starts, the vise closes automatically,
the saw frame lowers for the cut and automatically raises
back to the predefined starting position once the cut is
complete. Afterward, the vise opens.
