torna kullanılmış satılık (3,098)

A vertical CNC lathe Emag is available. Speed: 4500rpm, Tool stations: 12, Travel X/Z: 570mm/200mm, Max. chuck diameter: 260mm, Max. turning diameter: 260mm, Max. machining diameter: 220mm, Max. workpiece length: 110mm, Rapid traverse X: 60m/min, Rapid traverse Z: 30m/min, Feed force: 5.5kN, Max. workpiece weight: 120kg, Weight: approx. 6500kg, Control: Siemens Sinumerik 840. Documentation available. An on-site inspection is possible.

A vertical EMAG CNC turning machine with automation is available. Speed: 6500rpm, workpiece length range: 22mm-100mm, turning length: 100mm, measuring length: 94mm, max. swing diameter: 220mm, max. pump pressure: 120bar, tool stations: 12, loading stations: 2, robot type: M-10iA, control: Fanuc 16i-TB, weight: approx. 10000kg, power-on hours: 84847h. Including high-pressure pump, tool setting probe, chip conveyor, coolant system, workpiece shuttle system and robot automation. Documentation available. An on-site inspection is possible.

A Takamatsu CNC twin-spindle turning and milling center is available. 1) Turning diameter: 190mm, turning length: 150mm, max. one-sided machining length: 440mm, max. bar diameter main spindle/counter spindle: 51mm/42mm, spindle nose 1/2: A2-6/A2-5, spindle bearing 1/2: 100mm/85mm, main spindle bore 1/2: 52mm/43mm, spindle speed: 5000rpm, tool stations: 2×12, travel X1/X2: 162.5mm/170mm, travel Z1/Z2: 500mm/500mm, travel Y: +/-35mm, travel A: 550mm, machine dimensions X/Y/Z: approx. 3000mm/2250mm/2100mm, weight: approx. 7400kg, control: Fanuc 32i-B. 2) TOP Automazioni FU350SX bar feeder, max. bar capacity: 52mm, max. bar length: 3200mm, max. remnant length: 300mm, max. feed rate: 30m/min, max. bundle weight: 2000kg, machine dimensions X/Y/Z: approx. 4300mm/1400mm/1200mm, weight: approx. 1200kg. 3) LTA E 120-X-2-H filtration system, year of manufacture: 2022, filter stages: 2, extraction  ...

Horizontal turning machine manufactured in 2009. This DMG CTX510 ecoline features a maximum turning diameter of 465 mm and a swing diameter over the bed of 680 mm. It includes a 12-position tool turret and a spindle speed of up to 3,250 rpm. If you are looking to get high-quality turning capabilities, consider the DMG CTX510 ecoline machine we have for sale. Contact us for further details.

This 3-axis SPINNER TC 52 MC was manufactured in 2007. It features a robust design with optional equipment including a bar feeder, parts catcher, and a turret with driven tools. The machine is equipped with a collet chuck for clamping and a dust extraction system for efficient operation. If you are looking to get high-quality turning capabilities, consider the SPINNER TC 52 MC horizontal turning machine we have for sale. Contact us for further details.

CNC lathe Gildemeister Twin 65Y RG2 Year of Make: 2003 Control Siemens 840D CNC Twin Spindle Turning Center Design Main/Sub-Spindle Yes Turret 2 × 12 stations Tool holder VDI 30 Powered Tools Yes Y-axis Yes (upper turret) C-axis main and counter spindle Workspace Feature Value Max. turning diameter 250 mm Max. turning length 650 mm Max. turning Ø over bed approx. 340 mm Bar passage 65 mm Main spindle Feature Value Speed 20–5,000 min⁻¹ Power 35 kW Gjbr U Uozl Dy Nek Rhsud Torque 370 Nm C-axis 0.001° Sub-spindle Feature Value Speed 20–5,000 min⁻¹ Power 35 kW Torque up to 370 Nm Bar passage 65 mm C-axis 0.001° Travels Axis Value X1 300 mm Z1 650 mm Y 80 mm (±40 mm) X2 180 mm Z2 650 mm Tool turret Number of stations 12 + 12 Tool holder VDI 30 Driven tools 4,000 min⁻¹ Power tool drive 11 kW Torque tool drive 28 Nm Chip conveyor Hig ...

CNC lathe Gildemeister Twin 42 RG2 Year of Make: 2004 Control Siemens 840D Powerline Turning diameter 145 mm Max. bar passage 45 mm Spindle Head Flat Flange 120 h5 Chuck 130 / 140 mm Main spindle speed 20–7,000 min⁻¹ Main spindle power 28 / 22 kW (40/100 % ED) Torque main spindle 180 / 140 Nm Sub-spindle Yes, same performance X-axis 220 mm Z-axis 320 mm Y-axis ±30 mm Rapid traverse X/Y/Z 30 / 15 / 30 m/min Turret 2 × 12 stations Tool holder VDI 25 Machine weight approx. 5,300 kg Connected load approx. 40 kVA Type 60° inclined bed, linear guides Chip conveyor Bürener type SPE 63/30- 250 Z60 Tool monitoring system Artis type CTM Tailstock mounted on sub-spindle carriage, tailstock stroke = 230mm Tailstock force = 300 daN Centrifuge MK3 Overload clutch for the X and Z axes of slides 1 and 2 Bar machining package consisting of: Workpiece collection device  ...

Production 1 CNC lathe Maier MLK32 D-5 2009 Control, Fabr. Maier/Fanuc, separate cooling /Lubricant preparation, Fabr. Knoll, type KF110, Belt filter, CO2 extinguishing system, Fabr. Kraft + Bauer, Bar Feeder, Fabr. FMB, Type Turbo 3-36, Ser.-Nr. 261209, L 4,200 mm, Accessories: Bar table, Sheet Steel Cabinet Control GE Fanuc 7 axes (X1,Z1,Y1,C1 X2,Z2,C2) All items are sold without tools or tool holders. If required, these can be purchased separately. Photos showing tools are for illustrative purposes only and are not part of the scope of delivery.

number of spindles:8 spindle passage:67 mmCam controlled multi spindle automatic lathe, used8 main spindlespick up in pos. 8threading attachmentCNC compound slide in pos. 5, also 2. speed in pos. 2Hydraulic spindle brake in pos. 4Incl. length measurement, incl. Brankamp cutting force monitoringtooling: could be different like picturesPlease, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

Article: Vertical turning and grinding centreManufacturer: EMAGType: VSC 250 DSYob: 2008Control: SIEMENS 840DGrinding spindle speed: 30,000 rpmRotation spindle speed: 3,000 rpmTool places turret: 12Cooler for spindle and machine bed coolingCooling lubricant - lifting station (no independent cooling lubricant supply)Chip conveyorParts handling Air through the spindleTwo clamping circuits through the spindle (air and oil)Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:51 mmArticle: multi spindle automatic latheManufacturer: SchütteType: AF51Yob: 1987eight main spindlesmax. bar diameter D=51mmcontrol SIEMENS SIMATIC S5pick up in pos. 7, for rear machiningthread cutting driveindependent feed in positions 2/3electronical trip dog control ?Balluff?clear text display Wöhrlecoolant pumpmagnetic cartridge filteroil runningincl. bar loader IEMCA PRA 40/37/F, yob 1987, (bundle type)Painting in light blue and light greyThe configuration of tooling will be different like pictures.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

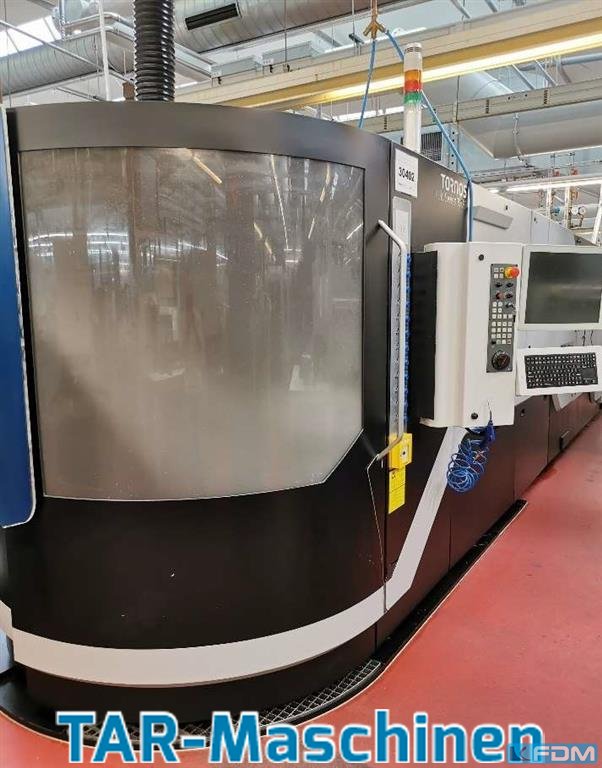

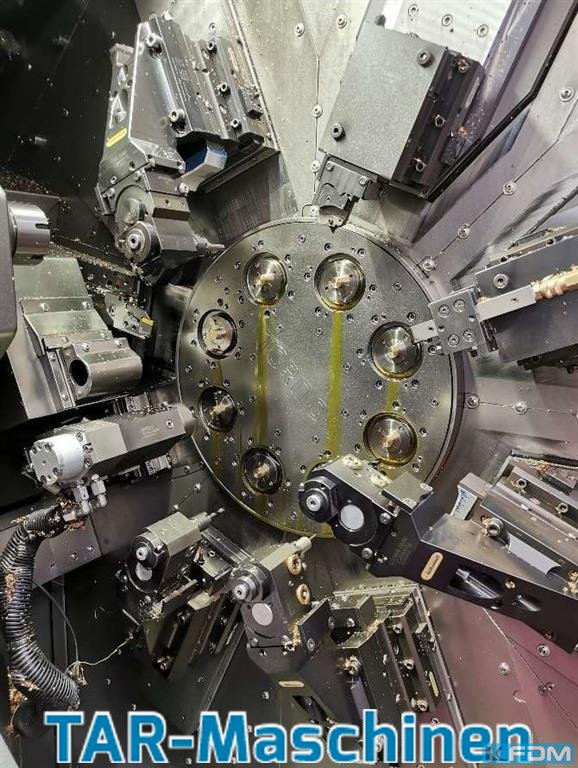

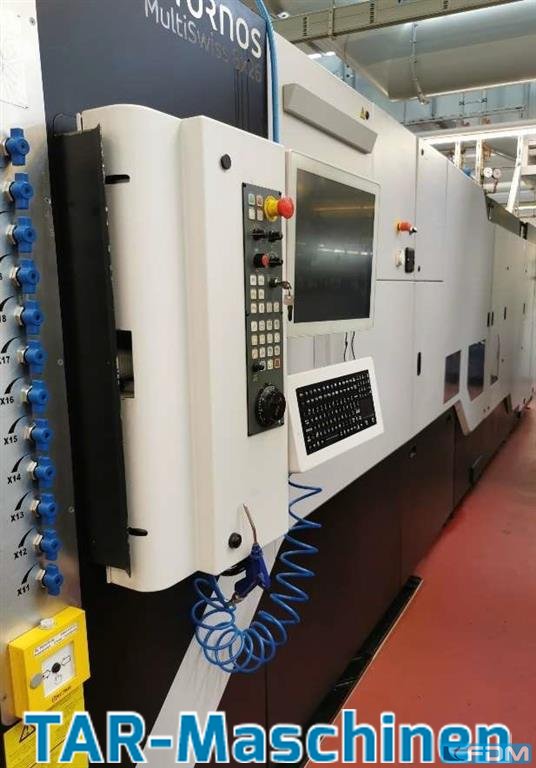

Article: CNC-controlled multi-spindle automatic latheManufacturer: TornosType: MultiSwiss 8x26Yob: 2016full cross slide configuration,counter spindle,part-pre-drawing device,2 x driven tools,3 x Y-axis,1 rigid backworking,1 x driven backworking,2x 80 bar high pressure pumpsoptional: setting robot, manufacturer HandlingTech.The scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

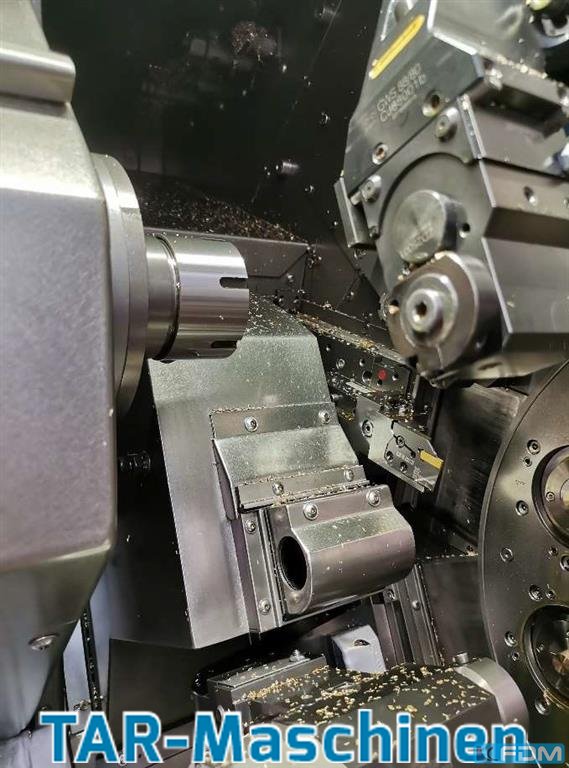

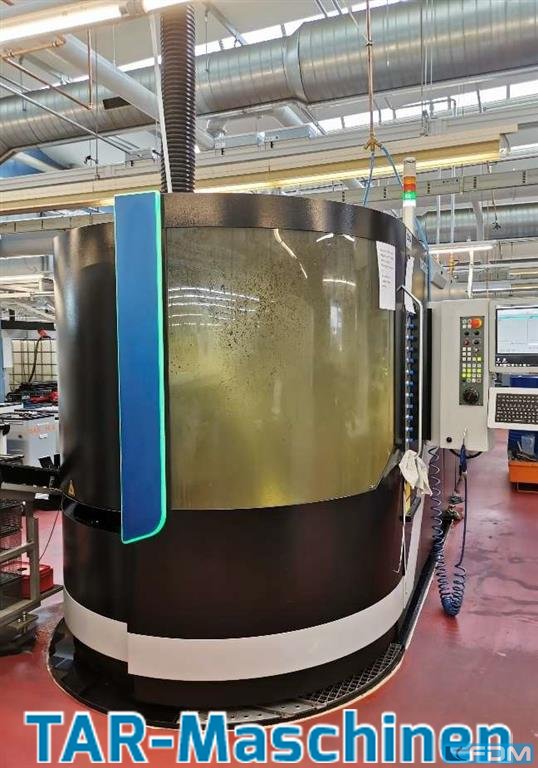

Article: CNC-controlled multi-spindle automatic latheManufacturer: TornosType: MultiSwiss 8x26Yob: 2019full cross slide configuration,counter spindle,part-pre-drawing device,2 x driven tools,1 rigid backworking,1 x driven backworking,2x 80 bar high pressure pumpsoptional: setting robot make HandlingTech.The scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

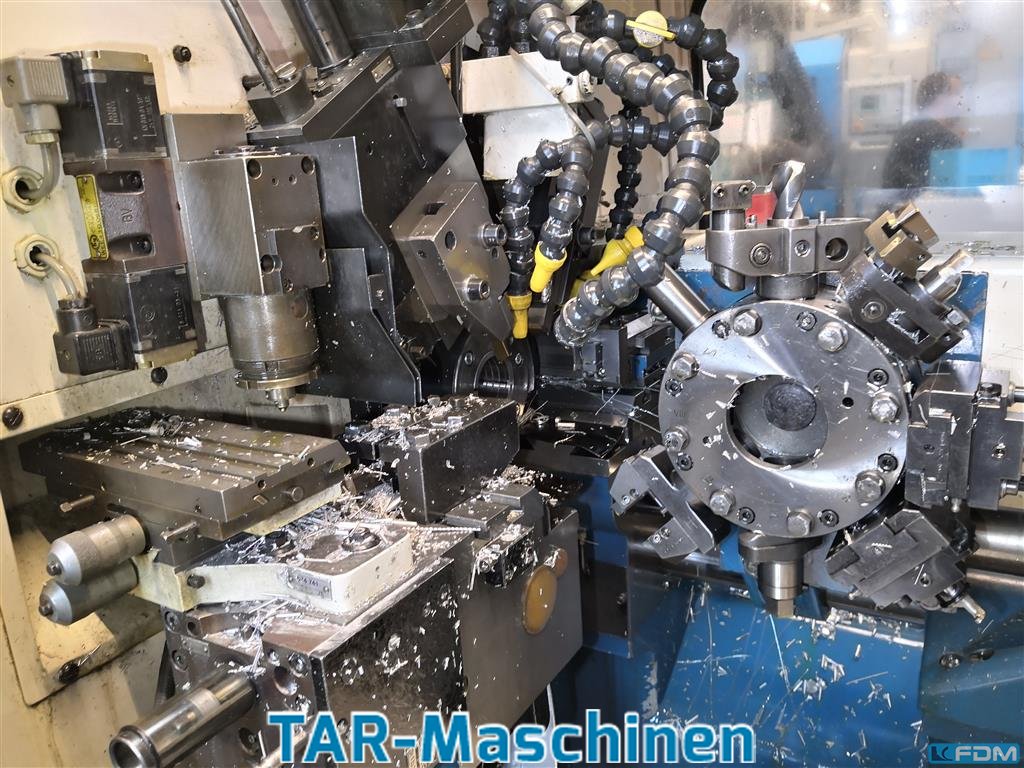

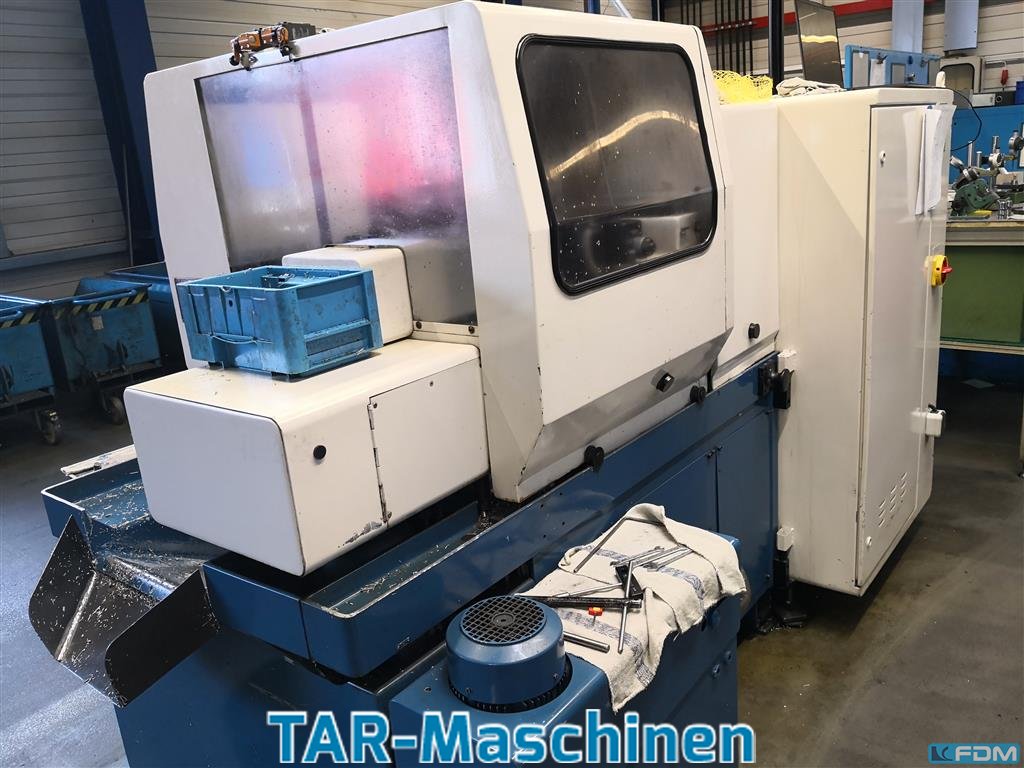

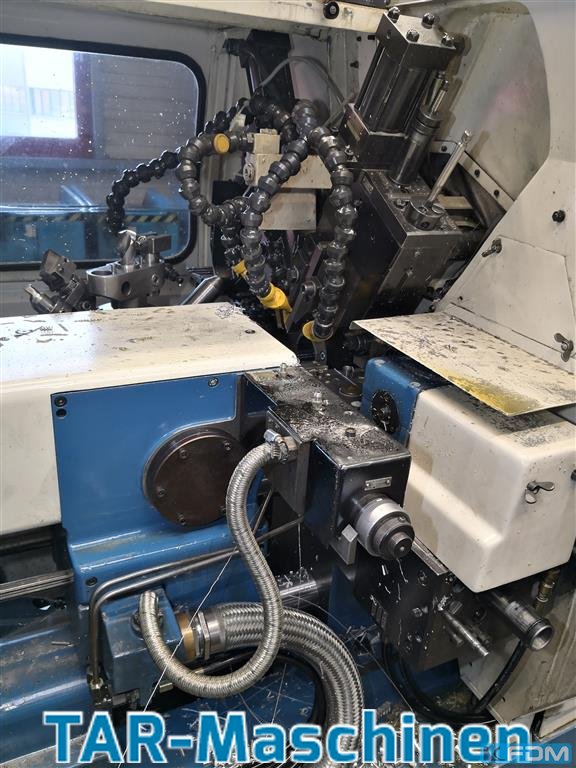

number of spindles:6 spindle passage:51 mmSchutte SF51 DNT, yob. 1987, our ID #61868Article: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: SF51 DNTYob: 1987Six-spindle automatic lathe with 6 main spindlesmax. nominal diameter D=51mmelectronic cam control Balluffgripper in position 6 for backworking, sorting chuteindependent longitudinal feed layer 5screw chip conveyorTapping couplingsInterface for: Bar feeder IEMCA PRABar feeder IEMCA PRA40/33/FScope of delivery without the blue chip conveyorThe tooling will differ from the scope of delivery!Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Article: Programme-controlled automatic latheManufacturer: TraubType: TF60 / 140Yob: 1978Bar automatPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: AF32 S DNTYob: 1994Eight-spindle automatic lathe with 8 main spindlesmax. nominal diameter D=32mmcontrol: Siemens SIMATIC S7electronic cam control Balluffgripper in position 8 for backworkingCNC cross slide position 6CNC cross slide position 7Workpiece beltCoolant cooling SchimpkeChip conveyor with magnetic separatorTapping couplingsThe tooling shown may differ from the scope of delivery!Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: AF32 DntYob: 1993eight-spindle automatic latheeight main spindlesfor bars up to D=32mmModernized control: Siemens SinumerikMotors: renewed modern motors suitable for modernized control systemElectronic trip dog control: BalluffCNC cross slide position 5 crossCNC cross slide position 6 crossPreparation for gripper in position 8 (gripper optional)Independent feedsThread cutting couplingsintegrated bar loader: Pietro CUCCHI; type: rack type magazineThe scope of delivery regarding the tooling equipment could be different like pictures.

turning diameter:38 mmArticle: CNC latheManufacturer: HanwhaType: STL38HYear of construction: 2013Control: Siemens 840SL for 8 axesMain spindle:max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpmPower max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48Counter spindle:max. pick-up diameter: 38mm, n max. 6,500 rpmPower max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42Tool turret:n max. 6,000 rpmPower max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120Bar feeder FMB Turbo 5-55High-pressure station SFB-301 eco 150barPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

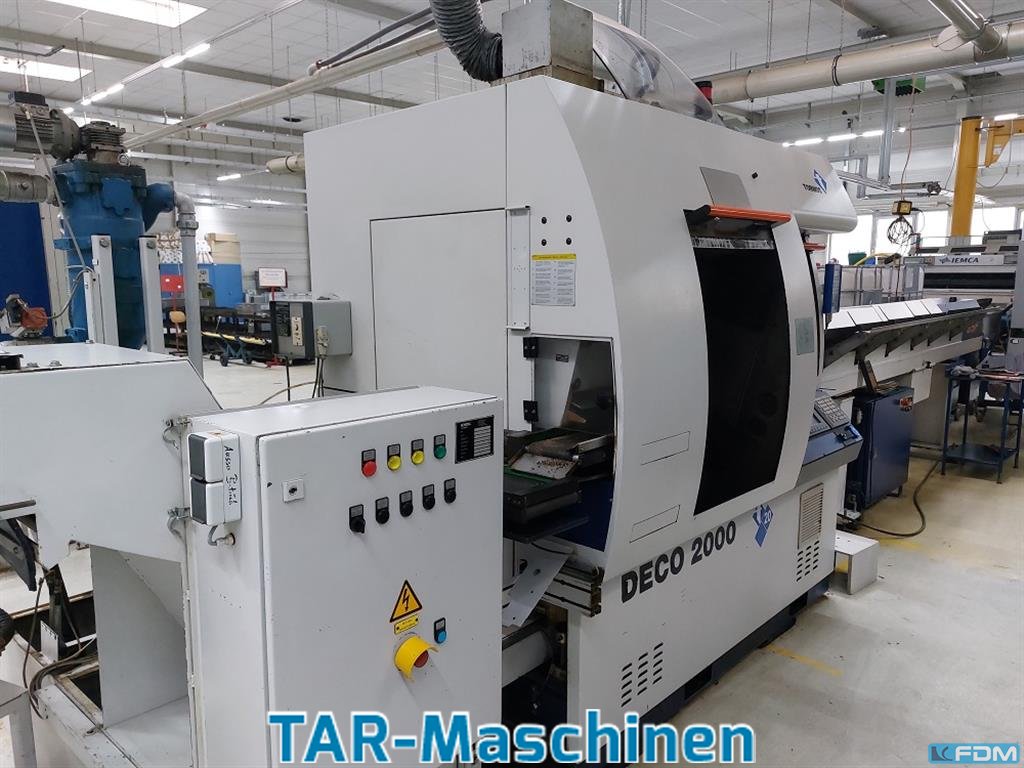

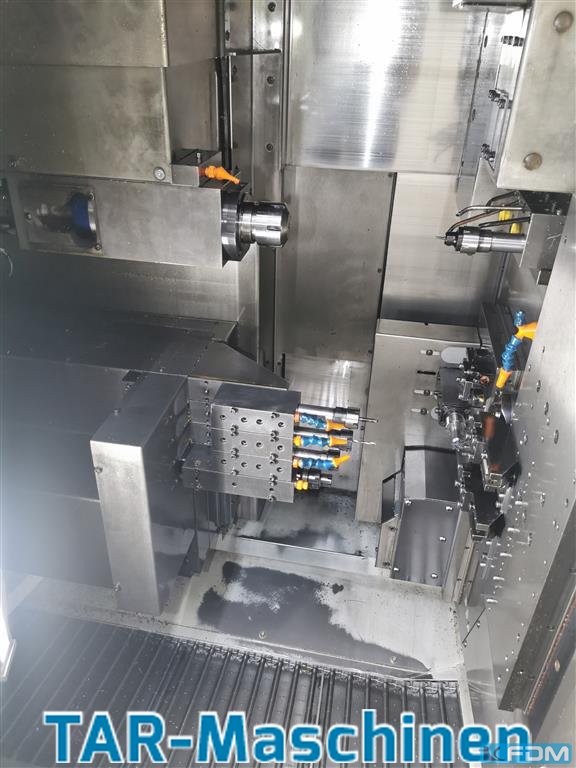

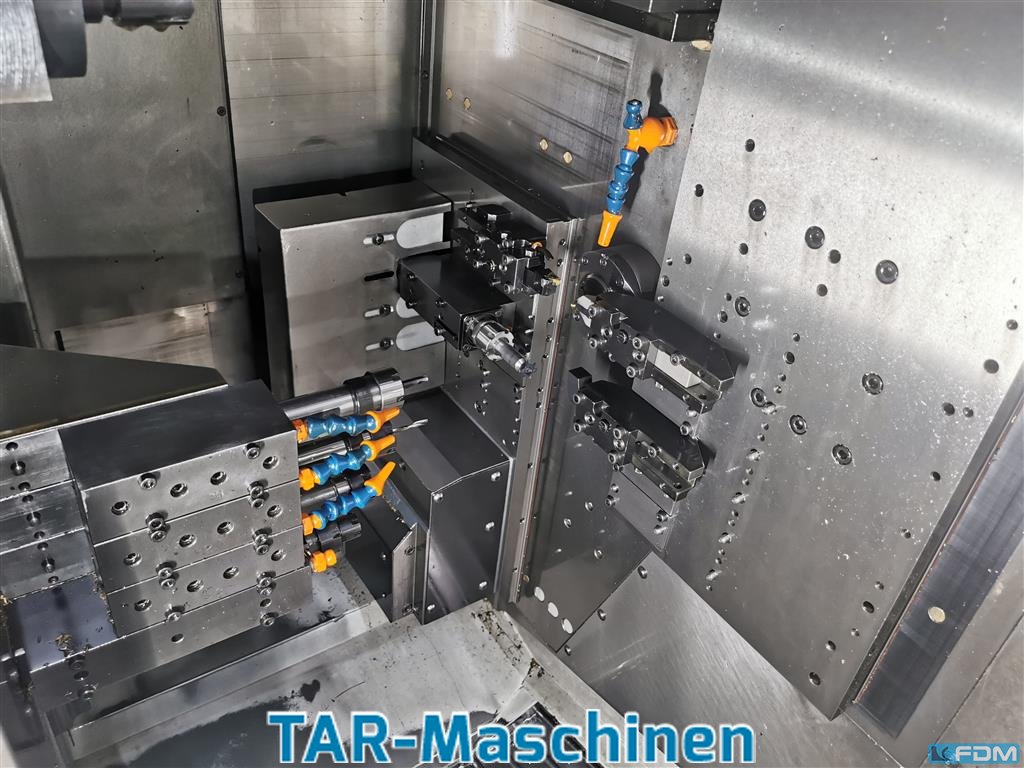

spindle passage:25 mmArticle: CNC sliding headstock automatic latheManufacturer: TornosType: Deco 2000/20Year of construction: 2001Control: Fanucspindle diameter: D25 mmmax. speed: 7000 rpmcomb: 2 (X,Z,Y-axis)Front attachment: 1 (X,Z,S-axis)Loading magazine: Tornos Robobar SSFChip conveyor: Hinged belt conveyorother: various accessories such as polygonal impact device, HF spindlePlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:9 spindle passage:46 mmArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchütteType: SC9-46Yob: 2016Six-spindle automatic lathe with 6 main spindles with max. nominal throughput D=46mm and 3 counter spindlesMain spindles: 6 motor spindles D46mm, 5. 000 rpm, 35 Nm to 80 NmCross slide units, transverse: 6 units, in positions I to VI,Slide units, longitudinal: 5 units, in positions I to V, Slide units, longitudinal: 5 units, in positions I to V,Counter spindles: 3 units, one each in positions VI, VIII and IX, 7. 500 rpmCross slide units, transverse: 2 units, in positions VIII and IX,Control:Siemens SINUMERIK 840SL with double NCUSoftware: Schütte SICS, Sinomerik Operate 4.5, Safety Integreted,Spindle coupling package ?CP-Expert?, for up to 8 spindle couplings (maximum expansion)Synchronous action package ?Level? 2, incl. cross-mode actions/ASUP (maximu ...

turning diameter:26 mmArticle: High-precision CNC lathe with linear cross slideManufacturer: BenzingerType: GOFuture B1Yob: 2016Machine was only used for reworking, i.e. only light machining work was carried out!Control: Siemens Sinumerik 840DslMain spindle: maintenance-free motor spindleBar capacity: D26mmLoading and unloading device type IBAdditional gripper system for placing the workpieces in the correct position on the unloading beltCoaxial valve for coolant to the linear tools (3 pieces)Internal clamping deviceC-axis main spindle for digital control incl. transmit functionAdjusting microscope 16x magnificationCoolant supply through the spindle clamping cylinder,Sealing air,Speed increase of the motor spindle to 8. 0000 rpmNordmann tool monitoringProfibus master interfaceHinged belt conveyor KnollCompact coolant device KnollMBE interfaceSmall fire extinguishing system Kraft & BauerN ...

number of spindles:8 spindle passage:20 mmArticle: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: AG20Yob: 2002eight-spindle automatic lathe8 main spindlesfor bars up to D=20mmcontrol: Siemens 840D1x polygonal turning/thread milling device (new 2011)1x polygonal turning/thread milling device for long turning (new 2011)1x thread cutting/quick drilling spindle (new 2011)1x pick-up device incl. various pick-up collets 4 cnc-cross slidesDouble cross slide in position 7Loading magazine PRA 52/P type 33 (bar length 3m), year 2004High-pressure system Knoll SF 2000/Turbo-3 up to 100 bar, year 2004Tool monitoring BrankampAir conditioning unit Rittal in the front switch cabinetincl. spare parts package with various collets, cams and various tool holders for longitudinal and cross slidesThe machine has been run with oil and has processed brassPlease, contact us for getting ...

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: SFH130Yob: 1995six-spindle automatic lathe6 main spindles as a chucker automatic lathecontrol Siemens S7-200 PLCDnt driveloading and disloading in position 6additional cooling pump with magnetic spark plug filterPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: SG18Yob: 1999six-spindle automatic lathe6 main spindles as a chucker automatic lathecontrol Siemens S7-200 PLCloading and disloading in position 6spindle brakePlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: SF20 S DntYob: 1999Six-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=20mmSpindle drum hirth coupled,CNC cross slide in positions 4,CNC cross slide in positions 5,pick up in position 6, sorting chute, 1x independent feed,thread cutting couplings,workpiece belt,Coolant tank with hinged belt chip conveyor Ruez,Oil/steel operation,PLC Siemens S7, Siemens CNC control, Siemens Simodrive 611,The scope of delivery regarding the tooling equipment could be different like pictures.Interface for: IEMCA PRA bar loading magazine (optional: IEMCA PRA40/31/ built in 1997 rear loader)

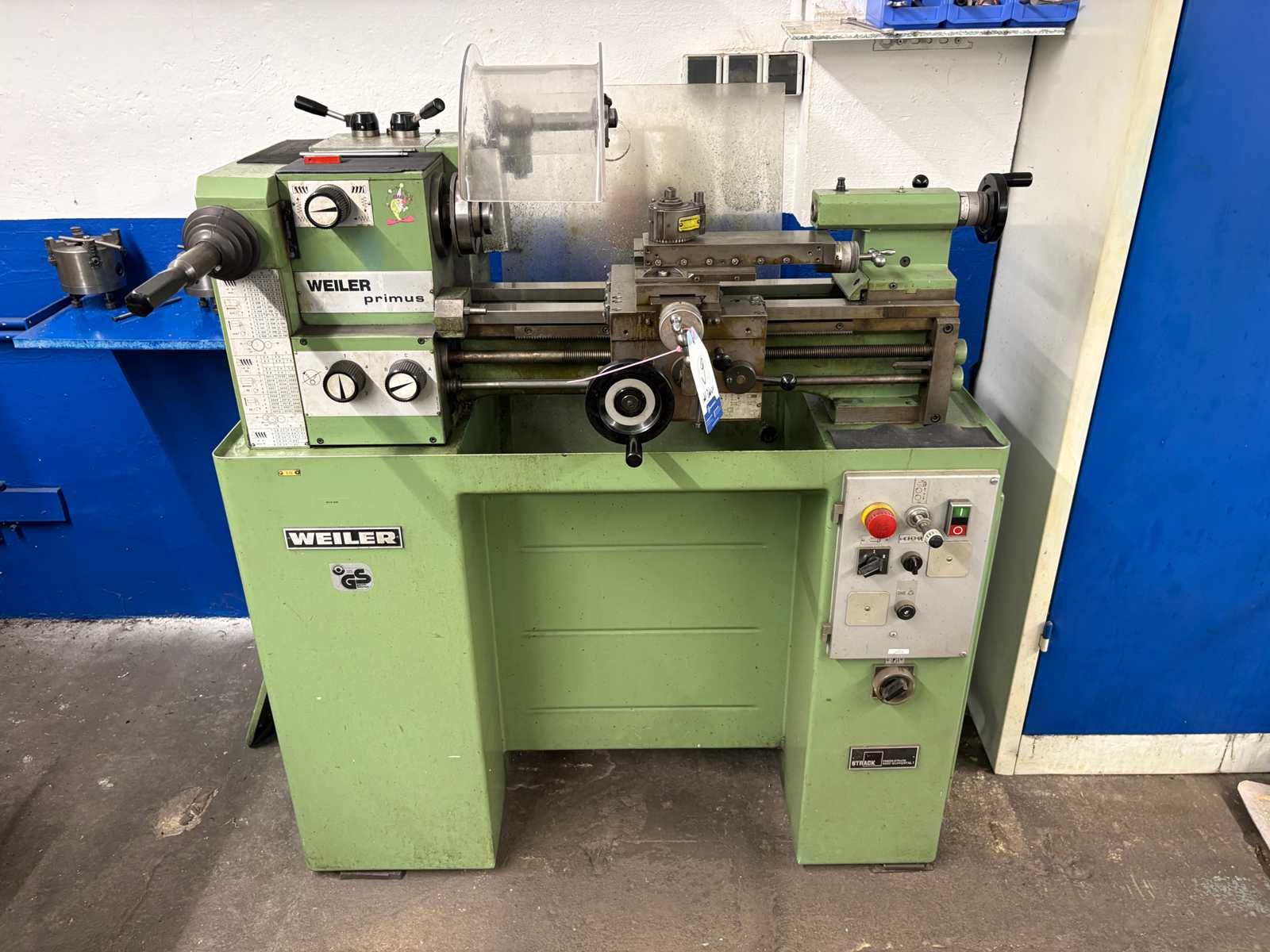

Center width: approx. 500 mmCenter height above bed: approx. 120 mmCenter height over longitudinal support: approx. 75 mmCenter height over cross support: approx. 50 mmincl. Multifix base holderBar passage: approx. 20 mmwith stock of other jaw chucks, turning steels, clamping jaws and lathe steel holders

number of spindles:6 spindle passage:36 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchutteType: SF32 S DntYob: 2003Eight-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=36mm!Spindle drum with hirth coupling,Elbaron oil mist filter,sorting chute,Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F);coolant tank with hinged chip conveyor;Schimpke KSS active cooler,control: Siemens S7-300 PLC;tooling included in delivery may differ from the images;various collets are included in delivery up to D36mmPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchutteType: SF32 S DntYob: 2001Eight-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=32mmSpindle drum with hirth coupling,Elbaron oil mist filter,sorting chute,Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F);coolant tank with hinged chip conveyor;Schimpke KSS active cooler,control: Siemens S7-300 PLC;tooling included in delivery may differ from the imagesPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Package of 3 Schütte S32PCArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchutteType: S32PCYob: 1998One machine is operational; the other two can be used for spare partsIncludes IEMCA PRA40/33/P loading magazine, built in 1997 (rack type loader)Includes IEMCA PRA40/42/F loading magazine, built in 1999 (bundle loader)Includes IEMCA SIR325 loading magazine (integral loader with bundle magazine)tooling included in delivery may differ from the picturesPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

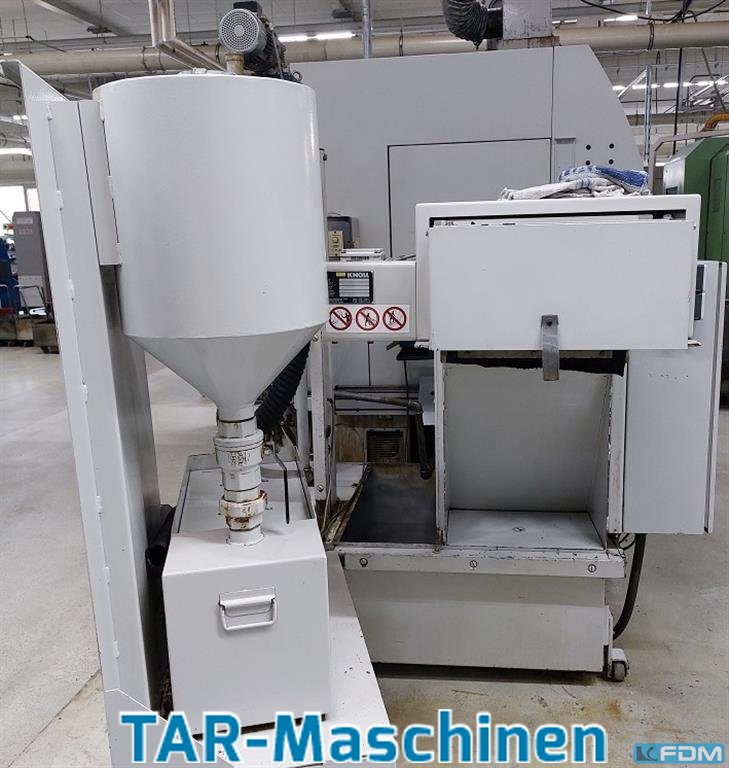

spindle passage:36 mmArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchütteType: A36PCYob: 2005Loading magazine by Pietro CucchiKnoll unit7 radial cross-type carriages2 additional speed motors in 4th and 5th positions2 additional speed motors for front spindles in position D (pick-up) and B (for front motorized spindle)1 polygon cutter1 motorized front spindle1 radial motorized in position IV for cross-type carriage1 radial motorized in position V to be mounted on X-type carriage only (no cross-type carriage)1 straight head for motorized position IV1 90-degree tilted head for motorized position IV1 tilt-adjustable head for motorized position IVPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
