Cnc tornalama makineleri DOOSAN S-310
metal çalışma makineleri / torna / Cnc tornalama makineleri
Stock No.: 4034 CNC LATHE Manufacturer: DOOSAN, Type: S-310 Serial No.: TLNE-1094, Year of manufacture: 2000 Specifications: Max. circumferential diameter 310 mm dia. Max. turn. About bed 500 mm Dia. Turning length 450 mm Main motor power 9/11 kw Main spindle speed range 45-4500 rpm Hole through ...
Üretici: DOOSAN
model:S-310
Makine türü: Cnc tornalama makineleri
İlan No.: 170113299
miktar: 1
tarih: 28.08.2026
Üretim yılı: 2000
Çalışma saatleri: 435
yer:
Danimarka
0 Naestved
fiyat:
Fiyat öneriniz:
Stoktaki makine:evet
Seller-item-No.:4034
Stock No.: 4034
CNC LATHE
Manufacturer: DOOSAN, Type: S-310
Serial No.: TLNE-1094, Year of manufacture: 2000
Specifications:
Max. circumferential diameter 310 mm dia.
Max. turn. About bed 500 mm Dia.
Turning length 450 mm
Main motor power 9/11 kw
Main spindle speed range 45-4500 rpm
Hole through drawing tube 65 mm dia.
X axis movement 200 mm
Z ash movement 450 mm

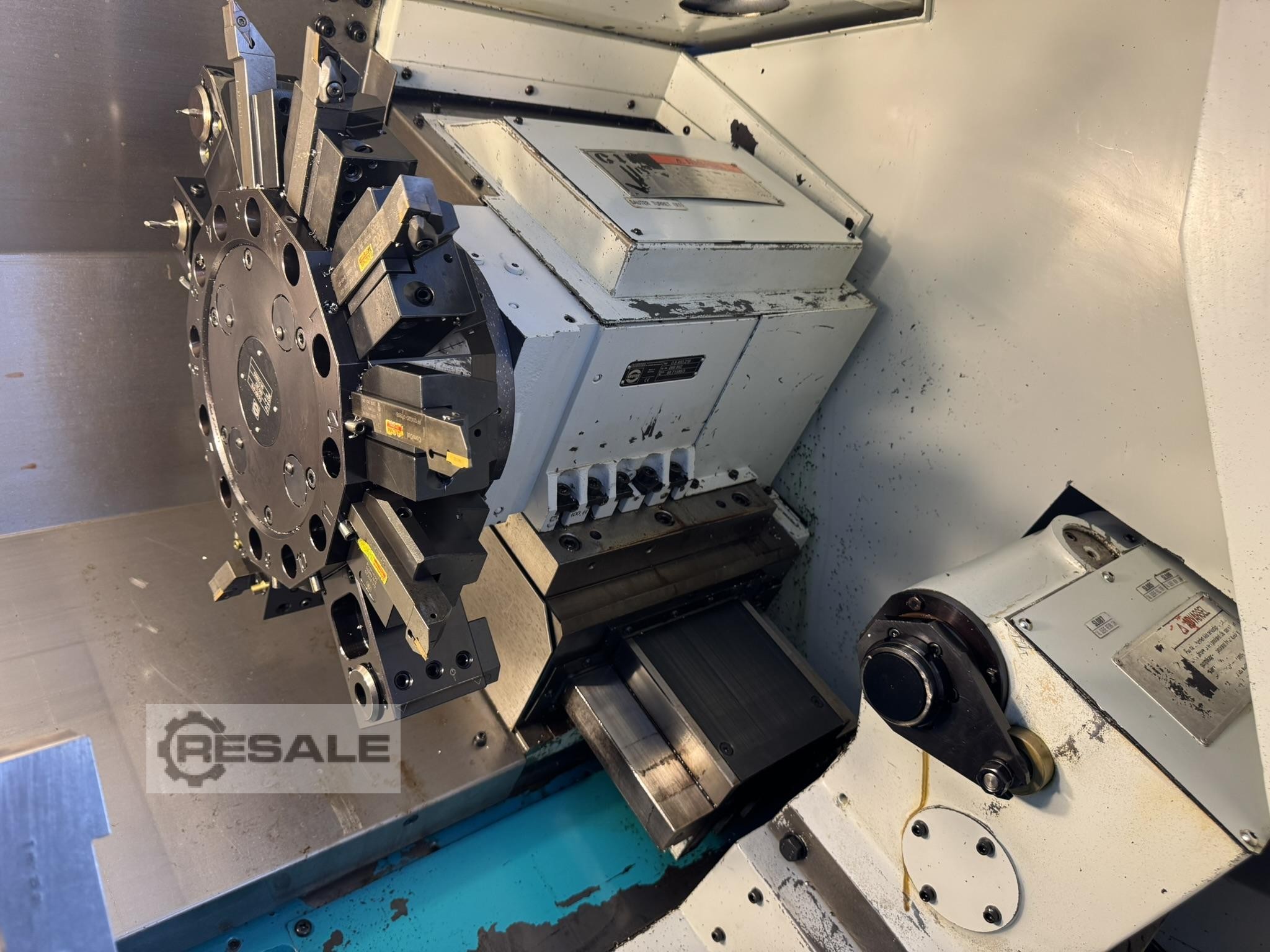

Tool turret with 12 VDI 30 stations
Total power consumption 36 kva
Control Fanuc 18-T
Accessories:
Hydr. Chuck Main Spindle Kitagava HS-10 - 250
Various tool holders.
Chip conveyance.
Cooling water system.
Dimensions:
Length: 3350 mm, Height: 1900 mm, Width: 1800 mm, Weight: 3200 kg
CNC LATHE
Manufacturer: DOOSAN, Type: S-310
Serial No.: TLNE-1094, Year of manufacture: 2000
Specifications:
Max. circumferential diameter 310 mm dia.
Max. turn. About bed 500 mm Dia.
Turning length 450 mm
Main motor power 9/11 kw
Main spindle speed range 45-4500 rpm
Hole through drawing tube 65 mm dia.
X axis movement 200 mm
Z ash movement 450 mm
Tool turret with 12 VDI 30 stations
Total power consumption 36 kva
Control Fanuc 18-T
Accessories:
Hydr. Chuck Main Spindle Kitagava HS-10 - 250
Various tool holders.
Chip conveyance.
Cooling water system.
Dimensions:
Length: 3350 mm, Height: 1900 mm, Width: 1800 mm, Weight: 3200 kg
