delik işleme değirmenleri işleme merkezleri kullanılmış satılık (581)

Maksimum İşleme Ölçüleri : 3200x1190x70 mm Min İşleme Boyutları : 200x70x8 mm Delme kafası 15 mil, X yönünde testere ünitesi içerir Lineer takım değiştiriciler 6

Dikey bağımsız iğ sayısı: 9 X eksenindeki yatay iş mili sayısı : (2+2) Y eksenindeki yatay iş mili sayısı: (1+1) N 1 testere bıçağı ünitesi: (ø 100 mm) Yönlendirici kafası 3,6 Kw ISO 30 - 12000/24000 rpm Panelin kalınlığı: 50 mm Kontrol: Tam Parametrik Panelin maksimum ağırlığı: Kg 25 Maksimum panel boyutu: X, Y 1100, Z 50 mm Minimum panel boyutu: X 270,Y 150 (70 op.), Z 12mm Kontrollü eksen sayısı: 3 Panel besleme hızı: 25m / dak İş mili hız dönüşü: 3600 rpm Testere bıçağı hız dönüşü: 7000 rpm Hava basıncı: 7 bar Toz emme çapı: ø 140 mm Egzoz havası konstrüksiyonu: (2000 mc/ora) - (30 m/s) Horiz'de maksimum sondaj derinliği. X ve Y ekseninde: 30 mm Dikey olarak maksimum delme derinliği: 45 mm Aletlerin maksimum yatay çapı: 12 mm Aletlerin maksimum dikey çapı: 35 mm Motor Gücü: 1,5 kw Maksimum hava tü ...

Makine Boyutu 2800 x 1940 x 2000mm Min. İşlenmiş panelin boyutu 200 x 35 x 8mm İşlenmiş panelin maksimum boyutu 3200 x 900 x 60mm

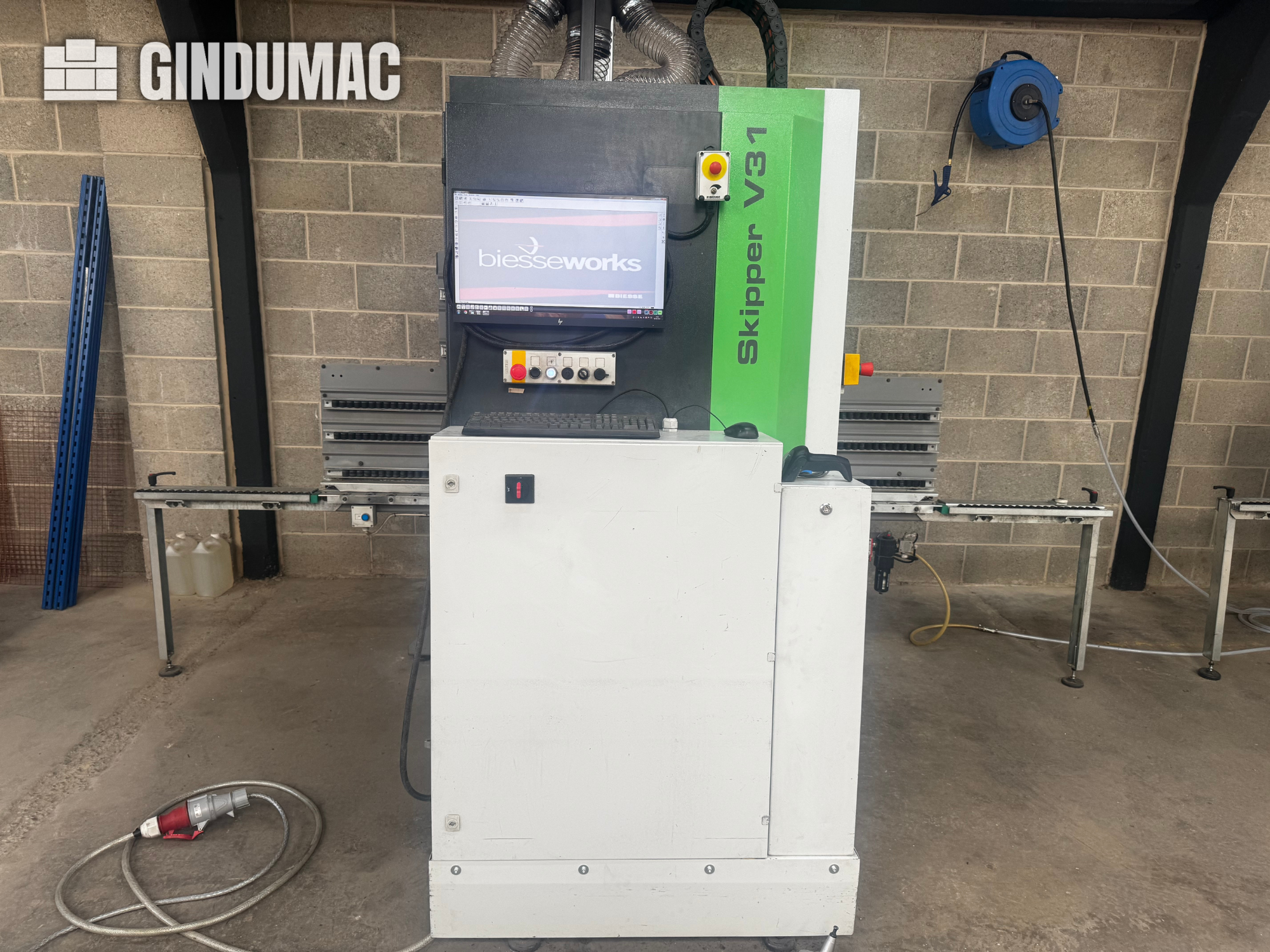

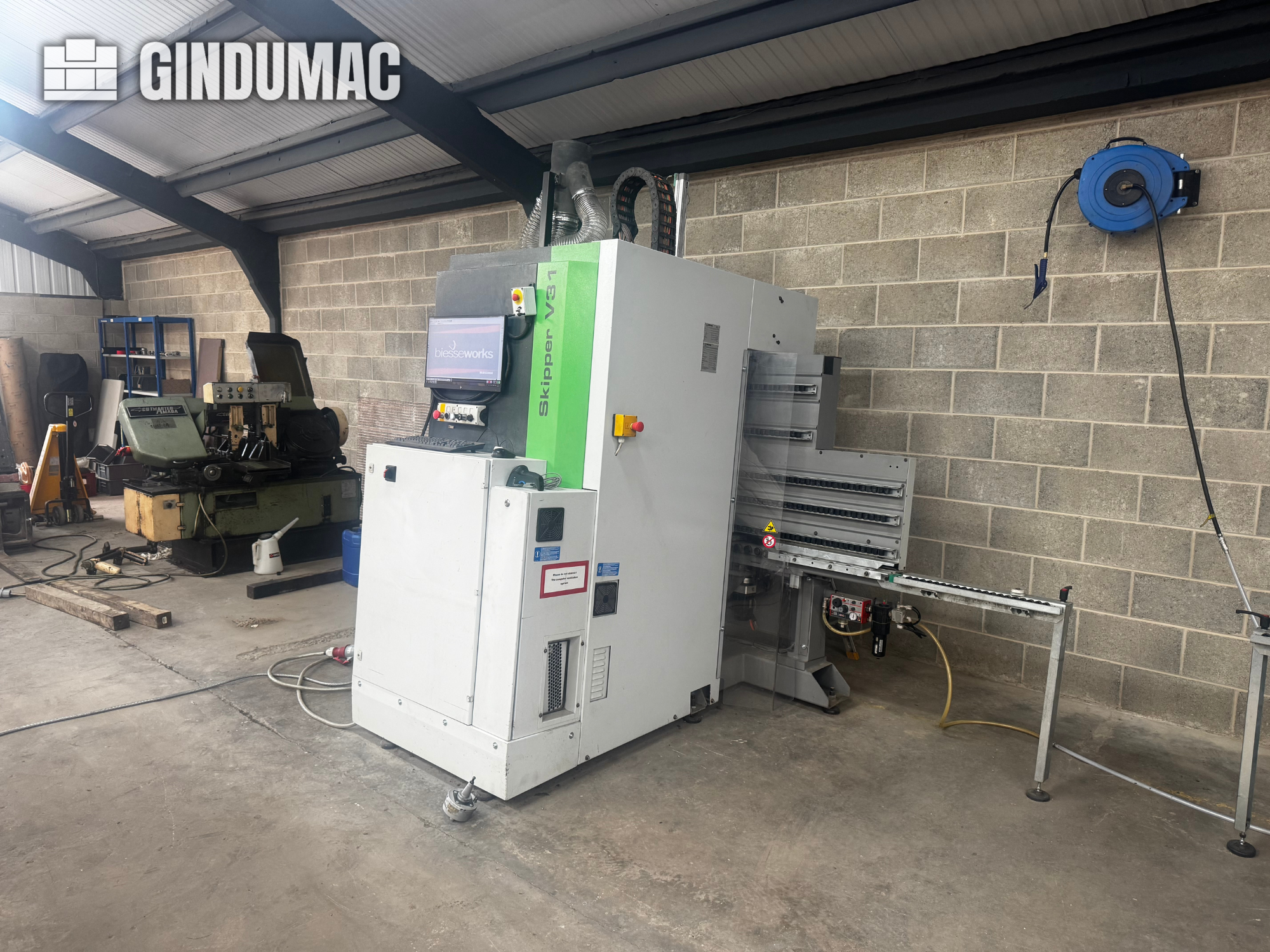

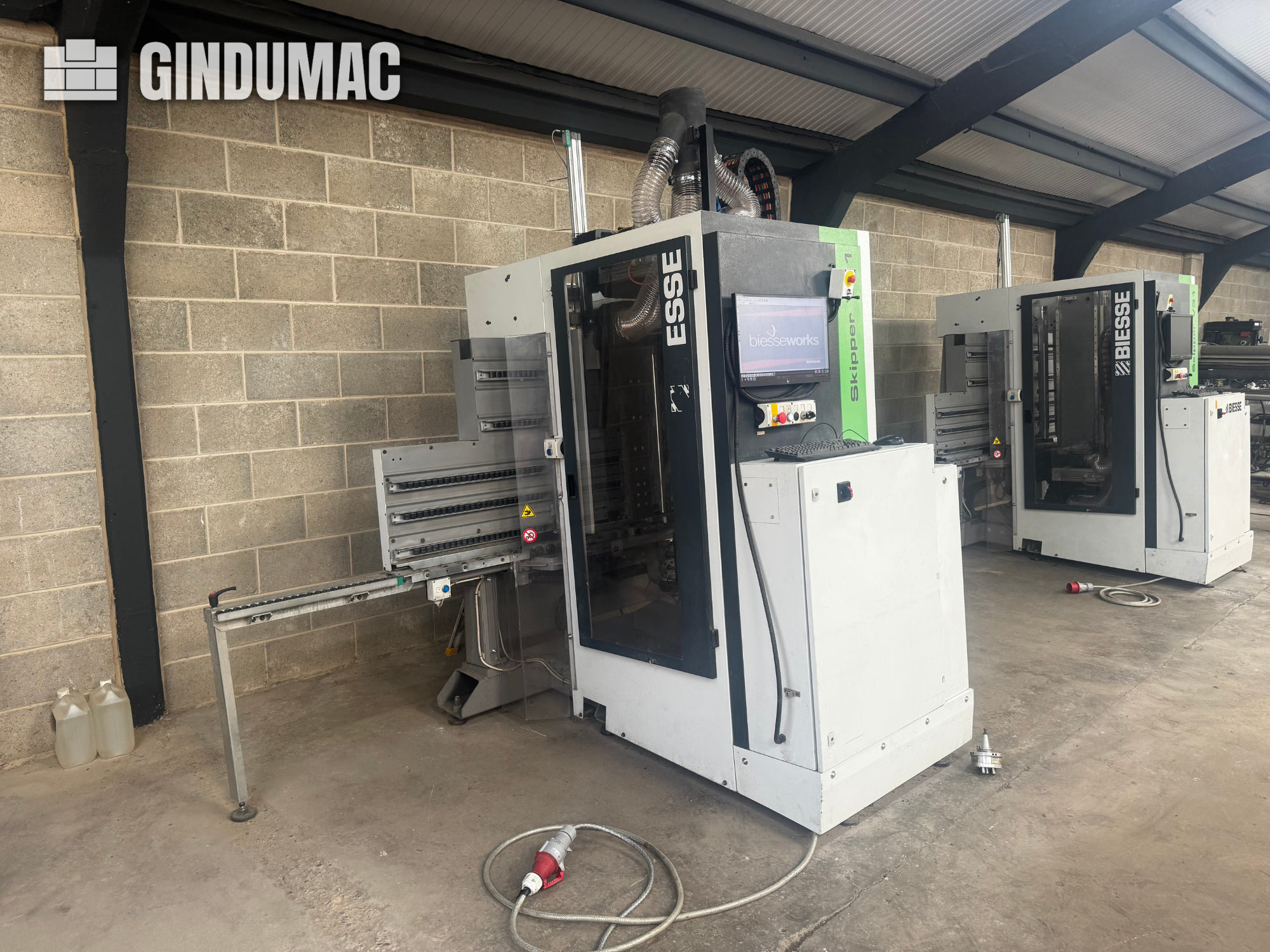

Çalışma alanı 2500x900x70 mm Yazılım BIESSEWORKS Makine kontrolü PC kontrolü Dönüş hızı maksimum rpm 18000 Yatay İş Mili Sayısı 10 Kanal açma mili ile

C.M.S. CNC Taret Kafası İşleme Merkezi Model TRIAX R-65 Sn 285, 1986 IBH kontrolör modus 1 (2) vakum masaları - her biri 48 "derin x 60" uzunluğunda. (1) beş istasyonlu torna bölümü. Maks.part 6,5" x 45" (2) vakum pompaları 5 hp. her biri. Toplam (30) yönlendirici. (6) istasyon tareti ve istasyon başına (5) yönlendirici. Oluşan; (2) her biri (5) yönlendirici istasyonu - 2 1/2 hp. her biri. (4) her biri (5) yönlendiriciden oluşan istasyonlar – her biri 8 hp. Düz çalışma veya oyma için masayı dijitalleştirme. İş mili işi için torna bölümü (oluk, oyma). Ünite ekstra parçalar ve çok sayıda aletle tamamlanmıştır.

With 4 clamps Warning: the information reported has been taken on board the machine using measuring instruments and may not correspond to the actual performance. For further information, on-site inspection is suggested. The item is sold in the state in which it is, unverified and without warranty of operation. Item not sellable in Italy. Auction-ID: A7-41268-804

Included: emergency mats, fences and utensils. BECKER vacuum pump. N° 6 suction cup crossbars with various suction cups. Warning: the information reported has been taken on board the machine using measuring instruments and may not correspond to the actual performance. For further information, on-site inspection is suggested. The item is sold in the state in which it is, unverified and without warranty of operation. Item not subject to sales restrictions. Auction-ID: A7-41268-802

x-travel: 1520 mmy-travel: 520 mmz-travel: 420 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mCNC control Sinumerik 840DNC-swivel-rotary table (B-axis and C-axis)automatic tool changer for 30 toolscoolant devicechip conveyorTechnische Daten / technical details:X-Weg / X-travel 1520 mmY-Weg / Y-travel 520 mmZ-Weg / Z-travel 420 mmB-Achse Schwenktisch / B-axis swivel table -90 - +110 °C-Achse Rundtisch / C-axis rotary table 360 °NC-Schwenk-Rundtischdurchmesser / NC swivel-rotary table diameter 500 mmStarrtischaufspannfläche / fixed table clamping area 920 x 540 mmSpindelaufnahme / spindle taper SK40 Drehzahl Spindel / spindle speed 12000 Upm /rpmEilgang / rapid feed 32 m/minAntriebsleistung Spindel / drive capacity spindle 25 kWGewicht der Maschine ca. / weight 10500 kg ...

Design: Robust industrial design Application: Precise row and dowel holes in solid wood and panel materials Drilling unit: Multi-spindle Drill heads: Vertically guided Construction: Solid steel frame construction for high stability and low-vibration running Support table: Large, enables precise workpiece guidance Drill beam: Height adjustable, pneumatically assisted Operation: Foot switch for safe working Motor: Powerful for smooth drilling progress Condition: Functional, signs of wear and tear Auction-ID: 03Z-3RB-2

Machine Type: Dowel Drill Manufacturer: Papenbroock Application: Professional woodworking, furniture production, workshops, series machining Construction & Construction: Solid steel frame High Solid Drill Stand Linear guided drill carriage Fixed work table Machine stands on Euro pallet (for easy loading) Drilling technology: Designed for precise longitudinal and transverse drilling Suitable for solid wood and panel material Precisely positionable drilling unit via stable guide unit Drive & Operation: Powerful industrial motor (power specification not specified) Foot switch for safe operation Vertical suction nozzle for connection to external extraction Condition: Functioning Normal signs of wear Auction-ID: 03Z-3P1-2

Serial Number: AB/222595 Auction-ID: A1-40971-19

1.2kW 6 bar Auction-ID: A1-40971-98

Drilling unit available Sawing unit available Vacuum pump available Auction-ID: A1-40971-1

Main Motor Power: 6kW Working Range X: 2500mm Working range Y: 1300mm Working range: 150mm 7 milling spindles Auction-ID: A1-40971-24

Auction-ID: A1-40971-75

Fully automatic CNC machining center for wood and sheet material for drilling, milling, profiling and sawing operations Working range (X × Y × Z): approx. 3,300 × 1,250 × 120 mm • Main spindle power: 7.5 kW • Main spindle speed: max. 12,000 rpm • Vertical chuck: approx. 29 spindles • Horizontal drilling spindles: approx. 6 – 12 • Tool changer: turret type, 8 – 10 positions • Table: vacuum table with pod system • CNC control: ESA TRIA / Morbidelli original control panel • Vacuum pump: integrated (dry pump, approx. 40 m³/h) • Machine weight: ± 3,500 kg Includes vacuum pump, fencing and control box Auction-ID: A1-41565-45

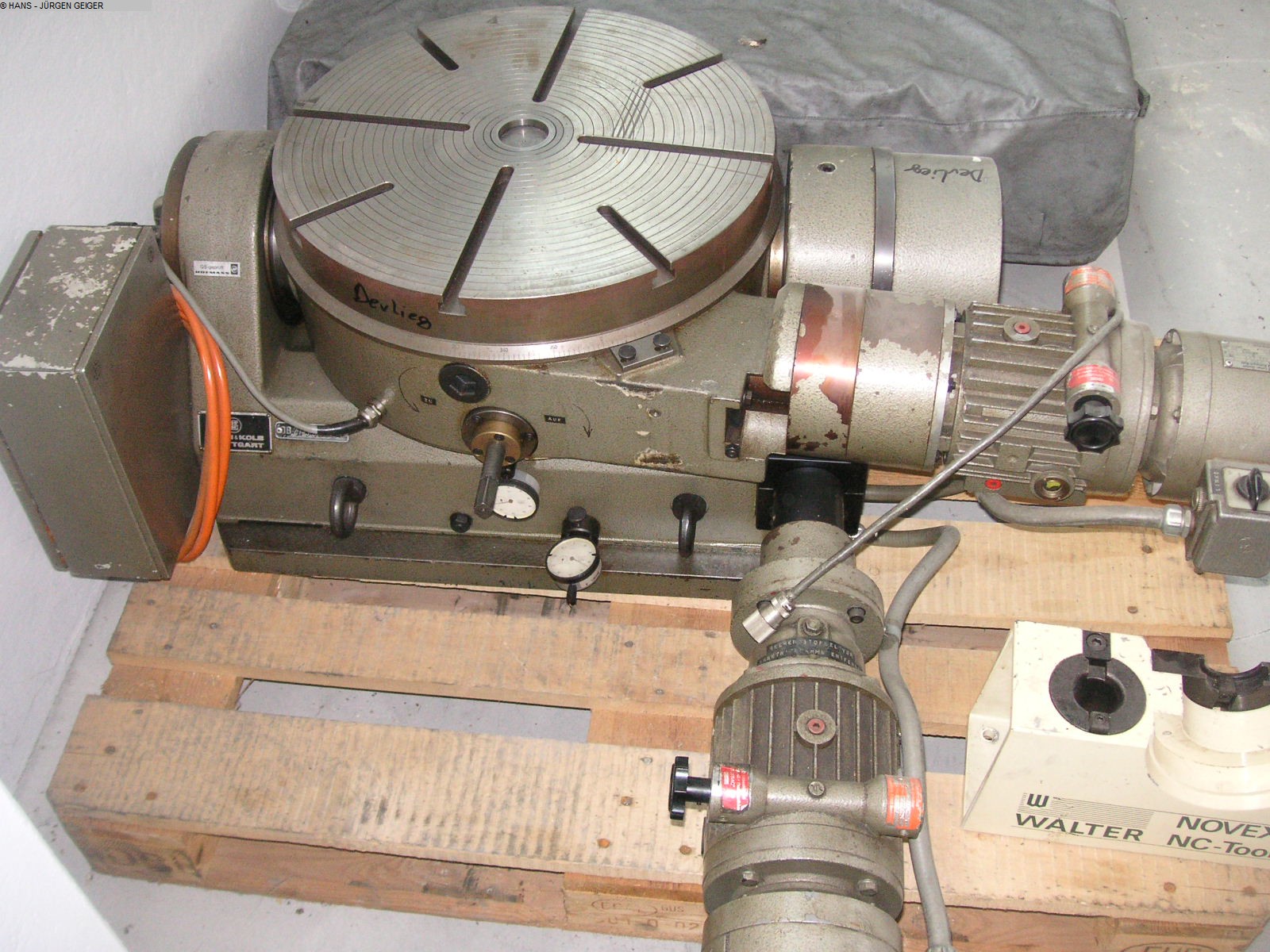

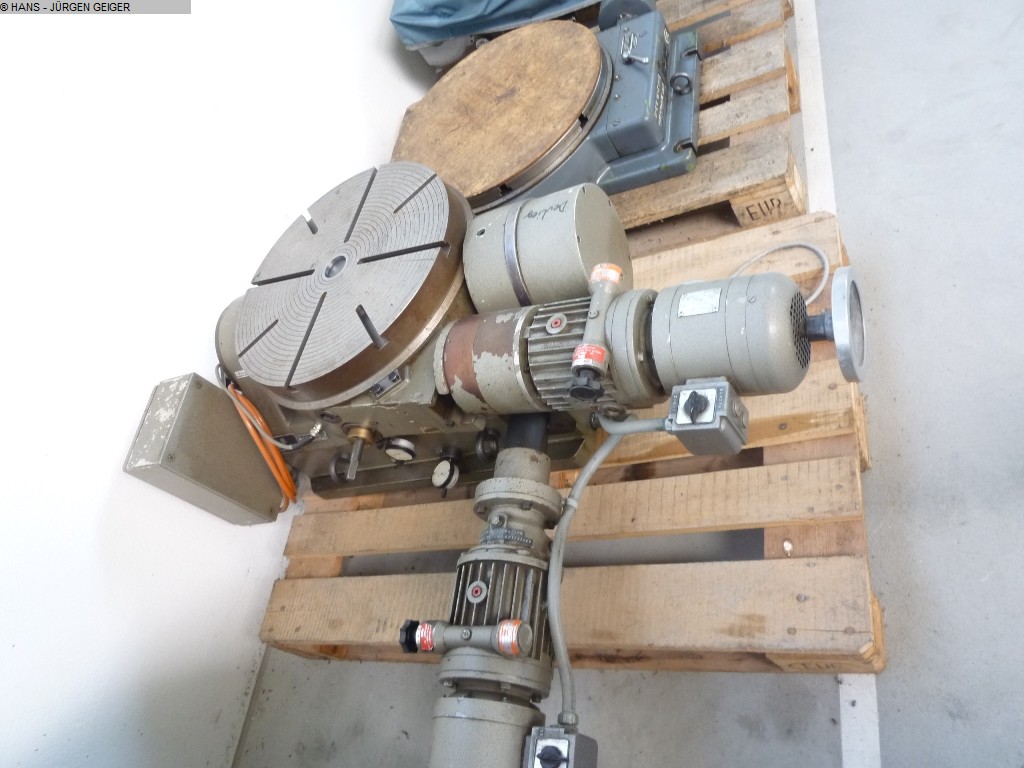

Featured: With hydraulic pump, Tanshing MRNC-255 is a CNC-controlled rotary table with a 255 mm disc, 55 mm center bore, 1:90 worm transmission, 30 rpm maximum speed, ± 4 arcsec accuracy and 800 Nm clamping torque, intended as a fourth axis for milling machines. 2 small pallets of 60x80cm. Auction-ID: A1-41565-56

Compressor Type: Ingersoll Rand T30 2475 DFT Connected load: 4.1 kW Areas of application: Drilling, grooving, milling Work table: - 6 quick-adjustable workpiece supports - 9 individually retrievable vertical drilling spindles - 4 spindles with 32 mm pitch for hole row drilling Milling unit: - Power: 5.5 kW - Stepless speed control: 6,000 – 18,000 rpm Control: - Microprocessor Motorola 68020 / 32-bit - Memory: 2 MB - Screen: 10 inches - Floppy disk drive - Comprehensive diagnostics with immediate indication of operating, programming and system errors Axis speeds: - X-axis: 35 m/min - Y-axis: 40 m/min - Z-axis: 15 m/min Space requirements: - Control cabinet: 900 × 900 × 2,100 mm - Machine: 4,770 × 2,460 × 2,900 mm incl. protective cladding - Approval: BG wood dust tested Auction-ID: 040-SDP-2

Auction-ID: A1-41441-26

Machine sheet The machine is equipped with a 6 kW COLOMBO tool change spindle (380V, 400Hz) on the U-axis. Speed 0–24,000 rpm via inverter; potentiometer 50–100% of the programmed speed. Magazine 12 ISO 30 tool holders — automatic change in hidden time. Manually adjustable tilt: max 20°. Autonomous ventilation: fan attached to the motor shaft, 4.4 kW at 24,000 rpm. Manual assembly of the tools: ER25 clamps. Drilling unit Group B5 T50 to T59 — 10 individual selectable outputs, 2.2 kW at 4,500 rpm. Stapler SENCO stapler with 300 staple magazine. Software counter and recharge clearance cycle manage the charger. Remarks: Machine sold without vacuum pump. Hardware around the machine not included. Auction-ID: A1-41391-108

BREMA – Numerically controlled vertical machining centre, model REM 400 3/15, designed for processing of panels and joinery components, in particular the manufacture of doors. The bundle includes: Vertical center with inlet carriage Separator and tipper Distribution belt 250 x 250 mm Aluminium SCBA turner SCBA Separation System Internal number: NR07 REM/4 – Integrated complete line for continuous cycle. Touchscreen control station with mobile console. Compact architecture, ideal for optimising floor space in the workshop. 2 full trucks Auction-ID: A1-41441-414

Digital sawing module The digital sawing module has two blades arranged at 90 degrees apart which can make 45° and 135° cuts. The maximum cutting capacity is 180 mm overall. Digital sawing module The digital sawing module has a blade arranged at 90° to the Machine reference. He can make so-called straight cuts. Numeric Y and Z axes A mobile carriage receives all the blades of the digital sawing module. It can move: Horizontally thanks to a numerical Y-axis, which allows it to position itself depending on the profile to be cut, within the limit of the mechanical capacity of the module (here: 180 mm overall). Vertically thanks to a digital Z axis, which allows it to stop at the end of the cut in an optimized position in relation to the machined profile, within the capac ...

Working dimensions: 4,400 x 1,300 mm Features: - Overhead tool changer - Drilling, milling and grooving functions Voltage: 380 V Transport: 1 full truck required (6,000 kg) Auction-ID: A1-41441-413

Work Operations: Drilling, Saw Blade, Grooving Working area: 1,400 x 750 mm Control: CNC – 3-axis Included: 1 control box Auction-ID: A1-41441-402

Number of axes: 3 axes digitized Working area: 2,500 x 1,200 mm Tool changer: 4-position automatic changer Work Operations: Drilling Milling Grooving Included Items: 1 independent control cabinet 1 vacuum pump Machine dimensions: Length: 4 m (5 m with electrical cabinet) Width: 3.20 m (4.20 m with safety mat) Height: 2.40 m Weight: 2,000 kg Transport dimensions: 4,500 x 2,000 x 2,500 mm Approximate transport weight: 3,000 kg Auction-ID: A1-41441-407

Serial Number: 0-390-07-0065 Control system: Digital control with Intel Pentium III processor (850 MHz) Number of axes: 5 Machine features: 1 milling motor – 7.5 kW 1 swivel sawhead (360°) – 5.5 kW Without tool changer Integrated inkjet printer Automatic wood clamping system Introducer and transfer line with 1 automatic stop (minimum 6 m) Documentation Included: Instruction Manual and Electrical Diagram Transport conditions: Full truck with 6 linear meters of loading Overall dimensions: 19,500 x 2,500 x 3,000 mm Weight: 7,000 kg Restriction on sale: The machine can only be sold within European countries Auction-ID: A1-41441-405

Number of axes: 3 Working area: 4,700 x 1,300 mm Serial Number: 5626 Table Type: Full Table Tool changer: Yes, with 12 tool holders Spindle: 10.3 kW, 3-axis spindle Spindle drive: Yaskawa Varispeed X, Y, Z axis drives: Yaskawa SGDH Servopack Vacuum system: 2 vacuum pumps for two workstations Cooling: 1 spindle cooling unit Conditions of transport: Full truck required Auction-ID: A1-41441-404

Machine sheet Pins: 4 Speed: 1,800 – 24,000 rpm Measurement: Laser altitude for depth The machine is equipped with a 6 kW COLOMBO tool change spindle (380V, 400Hz) on the U-axis. Speed 0–24,000 rpm via inverter; potentiometer 50–100% of the programmed speed. Magazine 12 ISO 30 tool holders — automatic change in hidden time. Manually adjustable tilt: max 20°. Autonomous ventilation: fan attached to the motor shaft, 4.4 kW at 24,000 rpm. Manual assembly of the tools: ER25 clamps. Measurement cycle Fast descent up to Z = 2 mm Reduced descent in 0.1 mm increments Then 0.01 mm increments until the laser is initialized Final descent of the Z-axis of the programmed dimension (relative) Drilling unit Group B5 T50 to T59 — 10 individual selectable outputs, 2.2 kW at 4,500 rpm. Stapler SENCO stapler with 300 staple mag ...

Drilling head Multi-spindle horizontal variable centre distance 1 pneumatic cylinders Parts Pressers 1 pedal to trigger Drilling and clamping Auction-ID: A1-41441-22

3 axes – drilling – routing – grooving Numerical control Auction-ID: A1-41441-9
