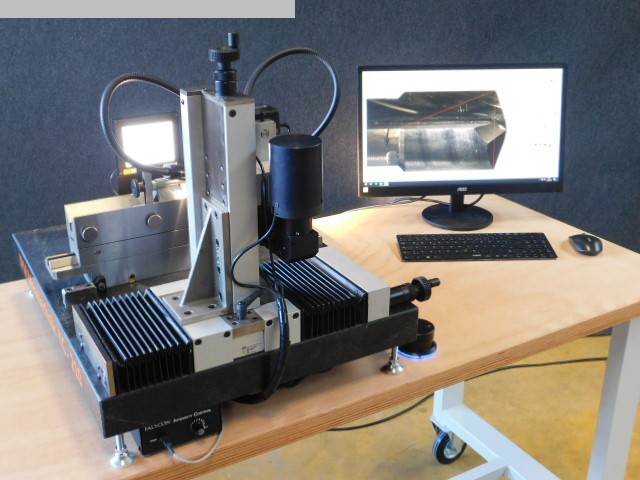

WMTR TC 210 Sistem

dimension of workpiece: 200 mm
workpiece weight max.: 100 kg
voltage: 230 V
longitudinal feed: 150 mm
vertical movement: 100 mm
tool taper: bis 60 mm im Prisma
Condition: new / unused:
The machine can be viewed under current.:
WMTR video measuring device T 210
* Granite base plate 500 x 600 x 50 mm
* Digital size 0,001 mm resolution
* Longitudinal axis 150 mm
* Vertical axis 100 mm
* Tool holder in prism up to 80 mm diameter
* Swivel bracket 210 ° swiveling
* image comparison
* export of dates to EXCEL
* frequently measuring of video pictures
* labeling and marking of pictures
* saving and printing of pictures
* free calculation of variables
* detailed user administration
* superposition of DXF-drawings
* a lot of special software-modules
Video measuring system IPM complete with:
* Software complete data acquisition
* create measurement protocols
Consisting of:
- Calculator, monitor, mouse, keyboard
- Software VM 2045
- Ring light RL 45-2 °
- Cold light aggregate LQ 1600/150 W
- 2 LED Spot-lights
- LED backlight dimmable
- insertion prism
- Zoom Lens 10x - 110x with high-resolution color camera
- quick adjustment in the longitudinal axis
Perfect for measuring of:
- point angles
- gradual angles
- step lenghts
- 1. and 2. rake angle
- tang. clearance angle tops
- tang. clearance angle steps
- round grinding chamfer width
- front- and encirclement geometry
- thinnings
- cut crosswise measurement
- cooling channel measurement
- cutting divisions
- serveral grindings (four phases or conical shell)
- rake angle
- contour measurement in DXF mask function
Further accessories available on request.
