Pencere üretimi için çekme hattı freze maschines WINTECH VIDEO M9 C automatische Versiegelung

number of aggregates: 2 St.
working width: 2000-3500 mm
work height max.: 2450-3200 mm
Wintech M9Cb Sealing Machine

Automatic sealing system for wooden windows and doors with 2
processing units. For a detailed description, see the PDF document.
-----------------------------------
Manufacturer’s technical description:

M9Cb robotic sealing system
The machine comprises a robust structure made from aluminium profiles,
fitted with motorised conveyor belts on which the

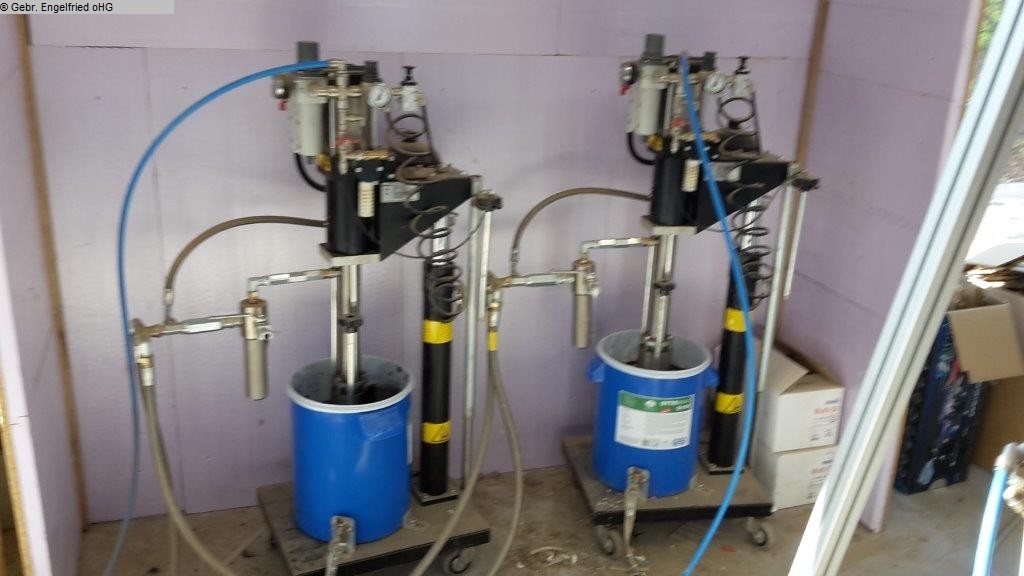

window units are transported. The silicone is distributed evenly into the

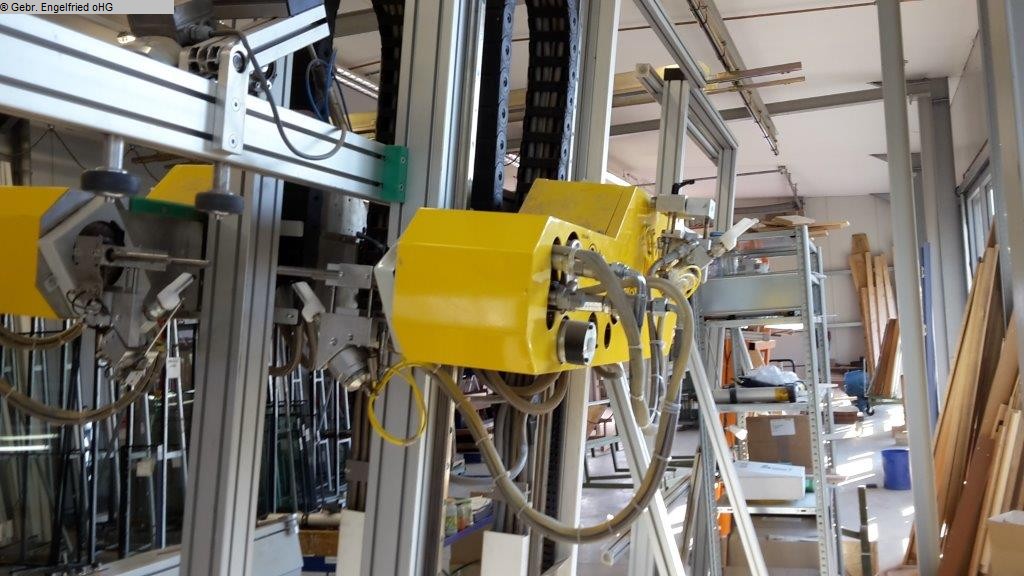

joint by means of two automatically controlled nozzles. The electronic
control system, which is in constant communication with the sensor, determines
the movement of the guns and the operating parameters.

Technical data: Standard Optional
Max. window width 2000 mm 3500 mm
Max. window height 2450 mm 3200 mm
Max. window thickness 160 mm 190 or 250 mm
Max. window weight 150 kg 200 or 400 kg
Loading station 2000 mm 3500 mm
Unloading station 2000 mm 3500 mm
Choice of silicone: Standard 1 colour 2 or 3 colours
Master head 1 2
Sealing of timber panels no yes
Formulation adapted to the type of elements
no yes
Synchronised conveyor belt no yes
for heavy loads and/or conveying
in both directions

Double movable crossbar for flush-mounted hinged
window sashes no yes
Please contact us for greater thicknesses or weights

Optimisation of the sealing process:
The M9Cb robotic sealing system revolutionises the sealing process by
injecting exactly the right amount of silicone, thereby preventing unwanted
streaks. It enables the glazing beads to be ‘nailed’ invisibly
and saves the time required to cover the nail heads. The
precision ensures high-quality, uniform sealing, which guarantees
optimal watertightness whilst maximising the clarity of the units.
With a feed speed of approx. 2 metres per minute,
it offers fast and efficient processing on both sides simultaneously
(on average 4 minutes per unit).

More space available:
No more lack of space in the workshop! The M9Cb operates vertically and
therefore takes up very little floor space. Leaning against a wall or partition,
it frees up the space previously occupied by horizontal sealing tables.
In addition, a strategically positioned conveyor belt can also serve as a vertical
glazing table, thereby optimising the layout of the work area

Automation of sealing:
To ensure a seamless seal, it is no longer necessary to
juggle the window unit or struggle with fitting seals.
The M9Cb automates this laborious process on both sides

Time savings:
Thanks to the M9Cb, the workflow is no longer one-dimensional. Whilst the
machine takes care of sealing the windows and doors, the operator can work on
other tasks, e.g. glazing, blocking, packaging...
This versatility enables the operator to diversify their activities
and thus offers them a more rewarding experience.
------------------------ -----------
Price of the above machine on request!
-----------------------------------
(Technical specifications according to the manufacturer – subject to change!)
All prices quoted are net, plus statutory VAT.



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1305-7021
