Iplik haddeleme makineleri PROFIROLL BAD DUEBEN ROLLEX
metal çalışma makineleri / diğer metal çalışma makineleri / Iplik haddeleme makineleri
pressure: 20 - 600 kNadjustment of rolling slide: 2 x 90 mmdiameter of rolling spindle: 120 mmroll spindle height over machine bed: 200 mmControl: SIN 840 D taper length of the roll spindle: 200 mmrolling spindle turning speeds: 0 - 34 1/mintorque per rolling spindle: 6.160 Nmpower capacity: 2 x ...
Üretici: PROFIROLL BAD DUEBEN
model:ROLLEX
Makine türü: Iplik haddeleme makineleri
İlan No.: 170366263
miktar: 1
tarih: 24.10.2026
Üretim yılı: 2013
yer: Standort
fiyat:
Stoktaki makine:evet
Seller-item-No.:1006-18199
pressure: 20 - 600 kN
adjustment of rolling slide: 2 x 90 mm
diameter of rolling spindle: 120 mm
roll spindle height over machine bed: 200 mm

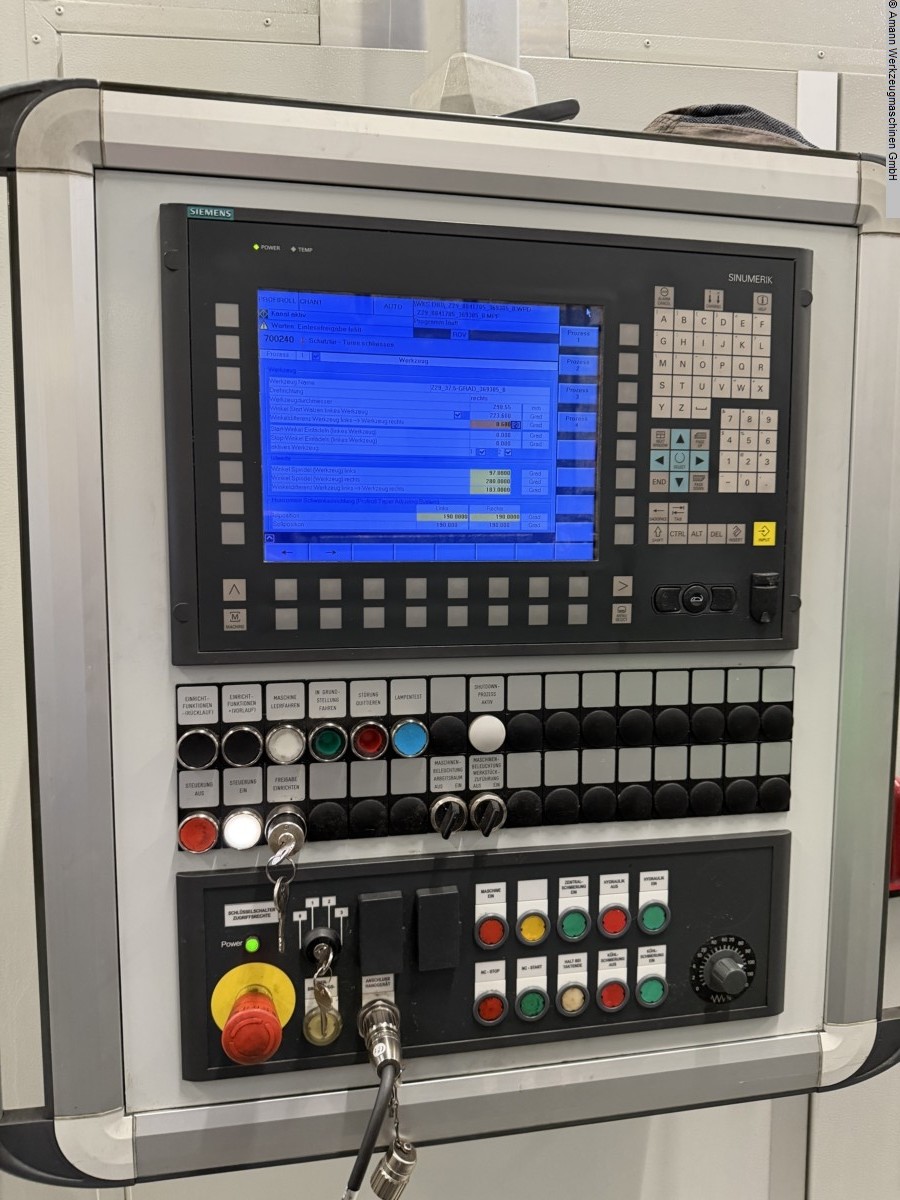

Control: SIN 840 D
taper length of the roll spindle: 200 mm
rolling spindle turning speeds: 0 - 34 1/min
torque per rolling spindle: 6.160 Nm
power capacity: 2 x 8,4 kW
distance between rolling spindles: min. 271 / max. 368 mm
rolling tool outer diameter: max. 300 mm
total power requirement: 26 kW
weight of the machine ca.: 7,1 t
dimensions of the machine ca.: 9,70 x 4,50 x 3,80 m

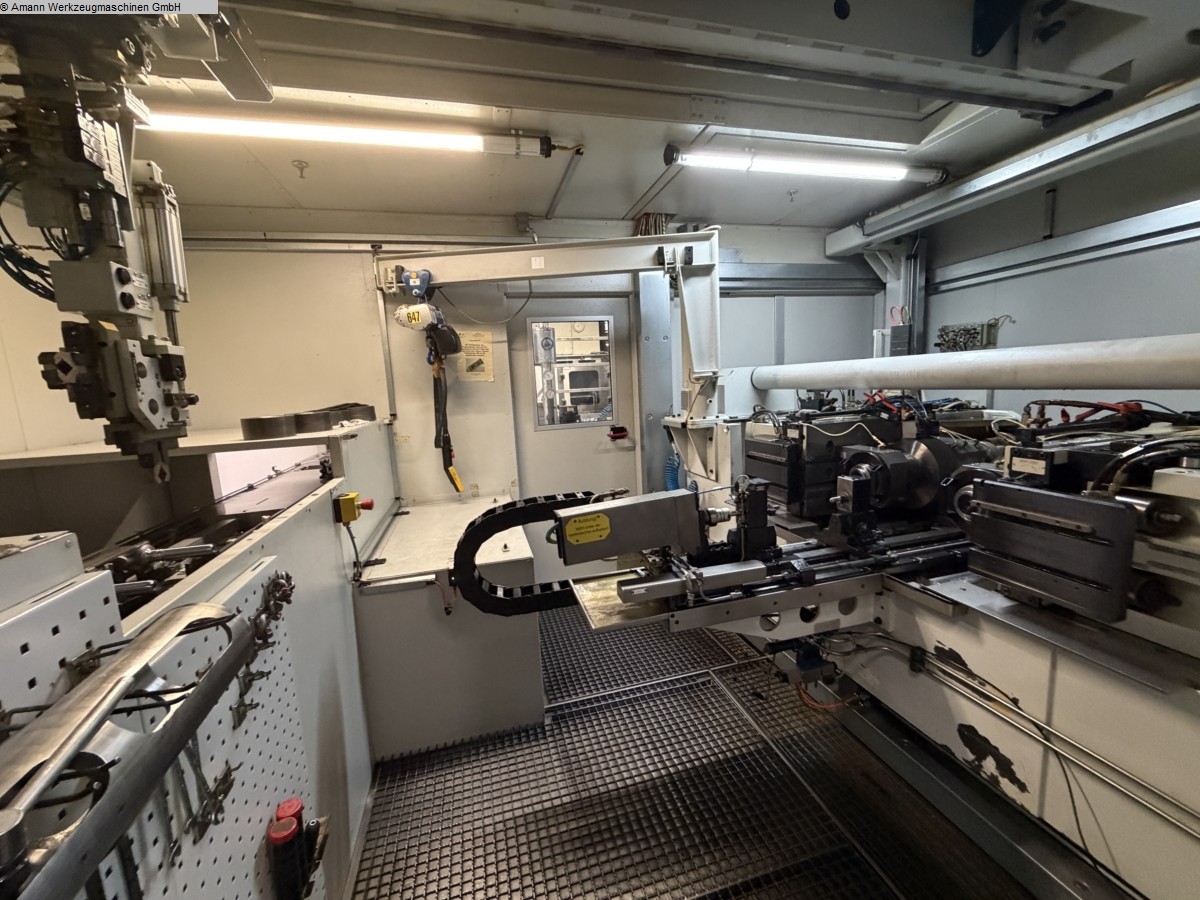

CNC machine for gear cold rolling / thread rolling

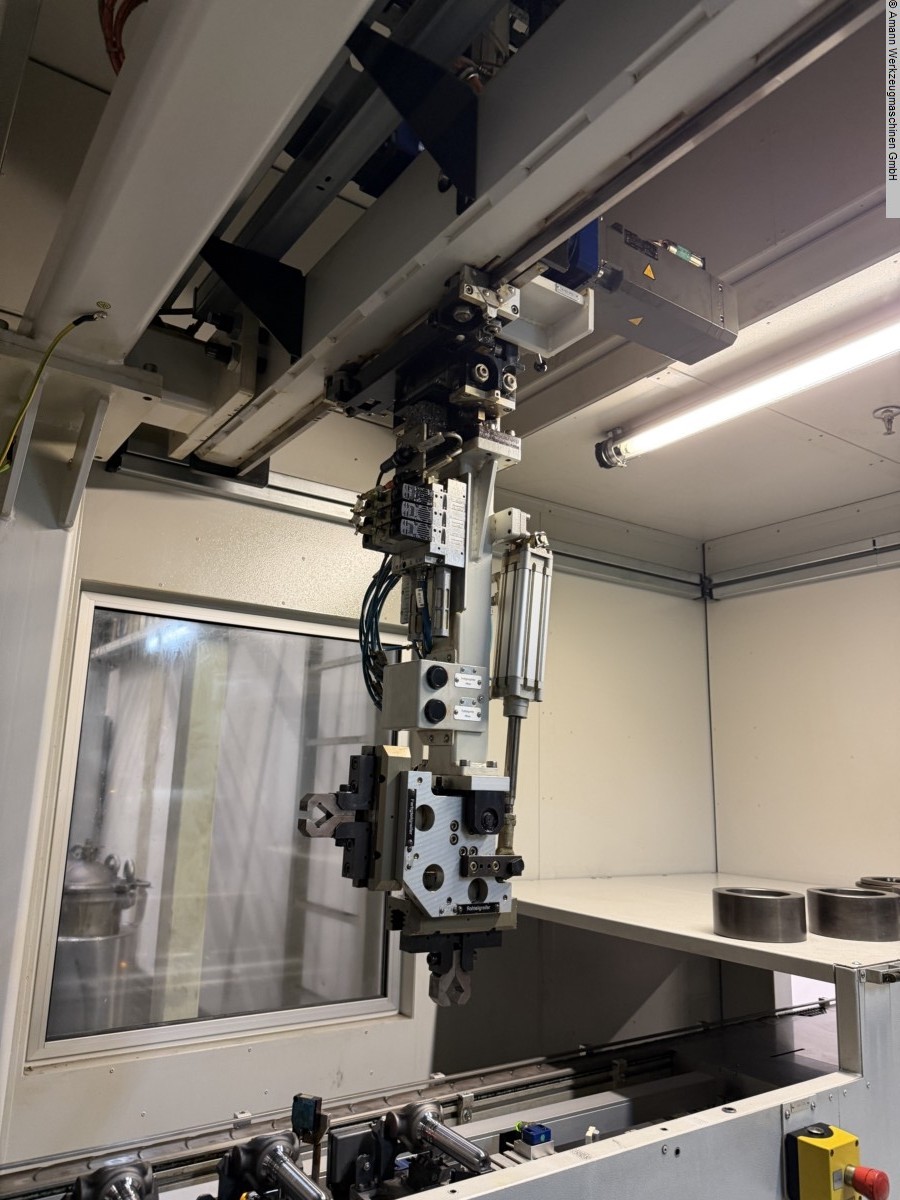

Felsomat loader cell
Complete housing
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
adjustment of rolling slide: 2 x 90 mm
diameter of rolling spindle: 120 mm
roll spindle height over machine bed: 200 mm
Control: SIN 840 D
taper length of the roll spindle: 200 mm
rolling spindle turning speeds: 0 - 34 1/min
torque per rolling spindle: 6.160 Nm
power capacity: 2 x 8,4 kW
distance between rolling spindles: min. 271 / max. 368 mm
rolling tool outer diameter: max. 300 mm
total power requirement: 26 kW
weight of the machine ca.: 7,1 t
dimensions of the machine ca.: 9,70 x 4,50 x 3,80 m
CNC machine for gear cold rolling / thread rolling
Felsomat loader cell
Complete housing
