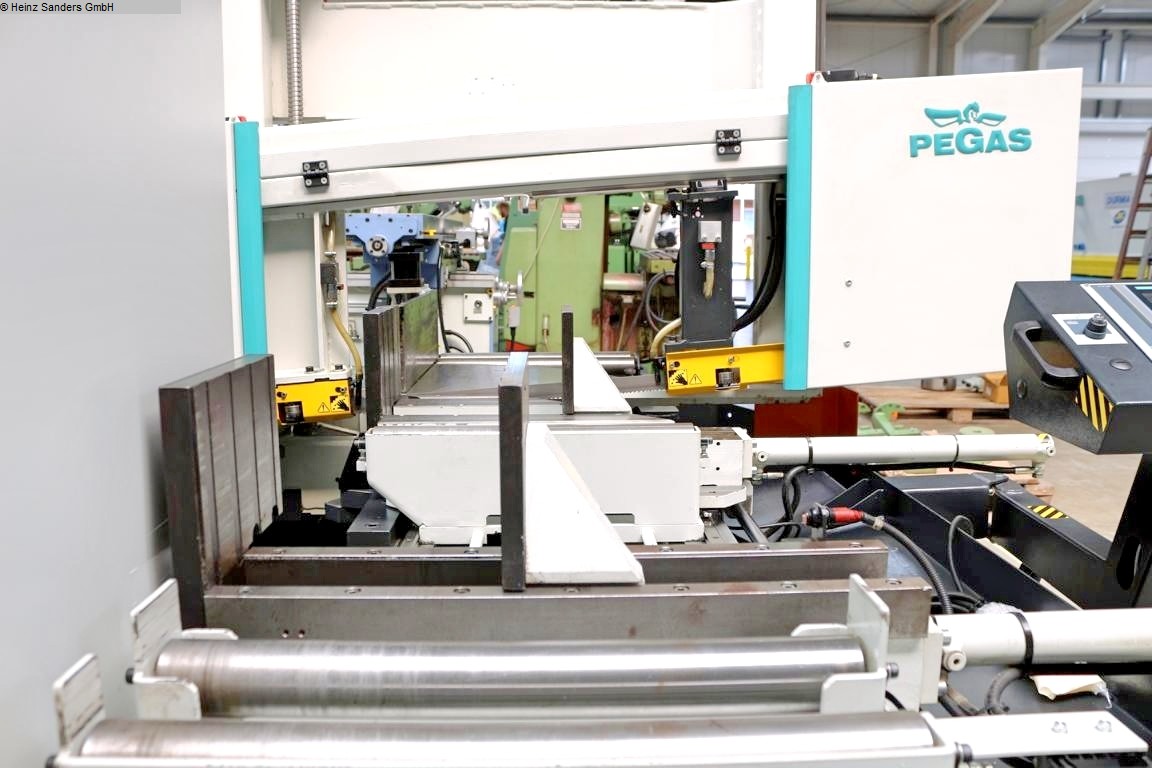

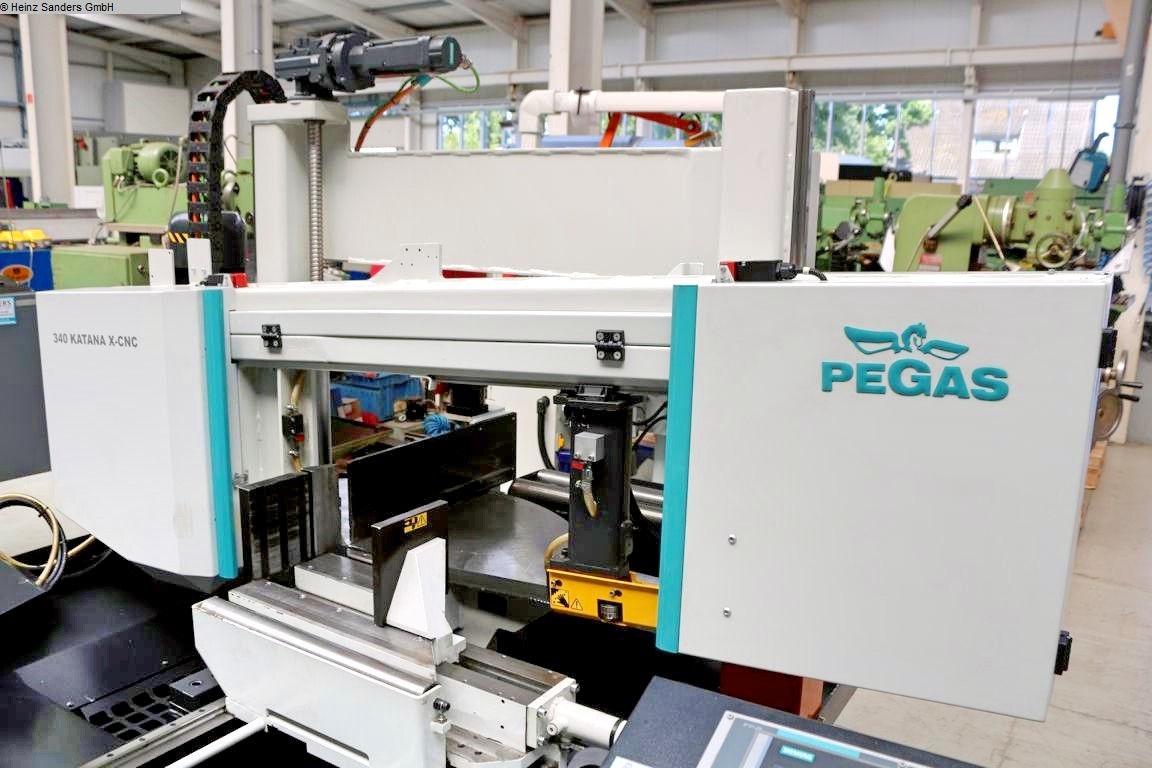

Bant testereleri PEGAS 340 KATANA X-CNC-LR

cutting diameter: 350 mm
saw band length: 4780 x 34 x 1.1 mm
capacity 90 degrees: flat: 500 x 340 mm
capacity 45 degrees: round: + 350 mm
capacity 45 degrees: flat: + 380 x 340 mm
capacity 60 degrees: round: 230 mm
capacity 60 degrees: flat: 220 x 340 mm
capacity 45 degrees: round: - 350 mm
capacity 45 degrees: flat: - 220 x 340 mm
coolant capacity: ca. 100 l
band speed: 20 - 100 m/min
Control: SIEMENS
voltage: 3x 400 V
total power requirement: 3.0 kW AC
weight: 2150 kg
range L-W-H: 3030 x 3150 x 2000 mm
In very good condition
Demo machine from the manufacturer PEGAS
With a wide range of special features
Original price about 60.000 euros
Special price upon request

Features:
- Robust, highly efficient electro-hydraulic miter band saw
Fully automatic (INDUSTRIAL) = with automatic material feed
Model: Two-column band saw
Maximum stability and vibration damping during cutting
Powerful saw band drive with a 3.0 kW motor

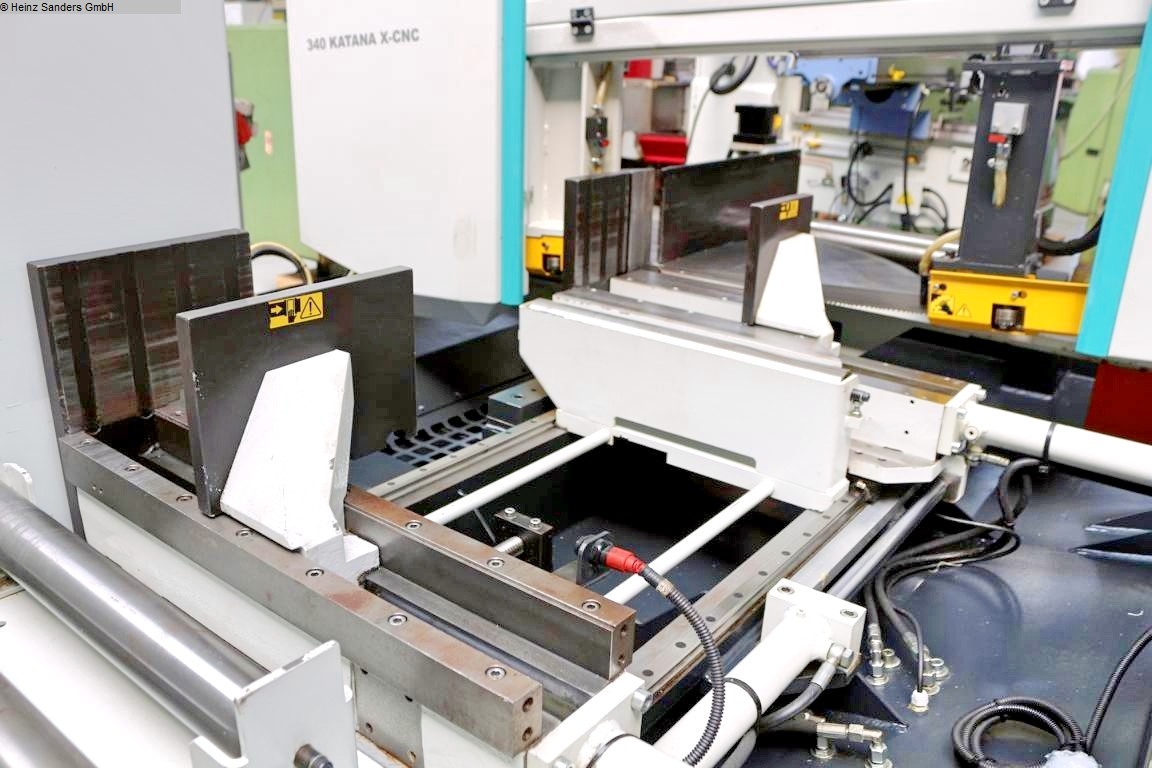

- Material feed unit with ball screws
Longstep feed gripper for a maximum feed length of 1.000 mm
- Includes SIEMENS PLC control unit
Selectable semi-automatic or fully automatic cycle
200 programs, each with 99 programmable cut lengths and quantities
When the remaining length is 500 mm, the machine interrupts the sawing cycle
Protection against damage or jamming of the material
- For angles from 0° to 60°, with a ball-bearing rotary table
Programmable CNC adjustment of the miter angle
Right (0° to 60°) and left (0° to 45°)
Stepless adjustment of the miter angle
Adjustment via a robust gear train
- Saw blade guides made of carbide plates
- Saw feed infinitely adjustable via a fine-adjustment knob
- Sturdy machine bed and torsion-resistant saw frame
- Infinitely variable speed adjustment of the saw blade
- Coolant system
- Operating instructions for the machine and control system
