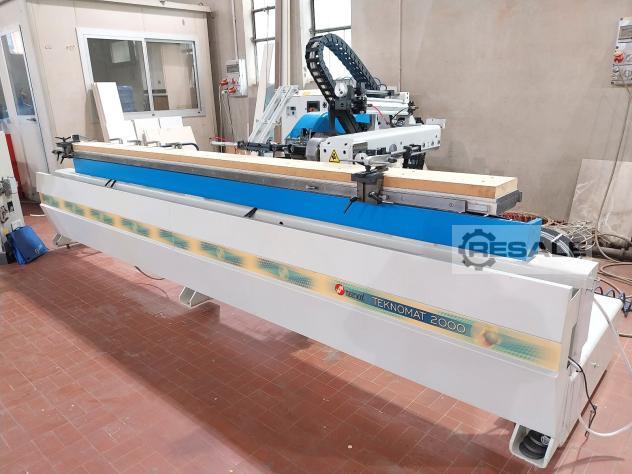

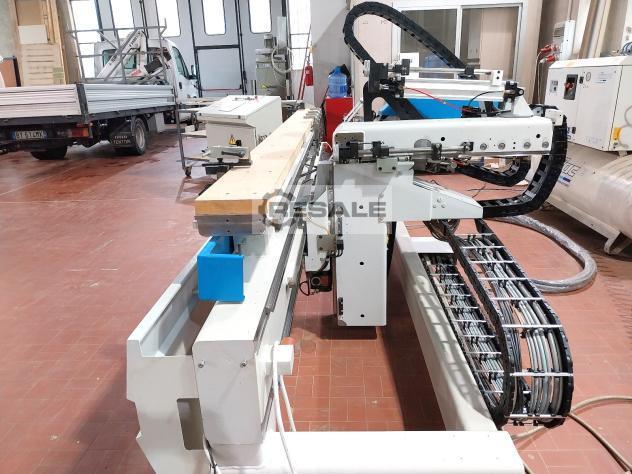

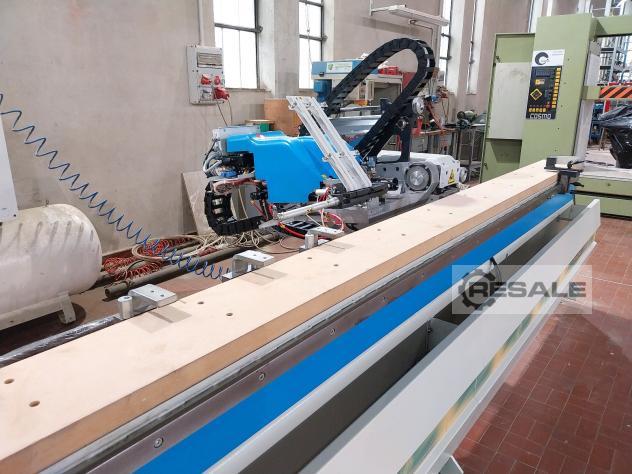

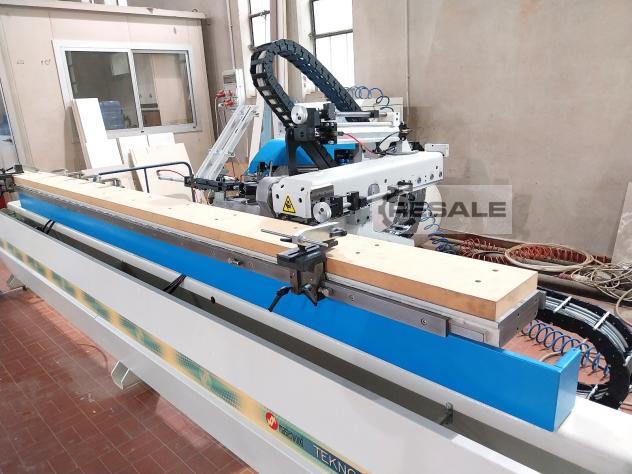

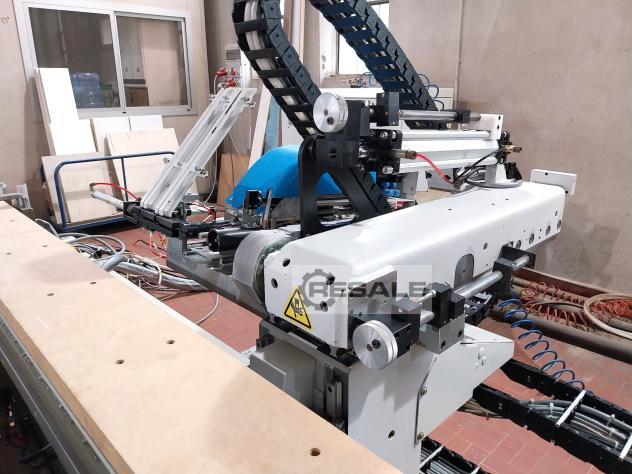

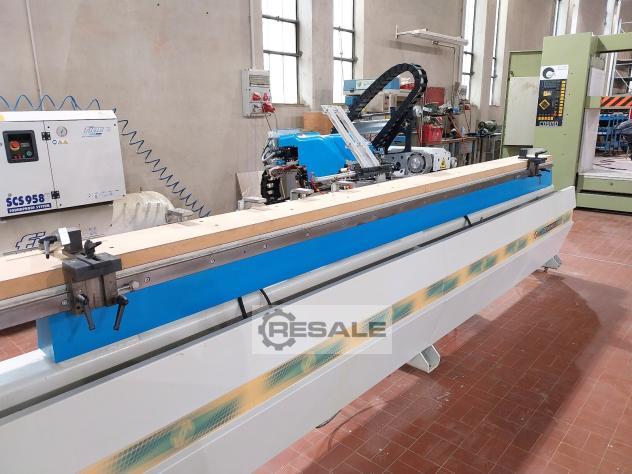

Dübel delme makineleri MASTERWOOD TEKNOMAT 2000-P

Code: 0359
Brand: MASTERWOOD
Model: TEKNOMAT 2000-P - CE Standard

Electronic anuba inserting machine with 2 controlled axis for inserting anuba hinges – CE Standard

Technical specifications:
Working stroke length 3100 mm – Displacement speed 72 mt/min
Working stroke height 350 mm – Displacement speed 15 mt/min
Working stroke depth 150 mm - Displacement speed 15 mt/min
Working table mm 150 x 3800
N° 2 rear stops with manual positioning
N° 4 rear bracket-type clamps with reference stops
Side stops with manual positioning 1 right - 1 left
2 pneumatic front clamps

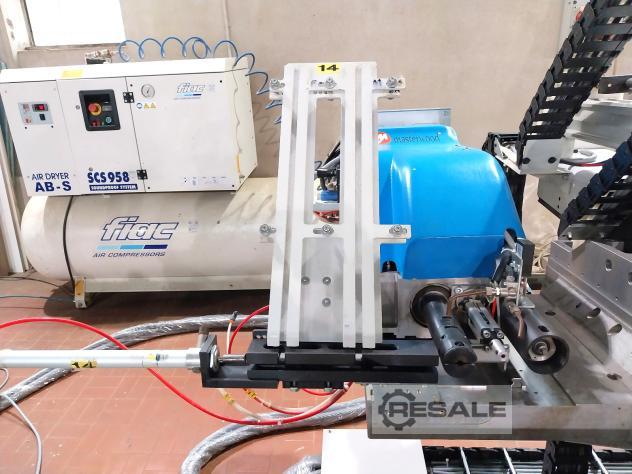

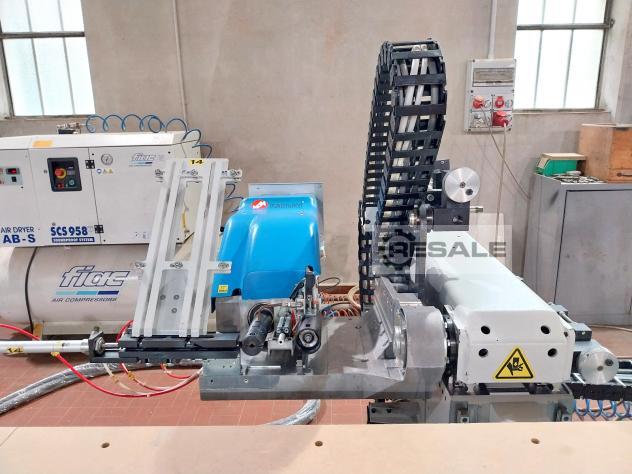

Anuba unit with double magazine for male female anuba hinges - Diameter 14 mm
Tilting head - 7 + 90°
Double stem anuba screw device
Front fences on machine table for machining of assembled doors and windows
Control CNC 2: Microprocessor control unit – Digital display – Multitasking operating system – Programming of manual and automatic anuba inserting – Inserting of single, anuba – Step by step execution
Installed electrical power 7,62 Kw
Compressed air 6-7 atm
Machine Overall dimensions m 4400 x 1600 x 1600 h
Weight kg 1650
Electrical cabinet overall dimensions mm 1050 x 550 x 1100 h
Weight kg 390



seller offer No. resale Code: 0359
