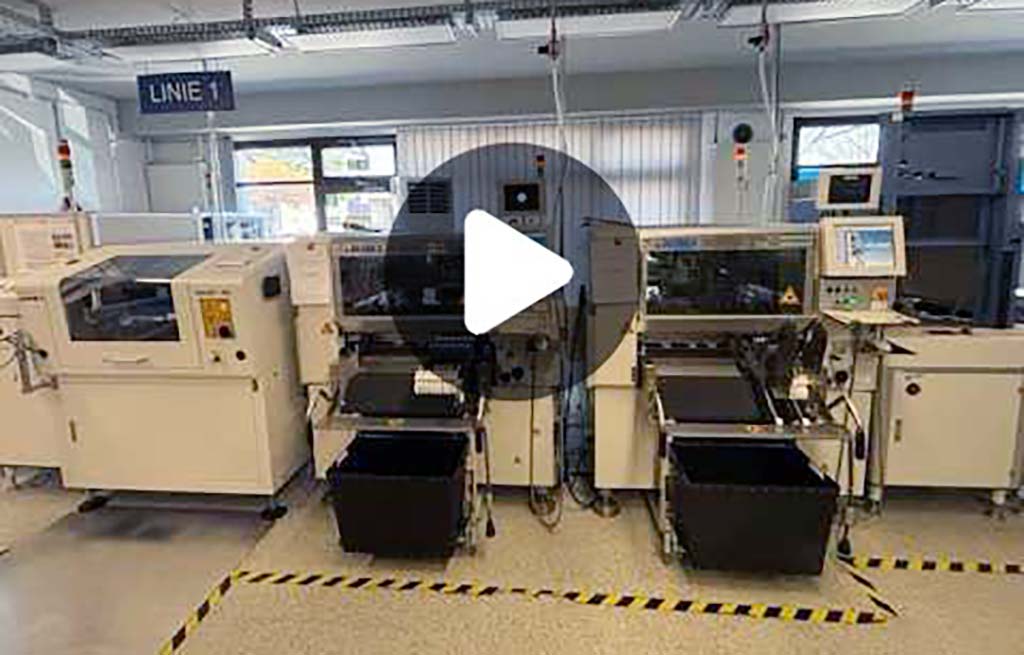

Juki KE-2070/ KE-2080 Pick-and-Place Line

The line consists of one Juki KE-2070 pick-and-place machine, one Juki KE-2080 pick-and-place machine, one Juki RS-800 reflow soldering oven and a cooling unit (chiller), 1) Juki KE-2070 pick-and-place machine, permissible component height SC: 6mm, NC: 12mm, PCB dimensions Medium: 330x250mm, Large: 410x360mm, Extra Large: 510x460mm, transport direction: right-to-left or left-to-right, transport height: 900mm +/-20mm, 950mm +/-20mm, 2) Juki KE-2080 pick-and-place machine, permissible component height NC: 12mm, HC: 20mm, EC: 25mm, PCB dimensions Medium: 330x250mm, Large: 410x360mm, Extra Large: 510x460mm, transport direction: right-to-left or left-to-right, transport height: 900mm +/-20mm, 950mm +/-20mm, 3) Juki RS-800 8-zone reflow soldering oven, number of heating zones: top 8, bottom 8, heating zone length: 3121mm, number of cooling zones: top 2, cooling zone length: 800mm, exhaust air volume: 10m³/min x2 exhaust connections, heat-up time: approx. 25min, temperature setting range: room temperature to 300°C, temperature control: closed-loop PID control + SSR, PCB width: 50-450mm, transport height: 950mm +/-20mm, transport speed: 300-2000mm/min, chain lubrication: automatic lubrication, cooling method: forced-air cooling, connected load: 64kW, power consumption during start-up: approx. 35kW, power consumption during normal operation: approx. 8.5kW, length: 5314mm, width: 1417mm, height: 1524mm, weight: 2.25t, 4) Cooling unit (chiller). An on-site inspection is possible.
