Dübel delme makineleri HOFFMANN GÖTZINGER HR 150 TOP ZUSTAND + Lieferung

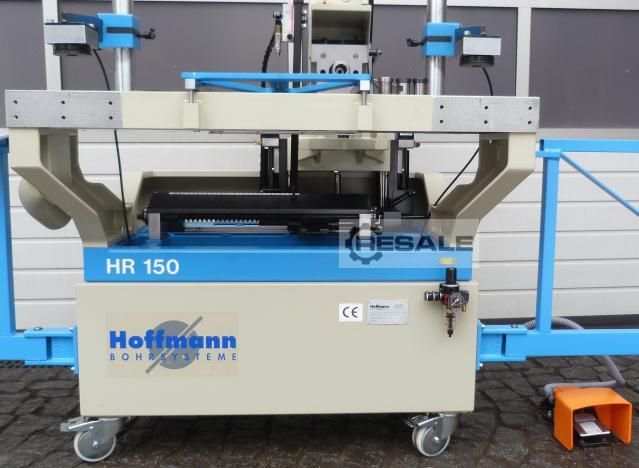

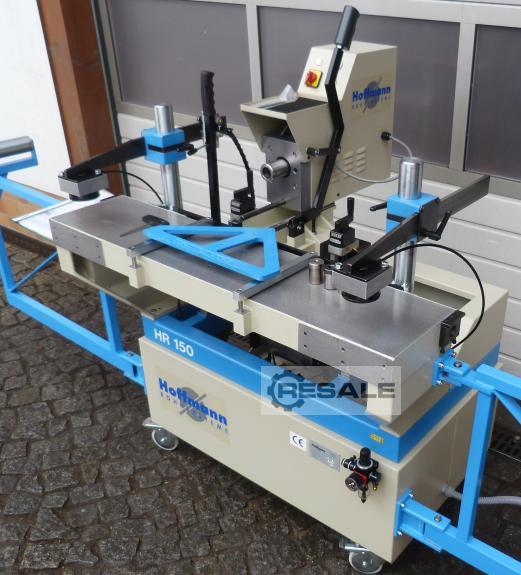

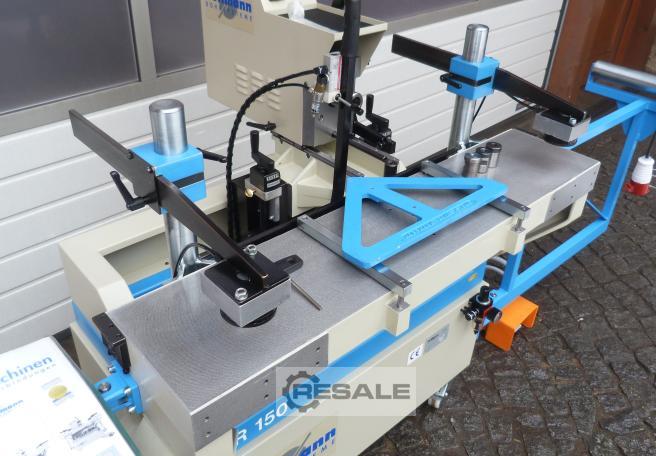

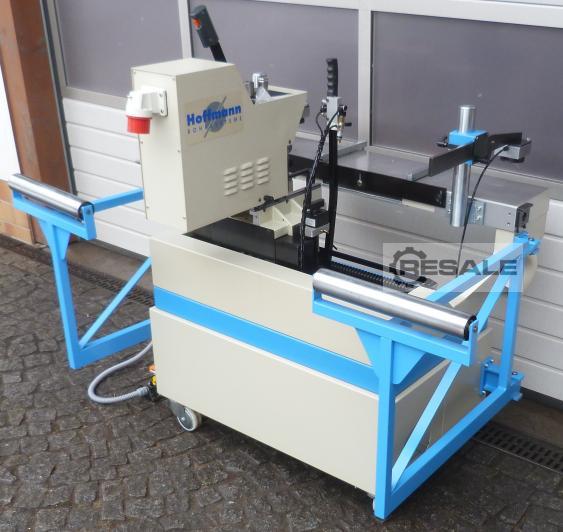

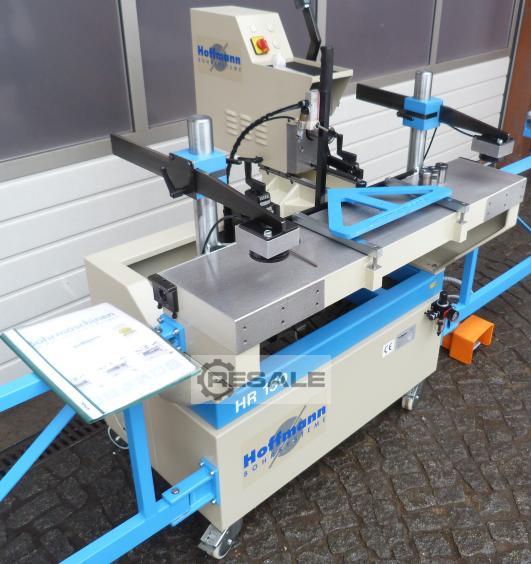

Dowel and slotted hole drilling machine HOFFMANN HR 150

very good condition, as good as new, the machine comes from an assembly company, it has almost no signs of use and is absolutely new, it was only used for some modification work and is now being sold, as it has only stood in recent years
this allows slotted holes to be milled and dowel holes to be drilled on 2 levels without reclamping
with description
380V, 1500W
2840rpm
Year of manufacture 1997
with the machine you can mill slotted holes for e.g. lock boxes and similar things, make all kinds of frame and dowel connections at right angles, blunt and mitred
ideal for the production of dowel joints in timber frame construction, furniture, doors, windows and stairs construction and for similar things
by drilling on 2 levels, by the grids and stops and by the construction of the machine, dowel connections are made in the shortest possible time, which makes the machine very economical
the machine requires a compressed air connection of 6bar (the air consumption is very low)
Clockwise
Mills and drills very well and cleanly
with landing gear

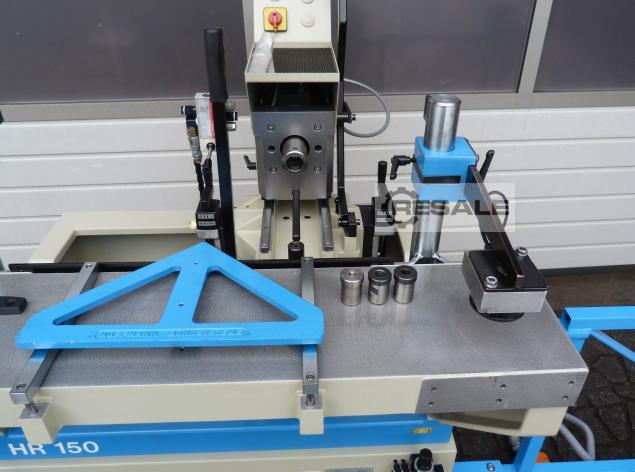

with 2 stops on the left and right of the machine table, in addition you get a 45° mitre stop
with 2 fold-out workpiece supports
You get 3 drill bit holders, for drills with a 16 or 12mm shank and for drills with an M10 thread
The workpiece is clamped by 2 pneumatic clamping cylinders operated by a foot pedal, which allows you to hold the workpiece with both hands
the height adjustment from one drilling level to the other is also pneumatic, the pneumatic switch for this is located at the top of the adjustment lever for the grid, which ensures quick adjustment of grids and the drilling levels
with a precision 12mm grid rail, which has a center grid and 13 grids left and right
the 2 drilling levels each have a very precise counter, which allows for easy, fast and accurate height adjustment of each drilling level
can also be used as an elongated hole drill, with 2 adjustable stops on the L6336686 left and right and then L6336686 has a width of max. 500mm
the machine has a stop rail at the front of the machine table, which can be adjusted downwards if necessary
The max. drill hole height is approx. 100mm
the max. drill hole depth is approx. 150mm, with drilling depth stop
The max. workpiece height is approx. 250mm
Everything works perfectly
the machine will be delivered and demonstrated by us personally for 220.00 euros throughout Germany, so you have no risk when buying, delivery to Austria, Switzerland and the rest of Europe is also possible
The machine table is 1100mm wide and 250mm deep
Professional equipment, no DIY store scrap
you can start working with the machine immediately
Very stable and durable construction
the precision guides with the backlash-free ball bearing bushings are OK and go easily
Very stable and torsion-resistant construction
seller offer No. resale 168816212
