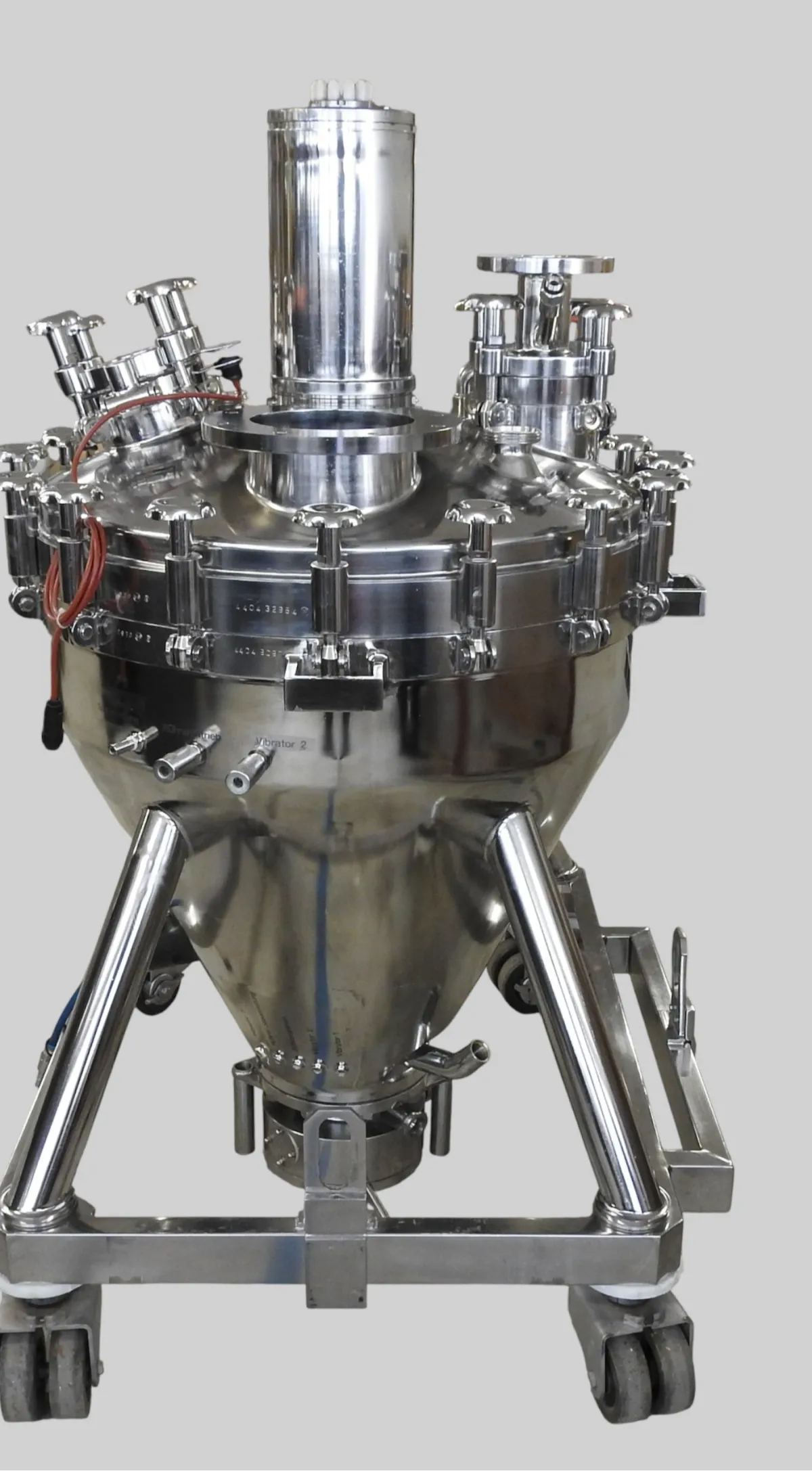

Hermann Waldner VT 160 Industrial storage tank
ikinci elDoğrulanmış satıcı
Fiyat iste
Doğrudan satıcıya
1 / 8
Teknik veriler
· ID 170120014Makineler
- Durum
- ikinci el
- Üretim yılı
- 2004
- Konum
- Basel, Switzerland
Identifikation
ÜreticiHermann Waldner
ModelVT 160
Kalem numarası9456943
Technik
Adet1
Açıklama
Manufacturer: Hermann Waldner
Year of Construction: 2004
Condition: Good used condition, mounted on a solid stainless steel/steel frame with heavy-duty casters
Technical Details
- Material: Stainless steel 1.4404 / V4A
- Internal Volume (per nameplate): 225 liters
- Exterior / Jacket Volume: 24 liters
- Stirrer: Equipped with anchor stirrer
- Manhole / Inspection Opening: ILMADUR DIN 7080-10 glass
- Smaller Openings/Connections: 4 total, 3 approx 5 cm and 1 approx 4 cm
- Large Openings: 2 total, approx 13 cm and approx 20 cm
- Additional Features: Numerous additional process connections, floor emptying, connections for stirrer drive and vibrators, massive mobile frame with heavy-duty casters
- Interior Pressure Rating: -1 to +1 bar
- Outer Space/Jacket Pressure Rating: -1 to +3 bar
- Temperature Range: -40 to +150 degrees C
- Suitable Applications: Mixing, stirring, temperature control and process applications in pharmaceuticals, chemistry, cosmetics, biotechnology, food technology and research and development
Find more here - .ucymachines/
Contact us at - sales@ucymachines
Year of Construction: 2004
Condition: Good used condition, mounted on a solid stainless steel/steel frame with heavy-duty casters
Technical Details
- Material: Stainless steel 1.4404 / V4A
- Internal Volume (per nameplate): 225 liters
- Exterior / Jacket Volume: 24 liters
- Stirrer: Equipped with anchor stirrer
- Manhole / Inspection Opening: ILMADUR DIN 7080-10 glass
- Smaller Openings/Connections: 4 total, 3 approx 5 cm and 1 approx 4 cm
- Large Openings: 2 total, approx 13 cm and approx 20 cm
- Additional Features: Numerous additional process connections, floor emptying, connections for stirrer drive and vibrators, massive mobile frame with heavy-duty casters
- Interior Pressure Rating: -1 to +1 bar
- Outer Space/Jacket Pressure Rating: -1 to +3 bar
- Temperature Range: -40 to +150 degrees C
- Suitable Applications: Mixing, stirring, temperature control and process applications in pharmaceuticals, chemistry, cosmetics, biotechnology, food technology and research and development
Find more here - .ucymachines/
Contact us at - sales@ucymachines
