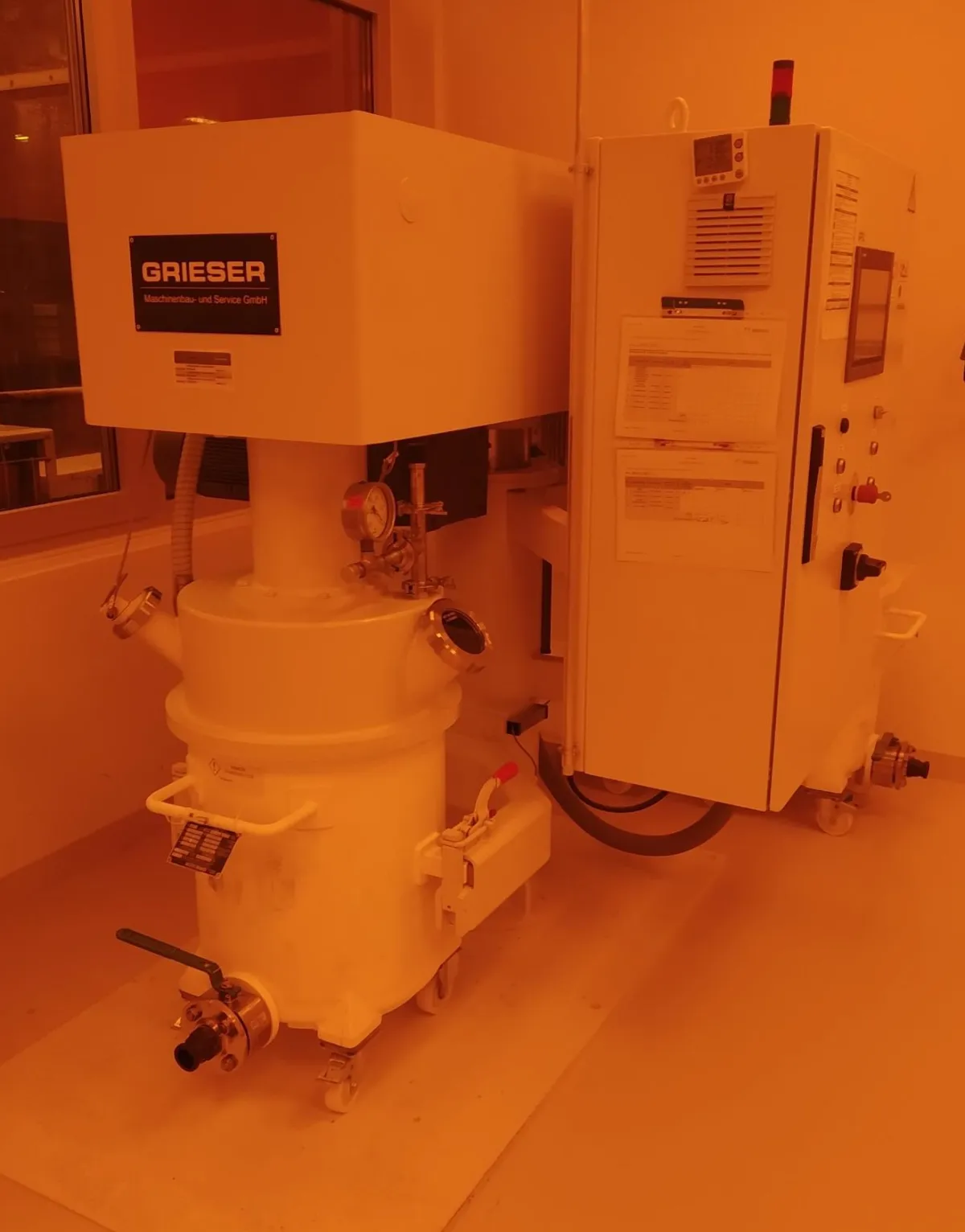

Grieser Mixer Vakumlu kelebek
ikinci elDoğrulanmış satıcı
Fiyat iste
Doğrudan satıcıya
1 / 5
Teknik veriler
· ID 166201343Makineler
- Durum
- ikinci el
- Üretim yılı
- 2018
- Konum
- Germany
Identifikation
ÜreticiGrieser
ModelMixer
Kalem numarası5559123
Technik
Adet1
Açıklama
2018 Grieser Vacuum butterfly mixer.
Key details about the system:
Manufacturer Grieser
Year of construction 2018
Operating hours approx. 700-800 hours.
3 associated containers
Documentation available
Vacuum butterfly mixer
Total connected load approx. 18 kW
Operating voltage 400 V/ 50Hz
Control voltage 24 V DC
Machine weight approx. 2400 kg (without container)
Max height 2450 mm (stroke 650 mm)
Width approx. 1360 mm
Long approx. 2641 mm
Zones not Ex
3 butterfly stirring inserts
Butterfly 72-720 min^-1
Wiper arm n=16 min^-1
Sight glass with light on hood
On the hood pressure gauge, analogue and pressure transmitter connection TC-DN25
Vacuum pump 1.5 kW 1500 min^-1
Container clamping with quick release and one-sided monitoring with safety initiator
Control panel with control panel in control cabinet
Paint finish RAL 1013, pearl white smooth lacquer
Container
Mixing chamber volume 100 liters
Pressure in the mixing room 0-1 bar
Volume heating-cooling room 13 liters
Pressure in the heating/cooling room 3 bar
Min/Max operating temperature container jacket 15/150 °C
Max operating temperature of bearings and seals 130°C
Materials
Parts in contact with the product 1.4301, hard chrome plated, ground grain 240 (Ra <= 0.8 µm)
Seal static NBR
Dynamic NBR seal
Seal ball valves, wiper blade PTFE
Seal hood silicone
Find more here - .ucymachines/
Contact us at - sales@ucymachines
Key details about the system:
Manufacturer Grieser
Year of construction 2018
Operating hours approx. 700-800 hours.
3 associated containers
Documentation available
Vacuum butterfly mixer
Total connected load approx. 18 kW
Operating voltage 400 V/ 50Hz
Control voltage 24 V DC
Machine weight approx. 2400 kg (without container)
Max height 2450 mm (stroke 650 mm)
Width approx. 1360 mm
Long approx. 2641 mm
Zones not Ex
3 butterfly stirring inserts
Butterfly 72-720 min^-1
Wiper arm n=16 min^-1
Sight glass with light on hood
On the hood pressure gauge, analogue and pressure transmitter connection TC-DN25
Vacuum pump 1.5 kW 1500 min^-1
Container clamping with quick release and one-sided monitoring with safety initiator
Control panel with control panel in control cabinet
Paint finish RAL 1013, pearl white smooth lacquer
Container
Mixing chamber volume 100 liters
Pressure in the mixing room 0-1 bar
Volume heating-cooling room 13 liters
Pressure in the heating/cooling room 3 bar
Min/Max operating temperature container jacket 15/150 °C
Max operating temperature of bearings and seals 130°C
Materials
Parts in contact with the product 1.4301, hard chrome plated, ground grain 240 (Ra <= 0.8 µm)
Seal static NBR
Dynamic NBR seal
Seal ball valves, wiper blade PTFE
Seal hood silicone
Find more here - .ucymachines/
Contact us at - sales@ucymachines
