Mitre dairesel testereler GRAULE ZS 170 N

saw blade diameter: 420 x Ø 40 mm
cutting diameter: 170 mm
cutting length: 410 mm
dimensions of saw-blade: 420x3,2/2,4x40 mm
turning speeds: 3500 U/min
Dust suction hood: 100 mm
total power requirement: 3,0 kW
weight of the machine ca.: 120 kg
dimensions of the machine ca.: 1300 x 800 x 1600 mm
- Cross-cut and miter saws for cross-cut cuts

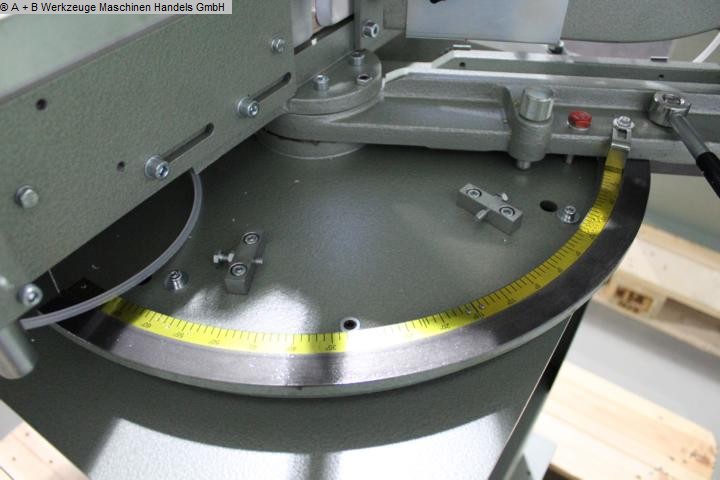

- Miter adjustment on both sides (60 ° / 45 °), with fixed stop
- Shifter cut on both sides 45 °, with fixed stop
- Stable cast iron construction
- Precise linear bushing guide on the tool slide
hardened and ground steel shafts
- manual saw feed
- Saw blade infinitely adjustable in height
- nozzle for opt. Suction

Cutting data:
- Cutting length at 90 ° = 410 mm
- Cutting height at 90 ° = 170 mm
- Cutting length at 45 ° = 290 mm
- Cutting height at 45 ° = 115 mm

Special accessories included:

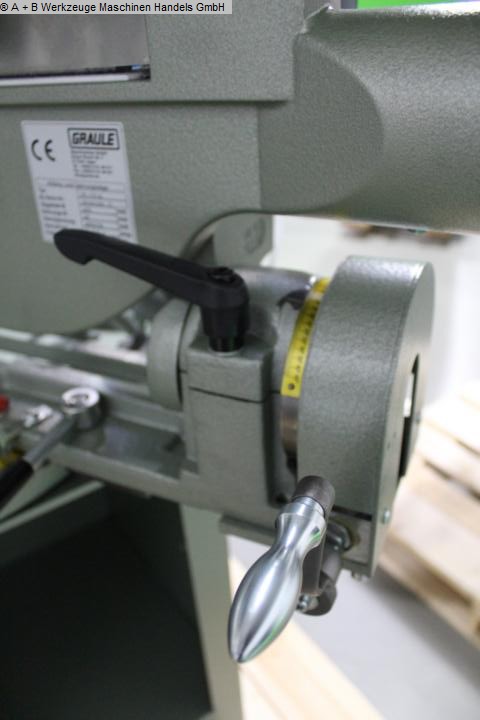

- Adjustment of shifter cut via hand crank, both. adjustable (45 ° / 45 °)
- HM circular saw blade 420x3.2 / 2.6x40 mm
Z = 108 FTZ neg. For aluminum and plastic
- hydraulic feed brake, infinitely adjustable

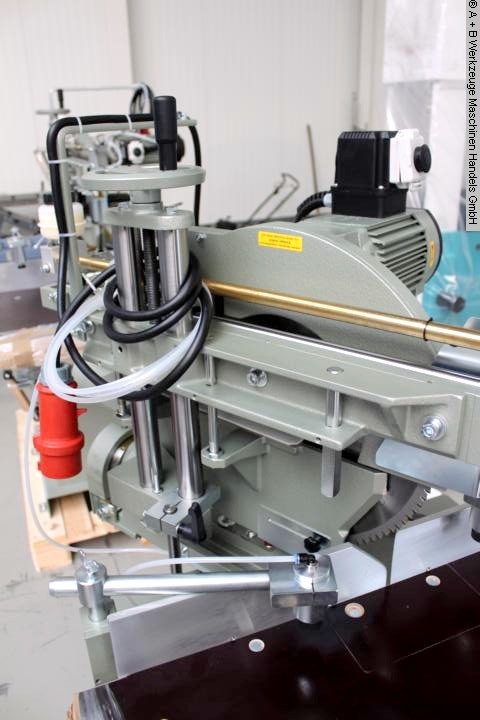

- pneumatic material clamping from above
consisting of:
2 vertical clamping cylinders, adjustable, with hand lever valve
- machine stand



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1125-8162010
