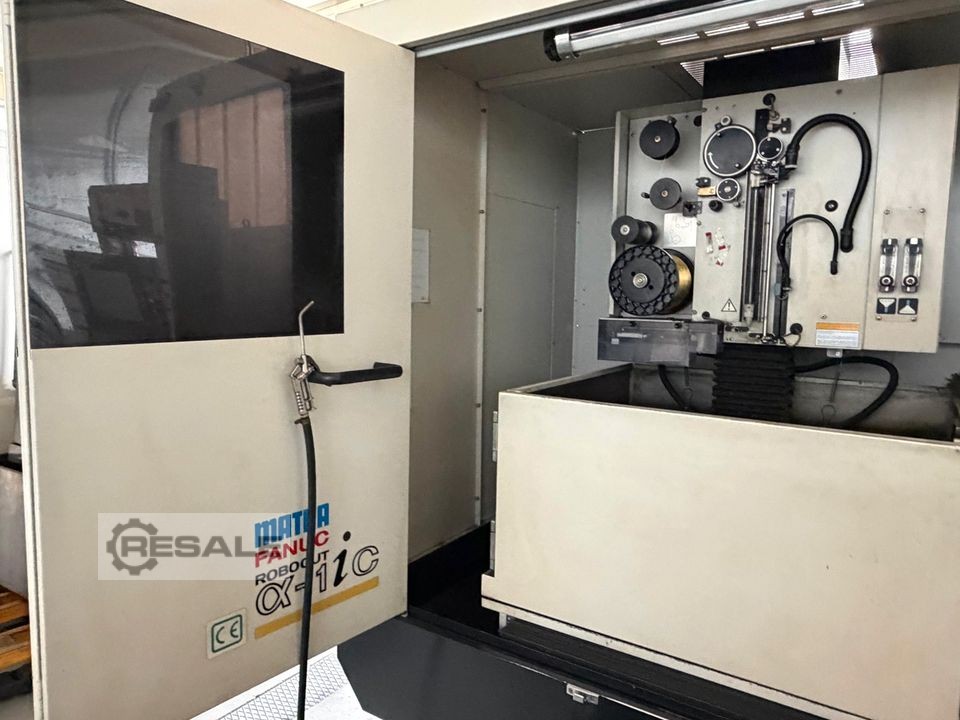

EDM makinesi FANUC ROBOCUT ?-1iC

FANUC ROBOCUT α-1iC wire EDM machine wire cut EDM machine

Year of manufacture 2004
Type A04B-0316-B001#E5

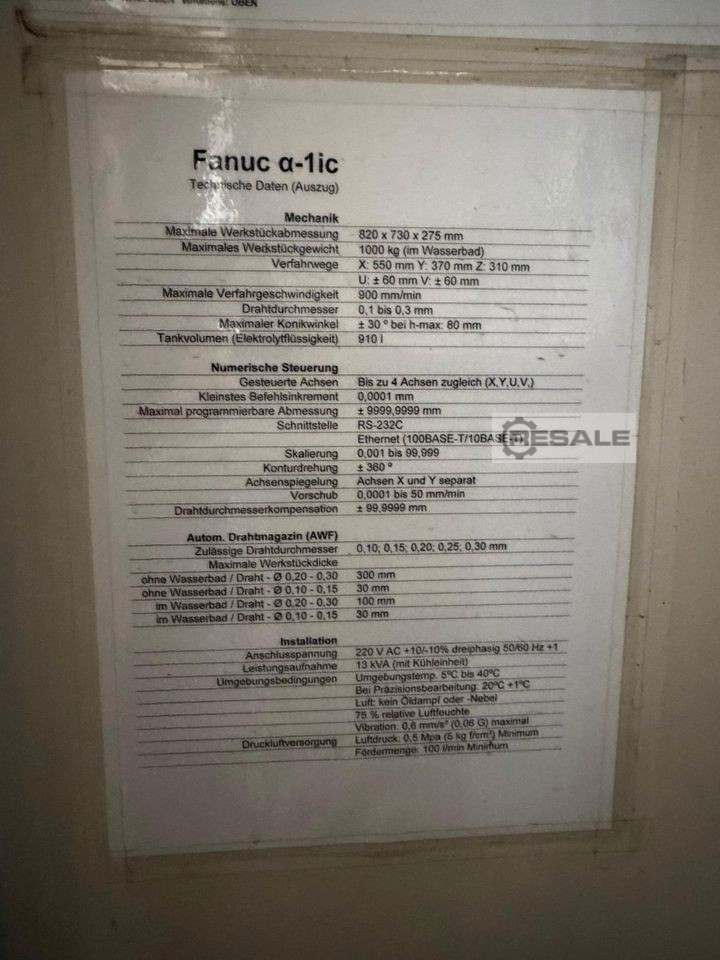

FANUC ROBOCUT α-1iC Technical Data

Specification Details
Machine Type: CNC Wire EDM Machine
Model No.: ROBOCUT α-1iC
Your article number: A04B-0316-B001#E5
Date of manufacture: March 2004
Serial Number: P043C1119

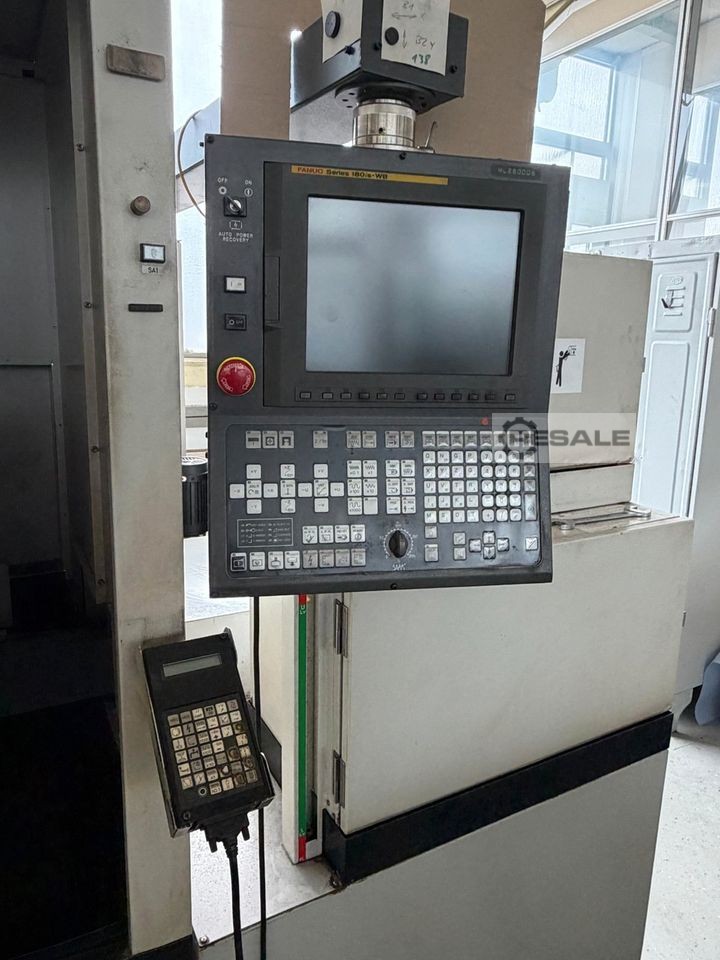

CNC Control: FANUC Series 180is-WB
Controlled axes: 5 – X, Y, Z, U, V
Travel X: 550 mm
Travel Y: 370 mm
Travel Z: approx. 310–410 mm (depending on configuration)
Travel U: ±60 mm / 120 mm total
Travel V: ±60 mm / 120 mm total
Rapid traverse speed X/Y/Z: 900 mm/min
Rapid traverse speed U/V: 450 mm/min
Table size: approx. 780 × 600 mm
Maximum workpiece approx. 820 × 730 × 300 mm
Maximum workpiece weight 1,000 kg
Wire diameter 0.10–0.30 mm

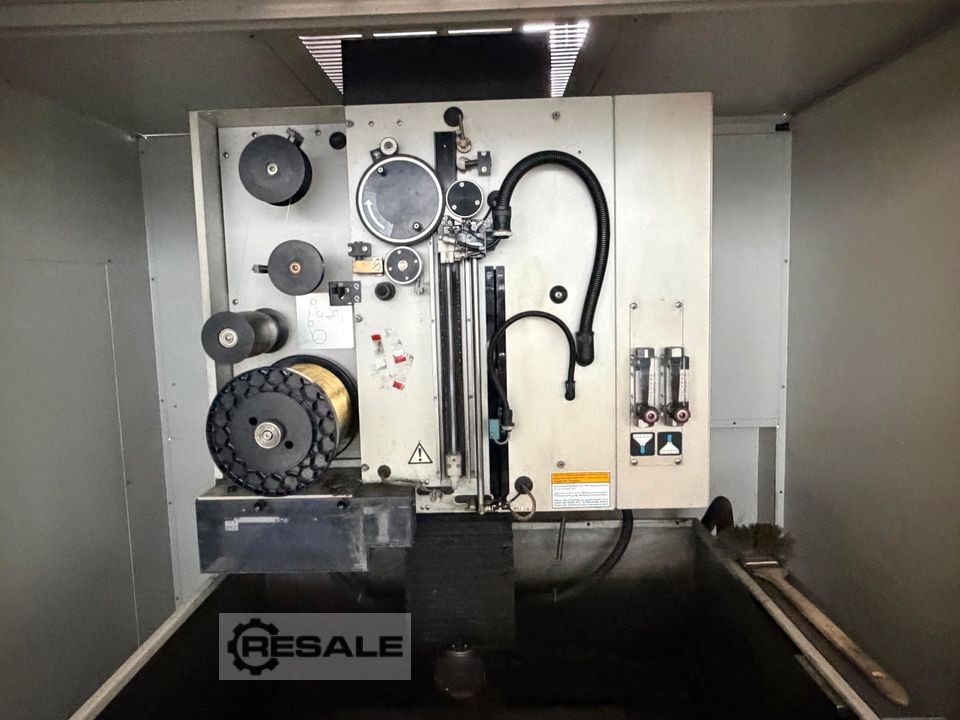

Automatic wire threading: Yes
Maximum conicity approx. ±30°
Minimum programmable increment 0.0001 mm
Power requirement approx. 13 kVA/kW, depending on the electrical configuration
Machine weight approx. 3,000–3,100 kg

Published examples of the α-1iC show travel distances of 550/370/310 mm in the X/Y/Z direction and 120/120 mm in the U/V direction at a rapid traverse speed of 900 mm/min in the X/Y/Z direction. An example from 2004 confirms the configuration of the 180is-WB series with five-axis control, automatic wire threading and underwater machining.


Machine is from the first owner, from German company.
Phone 017621834834
If you have any questions, please contact us.
