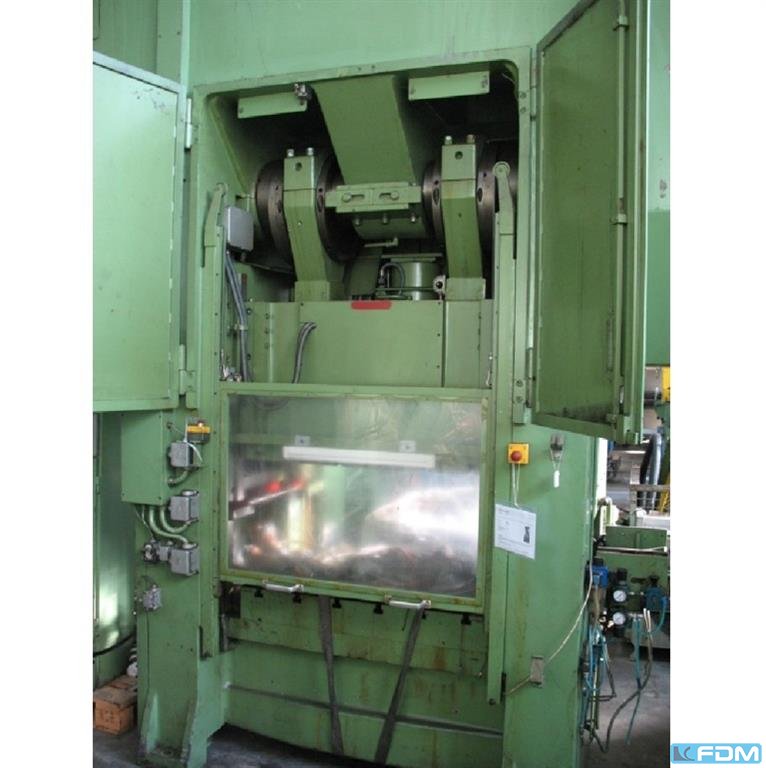

DREES VE 100/100 Double Column Press - mechanical
ikinci elDoğrulanmış satıcı
Fiyat iste
Doğrudan satıcıya
1 / 3
Teknik veriler
· ID 170397946İkinci el makineler
- Durum
- ikinci el
- Üretim yılı
- 1980
- Konum
- Lager Eislingen, Baden-Württemberg
Identifikation
ÜreticiDREES
ModelVE 100/100
Kalem numarası1050-073112
Technik
Adet1
Açıklama
pressure:100 t
distance between columns:1230 mm
stroke:20 - 200 mm
no. of strokes:20 - 60 /min
distance table/ram, max. stroke up, adjustment up:650 mm
table surface area:1050 x 750 mm
table height over floor:760 mm
side window:540 mm
ram surface:1000 x 750 mm
ram adjustment:100 mm
power requirement:18,0 kW
weight:20,5 t
Dimensions (WxDxH):2,8 x 1,9 x 4,3 m
infinitely variable drive:PIV
clutch:pneumatic
overload protection in ram:hydraulic
ram counterbalance:pneumatic
ram adjustment:motoric
distance between columns:1230 mm
stroke:20 - 200 mm
no. of strokes:20 - 60 /min
distance table/ram, max. stroke up, adjustment up:650 mm
table surface area:1050 x 750 mm
table height over floor:760 mm
side window:540 mm
ram surface:1000 x 750 mm
ram adjustment:100 mm
power requirement:18,0 kW
weight:20,5 t
Dimensions (WxDxH):2,8 x 1,9 x 4,3 m
infinitely variable drive:PIV
clutch:pneumatic
overload protection in ram:hydraulic
ram counterbalance:pneumatic
ram adjustment:motoric
