dişli kesme ve hobi makineleri kullanılmış satılık (205)

Key data: 3500 mm, 36

Sayın Beyefendiler, Hassas spur ve helikal dişli taşlama, iç ve dış taşlama uygulamaları için tasarlanmış yüksek kapasiteli, sonraki nesil seyahat eden portal makinesi olan HÖFLER Porta 3500 CNC Dişli Taşlama Makinesi'ni satın alma konusunda nadir bir fırsat sunmaktan memnuniyet duyuyoruz. Makine, sınırlı kullanım geçmişi ve makul fiyat esnekliğiyle "Olduğu Gibi" sunuluyor. Makine Genel Bakış HÖFLER Porta 3500, büyük dış ve iç dişli ve sarmal dişlilerin hassas şekilde taşlanması için tasarlanmış yeni nesil hareketli portal CNC dişli taşlama makinesidir. 3.500 mm (137,8") çapına kadar dişlileri olağanüstü bir hassasiyet ve verimlilikle öğütebilir. Seri Numarası: 928 Üretim Yılı: 2007 Makine kurulumundan bu yana sadece yaklaşık 6.800 çalışma saati biriktirilmiş ve kullanımı çok sınırlı kabul edilmektedir.  ...

Key data: 3500 mm

HÖFLER Porta 3500 CNC dişli Taşlama Makinesi Çok düşük çalışma saatlerine sahip, büyük kapasiteli, sonraki nesil seyahat portal sistemi olan HÖFLER Porta 3500 CNC Spur/Helical, İç/Dış Dişli Taşlama Makinesi edinme fırsatını memnuniyetle sunuyoruz. Makine Genel Bakış Marka/Model: HÖFLER Porta 3500 CNC Üretim Yılı: 2007 Kurulum Yılı: 2010 Toplam çalışma saatleri: yaklaşık 6.800 saat Tasarım: Daha sonraki nesil seyahat portal sistemi Durum: Makine hala güçte ve yeniden devreye alınmadan önce yenilenmiş hidrolik tahrik motorunun (dahil) yeniden takılması gerekiyor. Ana Özellikler (OEM verilerine göre maksimum kapasite) Dış Öğütme Çapı: 3500 mm (137.8") İç Öğütme Çapı: 800 mm (31,5") Diş profili yüksekliği: 80 mm (3.15") Helix Açısı: ±45 Maksimum Modül: 20 (1.34 DP) Taşlama Darbesi (OD) ...

Key data: 400 mm

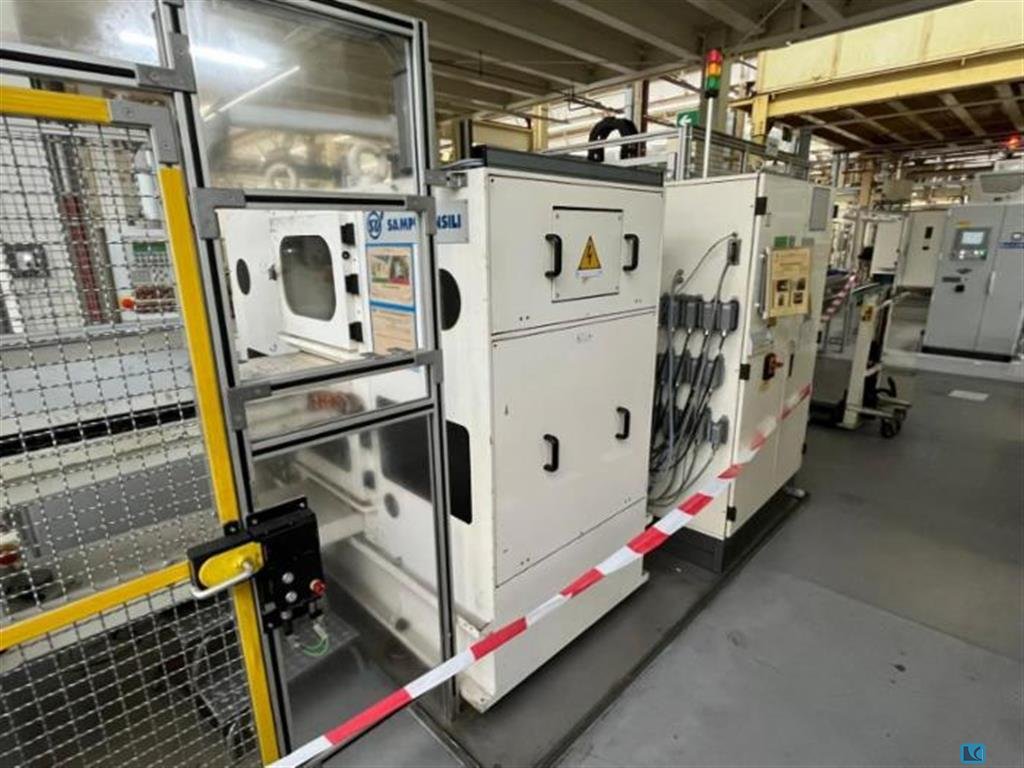

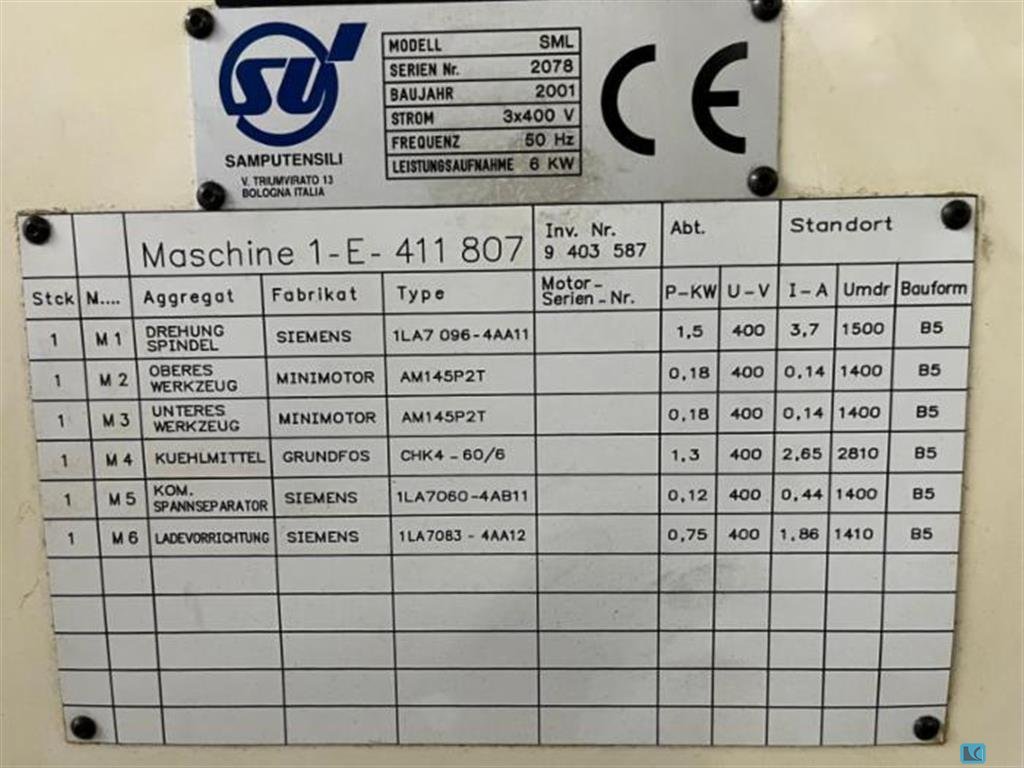

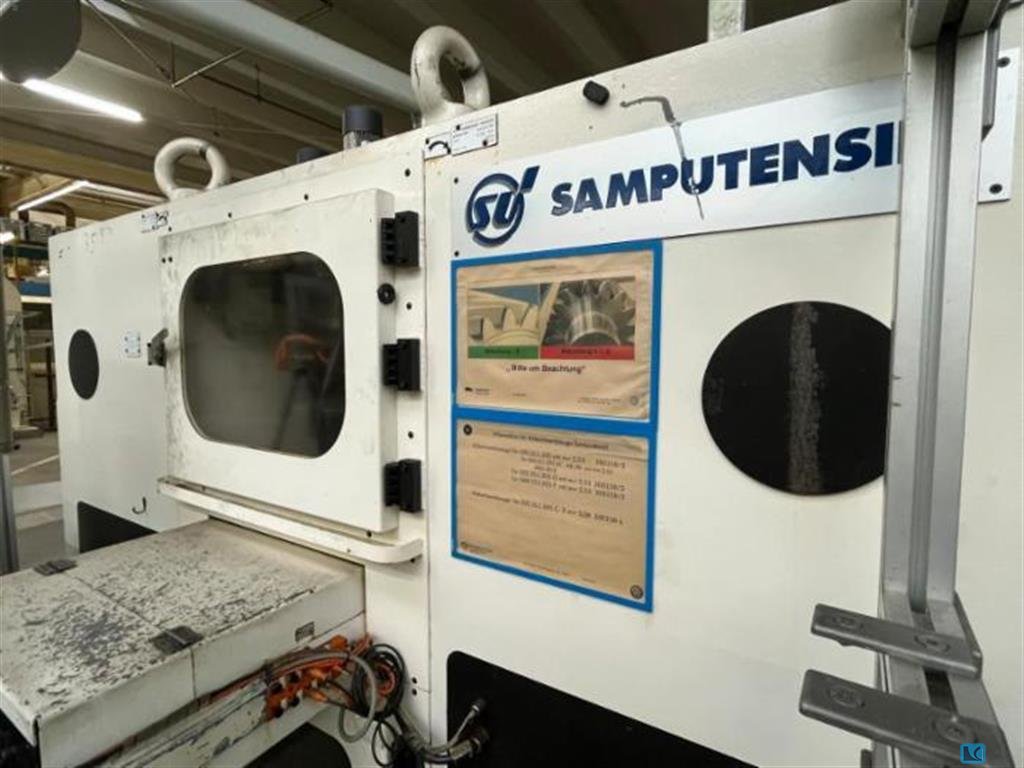

S375G SAMPUTENSILI "CNC" Horizontal Gear Profile Grinding Machine, suitable for the precision grinding of external spur and helical gears and shafts, as well as internal spur and helical gears and splines. The machine has the added capability of grinding worms, rotors, and other screw-type workpieces of similar profile up to 14.76” (375mm) which was factory OEM standard - but delivered at 15.74" (400mm) diameter, and 34.25” (870mm) in length. The machine is also equipped with the optional” on-board CNC” dressing feature, and the on-board CNC” gear inspection system-feature. Serial No. 2376 (New in 2007) This is a first-class, highly versatile gear grinding machine, in superlative” condition throughout, which may be inspected, in running service, at our customer’s plant facility, by appointment. -The machine would require acquisition & adaptation of an appropria ...

Key data: 4000 mm, 1560 mm, 32

CNC Dişli Sıkma makinesi HOFLER H4000 Yıl 1990 Maksimum İş Parçası Çapı 4000mm Dişli Genişliği 1560mm Modül 3-32 Diş Sayısı 12-768 Maksimum Diş Açısı 35 R/L Grad Basınç Açısı 14-31 Derece Tabla Çapı 1900mm Masa Delik Çapı 750mm Maksimum İş Parçası Ağırlığı 35000kg Taşlama kafası stroku: 1600mm Yollar hidrostatik Soğutma sıvısı, filtrasyon sistemi Yol Kapakları: kauçuk sarma, metal teleskopik ve körüklü neopren Güç 3 PH / 60 Hz / 230 – 460 V İle donatılmış: Reutlinger dengeleyici Yağ buharı ekstraksiyon sistemi HOFLER TPF-40/1100 ölçüm cihazı Yıl: 1990 Dişli Çapı: 4000mm Her iki makine de mükemmel durumda Bu makine, ABD nükleer denizaltı şanzımanları (dişli kutuları) için dişlileri öğütmek için kullanıldı. Makine ilk olarak General Electric tarafından Lynn Massachusetts T ...

Key data: 360 mm

Reishauer Model RZ362A CNC Dişli Öğütücü Maksimum Tekerlek Çapı: 14.17" Maksimum Modül: 0.275" Minimum Modül: 0.0039" Slayt İnme: 6.88 " Maksimum Sarmal Açısı: ± 45 Maksimum Diş Sayısı: 600 Minimum Diş Sayısı: 6 Maksimum İş Parçası Ağırlığı: 132 lbs. Taşlama Taşı Genişliği: 4.09 " Taşlama Taşı Çapı: 11.02" – 13.77" Öğütme Sırasında Öğütme Solucanı Hızı: 1100 – 2330 U/dak Profil Oluşturma Sırasında Öğütme Solucanı Hızı: 50 – 95 U/dak İş Parçasının Devri Başına İlerleme: 0 – 0.133" Öğütme Sonsuz Besleme Hızı: 99,9 mm/dak / 3,93 IPM'ye kadar Yaklaşık Ağırlık: 14.553 lbs. İLE DONATILMIŞ: Reishauer CNC Kontrolleri. Dittel MBA2000 Dengeleme Kontrol Cihazı. Elbaron R12D Sis Toplayıcı. Kato Motor Jeneratörü. Bağlantısız hidrolik ünite. Hidrolik yağ pompası-karter sistemi.  ...

CNC Dişli Zringleme makinesi HOFLER H4000 Yıl 1990 Maksimum İş Parçası Çapı 4000mm Dişli Genişliği 1560mm Modül 3-32 Diş Sayısı 12-768 Maksimum Diş Açısı 35 R/L Grad Basınç Açısı 14-31 Derece Tabla Çapı 1900mm Tabla Delik Çapı 750mm Maksimum İş Parçası Ağırlığı 35000kg Taşlama Kafası İnme 1600mm Yollar hidrostatik Soğutma Sıvısı, Filtrasyon Sistemi Yol Kapakları: kauçuk roll-up, metal teleskopik ve körüklü neopren Güç 3 PH / 60 Hz / 230 – 460 V İle donatılmış: Reutlinger dengeleyici Yağ buharı çıkarma sistemi HOFLER TPF-40/1100 ölçüm cihazı Yıl: 1990 Dişli Çapı: 4000mm Her iki makine de Mükemmel durumda Bu makine, ABD nükleer denizaltı şanzımanları (dişli kutuları) için dişlileri öğütmek için kullanıldı. Makine ilk olarak General Electric tarafından Lynn Massachusetts  ...

max. wheel diameter:300 mmgear width:100 mmmax. module:5 workpiece turning speeds:0 - 1000 1/minwork piece - max.:1100 mmworkpiece clamping:auto. tension device number of spindle speeds:1000 1/min.spindle bearing diameter:100 mmdiameter of spindle flange:120 mmtailstock travel:80 mmweight of the machine ca.:3500 KGdimensions:1200 x 1450 x 2250 mmtotal power requirement:10 kVAThe Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility.Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2026, Josef Weber. All rights reserved.

max. wheel diameter:5 - 260 mmgear width:400 mmmax. module:15 min. module:0,5 gear hobbing diameter - internal:30 mmmax. helix angle:> 85 ° Aussenverz.max. helix angle:> 45° Innenverz.Testing Range vertical:400 mmdist. between centers:5 - 600 mmtable diameter:260 mmmax. table load:100 kgspeeds:30 1/mintotal power requirement:1,6 kVAweight of the machine ca.:900 kgdimensions of the machine ca.:200 x 1300 x 2150 mmCNC Gear Tester in good condition, out of OEM Test Lab.For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.)

max. wheel diameter:300 mmgear width:100 mmmax. module:5 workpiece turning speeds:0 - 1000 1/minwork piece - max.:1100 mmworkpiece clamping:auto. tension device number of spindle speeds:1000 1/min.spindle bearing diameter:100 mmdiameter of spindle flange:120 mmtailstock travel:80 mmweight of the machine ca.:3500 KGdimensions:1200 x 1450 x 2250 mmtotal power requirement:10 kVAThe Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility.

max. wheel diameter:130 mmmax. module:3 total power requirement:15 kWweight of the machine ca.:6 tdimensions of the machine ca.:2,3 x 2,5 x 2,17 mA well-preserved CNC hobbing machine Vertical for shafts and wheelsWith tailstockAlso suitable for hard milling (good for steering pinion)Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mmAccessories :Hydraulical workpiece clampingAutomatic ...

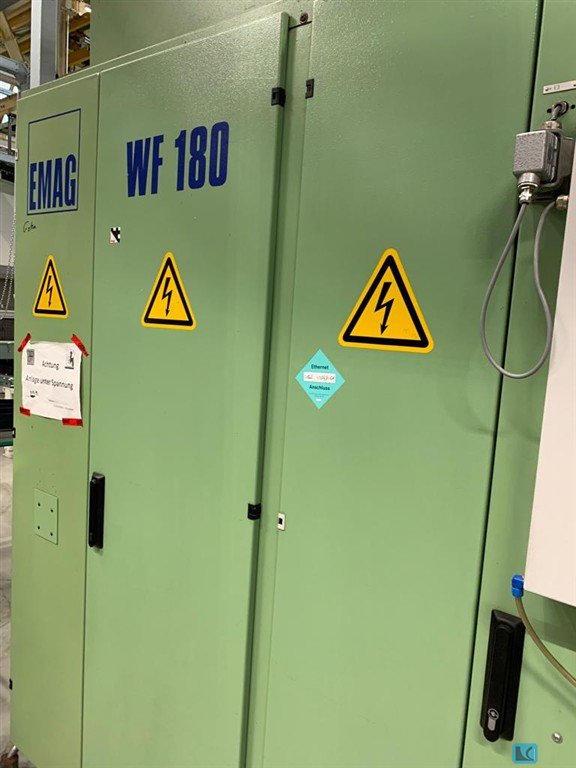

max. wheel diameter:180 mmmax. module:5 min. module:1 weight of the machine ca.:14 tdimensions of the machine ca.:4,5 x 2,84 x 2,8 mmin. number of teeth:7 toolpiece turning speed range:4000-10000 U/mintool length:210 mmWith tail stockNo dressing deviceOnly CBN

max. wheel diameter:180 mmgear width: mmmax. module:4 total power requirement:14 kWweight of the machine ca.:8 tslide travel axial ( Z-axis ):300 mmwork piece - max.:490-640 mm

max. wheel diameter:275 mmgear width:58 mmmax. module:8 min. module:0,5 weight of the machine ca.:10 tmax. number of teeth:200 min. number of teeth:5

pulling force - max.:2,5 tmax. ram stroke:1000 mmmax. workpiece diameter:40 mmBroaching speed:60 m/min.return speed:20 m/min.total power requirement:24 kWweight of the machine ca.:6 tdimensions of the machine ca.:1,7 x 2,4 x 4,77 mclamping plate:320 mmIt is a hydraulic machine.

workpiece diameter:63,5 mmcentre distance:350 mmhoning length max.: mmtotal power requirement: kWweight of the machine ca.:6 tdimensions of the machine ca.:2,70x2,30x2,60 mTechnical data G0504working spaceLength of the clamping surface mm 1550Number of T-slots mm 2Width of the T-slots mm 18Distance between T-slots mm 180Center height (tailstocks) mm 350Swivel range of the fine wheel head (U-axis) degrees + 30 / -30Center distance - tailstock / fine wheel min./max. mm 120/225Input resolution (all NC axes) mm / degrees 0.001Delivery slideMovement range (= Z-axis travel) mm 105Input resolution mm 0.001toolOutside diameter min./max. mm 225/275Hole diameter mm 160Width mm 60workpieceOutside diameter min./max. mm 40-150Module min./max. mm 1.25-4.0Tooth width max. Mm 45weightWeight of the machine approx. Kg 5500Operating fluid requirements Cooling lubricant recommendation, see chap. 8thHydraul ...

max. wheel diameter:200 mmgear width:250 mmmax. module:3 min. module:0,5 total power requirement:45 kWweight of the machine ca.:8,5 tdimensions of the machine ca.:4,4 x 2,4 x 2,7 mMachine out of prototype productionWithout automation

grinding wheel diameter:400 mmtotal power requirement:3 kWweight of the machine ca.:1,5 tdimensions of the machine ca.:1,5 x 1,4 x 1,3 mDressing Grinder for gears REISHAUER AMmax. width of grinding wheel 104 mmmax. dia. of grinding wheel 400 mmmax. module 7min. module 0,5pressure angle 10 - 30 °grinding worm dia. 270 - 400 mmwidth of grinding worm 62/84/104 mmgrinding worm turning speeds: at profiling 18/35/70 U/minelectrics - voltage/frequency 380 / 50 V/Hzlong. movement of crowning device 156 mm

weight of the machine ca.:8 tdimensions of the machine ca.:2,95 x 1,6 x 2,36 mchucking diameter:250 mmswing diameter:265 mmx-travel:170 mmz-travel:200 mmspindle turning speed range:1.500 U/minspindle bearing diameter:100 mmPick-up machine

weight:22 t

max. wheel diameter:200 mmgear width:250 mmmax. module:3 min. module:0,5 total power requirement:45 kWweight of the machine ca.:6,5 tdimensions of the machine ca.:4,4 x 2,4 x 2,7 mMachine out of prototype productionWithout automation

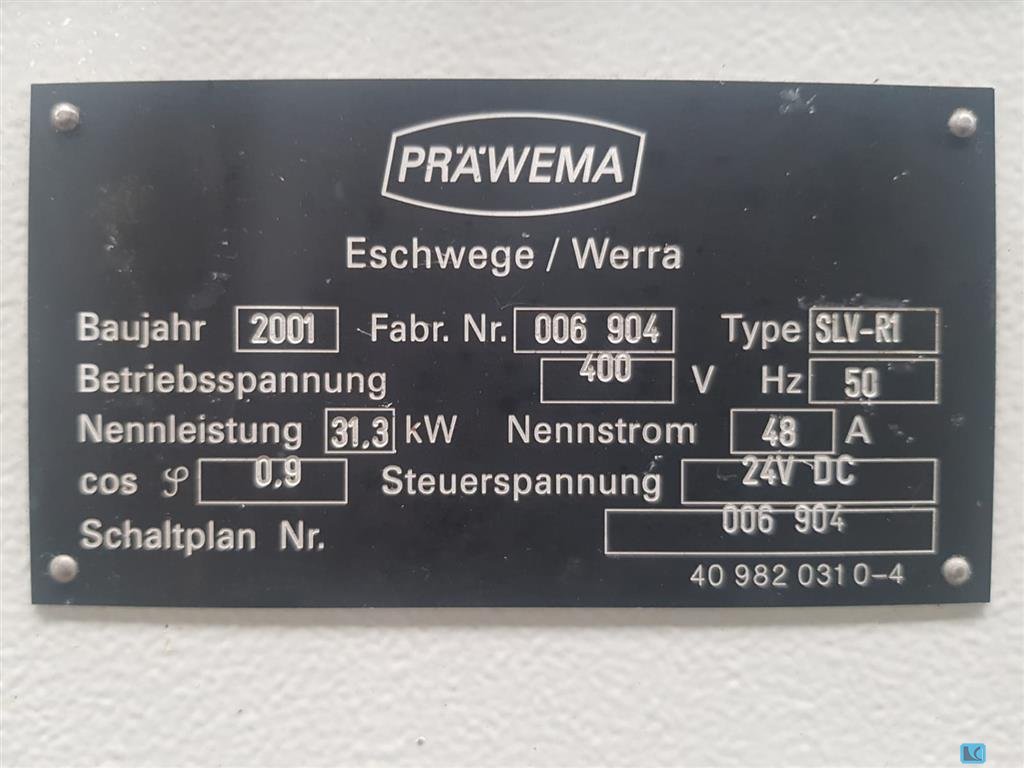

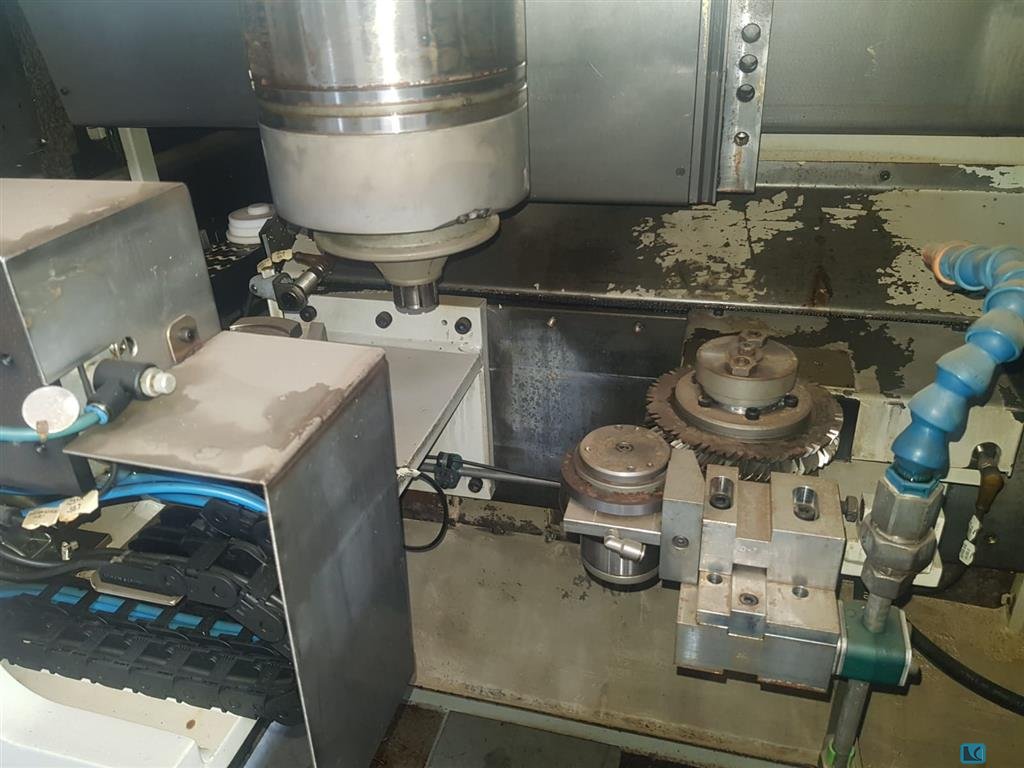

max. wheel diameter:40-200 mmtotal power requirement:31,3 kWweight of the machine ca.:4 tdimensions of the machine ca.:1,8 x 2,2 x 1,8 m

max. wheel diameter:150 mmgear width: mmmax. module:3,5 min. module:1,25 total power requirement: kWweight of the machine ca.:6,5 tdimensions of the machine ca.:2,35 x 2,10 x 2,35 mWidth of teeth:45 mmboring diameter:100 mmsurface area:1300 x 300 mm

max. wheel diameter:150 mmgear width: mmmax. module:3,5 min. module:1,25 total power requirement: kWweight of the machine ca.:6,5 tdimensions of the machine ca.:2,35 x 2,10 x 2,35 mWidth of teeth:45 mmboring diameter:100 mmsurface area:1300 x 300 mm

control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden

max. wheel diameter:130 mmgear width:170 mmmax. module:3 min. module:0,5 total power requirement:48 kVAweight of the machine ca.:9 tdimensions of the machine ca.:7,64 x 3,14 x 3,25 mFor technical data, see PDF-File enclosed

Dressing diameter: Planing width: min. module: for Reishauer RZ150

max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...

max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...

max. wheel diameter:50 mmgear width:20 mmmax. module:4 mmmin. module:0,1 mmtotal power requirement:12,5 kWweight of the machine ca.:4000 kgdimensions of the machine ca.:2,2 x 2,5 x 2,3 mworkpiece length - max.:300 mm
