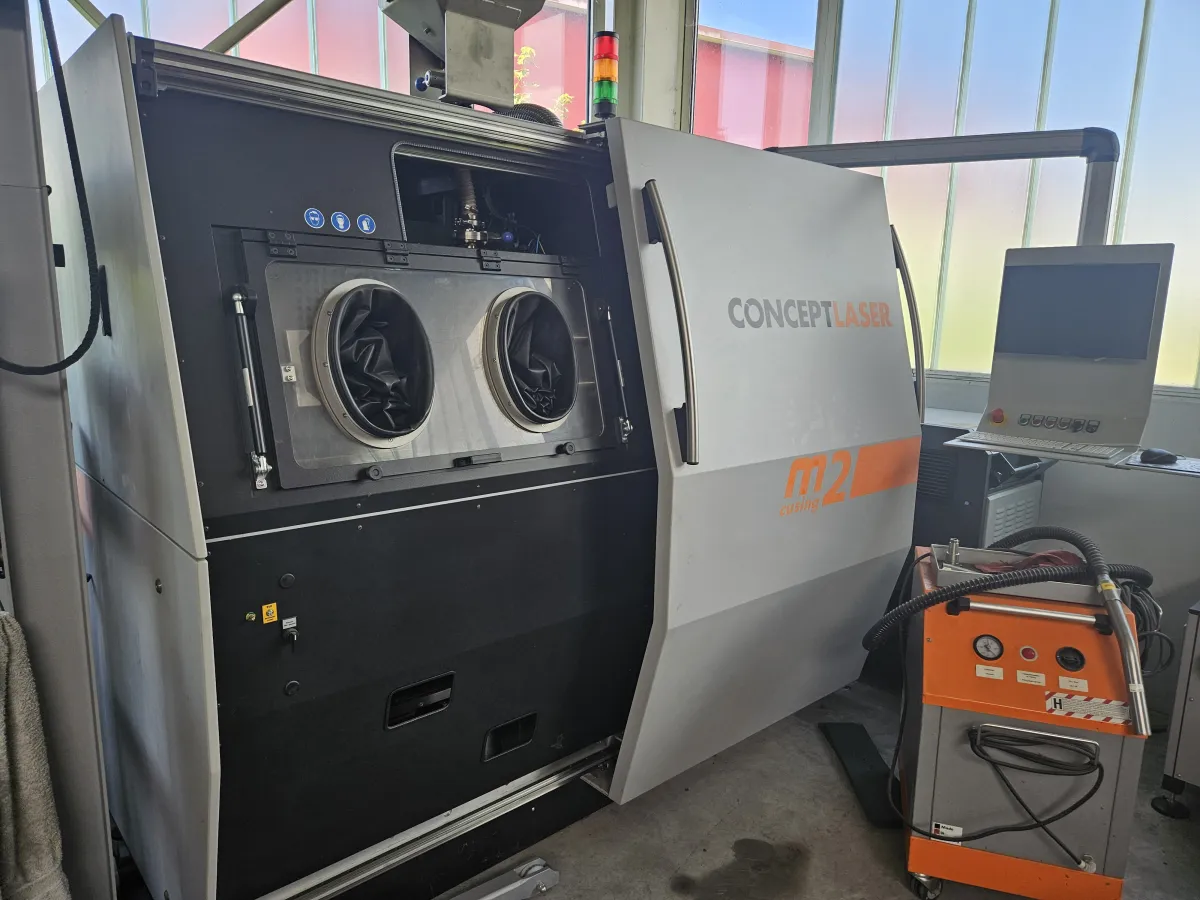

Concept Laser M2 3D Lazer makinesi
ikinci elDoğrulanmış satıcı
Fiyat iste
Doğrudan satıcıya
1 / 8
Teknik veriler
· ID 166200780Makineler
- Durum
- ikinci el
- Üretim yılı
- 2015
- Konum
- Karlsruhe, Germany
Identifikation
ÜreticiConcept Laser
ModelM2
Kalem numarası4728427
Technik
Adet1
Açıklama
Metal 3D Printing Concept Laser for sale, second hand.
The operating hours amount to approximately 10,000, of which a maximum of 1,000 hours are laser hours in which the laser actually ran.
Medium: Ytterbium
Wave length: 900-1200 nm
Power: 2.65 kVA
Specifications:
-Type: M2 Cusing
-Year of manufacture: 2015
-Very few laser hours!
-Machine incl. filter unit-ATEX II-Water V2, sieve length, nitrogen generator with buffer tank
-Delivery: immediately
Here we offer you a Concept Laser M2 cusing Multilaser.
Concept Laser M2 cusing Multilaser: System technology for the safe processing of
of aluminum and titanium alloys etc.
Only aluminum (AISi10MG) was printed on the system. The system has also saved a backup folder for titanium parameters.
These titanium parameters were originally supplied, so theoretically you can also print titanium
Outer dimensions:
2542 x 1818 x1987 mm (WxDxH)
weight: 2300 kg
2 lasers 400W
Power supply: 3P/N/PE AC 400 V, 32 A
5 bar compressed air required
Protective gas possible by 2 connections for external N2 generators (optional)
Installation space 250 x 250 x 280
Layer thickness 20-80μm
Production speed 2-20cm³ (depending on material and laser power)
Operating conditions 15-35 degrees Celsius
Find more here - .ucymachines/
Contact us at - sales@ucymachines
The operating hours amount to approximately 10,000, of which a maximum of 1,000 hours are laser hours in which the laser actually ran.
Medium: Ytterbium
Wave length: 900-1200 nm
Power: 2.65 kVA
Specifications:
-Type: M2 Cusing
-Year of manufacture: 2015
-Very few laser hours!
-Machine incl. filter unit-ATEX II-Water V2, sieve length, nitrogen generator with buffer tank
-Delivery: immediately
Here we offer you a Concept Laser M2 cusing Multilaser.
Concept Laser M2 cusing Multilaser: System technology for the safe processing of
of aluminum and titanium alloys etc.
Only aluminum (AISi10MG) was printed on the system. The system has also saved a backup folder for titanium parameters.
These titanium parameters were originally supplied, so theoretically you can also print titanium
Outer dimensions:
2542 x 1818 x1987 mm (WxDxH)
weight: 2300 kg
2 lasers 400W
Power supply: 3P/N/PE AC 400 V, 32 A
5 bar compressed air required
Protective gas possible by 2 connections for external N2 generators (optional)
Installation space 250 x 250 x 280
Layer thickness 20-80μm
Production speed 2-20cm³ (depending on material and laser power)
Operating conditions 15-35 degrees Celsius
Find more here - .ucymachines/
Contact us at - sales@ucymachines
