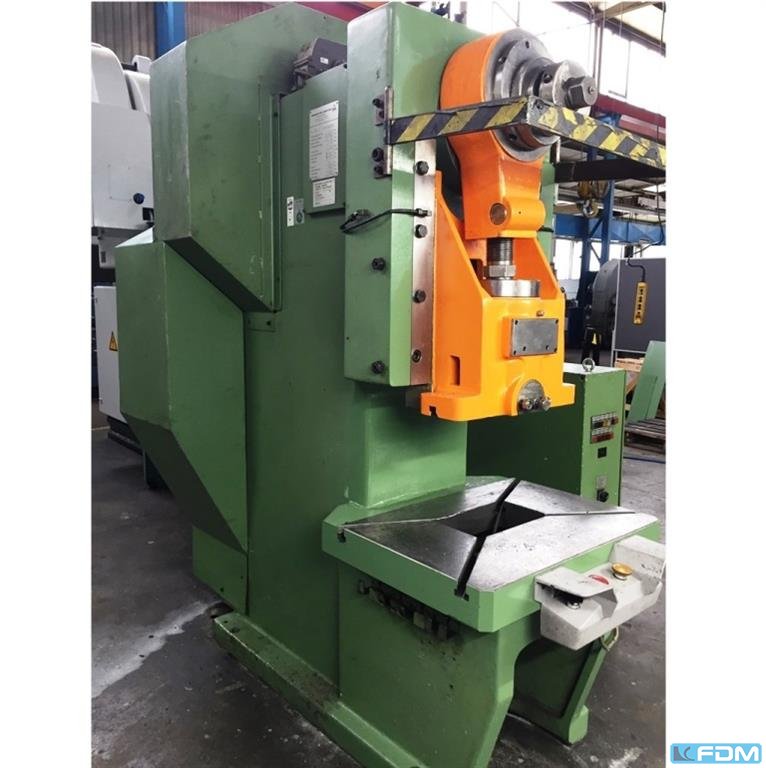

BETZ EZH 100 (UVV) Eccentric Press - Single Column
ikinci elDoğrulanmış satıcı
Fiyat iste
Doğrudan satıcıya
1 / 4
Teknik veriler
· ID 170387061İkinci el makineler
- Durum
- ikinci el
- Üretim yılı
- 1990
- Konum
- Lager Eislingen, Baden-Württemberg
Identifikation
ÜreticiBETZ
ModelEZH 100 (UVV)
Kalem numarası1050-133048
Technik
Adet1
Açıklama
pressure:100 t
throat:300 mm
stroke:20 - 120 mm
no. of strokes:55 /min
distance table/ram, max. stroke up, adjustment up:400 mm
table surface area:800 x 560 mm
hole in the table:310 x 180 mm
table height over floor:745 mm
ram surface:520 x 245 mm
ram adjustment:75 mm
power requirement:5,5 kW
weight:5,5 t
dimensions (WxDxH):1,1 x 2,4 x 2,4 m
German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1
clutch-/ brake combination:hydraulic
overload protection in ram:mechanical
throat:300 mm
stroke:20 - 120 mm
no. of strokes:55 /min
distance table/ram, max. stroke up, adjustment up:400 mm
table surface area:800 x 560 mm
hole in the table:310 x 180 mm
table height over floor:745 mm
ram surface:520 x 245 mm
ram adjustment:75 mm
power requirement:5,5 kW
weight:5,5 t
dimensions (WxDxH):1,1 x 2,4 x 2,4 m
German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1
clutch-/ brake combination:hydraulic
overload protection in ram:mechanical
