AK BEND SRH-1000
ikinci elDoğrulanmış satıcı
Fiyat iste
Doğrudan satıcıya
1 / 7
Teknik veriler
· ID 169912379İkinci el makineler
- Durum
- ikinci el
- Üretim yılı
- 2024
- Konum
- 48683 Ahaus
Identifikation
ÜreticiAK BEND
ModelSRH-1000
Kalem numarası1125-8531721
Technik
Adet1
Açıklama
weight max. in kg: max. 1000 kg
turning speeds: 0,18 - 0,58 U/min
height: 976 - 1436 mm
inclination: 0 - 115 °
table diameter: 895 mm
voltage: 380 V
total power requirement: 2,0 kW
weight: 685 kg
range L-W-H: 2414 x 920 x 1436 mm
** Exhibition machine from 2024
** with only approx. 2x operating hours
** Condition NEW!!
** Special price on request

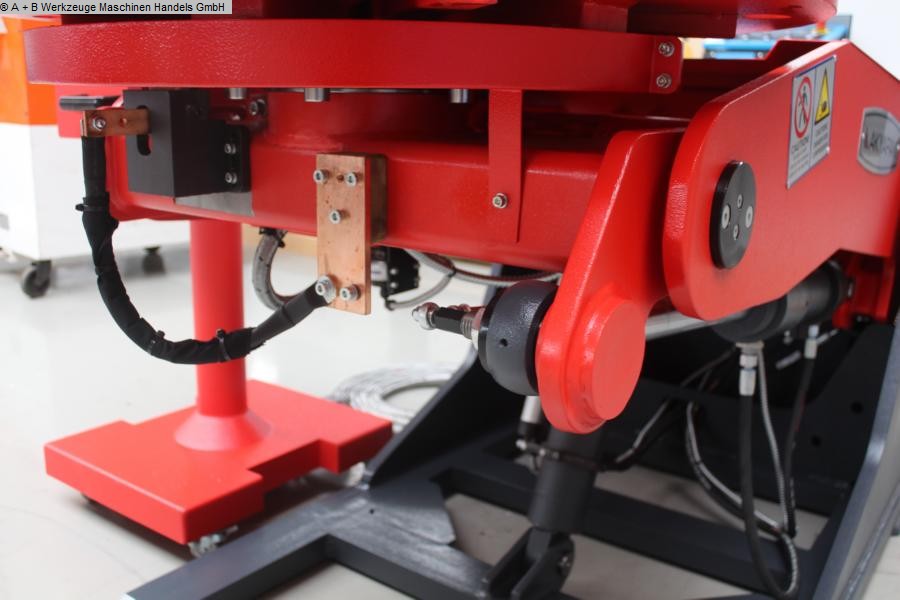

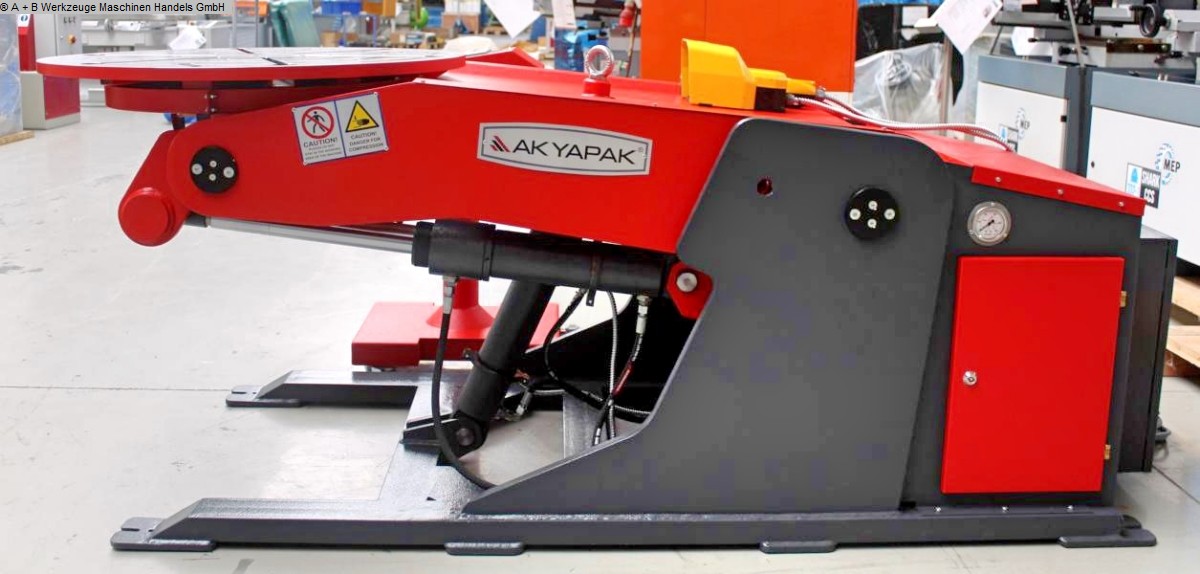

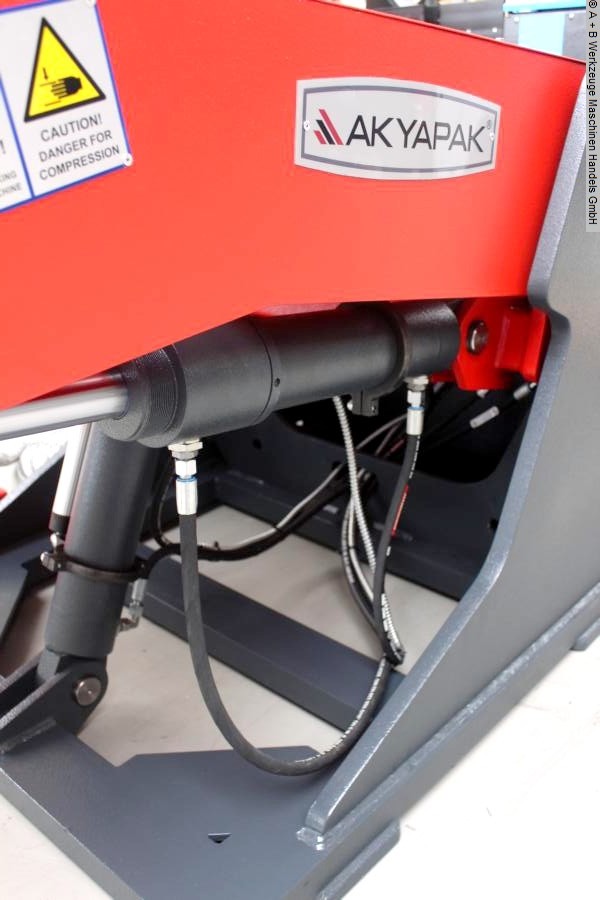

The AK BEND SRH hydraulic welding positioner is ideal
for welding, assembly and maintenance work. Positioning is done via a
hydraulic rotation and tilting function.
Description:
- electro-hydraulic turning and tilting function
- Fast handling of workpieces
- Maximum productivity thanks to optimal working position
- Lifting, tilting and turning workpieces in one clamping
- Low idle times thanks to turning components
- Maximum work performance thanks to comfortable working
- Back-friendly working for the user
Equipment:
- Continuously variable speed adjustment
- Freely movable foot switch
- Hand-held remote control with 5 meter cable
- Freely movable control panel with digital speed display
- Analogue angle display
* Manufacturer video (identical rotary table):
https://www.youtube.com/watch?v=Vayw8Ny64nc
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning speeds: 0,18 - 0,58 U/min
height: 976 - 1436 mm
inclination: 0 - 115 °
table diameter: 895 mm
voltage: 380 V
total power requirement: 2,0 kW
weight: 685 kg
range L-W-H: 2414 x 920 x 1436 mm
** Exhibition machine from 2024
** with only approx. 2x operating hours
** Condition NEW!!
** Special price on request
The AK BEND SRH hydraulic welding positioner is ideal
for welding, assembly and maintenance work. Positioning is done via a
hydraulic rotation and tilting function.
Description:
- electro-hydraulic turning and tilting function
- Fast handling of workpieces
- Maximum productivity thanks to optimal working position
- Lifting, tilting and turning workpieces in one clamping
- Low idle times thanks to turning components
- Maximum work performance thanks to comfortable working
- Back-friendly working for the user
Equipment:
- Continuously variable speed adjustment
- Freely movable foot switch
- Hand-held remote control with 5 meter cable
- Freely movable control panel with digital speed display
- Analogue angle display
* Manufacturer video (identical rotary table):
https://www.youtube.com/watch?v=Vayw8Ny64nc
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
