Lazer kesim makineleri (47)

Lazer kesme makinesi Trumpf Trumatic L 4030

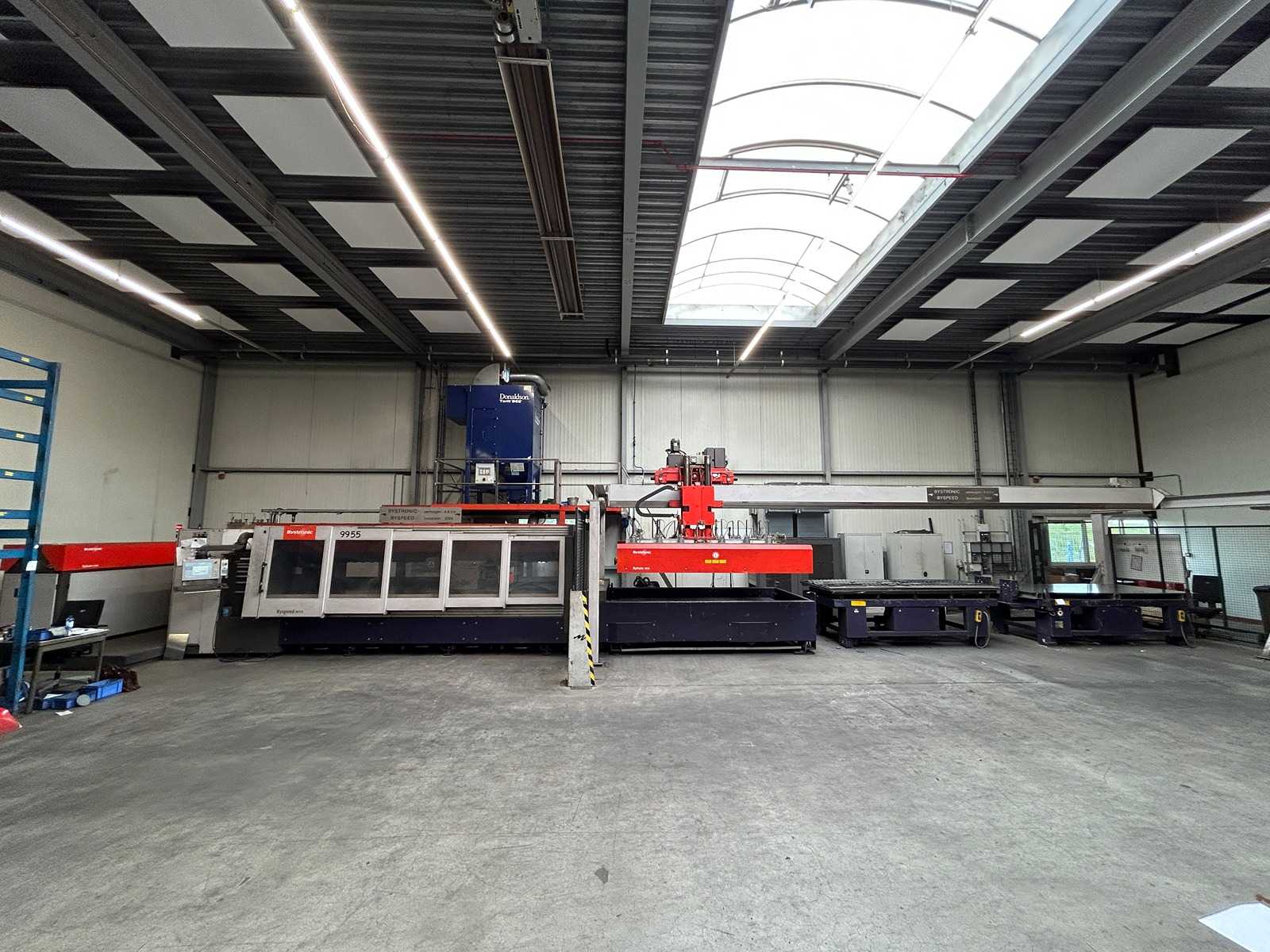

Bystronic Byspeed 3015 Bylaser 5200 ARC Control: ByVision Suction Donaldson Car Charge-Discharge System Auction-ID: A7-32339-2

Trulaaser Fiber kesme makinesi 3030, çalışma durumu

Trumpf TruMatic 6000 FMC -1300 Sheetmaster + Gripmaster Manufacturer: Trumpf Type: TruMatic 6000 FMC -1300 Year of Make: 2006 Condition: used, very good. regularly serviced by Trumpf. Machine is energized and in use. Operating hours NC hours: 70,305h Beam One Hours: 17,217h Control: Siemens Sinumerik 840 D Punching force: 220KN Laser Power: 2700W Working area laser operation approx.: 2585 x 1280 mm Working area punching operation approx.: 2585 x 1370 mm Max. sheet thickness approx.: 8 mm Support Tables Brush Tables CE marking Standard equipment: Sturdy, easily accessible C-frame Coordinate guide with integrated linear magazine, 21 spaces for tools and clamping claws 1 clamping claws Maintenance-free three-phase servo motors Parts chute 500 x 500 mm (sensor-monitored) HI-LAS High Pressure Cutting TRUMPF Laser: CO2 laser TLF 2700 High-frequency excitation Laser control TASC 3 Cutting he ...

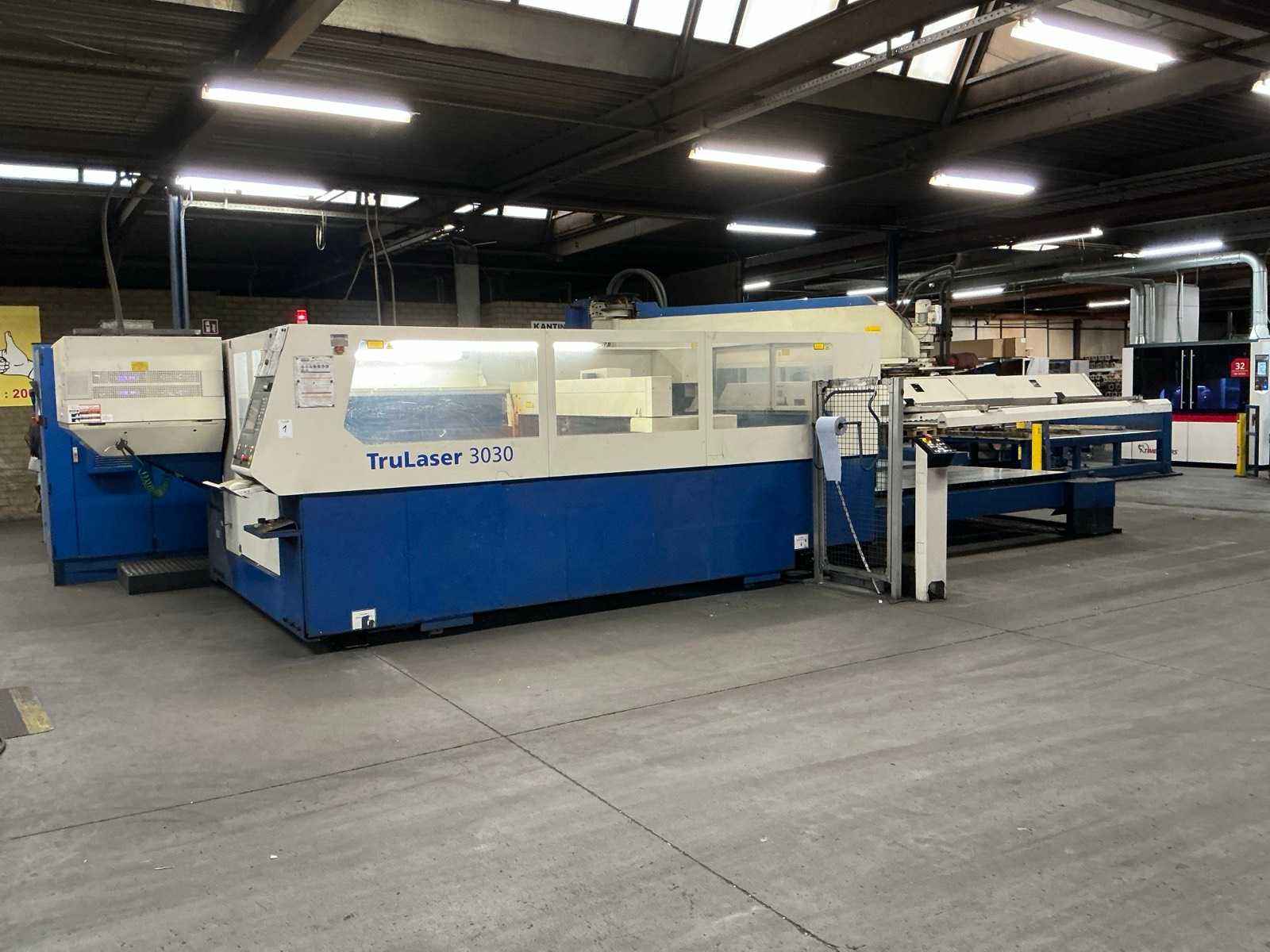

Trumpf trulaser 3030

Model FLCA11500 Power 1500 W Laser safety class Class IV Wavelength 1064 nm Operating mode Continuous laser source Cable length 10 m Laser Pattern Single or 5 pre-programmed patterns User interface 7-inch touchscreen Operating voltage 380 V 3-phase, 50-60 Hz, 40 A Weight 126 kg Operating temperature 0-40 °C Cooling system Built-in water cooling Relative humidity 30-85% Safety features Emergency stop, key switch, remote lock, reset & Emission indication Auction-ID: A1-49309-102

CNC Lazer Kesme Makinesi Fiber Lazer 3kW Üretici: Microstep Tip: FIBERLAS MSF 4001.20BL Yapım Yılı: 2015 Tam sistem şunlardan oluşur: - Kesme sistemi, - IPG fiber lazer kaynağı, - HIGHYAG kesme başı ve - KEMPER emizme. Lazer IPG Ytterblum Lazer Sistemi YLS-3000-CUT-Y14 Nominal güç: 3.000 W (3kW) Çalışma Modu: CW/Modüle Edilmiş Güç tüketimi: yaklaşık maksimum 9.kW (tipik 8,3 kW) 3.000 W güçte Soğutma IPG Hava-Su Soğutucusu Çalışma saatleri. yaklaşık 26.819 saat Boyutlar: K/ÇEK: 1.004 x 804 x 556 mm Kesme başı II-VI HIGHYAG BIMO-FSC İzin verilen lazer gücü: 4 kW'a kadar Odak uzaklığı f: 150 mm (odaklama modülü 1.5) Odak çapı: yaklaşık 300 μm ve 200 μm optik fiber ile Ağırlık: yaklaşık 6,2 kg ...

Mazak Optiplex Nexus 3015 Fiber 3KW Laser Cutting Machine Manufacturer: Mazak Type: Optiplex Nexus 3015 Fiber 3KW Year of Make: 2016 Condition: Very good, under power Operating hours: Laser: 11.282h Beam: 5,607h Power: 3KW CNC Control: MAZATROL PREVIEW 3 Weight: 15500 kg Dimensions: 8,490mm x 3,485mm x 2,010mm Axis travel: 3,100mm x 1,580mm x 110mm GENERAL MACHINE OPTIONS – Automatic calibration device – Focus position adjustment – Nozzle cleaning brush – Collection container for material scrap – Transformer for the European market – Protection window for multi-control cutting head – Programming function on the control system via fixed programs – Cutting board position detection – 1 set of adjustment tools – Machine feet / leveled shoes – Non-contact height scanning with repeat function – manual workpiece clamping – Preparation for 3kW resonator – Additional  ...

CNC Lazer Kesme Makinesi - Fiber Lazer 9 kW Amada LCG 3015 AJ M2 + ASLUL Twin Üretim yılı 2018 AMNC 3i CNC Kontrolü Lazer kaynak AJ 9000 (9 kW) Seyahatler: X 3.070 mm Y 1.550 mm Z 100 mm Eksen hızları X, Y, Z 120/80 m/d. Kesme beslemeleri 0 - 60 m/dakika. Z-Eksenli Sensör HS 2013 ASLUL TWIN depolama kulelerinin yükleme/boşaltılması 16 katlı nozul değiştirici Şunları içerir: Temiz kesim (Hochwertiger Schnitt) NC Odak Kontrolü Lens 190 mm Yağlı Atış Barkod Okuyucu WACS Otomatik hurda konveyörü 16 katlı nozul değiştirici Depolama ve taşıma sistemi ASLUL TWIN (yükleme/boşaltma) Çok iyi durumda Teklif numarası V-7157

30 watts Auction-ID: A1-49309-282

Profiller ve borular için fiber lazer kesme makinesi 3kW 230x6000 mm

General Description CNC fiber laser tube and profile cutting machine manufactured by Bodor / Jinan Bodor CNC Machine Co., Ltd.. Designed for precision laser cutting of round, square, rectangular and other metal tubes and structural profiles. The system features a long processing bed, powered rotary chuck and automatic tube loading/handling equipment. Technical Details Manufacturer: Bodor / Jinan Bodor CNC Machine Co., Ltd. Machine type: CNC fiber laser tube/profile cutting machine Bodor touchscreen CNC control Powered pneumatic/automatic rotary chuck system Automatic/semi-automatic tube loading and handling system Long tube support/processing bed Enclosed laser cutting section Extraction system Chuck clamping ranges depending on jaw configuration: 8–102 mm, 66–160 mm, 76–170 mm and 134–228 mm Dedicated Hanli HL-3000-QG2/2 fiber-laser chiller Chiller supply: 220 V, 50 Hz Chiller  ...

Fiber lazer kesme makinesi OTINUS 1500x3000 12 kW kapalı ve değişim masası

General data: Machine type: Laser cutting machine Manufacturer: Mazak Serial no.: 258579 Control: Mazatrol Preview with 15\" XGA TFT monitor Power & electrical: Laser output power: 4 kW Voltage: 400 V, 50/60 Hz Current: 125 A Total machine weight: 20,700 kg Resonator power: 4 kW Work area & stroke: Cutting area: 2000 × 4000 mm X-axis: 4020 mm Y-axis: 2020 mm Z-axis: 90 mm Precision: Positioning accuracy: ±0.01/500 mm (X,Y), ±0.01/100 mm (Z) Performance: Laser ON time: 17,365 hours High-precision laser cutting for metal sheet processing Designed for heavy-duty industrial operation and high throughput Equipment & features: 3-position automatic nozzle changer Intelligent focus measurement Servo focus head Automatic nozzle cleaning Non-contact profiler Oscillation indicator Chiller & air dryer NC gas pressure control LAN/USB connectivity Auction-ID: A7-49502-1

Fiber lazer kesici OTINUS 1500x3000 3 kW, kapalı kesme başı ile

Voltage 220 V, engraving, 40W power, never used Overall dimensions: 800 x 500 x 400 mm Weight: 20 kg Auction-ID: A7-49208-356

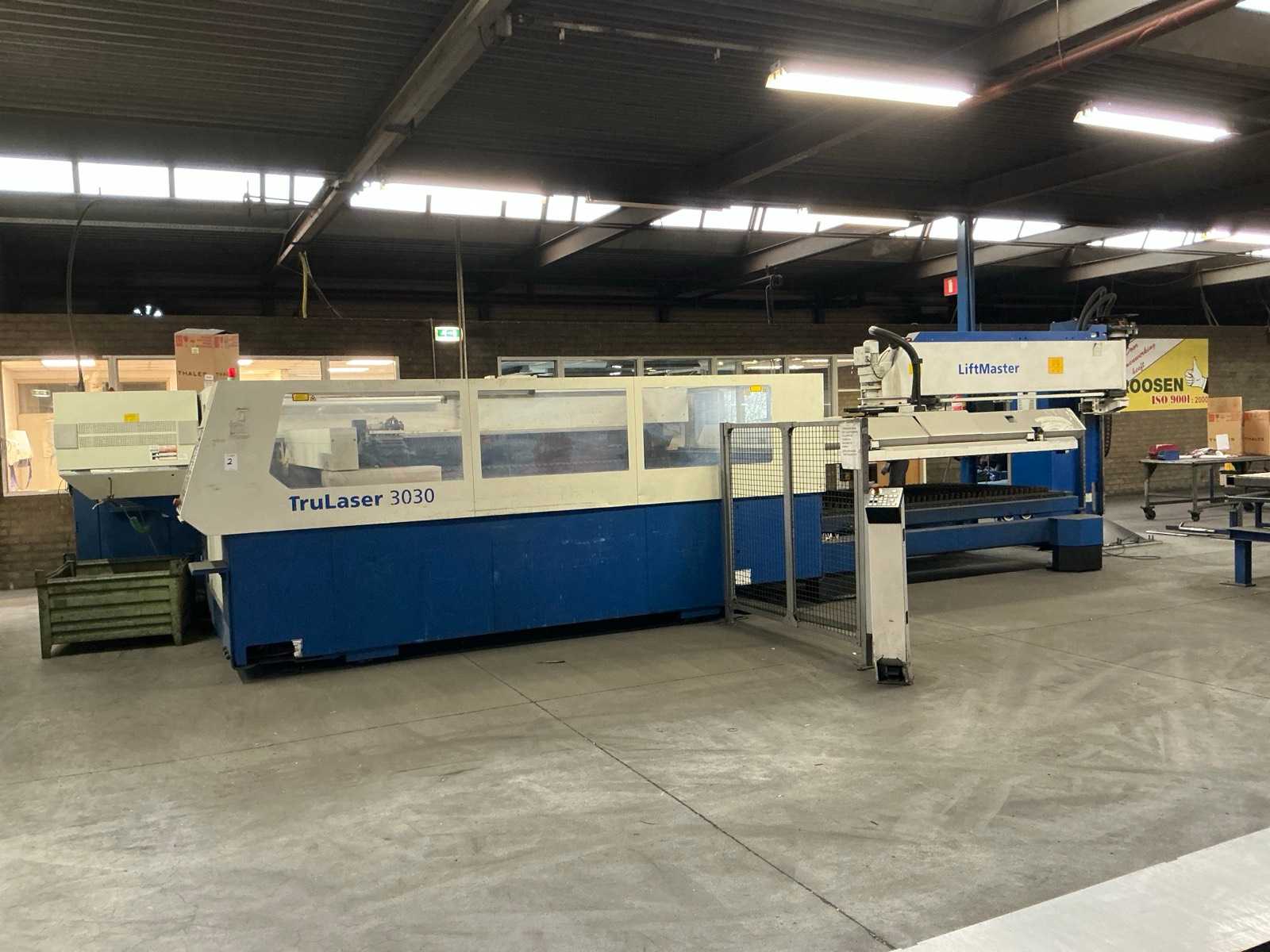

Lazer kesim makinesi Trumpf Trulaser 3030

Voltage 220 V, engraving, 40W power, never used Overall dimensions: 800 x 500 x 400 mm Weight: 20 kg Auction-ID: A7-49514-118

TEKNİK DETAYLAR Hareket X x Y: 4000 x 2000 mm Kesme aralığı X x Y x Z: 4064 x 2032 x 70 mm İş parçası ağırlığı: 1270 kg Eksen başına konumlandırma hızı / eşzamanlı: 100 / 140 m/dak Eksen ivmesi: 12 m/s² Konum doğruluğu: ±0,1 mm Tekrarlanabilirlik: ± 0,05 mm Kenar Algılama Doğruluğu: ± 0,5 mm Tablo: Değiştirilebilir masa sistemi Lazer Kaynağı: Fiber 4000 Güç: 4000 W Dalga boyu: 1μm Polarizasyon: polarize olmayan Nabız Hızı: 1 - 2500 Hz Sac kalınlığı çelik: 20 mm Sac kalınlığı alüminyum: 15 mm Sac kalınlığı paslanmaz çelik: 15 mm Sac kalınlığı bakır: 8 mm Sac kalınlığı pirinç: 8 mm MAKINE DETAYLARI Boyutlar: 12.9 x 6.75 x 2.5 m Ağırlık: 15 t Güç: 25 kW Açılma süresi: 23.477 saat Lazer açma süresi: 5.248 saat

Voltage 220 V, engraving, 40W power, never used Overall dimensions: 800 x 500 x 400 mm Weight: 20 kg Auction-ID: A7-49514-211

Vakum Pompası - Lazer Tozu için Emme İki vakum pompası vardır. Lütfen sorgulama yaparken kaç tane istediğinizi belirtin.

Voltage 220 V, engraving, 40W power, never used Overall dimensions: 800 x 500 x 400 mm Weight: 20 kg Auction-ID: A7-49495-356

4 adet diyot lazer sistemi, Limuzin Diocut 1300 – kullanılmış - : Konumdan parça başına fiyat: 1.950.-€ (net)! Üretici: LIMO (Lisotchenko mikro-optik) Türü: Diocut 1300 Yapım Yılı: 2013 400V, AC +/- %10 50/60 Hz 16A, 3 fazlı, + N + PE < Durum: iyi, Mevcut: hemen Yer: Frankenberg kampı / Saksonya

General Description Industrial CNC fiber laser cutting machine manufactured by Bodor Laser / Jinan Bodor CNC Machine Co., Ltd.. Designed for high-precision cutting of metal sheets and plates. The system comprises a large-format cutting bed, CNC-controlled laser cutting gantry, operator control system and associated cooling equipment. Technical Details Manufacturer: Bodor Laser / Jinan Bodor CNC Machine Co., Ltd. Machine type: CNC fiber laser cutting machine Component identifier visible: JZA120168 Additional identifier: VID 1000523 Bodor touchscreen CNC operator terminal CNC-controlled laser cutting head and gantry Large-format slat-type sheet support bed Industrial cooling / chiller equipment Enclosed cutting-head area Flat-sheet metal processing configuration Condition Used industrial condition. The machine appears substantially complete with cutting bed, laser cutting gantry, CNC ope ...

Makinelerimizin çoğu stoklarımızda mevcuttur. Daha fazla bilgi edinmek için bizi arayın. Fiber Lazer Kesici FLV-3015-OE 3kW / VF1530-3000W Teknik parametreler - Maksimum tabaka boyutu: 3000 x 1500 mm - X ve Y ekseni konumlandırma doğruluğu: ±0.05 mm / m - X ve Y eksenlerinin tekrarlanabilir konumlandırma hassasiyeti: ±0,03 mm - Maksimum hız: 60000 mm / dak - Maksimum hızlanma: 0.7 G - Maksimum yük: 1200 kg - Güç: 3.0 kW - Güç gereksinimi: 24.0 kW - Kaynak marka: MAX Photonics - Güç kaynağı: ~3x400 V 50 Hz - Koruma sınıfı: IP54 Kesme kalınlığı - Siyah çelik: önerilen kalınlık 20,0 mm, maksimum kalınlık 22,0 mm - Paslanmaz çelik: önerilen kalınlık 8,0 mm, maksimum kalınlık 10,0 mm - Alüminyum: önerilen kalınlık 6.0 mm, maksimum kalınlık 8.0 mm - Pirinç: önerilen kalınlık 5.0 mm, maksimum kalınlık 6.0 mm İnşaat ...

Professional fiber laser cutting machine for both plates and tubes, brand G-Weike, model LF-3015GAR, offered by Metaleen Tools & Machinery. The machine features a fully enclosed safety housing with multiple access doors, a CNC control box with touchscreen, and a rack/rack drive system on the X-axis for high cutting speed and precision. Bed size 3000 x 1500 mm (plate mode), supplemented by an integrated tube support system for cutting round/square profile tubes. Included accessories (all included in the sale):. 1x S&A Industrial Water Chiller, model CWFL-6000ENS04, CFG code 18655, AC 3P 380V/50Hz, current 2.1-15.9A, refrigerant R-32 (820g), max. pump pressure 61.5M, tank capacity 22L, net weight 108kg, CE/RoHS certified. 1x Xi Shun AC Automatic Voltage Regulator, model TNS-80, 80 KVA, input voltage 380V ±15%, output voltage 380V, manufacturer Shanghai Xishun Electric Co., CE ...

CO2 2d lazer Model MAZAK NTX48 Şampiyonu Yıl 1999 Çalışılan saat 53052 Güç 1500 watt Hibrit tip eksen hareketi (X ekseni tabla hareketi, Y ve Z ekseni kafa hareketi) X ekseni uzunlamasına hareket mesafesi 2650 mm Y ekseni enine hareket 1270mm Z ekseni hareketi 100mm İşlenebilir boyutlar 2500x1250mm Kapasitif sensörlü kafa Mazatrol L-32B CNC Kontrolü 5 inç kafa ile maksimum işlenebilir kalınlıklar artık tedarik ediliyor --6.0mm demir -3.0mm paslanmaz çelik -2,5 mm alüminyum (7.5 inç kafa Demir 12.0mm Paslanmaz 6.0mm teorik ile) Dış boyutlar: Uzunluk 5563mm

Consisting of \"Coherent/Rofin\" DC040 4 kW CO₂ laser source (size 205x86x190 cm, weight 685 kg); CNC gantry with cutting table (total size 600x350x190 cm); \"Siemens\" 840 D Solution Line control console (size 120x100x14 cm); \"HYFRA\" Sigma 67-S industrial water cooler (size 100x100x205 cm); \"Precitec\" non-contact cutting head; 2 cutting gases up to 22 bar; control cabinet (size 180x50x228 cm); waste bin with discharge conveyor belt and tool trolley with machine books and spare parts; including IBC with demineralized water Auction-ID: A1-47357-11

Tüp lazer Bodor T230 Lazer gücü: 1 kW 20 mm ila 230 mm yuvarlak borular Kare borular 20 x 20 mm ila 160 x 160 mm Kaynaklı montajların kesilmesi Yapım yılı 2017, ancak 2018'de kuruldu ve faaliyete geçti

Trumpf Laser HL 1006D ( 400 V 3P+PE + /-10% / 50HZ / 70A / 32Kw 36KVA ) Auction-ID: A7-49330-29

ERMAKSAN LASERMAK 6000 adet 6X2 lazer kesici 2014 yılında üretilmiştir. Teknik parametreler: – lazer kaynağı: 6000 W CO2-lazer GE Fanuc C6000i-Model C – RF uyarma: 2 MHz – güç kararlılığı:% 2 ± (güç monitörü) – lazer dalga boyu: 10.6 μM – ışın modu: Fanuc Düşük Sıra Modu – lazer deklanşör: mekanik emniyet deklanşörü – lazer gazı bileşimi: CO2 / He / N2 – lazerle gaz tüketimi: 20 l/h – soğutma suyu debisi: 250 l / dak – maksimum kesme kapasitesi: yumuşak çelik 25 mm (testler sırasında elde edilen maksimum değer: 30 mm), paslanmaz çelik 15 mm, alüminyum 12 mm - makine aktivasyon süresi: 22899 h - çalışma süresi: 10122 saat - kesme süresi: 8429 saat – Toplam enerji ihtiyacı: 100-120 kW – kesme kafası odak uzaklığı: 5 "-7" -10 "inç – maksimum çalışma sayfası boyutu: 6150 x 2000 mm – Maksi ...

Beam polarization: 100:1verticalNominal tube voltage at maximum tube current: 533 VFilling voltage at maximum tube current: 530Maximum tube current: 65 Aincluding matching componentsReference: CES - Lot 138 Auction-ID: A7-49056-149

Laser type: SCIII10SL, laser wavelength: 355 nm (UV laser), power consumption: approx. 1.8 kW, max. workpiece dimensions: 500 x 700 x 680 mm, max. workpiece weight: approx. 50 kg Auction-ID: A7-48794-400

Machine Type: Industrial laser marking workstation Year of Manufacture: 09/2013 Serial Number: 1309S0363 Laser Type: Pulsed Nd:YAG laser Laser Wavelength: 1064 nm Laser Output Power: 5 W Pulse Duration: 5–50 ns Pilot Laser: 650 nm, 10 mW Laser Class: Class 4 (laser source), installed in a Class 1 safety enclosure Power Supply: 100–240 VAC, 50–60 Hz Maximum Power Consumption: 550 W Applications: Laser marking, engraving and identification of metal and plastic components Suitable for: Serial numbers, Data Matrix codes, QR codes, barcodes, logos and nameplates Safety Enclosure: Fully enclosed laser workstation with viewing window Extraction Unit: ESTA fume extraction system included Included Accessories: PC, monitor, keyboard and mouse CE Marked Condition: Used, unchecked Auction-ID: A7-48794-560

Installed March 2025 4.0G Acceleration, 200m/m axis speed Automatic pallet change Copper/Graphite protection working area Precitec auto focus cutting head 30KW maxphotonics laser source Anti-collision function Superfast cutting function EI.En CNC Control on 27\" colour touch screen MS windows operating software CCTV camera system for cutting bed and loading table Penta raster marking function Nitrogen, Oxygen and compressed air cutting capability as standard Water chiller Fume extraction system Voltage stabilizer Nitr02-Air gas mixer including connection pipework and valves Full CE protection guarding + light guards for pallet change CUTTING SPEED 7000MM/MIN @15MM THICK. Collection by Appointment Only. This item is sold ex-foundation and consequently, all the logistical arrangements, including dismantling, packing loading the goods, transport, customs, and delivery to the final destinat ...

BLMF-ED 20 W laser marking machine – LMM0003 – Qty. 7 BLMF-ED 30 W laser marking machine – LMM0006 – Qty. 1 BLMF-EB 20 W laser marking machine – LMM0021 – Qty. 4 BLMF-EB 30 W laser marking machine – LMM0022 – Qty. 1 1500 W combined laser machine – LMM0023 – Qty. 1 Sealing gaskets for LMM0017 collimating lens – Qty. 17 Laser marking machine spare parts (buttons, selectors and power supplies) – Qty. 20 LMM0016 laser marker lenses, 20×2 mm LMM0016 laser marker lenses, 30×2 mm LMM0018 laser marker lenses, 37×5 mm 110×110 laser marker lenses for LMM0003/6/7/8 (F163) 300×300 laser marker lenses for LMM0008/19 (F420) Auction-ID: A7-49004-2

Mazak Super Turbo-X 48 Mk II Laser Cutting Machine, Year 2006, 1.8KW Cutting Capacity, Note: without suction, as it is locked on central suction Auction-ID: A7-49053-77

table length: 3000 mmtable width: 1500 mmburner heads: 1 Control: CNC workpiece weight: 900 kgtraversing speed: 91 m/mindimensions of the machine ca.: 5562 x 2270 x 2388 mmLaser cutting machine with manual shuttle tableConfiguration1. BodorPower laser source 6 kW2. Bodor Genius laser cutting head with autofocus3. Bodor Thinker 3.0 control system4. Bed made of tenon and mortise structure5. Bodor servo motor and driver6. Nitrogen control valve7. Bodor Lightning perforation technology8. Automatic layout of residual material9. 21.5-inch monitor with touch function10. Automatic adjustment of cutting gas pressure11. Active anti-collision function12. Intelligent vibration protection13. Anti-burn mineral casting14. Bodor Mango® Ergonomic Remote Control15. Gas-saving nozzles with stable flow16. Intelligent maintenance reminder17. WIFI internet connection18. Water cooling19. Extraction system20.  ...

table length: 3048 mmtable width: 1524 mmburner heads: 1 Control: CNC workpiece weight: 1450 kgtraversing speed: 200 m/minweight: 5010 kgdimensions of the machine ca.: 9450 x 2240 x 2520 mmLaser cutting machine with automatic shuttle tableConfiguration1. BodorPower laser source 12 kW2. BodorGenius laser cutting head with autofocus3. BodorThinker 3.0 control system4. Bed made of tenon and mortise structure5. Stretched aluminum portal6. One-click fully automatic processing7. Automatic layout of residual material8. Edge detection and automatic zeroing of the focal length throughintelligent detection9. Bodor Lightning perforation technology10. 21.5-inch monitor with touch function11. Intelligent control of gas pressure12. Automatic adjustment of cutting gas pressure13. Bodor Mango® ergonomic remote control14. Active anti-collision function15. Intelligent vibration protection16. Intelligent  ...

table length: 3048 mmtable width: 1524 mmburner heads: 1 Control: CNC workpiece weight: 911 kgtraversing speed: 180 m/minweight: 4150 kgdimensions of the machine ca.: 9392 x 2232 x 2307 mmLaser cutting machine with automatic shuttle tableConfiguration1. Bodor Power 3kW laser source2. Bodor Genius laser cutting head with autofocus3. Bodor Thinker 3.0 control system4. Mortise-and-tenon type plate welded segmented bed5. Stretched aluminum gantry6. Bodor servo motor and driver7. Bodor rack and pinion8. One-click processing9. Bodor Lightning perforation technology10. Expert database for high-speed cutting11. Automatic cutting gas pressure adjustment12. Open door protection13. Cutting malfunction alarm function14. Ergonomic remote control (Bodor Mango®)15. Active anti-collision function16. Intelligent anti-shake17. Gas-saving continuous flow nozzle18. Intelligent maintenance reminder19. WIFI  ...

table length: 3048 mmtable width: 1524 mmburner heads: 1 Control: CNC workpiece weight: 1095 kgtraversing speed: 180 m/minweight: 4150 kgdimensions of the machine ca.: 9392 x 2232 x 2307 mmLaser cutting system with automatic shuttle tableconfiguration1. Bodor Power 12kW laser source2. Bodor Genius laser cutting head with autofocus3. Bodor Thinker 3.0 control system4. mortise-and-tenon nameplate welded segmented bed5. stretched aluminum gantry6. bodor servo motor and driver7. bodor rack and pinion8. one-click processing9. bodor lightning perforation technology10. expert database for high-speed cutting11. automatic adjustment of cutting gas pressure12. open door protection13. alarm function for cutting malfunction14. ergonomic remote control (Bodor Mango®)15. active anti-collision function16. intelligent anti-shake17. gas-saving continuous flow nozzle18. intelligent maintenance reminder ...

table length: 4000 mmtable width: 2000 mmburner heads: 1 Control: CNC workpiece weight: 2510 kgtraversing speed: 200 m/mindimensions of the machine ca.: 11599 x 3380 x 2718 mmLaser cutting machine with automatic shuttle tableConfiguration1. BodorPower laser source 12 kW2. BodorGenius laser cutting head with autofocus3. BodorThinker 3.0 control system4. Bed made of tenon and mortise structure5. Stretched aluminum portal6. One-click fully automatic processing7. Automatic layout of residual material8. Edge detection and automatic zeroing of the focal length throughintelligent detection9. Bodor Lightning perforation technology10. 21.5-inch monitor with touch function11. Intelligent control of gas pressure12. Automatic adjustment of cutting gas pressure13. Bodor Mango® ergonomic remote control14. Active anti-collision function15. Intelligent vibration protection16. Intelligent adjustment to  ...

table length: 3000 mmtable width: 1500 mmburner heads: 1 Control: CNC workpiece weight: 900 kgtraversing speed: 91 m/minweight: 4980 kgdimensions of the machine ca.: 5562 x 2270 x 2388 mmLaser cutting machine with manual shuttle tableConfiguration1. BodorPower laser source 12 kW2. Bodor Genius laser cutting head with autofocus3. Bodor Thinker 3.0 control system4. Bed made of tenon and mortise structure5. Bodor servo motor and driver6. Nitrogen control valve7. Bodor Lightning perforation technology8. Automatic layout of residual material9. 21.5-inch monitor with touch function10. Automatic adjustment of cutting gas pressure11. Active anti-collision function12. Intelligent vibration protection13. Anti-burn mineral casting14. Bodor Mango® Ergonomic Remote Control15. Gas-saving nozzles with stable flow16. Intelligent maintenance reminder17. WIFI internet connection18. Water cooling19. Extra ...

General Description CNC CO₂ laser cutting machine manufactured by TRUMPF, model TruMatic L3030. Designed for precision cutting of sheet metal including mild steel, stainless steel, and aluminum. The machine is equipped with an automatic dual pallet changer, Siemens SINUMERIK 840D CNC control, and a TRUMPF TruFlow 3200 laser source. According to the delivery documentation, dismantling and loading must be carried out by an authorized TRUMPF service provider. Technical Details Manufacturer: TRUMPF (Germany) Model: TruMatic L3030 Machine type: CNC CO₂ laser sheet metal cutting machine Year of manufacture: 2006 Machine serial number: A0220A1386 Laser source: TRUMPF TruFlow (TLF 3200 TM) Laser source serial number: D0004 A4339 Laser power: 3,200 W (3.2 kW) CNC control: Siemens SINUMERIK 840D Power supply: 400 V / 50 Hz Connected load: 73 kVA Power supply unit: Hüttinger Elektronik GmbH I ...

Droogscheider voor fijnstof Maximale luchtstroom: 7000 m³/uur 7,5 kW 12 filterelementen 93,8 filteroppervlak Ağaç Alanı: 1800 x 1600 x 2700 mm Gewicht: 1430 kg

plate length max.: 3000 mmsheet width - max.: 1500 mmz-axis: 170 mmmaterial thickness: 25 mmburner heads: table width: mmtable length: mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mwith ByLaser 4400with turning axisByVision cnc controlwith changing table Technische Daten / technical details:Blech-Nennmass X, Y / sheet nominal size X, Y 3000, 1500 mmSchneidbereich X, Y / cutting range X, Y 3048, 1524 mmHub Schneidkopf Z / stroke cutting head Z 170 mm Drehachse: / turning axis: Profilaufnahme Spannfutter / profile taper clamping chuck 15-315 mmProfilzuführung durch das Spannfutter / profile feed through the clamping chuck 15-155 mmmax. Profilbearbeitungslänge / max. profile working length 2700 mm Laserleistung / laser capacity 4,4 kWMaterialdicke Stahl / thickness of the materi ...

table length: Rohmateriallänge 6500 mmtable width: Rohrdurchmesser max. 230 mmburner heads: 1 Control: CNC workpiece weight: 300 kgtraversing speed: 91 m/minweight: 5750 kgdimensions of the machine ca.: 12900 x 2370 x 2650 mmTube laser with T-loaderConfiguration1. Bodor Power laser source 6 KW2. Bodor Genius laser cutting head with autofocus3. Bodor Thinker 3.0 control system4. Pneumatic chuck5. Adaptive adjustment of jaw clamping force6. Follow-up servo blanking clamp7. Support for composite clamping rollers8. Active collision avoidance9. Automatic tube inspection10. Automatic tube edge detection and positioning11. Automatic adjustment of cutting gas12. Laser cutting process database13. Air-saving continuous jet nozzle14. Intelligent maintenance reminder15. WIFI internet connection16. Water cooler17. Extraction system18. Wear parts set19. Auxiliary feeding device T-Loader:- One-click a ...
