Diğer freze makineleri (24)

Yapım Yılı: 2015 Makine tipi: BC 1001 HS Toplam üretim saatleri: 1608 saat Toplam bekleme süresi: 5070 saat

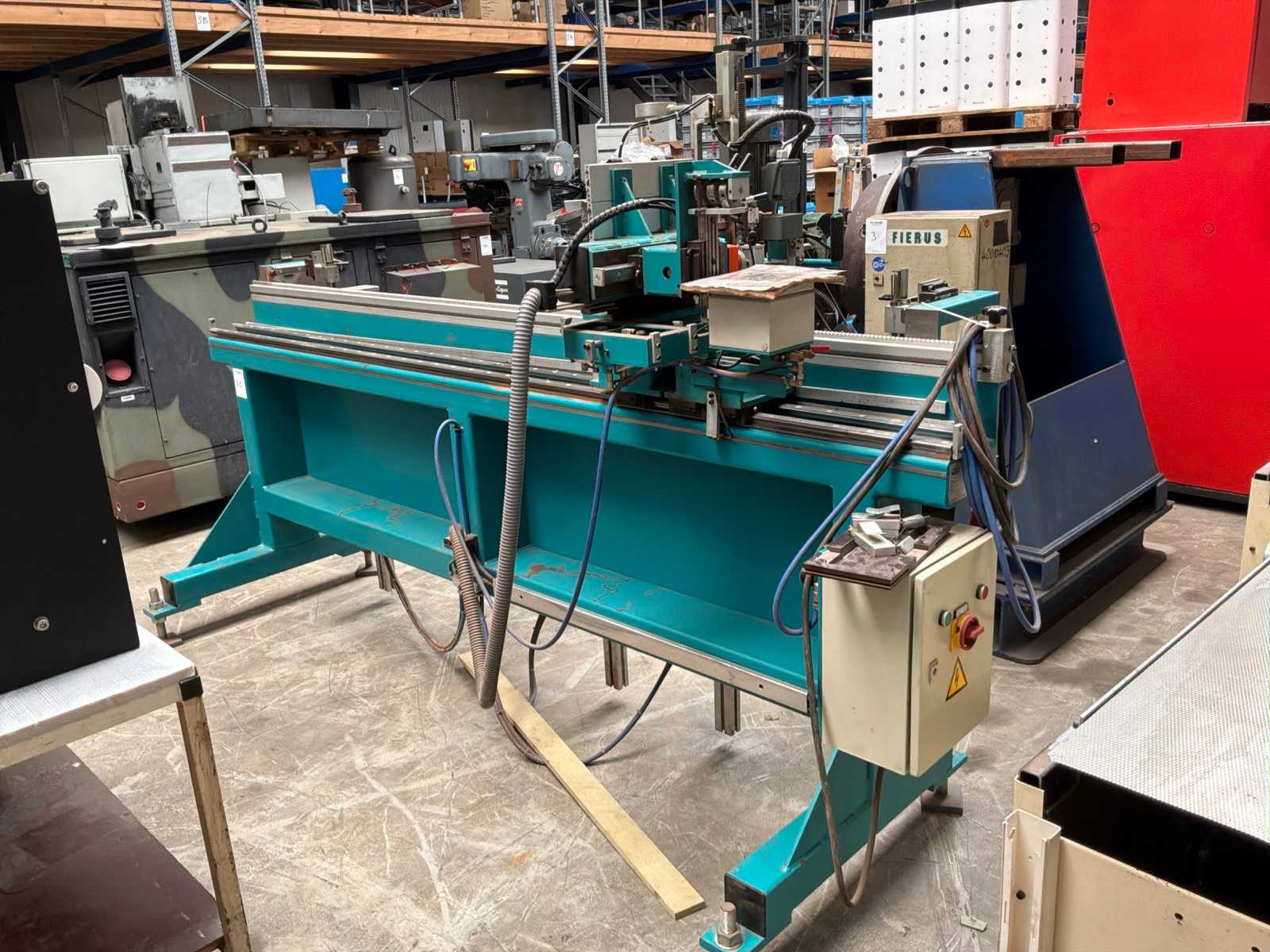

Edge milling machine on trolleys see pictures Condition: unchecked (6) Auction-ID: A7-47818-816

Frezeleme makinesi TOS KURIM FRO 6, FRO8

Professional Contimac drill-milling machine with cross table, suitable for various metalworking operations such as drilling, milling, slot milling and face milling. The machine is equipped with a gear-driven milling head and an adjustable work table for precise machining. The machine is in good condition. Features: Brand: Contimac Type: Drill-milling machine / column milling machine Cross table available Gear-driven milling head Adjustable table Suitable for drilling and milling work Pedestal mounted Ideal machine for workshops, maintenance services and general metalworking. Condition and operation in accordance with on-site findings. Auction-ID: A3-43547-34033

Fatura Numarası : 8658 Türü: AF 221 Yapımcı: Elumatec Oluşturuldu: 1997 Parametre: Maksimum Hız: 2800 1/dak

Equipped with an adjustable vertical head, longitudinal work table with T-grooves and manual advances on the axes. Designed for milling, drilling, boring, grooving and general machining of metal parts. It has a turret-type configuration that provides great versatility for maintenance, manufacturing and precision machining work. Robust industrial construction machine, suitable for mechanical workshops, tooling and small and medium series production. Important: It is recommended that all machinery be checked and inspected by qualified personnel before commissioning. The equipment is sold in the condition it is in, with no warranty on its operation or operational condition. Auction-ID: A7-47328-45

Mil taşlama, parlatma, freze makinesi Özellikler: - Hızlar 850 ila 12000 rpm - Esnek şaft yakl. 2 dk - Mobil alt takım - Taşlama ve parlatma aletleri için uygundur - Sürücü 380 V / 1.0 hp - Alan gereksinimi yakl. G 500 x Y 1000 x D 500 mm - Ağırlık yakl. 45 kg - Mobil alt takım

Bed-type milling machine TOS Kuřim FC 63 H (Millstar) Manufacturer: TOS Kuřim Model: FC 63 H (Millstar) Year of Make: 1976 Machine Type: Conventional Bed Milling Machine Construction: Heavy Industrial Bed Milling Machine Workspace • Large cross table with T-slots • X, Y and Z axis travels available • Robust design for heavy workpieces Spindle • Horizontal milling spindle • Tool holder ISO 50 • Gearbox for high torque range • Suitable for heavy-duty machining work Facilities • Acu-Rite digital position indicator • Trimos Optima 300 measuring system • Coolant system available • Work lights available • Conventional operation • Machine and switching documents available Tool Pack • Extensive SK50/ISO50 tool package included • Numerous tool holders, cutter holders and drill chucks • Various milling tools and accessories • Multiple boxes with additio ...

Küçük Delme/Freze Makinesi ISERT ELECTRONIC Hareket X: 350 mm Seyahat Y: 300 mm Seyahat Z: 70 mm Döndürme: 8000 / 9500 / 13500 / 20500 / 24000 RPM Makine, baskılı devre kartlarını delmek veya başka bir kullanım için kullanılabilir. Makine, artık mevcut olmayan bir PC aracılığıyla kontrol edildi. Manuel olarak kullanma imkanı İle donatılmış: 1 Freze Makinesi KRESS Gerilim: 220 V mono Boyutlar (U x G x Y): 950 x 700 x 700 mm Ağırlık: yaklaşık 60 KG

• Engine 0.75 KW-2800 rpm. • Milling head working from above. • 2 horizontal holes. • Maximum cutter diameter approx. 100 mm. • Table dimensions 2380 x 200 mm. • Pneumatic horizontal gripper. • New, unused machine. - Operating conditions of this machine: unchecked. - This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs. Auction-ID: A7-47127-31

Jig delme / Freze makinesi HAUSER 3DR Hareket X: 400 mm Hareket Mesafesi Y: 200 mm Seyir Z: 400 mm İş mili: 2 hız Koni: CM2 İş mili çıkışı: 120 mm 2 hız aralığı 60-1500 RPM / 1500-3000 RPM Tablo boyutu: U 590 mm x G 320 mm İş milindeki hız varyatörü 2 ilerleme Otomatik alçalma: 0,03 mm/dak - 0,06 mm/dak Mitutoyo ile işlevsel X ekseni tasarımı Y ve Z ekseni: kusurlu ölçek Gerilim: 380 V Genişlik: 1500 mm Derinlik: 1700 mm Alçak konumda yükseklik: 1800 mm Ağırlık: yaklaşık 1,5 T

- Engine 0.75 KW-2800 rpm. - Milling head working from above. - 2 horizontal holes. - Maximum cutter diameter approx. 100 mm. - Table dimensions 2380 x 200 mm. - Pneumatic horizontal gripper. - New, unused machine. - Operating conditions of this machine: unchecked. - This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs. Auction-ID: A7-47127-32

ZAYER 4BM horizontal milling machine Technical characteristics Brand: ZAYER. Model: 4BM. Serial number: 35121. Type: Horizontal milling machine. Motor power: 11.75 HP. Power supply: 220 V. Frequency: 50 Hz. Phases: 3. Intensity: 32 A. Untested operation. The batch is delivered loaded by truck. Dismantling and loading costs are indicated as additional costs. Auction-ID: A7-47344-3

Serial number: 07400003691operating hours read: 88,040Spindle hours read: 43,558Spindle speed range: 3200/5000 rpmRotation diameter: 270 mmTurning diameter: 120 mmSpindle distance: 900 mmTravel X1: 290 mm TravelZ1: 650 mmTravel X2: 180 mmTravel Z2: 650 mmTravel Y1: +- 40 mmTravel Z3: 670 mm TravelX3: 175 mmMax. rod diameter: 100/104 mmSpindle bore diameter: 118 mmRapid traverse speed X- and Z-axis: 30 m/minRapid traverse speed Y-axis: 15 m/minNumber of driven tools per tool carrier: 12Control: SIEMENS SINUMERIK 840 D POWERLINEincl. chip conveyorwith 2 tool turrets - each with 12 tool positionsmain and counter spindles, as well as foot switchesAttention, the machine has the following defects:-the B-axis is defective (sits on turret 1)-the guides and drives are worn according to their age-X2 axle (guide rails) runs a bit crookedin the range of 0.03 mm (would have to be remeasured), sporad ...

incl. contact surfaces on the right and leftReference: Groven - Lot 8 Auction-ID: A7-46763-310

Serial number: 07510001241operating hours read: 72,899Spindle hours read: 39,361Control: SIEMENS SINUMERIK 840 DRotation diameter: 640 mmTurning diameter: max. 640 mmTurning diameter Sub-spindle: 400 mmSpindle distance: 1500 mmTurning length:1185 mm Max. workpiece weight: 150 kgSlide path X1: 550 mmSlide path Y1: 180 mmSlide path Z1: 1185 mmSlide path B1: 240 °Slide path X2: 180 mmSlide path Z2: 1050 mmSlide path Z3: 1150 mmSpindle speed range: 3200/4000 rpmRapid traverse speed of slide 1 (X/Y/Z): 40/24/70 m/minRapid traverse speed of slide 2 (X/Z): 24/36 m/minRapid traverse speed of slide 3 (Z): 36 m/minTool holder: HSK 63Spindle speed: 12,000 rpmincl. the tool holders on the turretincl. bar feeder, manufacturer: COCCHE GIOVANNI, type: CNC-DB 110, Year of manufacture: 2008, Serial number: CNCDB-08.306, Weight: 1500 kgNumber of tool positions in the chain magazine: 40 piecesAttention t ...

Auction-ID: A1-46933-33

Serial number: 24952Travels: X: approx. 300 mmY: approx. 450 mmZ: approx. 150 mmwith STEPCRAFT MM1000 milling unit, year of manufacture 2019Reference: Wittner - Lot 64 Auction-ID: A7-46763-375

Auction-ID: A1-44305-83

Auction-ID: A1-41277-3

Auction-ID: A1-41277-97

HORIZONTAL BORING AND MILLING MACHINE IVO LOLA RIBAR BH 90 Working spindle inside ISO ISO 50 Number of rpm from 20 do 2000 min-1 Working table 920 x 1000 mm Z-axis 1000 mm X-axis 1000 mm Y-axis 800 mm Machine move from 0,03 till 12 mm/1 rpm Machine weight 9.500 kg Auction-ID: A7-47067-15

Worktable size 710x710 mm, including cabinet with various accessories Auction-ID: A1-43894-4

Table surface 1,524 x 355 mm Slot width 18 mm Table longitudinal feed 3 - 1016 mm/min - Rapid feed 2,400 mm/min Table cross feed 3 - 1016 mm/min - Rapid feed 2,400 mm/min Distance between slots 100 mm Number of T-slots 3 Longitudinal stroke 1,220 mm Transverse stroke 508 mm Vertical stroke 508 mm Spindle taper ISO 50 Main motor power 7.36 Kw Voltage 380/220 V Included accessories: Dimension display, milling cutter axes, milling cutters, shims, cones, collets
