36 MONFORTS satılık ikinci el makine

turning diameter:830 mm turning length:4000 mm turning diameter over bed slide:540 mm spindle bore:130 mm turning speed range:2 - 1600 U/min rapid speed:4 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:55 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:7 x 2,2 x 2 m with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment

turning diameter:500 mm turning length:1500 mm turning diameter over bed slide:290 spindle bore:71 mm turning speed range:3 - 2800 U/min rapid speed:10 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:22 kW weight of the machine ca.:3,2 t dimensions of the machine ca.:3,0 x 1,6 x 2 m with Teach In controll R&D MTC-K PARAT toolpost 1 fixed steday dia. 100 mm 4 jaw face plate dia. 500 mm coolant attachment

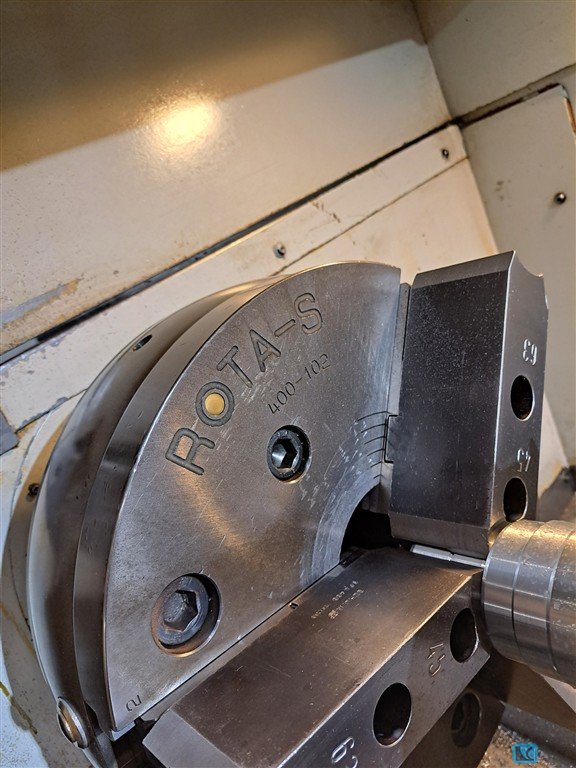

turning diameter:800 mm turning length:2965 mm max. turning dia. over saddle:520 mm spindle bore:92 mm turning speed range:3 - 1800 U/min spindle head:Größe 11 total power requirement:37 kW weight of the machine ca.:6,5 t dimensions of the machine ca.:5,2 x 2,2 x 1,9 m Teach In Control MTC-K 3-jaw chuck ROTAS Dia. 400 mm face plate RÖHM Dia. 630 mm 4-station toolholder system PARAT 1 fixed steady coolant attachment and chip conveyor

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

turning diameter: 800 mm turning length: 2000 mm control: Monfort R&D turning diameter over slide: 520 mm spindle hollow: 88 mm total power requirement: 53 kW weight of the machine ca.: t dimensions of the machine ca.: 4,2x2,2x1,9 m - Standard chuck diameter: 315/400/500 mm Work spindle drive: - Siemens Three-phase servo drives with mechanical safety clutch - Maximum Z-axis feed force: 23.9 kN - Maximum X-axis feed force: 11.3 kN - Rapid traverse speed Z-axis: 6.8 m/min - Rapid traverse speed X-axis: 4 m/min Tool setup: - Multifix quick-change tool post Tailstock: - Outer quill diameter: 120 mm - Maximum quill stroke: 210 mm - Internal taper: MK6 Capacities: - Hydraulic oil tank approx.: 15 l - Additional lubricating oil tank approx.: 6 l - Coolant tank approx.: 120 l - Coolant tank for chip conveyor approx.: 260 l The tech. Data are manufacturer or operator information and therefore non ...

turning diameter: 450 mm turning length: 1000 mm control: Fanuc Monforts Control F turning speeds: 45-4000 U/min chip conveyor: Tool turret 12 positions: VDI 40 swing diameter: 600 mm spindle passage: 85 mm power requirement: 37 kW total power requirement: 55 kW weight of the machine ca.: 8,5 t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team  ...

turning diameter: 302 mm turning length: 600 mm control: Siemens type: 810 T tail stock: Tool changer: 12 Pos. tool taper: VDI 30 chip conveyor: 3-jaw-chuck diameter: 200 mm swing diameter: 400 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m • 12-station tool changer • Includes tool holder • Tool holder Ø30 • Max. turning length = 600 mm The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appo ...

turning diameter: 555 mm turning length: 4000 mm control: Monforts Control System type: MTC-K CCUO turning diameter over slide rest: 290 mm cross movement: . mm spindle passage: . mm turning speeds: 1600 U/min transmission ratio: . quill stroke: . mm rapid traverse: . m/min main drive motor: . kW 3-jaw chuck: Rotha-S Plus 3-jaw-chuck diameter: . mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m Serial number: 262/01 Machine number: 08122394 Quick-change tool post Coolant system Monitor Chip conveyor The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are ...

turning diameter: 650 mm turning length: 2000 mm control: MTC K turning diameter over slide rest: 360 mm turning speeds: 1800 U/min 3-jaw chuck: 315 mm Holder Multifix: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solutio ...

centre height: 255 mm centre distance: 1080 mm turning diameter over bed: 500 mm turning diameter over slide: 290 mm turning length: 1000 mm spindle taper: KK 8 DIN 55027 control: Sinumerik 810 D SIEMENS bed width: 360 mm spindle bore: 70 mm turning speed range: 2 - 2800 U/min rapid travel - longitudinal/face: 10 / 5 m/min quick change toolholder: MULTIFIX Typ B / CAPTO drive capacity - spindle motor: 11,0 kW taper in tailstock-quill: MK 5 dia. of quill: 80 mm quill stroke: 160 mm coolant: voltage: 400 V total power requirement: 16,0 kVA weight of the machine ca.: 3,0 t dimensions of the machine ca.: 2,85 x 1,60 x 1,80 m chip conveyor: 4,00 x 0,40 x 1,50 m - Serial-No.: 346 / 03 - control: SIEMENS Sinumerik 810 D - quick change tool holder MULTIFIX - coolant equipment - machine lamp The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 420 mm turning length: 1000 mm control: Fanuc 10 T Monforts Control F spindle passage: 65 mm turning speeds: 4000 U/min chip conveyor: Tool turret 12 positions: total power requirement: 22 kW weight of the machine ca.: 4 t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the  ...

turning diameter: 555 mm turning length: 1500 mm turning diameter over slide: 290 mm 3-jaw-chuck diameter: 315 mm make: Röhn control: Monforts MTCK quick change tool holder: Multifix C steady: turning speeds: 2-2800 U/min transmission ratio: 3 face slide travel: 235 mm spindle passage: 70 mm tailstock quill taper MT: 5 total power requirement: kW weight of the machine ca.: 3 t dimensions of the machine ca.: 2,9x1,6x1,8 m Extensive accessories can be purchased optionally The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please c ...

turning diameter: 500 mm turning length: 1000 mm control: MONFORTS CONTROL control: SYSTEM EURO TURN turning diameter over bed slide: 290 mm spindle bore: 70 mm spindle turning speed range: 3 - 2800 U/min spindle power: 15 kW max. torque on the spindle: 1530 Nm spindle head: DIN 55027 Gr. 8 feed power X/Z axis: 11300 N rapid travel - longitudinal/face: 10 / 5 m/min bed width: 360 mm travel of cross-slide: 265 mm upper slide travel: 140 mm turning tool - shaft cross cut: 32 x 25 mm tailstock quill diameter: 80 mm tailstock quill stroke: 160 mm tailstock taper MT: 5 total power requirement: kW weight of the machine ca.: 3,1 t Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning length: 2000 mm greates pass round over bed: 630 mm swing diameter over slide rest: 350 mm control: Monforts Control System K bed width: 550 mm turning speed range: 2 - 1800 U/min spindle diameter in front bearing: 120 mm spindle head DIN 55027 - Size: 8 tool taper: RD2 PARAT quill stroke: 210 mm spindle bore: 71 mm total power requirement: 30 kW weight of the machine ca.: 5 t dimensions of the machine ca.: 4,90 x 2,10 x 2,00 m Three-jaw chuck / key bar / Ø250mm Four-jaw chuck 3-jaw chuck for tailstock 4-station tool post head PARAT Fixed steady rest, Ø small Fixed steady rest, Ø large Various chuck jaws, live centers, live centers, tool holders Chip conveyor with coolant pump The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

swing diameter: 530 mm turning diameter: 150 mm spindle passage: 65 mm control: SIEMENS 840 C travel x1: 175 mm travel y1: +/- 70 mm travel z1: 433 mm travel x2: 175 mm travel y2: +/- 70 mm travel z2: 433 mm spindle turning speed range: 38 - 4000 U/min C-axis: 2 x tool turret: 2 x 12 Pos. number of driven tool stations: 2 x 12 tool shaft (cylinder shaft DIN 69880): VDI 30 total power requirement: 33 kW dimensions of machine L x W x H: 3,95 x 2,49 x 2,6 m Accessories: collet fixtures on main spindle and sub spindle, one collet for main spindle and one for sub spindle, various tool holders (for driven tools as well), various spindle reductions, chip conveyor, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

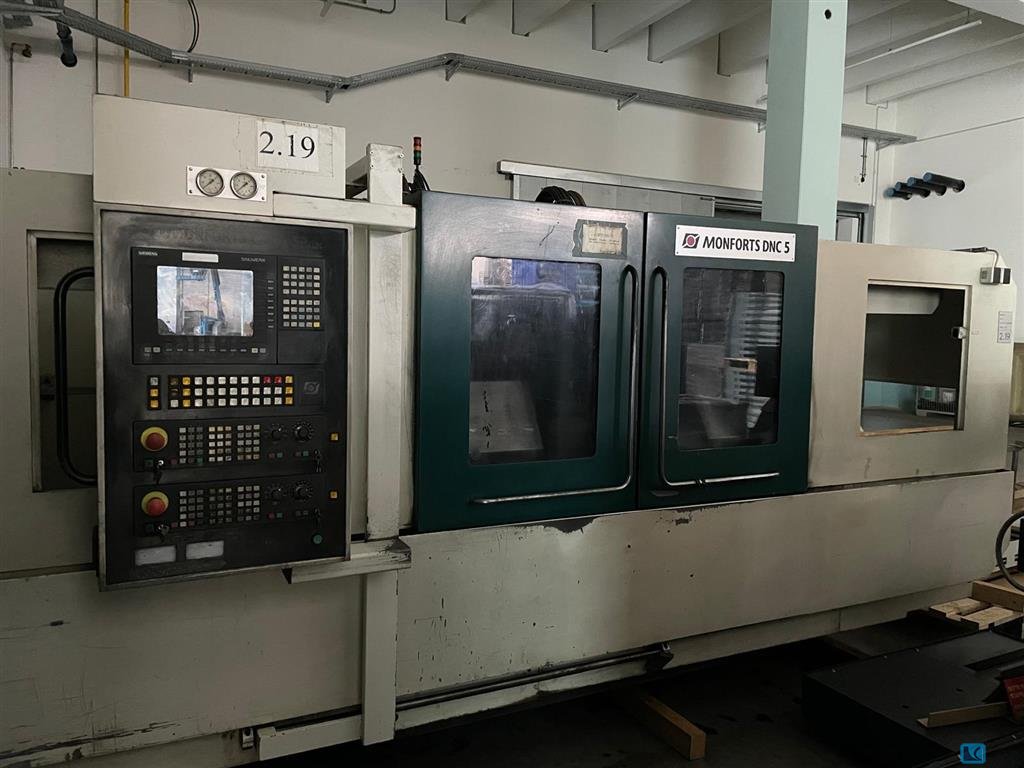

Satılık Monforts DNC5 CNC Torna Tezgahı. kontrol ünitesi: Siemens 810D Daha fazlasını burada bulabilirsiniz - / Bize ulaşın -

KONTROLLER CNC Öğret İçeri Kontroller MONFORTS MTC-K ÇALIŞMA SAHASİ Torna Salınım çapı (max): 500 mm turlama çapı (max): 290 mm parça uzunluğu max.: 1500 mmAna MIL mil dönüşleri (min): 3 /dakika mil devirleri (max): 2800 /minBOYUTLAR / WEIGHTS alan gereksinimleri -sol/sağ-: 3325 mm alan gereksinimleri - ön/arka-: 1550 mm toplam yükseklik: 1740 mmEKLER (TURNELEME) KUYRUK: evet Avrupa CE standartları: Evet

Monforts DNC 3Year of manuf. : 2000 Control : Siemens 840D - Powerline Turning diam. : 150 mm____________Description:Mainspindle:Speed:5.000 rpmPower (max.):25 kWTorque (max.):263 NmBarcapacity:65 mmSubspindle:Speed:5.000 rpmPower (max.):25 kWTorque (max.):263 NmToolcarrier I (X/Z):Technology:Turret with 12 stationsTaper:VDI 30Tooldrive:4.500 rpmMovement in X/Z:170/445 mmRapid travers in X/Z:24/30 m/minToolcarrier II (X/Z):Technology:Turret with 12 stationsTaper:VDI 30Tooldrive:4.500 rpmMovement in X/Z:170/445 mmRapid travers in X/Z:24/30 m/minEquipment/Accessory:Chipmanagement:Chip conveyorCoolingmanagement:Coolant pumpsRawmaterialfeed:Interface Barloader:Attention:Displayed Clamping devices and tools are NOT included in our offer!

turning diameter:500 mm turning length:1500 mm Technical Specifications: ·Turning diameter over cross slide: 290 mm ·Spindle bore: 71 mm ·Speed range: 3?2,800 rpm ·Rapid traverse speed: 10 / 5 m/min ·Feed rate: 1?2,000 mm/min ·Total power requirement: 22 kW ·Machine weight: approx. 3.2 t ·Space requirement: approx. 3.0 × 1.6 × 2.0 m

turning diameter:830 mm turning length:4.000 mm turning diameter over bed slide:540 spindle bore:130 mm turning speed range:2 - 1.600 U/min rapid speed:4/5 m/min feed speeds:1 - 2.000 mm/min total power requirement:55 kW dimensions of the machine ca.:7 x 2,2 x 2 m weight of the machine ca.:7,5 t

2001 yılında üretilen yatay torna makinesi. Bu Monforts RNC 400 A, 410 mm yel yatak ve 600 mm dönüş uzunluğuna sahiptir. 12 pozisyonlu disk tareti ve 30-4000 rpm hız aralığına sahip güçlü üç fazlı endüksiyon motoru ile donatılmıştır. Yüksek kaliteli torna yetenekleri arıyorsanız, satışımızdaki Monforts RNC 400 A makinesini düşünün. Daha fazla bilgi için bizimle iletişime geçin.

2000 yılında üretilen yatay torlama makinesi. Bu Monforts RNC 400 AC, 600 mm dönüş uzunluğu ve 410 mm yelken üzerinden yellenebilir bir yeleğe sahiptir. 12 istasyonlu disk taret ile donatılmıştır ve maksimum mil hızı 4000 rpm'dir. Yüksek kaliteli torna yetenekleri arıyorsanız, satışımızda olan Monforts RNC 400 AC makinesini düşünün. Daha fazla bilgi için bizimle iletişime geçin.

Key data: 500 mm, 1000 mm

Yatak üzerinde çevre çapı 500 mm, destek üzerinde 290 mm Merkez genişliği 1000 mm Hız aralığı 1-3000 1/dakika, mil burun süngü Gr 8 Mil borusu 70 mm Kuyruk kalem MK 5 / strok 160 mm dahil. MTC K, Yüz Plakası Kontrol Sabit çerçeve ve yuvarlanan başlı Çelik tutucu başlık sistemi Multifix C ile 1 kaset Soğutma Sıvısı Kurulumu

Heavy-duty lathe, cycle-controlled lathe, lathe, center- and feed-screw lathe, center- and feed-screw lathe, CNC lathe -Control: Monforts Control System MTC K -Machine bed: hardened -Turning length: 1100 mm -Turning Ø over bed: 560 mm -Turning Ø over support: 300 mm -Spindle bore: Ø 60 mm -Spindle speeds: 2 - 2800 rpm -Key bar chuck: Schunk Ø 250 mm -Tailstock mount: MK5 -Drive: 16 kW -Accessories: Multifix tool holder, tools see photos -Dimensions: 1600/2860/H1830 mm -Weight: 3300 kg

Torna Monforts RNC4 1988 ve 1995 Torna Monforts RNC 5 BJ 1992 Torna Takımı Monforts RNC7 BJ 1992 ve 1993

Nominal genişlik: 3000mm, çalışma genişliği aralığı: 600mm-2800mm, Katmanlar: 1, Bölme sayısı: 6, Isıtma sistemi: Gaz, Hava tedarik: üst/alt, Maksimum çalışma hızı: 100m/dakika, Zincir düzeni: yatay, Soğutma silindirleri: 2, Padder: çift silindirli Matex 6000, Egzoz fanı: 1, Belgeler mevcut, Yerinde inceleme mümkündür.

Bu MONFORTS RNC 200A torna tezgahı 2000 yılında üretilmiştir. Maksimum yörünge çapı 300mm ve dönüş uzunluğu 250mm'dir. Ana mil, 50-6000 rpm hız aralığı sağlar ve 42mm malzeme geçişi sağlar. 12 tahrik istasyonu ve X/Z ekseninde 24m/dakika hızlı dönüş hızlarıyla donatılmış bu makine, verimli ve hassas dönüş işlemlerini sağlar. Satışımızda olan MONFORTS RNC 200A makinesi, üretim ihtiyaçlarınızı karşılamaya hazır. Teslimat kapsamında bir bar besleyici yer almıyor. Daha fazla bilgi için bizimle iletişime geçin.

Makinenin ağırlığı yaklaşık 6,6 TKontrol: Monforts Kontrol: 2 Merkez mesafesi: 3010 mmMerkez yüksekliği: 310 mmKuyruk stoğu: JA soğutma: ja Makinenin boyutları ca.: 5000-1600 mmxmmxmmMil çapı: 70 mm: : Bu reklamın verileri, LogoTech oHG'nin yazılım çözümü olan ModulMWS ile oluşturulmuştur.

turning diameter: 500 mm turning length: 1500 mm control: MONFORTS CONTROL control: SYSTEM EURO TURN turning diameter over bed slide: 290 mm spindle bore: 70 mm spindle turning speed range: 3 - 2800 U/min spindle power: 15 kW max. torque on the spindle: 1530 Nm spindle head: DIN 55027 Gr. 8 feed power X/Z axis: 11300 N rapid travel - longitudinal/face: 10 / 5 m/min bed width: 360 mm travel of cross-slide: 265 mm upper slide travel: 140 mm turning tool - shaft cross cut: 32 x 25 mm tailstock quill diameter: 80 mm tailstock quill stroke: 160 mm tailstock taper MT: 5 total power requirement: kW weight of the machine ca.: 3,3 t dimensions of machine L x W x H: 3,45 x 1,65 x 1,93 m Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
