wmw heckert freze makineleri kullanılmış satılık

Vertical -consol milling machine, used    Vertical -milling machine, used Make/make: WMW HECKERT Type/ model: FQS 400 Year built: 1978 Control type / control: conventional   x-way: 1190 mm   y-way: 530 mm z-way: 540 mm Table size/ table: 1600 x 400 mm Spindle power/ spindle power: 11kW Tool holder/tool taper: ISO 50 Speeds/ speeds: 28 - 1400 rpm Feeds: 16- 800 mm/min Total power requirement: 21 kW Machine weight: 4.8 t

Key data: 850 mm, 270 mm, 355 mm

Table width 315 mm, table length 1250 mm Tool holder SK 50 Speed range 28 - 1400 rpm Feed range 16 - 800 mm/min Travel x=850 mm, y= 270 mm, z=355 mm Connected load 8 kW Incl. Electric clamp horizontal Vertical head in X swivel with manual tightening Dispensing as present, no longer energized

WMW HECKERT FU450R-51 universal milling machine was built in 2009 in Belarus by Gomel Machine Tool Plant S.M. Kirov.. This extremely versatile, functional and reliable machine is designed for precision machining of workpieces with a maximum weight of 1500 kg. The machining process is performed by a powerful spindle on a large work table. T-slots in the table allow for quick installation of additional tooling such as a vice. The precision and repeatability of the manufactured parts, in turn, is maximised by the design made of the highest quality cast iron, which maintains excellent stability during even the most intensive challenges. All this makes the offered FU450R conventional milling machine an excellent choice for both unit and series production. The WMW HECKERT vertical milling machine weighs 4300 kg. Technical specifications of the WMW HECKERT FU450R-51 milling machine - number ...

Heckert CWK 400 Built in 1995 Control Siemens 840 Travel X/Y/Z 650/650/680 mm Spindle speed up to 10,000 rpm HSK 40 Tool Changer Rotary table 400 x 500 mm, Conveyor Weight 12.5 t.

Code 101237 Description Universal Cylindrical Grinder Make WMW Heckert Model SA 5 U x 630 Serial No. 3115 Year 1981 Grinding length, max. 630 mm Grinding diameter, max. 275 mm Centerheight 140 mm Max. Weight workpiece 125 kg Table tilting angle - 5° till + 11,5° Diam. Grinding wheel 500 mm Width Grinding wheel, max. 100 mm Motorpower grindingwheel 5,5 kW Speeds workpieceholder 31,5 – 710 rpm Total power 12,5 kVA 380 Volts Machine size L x W x H 3,9 x 2,3 x 1,6 meter Weight 4800 kg Accessories coolant with magnetic some tooling Condition Machine is in good condition

Key data: 1120 mm, 345 mm, 400 mm

Table width 400 mm, table length 1600 mm Tool holder SK 50 Speed range 28-1400 1/min Travel X/Y/Z 1120/345/400 mm Feed range X/Y 16 - 800 mm/min, Z 5 - 250 mm/min Rapid traverse Milling head swivel range +/- 45°, quill stroke 90 mm Connected load approx. 14 kW Incl. coolant device Electric tensioner, bracket cover

Key data: 50 mm, 335 mm, 280 mm

Power: 7.8 kW Weight: 1,650 kg Table size: 630 x 500 Speed: 45 - 1,000 rpm Machine is ready for operation and can be dispensed immediately.

Bohrleistung in Stahl (-Ø: 45 mm throat: 1250 mm workpiece height max.: 1100 mm swival range +/-: 360 ° height adjustment: 745 mm base plate surface area: 1450 x 920 mm Bohrspindel-Ø/ Aufnahme: 90 mm / MK 5 bore spindle stroke: 355 mm max. torque on the spindle: 250 Nm feed power: 14000 N turning speed range: 20 - 1200 U/min feed range: 0,063 - 0,63 mm/U power capacity: 3,7 kW weight of the machine ca.: 3,0 t dimensions of the machine ca.: 2,1 x 0,9 x 3,3 m • cube table 650 x 650 x 500 mm, • coolant device The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Quick clamping device, hydraulic clamping device, electro-hydraulic clamping device, -Manufacturer: WMW HECKERT, clamping device from milling machine FSS 315-V -Type: FHKN 3311 -Motor: VEM 0.12 kW -Dimensions: 440/150 / H220 mm -Weight: 24 kg

Rotary table, rotary indexing table, dividing head, dividing head -Manufacturer: WMW Heckert, rotary table type D 315 k TGL 28561/02 -Clamping surface: O 315 mm -Height: 140 mm -Groove: 14 mm -Dimensions: 615/540 / H150 mm -Weight: 83 kg

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm spindle taper: MT:5 table surface area:750 x 1380 mm surface area:1450 x 920 mm total power requirement:5 kW weight of the machine ca.:3000 kg dimensions of the machine ca.:2060× 930 × 2760 mm

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm spindle taper: MT:5 table surface area:750 x 1380 mm surface area:1450 x 920 mm total power requirement:5 kW weight of the machine ca.:3000 kg dimensions of the machine ca.:2060× 930 × 2760 mm

bore capacity in steel (diameter):50 mm total power requirement:7,8 kW weight of the machine ca.:1720 kg dimensions of the machine ca.:1200 x 770 x 2700 mm number of spindle speeds:45 - 1000 mm surface area:630 x 500 mm

bore capacity in steel (diameter):50 mm total power requirement:7,8 kW weight of the machine ca.:1720 kg dimensions of the machine ca.:1200 x 770 x 2700 mm number of spindle speeds:45 - 1000 mm surface area:630 x 500 mm

grinding length:600 mm grinding width:200 mm total power requirement:5 kW weight of the machine ca.:1,4 t dimensions of the machine ca.:3 x 3 m

Various milling heads for milling machines and gear cutting machines, hobbing machines

FZWD 160x1600/1 Sabo Basis 160 Facing & Centering Machine WMW HECKERT Workpiece dia 20-160 mm Length 130-1600 mm Max. Diameter of Milling Cutter 200 mm Facing Spindle's Speeds 112-280 rpm Spindle's Speeds 560-1400 rpm Adjustable feed rate range 15 – 800 mm / min. Spindle ISO 50 Rapid traverse 6000 mm Max. stroke 230 mm Max. Depth of 6 mm Tool holder 4 - 20 mm Max. Feed path 60 mm Total connected load 20 kW Weight 4.5 t

x-travel: 850 mm y-travel: 270 mm z-travel: 355 mm tool taper: ISO 50 speeds of spindle (left/right): 25-1400 total power requirement: 3,8 kW weight of the machine ca.: 2 t dimensions of the machine ca.: m - feeds all axis 10 - 630 mm/min / 250 mm/min The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 2...20 mm throat: 210 mm bore stroke: 100 mm total power requirement: 1,1 kW weight of the machine ca.: 0,165 t dimensions of the machine ca.: m - spindle taper: MK 2 - max. drilling capacity: 2 ... 20 mm - distance center drill spindle to column : 210 mm - distance from spindle to table : 400 mm - max. stroke of spindle: 100 mm - adjustment of spindle stock 250 mm - table size: 340 x 280 mm - 4 speeds of drilling spindle: 355 ...2800 per minute - rated power: 1,1 kW - weight: 165 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1190 mm y-travel: 530 mm z-travel: 540 mm table-size: 1600 x 400 mm spindle drive: 11 kW tool taper: ISO 50 turning speeds: 28-1400 U/min feeds: 16-800 mm/U total power requirement: 21 kW weight of the machine ca.: 4,8 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): / mm throat: / mm bore stroke: / mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Bohrleistung in Stahl (-Ø: 45 mm throat: 1250 mm workpiece height max.: 1100 mm swival range +/-: 360 ° height adjustment: 745 mm base plate surface area: 1450 x 920 mm Bohrspindel-Ø/ Aufnahme: 90 mm / MK 5 bore spindle stroke: 355 mm max. torque on the spindle: 250 Nm feed power: 14000 N turning speed range: 20 - 1200 U/min feed range: 0,063 - 0,63 mm/U drilling capacity steel/cast iron: mm power capacity: 3,7 kW weight of the machine ca.: 3,0 t dimensions of the machine ca.: 2,1 x 0,9 x 3,3 m • cube table 650 x 650 x 500 mm, • coolant device The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Universal milling head, milling holder, milling extension, angle milling head -Manufacturer: WMW HECKERT, milling head from milling machine FSS 315-V -Recording output: SK50 -Recording: Input gear -Milling head: fully pivotable -Stroke: 72 mm -Transport dimensions: 850/650/H520 mm -Weight: 277 kg

Universal milling head, milling adapter, milling extension, angle milling head -Spare part of a: WMW HECKERT milling machine -Number: 1 piece angle milling head -Recording output: SK50 -Recording: input gear -Milling head: completely swiveling -Rezes recording: mm -Pitch circle: mm -Transport dimensions: 750/600/H530 mm -Weight: 296 kg

Brush cylindrical grinder, external cylindrical grinder, internal cylindrical grinder, centering grinder, center grinding machine, hydraulic universal cylindrical grinder, polishing machine -Manufacturer: WMW Heckert, Hydraulic universal cylindrical grinding machine -Spindem lotor: VEB 0.8/1 kW / 1410/2840 rpm -Hydraulic drive: ADDA 0.75 kW -Centre height: 270 mm -Max. material diameter: Ø 320 mm when converted -Brush: max. Ø 250 mm -Center distance: 420 mm -Dimensions: see photos -Base cabinet: with extensive accessories incl. -Dimensions: 1720/920/H1230 mm -Weight: 790 kg

Bench drill, pillar drill, column drill, column drill -Manufacturer: WMW Heckert, bench drilling machine type BT 12/1 with base frame -Clamping table: 340 x 280 mm -Travel: 370 mm -Spindle holder: MK2 -Projection: 215 mm -Speeds: 224/450/900/1800 rpm -Column: diameter 92 mm -Spindle stroke: 100 mm / depth stop with fine adjustment -Motor: VEB 0.4/0.7 kW with brake -Voltage: 380 V -Dimensions: 620/480/H1710 mm -Total weight: approx. 182 kg

Bench drill, pillar drill, column drill, column drill -Manufacturer: WMW Heckert, bench drilling machine type BT 2 -Clamping table: 340 x 280 mm -Travel: 350 mm -Spindle holder: MK2 -Projection: 215 mm -Speeds: 355/710/1400/2800 rpm -Column: diameter 93 mm -Spindle stroke: 100 mm / depth stop with fine adjustment -Motor: VEM 0.8/1.0 kW with brake -Voltage: 380 V -Number: 2x drill available -Price: per piece -Dimensions: 550/480/H1270 mm -Weight:157 kg/piece

x-travel:500 mm y-travel:250 mm z-travel:325 mm table-size:400 x 200 mm T-slots:10/ 20 mm T-slots:4 St workpiece height max.:300 mm template table:380 x 380 mm speeds::2500 - 20000 U/min no. of turning speeds:3 total power requirement:0,25 kW weight of the machine ca.:430 kg dimensions of the machine ca.:1000 x 1200 x 1500 mm

saw blade diameter:400 mm cutting diameter:400 mm material:Vollmaterial 20 - 130 mm material:Walzprofile 40 - 120 mm material diameter from - to::Rohr u. Profilfrohr bis 100 x 14 mm sawblade width:4 mm total power requirement:5,1 kW weight of the machine ca.:1850 kg dimensions of the machine ca.:3300 x 1630 x 1960 mm Documents:vorhanden

New drive shafts for Vertical and Universal Fraeshead FU 400 - FW 400 HECKERT Germany Price 900,-- Euro per square plus VAT

Offer 24303 Specifications: - Table size approx. 630 x 340 mm - Working range of the axes - X (longitudinal) approx. 400 mm - Y ( transverse ) approx. 220 mm - Z (vertical) approx. 400 mm - Max. distance between milling spindle and table surface 400 mm - Tool holder SK 40 - Working spindle speeds adjustable in 16 steps 45 - 2240 rpm - Mot table feeders X ; Y ; Z 6.3 - 1250 mm/min - Drive 400 V / 8.5 kW - Space requirement approx. W 1450 x H 1900 x D 1450 mm - Weight approx. 1600 kg - with: - 3 axis digital display HEIDENHAIN - Vertical milling head can be swivelled - Horizontal spindle counter holder - Machine vise

Key data: 1120 mm, 345 mm, 550 mm

Table width 400 mm, table length 1600 mm Tool holder SK 50 Speed range 28-1400 rpm Feed range 16-800 mm/min Travel x 1120 mm ; y 345 mm; z 550 mm Connected load approx. 14.5 kW Accessories: 2 counter bearings Electric clamp horizontal and vertical spindle Vertical milling head SK50 with snap bearing

Inv. Num. : 8265 Type: FU 400/V/2 Producer: Heckert Generated: Parameters: Work table length: 1600 mm Work table width: 400 mm Maximum vertical spindle speed: 1400 1/min X-axis travel: 1150 mm Y-axis travel: 370 mm Z-axis travel: 430 mm Machine height: 1980 mm Machine length: 2490 mm Machine width: 2270 mm Machine weight: 3850 kg

Heckert ZFWVG 250 x 2000 Thread Milling and Spline Hobbing Machine. Max. workpiece diameter 250 mm Workpiece diameter over bed 500 mm Center height over bed 260 mm Threading/hobbing length 2000 mm Min/Max. module 2/18 Workpiece spindle bore 102 mm Bore of the collets 100 mm Tailstock quill stroke 100 mm Speed 45 – 560 rpm Lead of leadscrew 1,2 '' links / left mm Workpiece turning speeds 0,0032-2,65 U/min Rolling feed 0,027-5,66 mm/WU Longitudinal hob feeds 0,3-198 mm/min Main drive 4 kW Feed motor 25 NM Coolant pump 0,09 kW Lubrication pump 0,37 kW Total power requirement 9,5 kW Dimensions 3700x2400x1600 mm Total weight 5200 kg Accessories; -heavy duty head -standard head -steady rest -flange -change gears full set

HECKERT ZFWVG 250 x 1250 Thread Milling and Spline Hobbing Machine Max. workpiece diameter 250 mm Workpiece diameter over bed 500 mm Center height over bed 260 mm Threading/hobbing length 1250 mm Min/Max. module 2/18 Workpiece spindle bore 102 mm Bore of the collets 100 mm Tailstock quill stroke 100 mm Speed 45 – 560 rpm Lead of leadscrew 1,2 '' links / left mm Workpiece turning speeds 0,0032-2,65 U/min Rolling feed 0,027-5,66 mm/WU Longitudinal hob feeds 0,3-198 mm/min Main drive 4 kW Feed motor 25 NM Coolant pump 0,09 kW Lubrication pump 0,37 kW Total power requirement 9,5 kW Weight of the machine ca. 3,40 t Accessories; -heavy duty head -standard head -steady rest -change gears set -centers and arbors -spindle spare -counter weight Will be re-paint in original brown colour.

Crank press HECKERT PKZ 400.1 built in 1980. Technical data : - maximum pressing force: 400 t - working path - lower position of the slider to the maximum pressing force: 21 mm - maximum drawing depth: 125 mm - pressing force using the maximum drawing depth: 160 Mp - idle speed of the slider: 18 min-1 - maximum number of switchings: 9 min-1 - ram stroke (min-max): 315 mm - slider adjustment: 200 mm - holding force of the drawing device at air pressure: 63 Mp, 5 kp / cm2 - force of the drawing device ejector at air pressure: 10 MP, 7 kp / cm2 - total weight: 38.5 t

Ref. -No.: 10357 Manufacturer: STARRAG HECKERT Year of construction: 2007 Type of control: CNC Steuerung Control: Sinumerik 840D Country of origin: Schweiz X-Travel: 1200 mm Y-Travel: 950 mm Z-Travel: 1200 mm Work spindle drive power (25% ED): 67 kW Work spindle torque (25% ED): 1508 Nm Tool Taper: HSK-A100 Workpiece interference circle diameter: 1250 mm Tool Piece Magazine With: 80 Pcs./pcs. Tool changer: Werkzeugkettenmagazin Max. Workpiece height: 1200 mm Feed Speeds X/Y/Z Axis: 60000 mm / min Feed Capacities X/Y/Z: 22/18/22 N Speed range - main spindle: 20 - 6000 RPM Numbers Of Pallets: 2 Max pallet load: 1500 kg Size Of Pallet: 800 x 630 mm pallet change time: 14 s Pallet clamping area (lxw): 800 x 630 mm Weight Of The Machine Ca.: 25 t

Ref. -No.: 10342 Manufacturer: STARRAG HECKERT Year of construction: 2015 Type of control: CNC Control: Fanuc Series 16i Storage location: Halberstadt Country of origin: Schweiz Serial no.: 12217 X-Travel: 1000 mm Y-Travel: 910 mm Z-Travel: 835 mm Distance spindle center - table: 100 mm Table Dimensions (Lengthxwidth): 630 x 800 mm Table Load: 1250 kg Max. Tool Length: 600 mm Max. Tool Diameter: 500 mm Tool Taper: HSK-A 100 Numbers Of Tools In Magazin: 240 Spindle Speed: 20 - 6000 RPM Feed Capacities X/Y/Z: 20.000 N Rapid Traverse: 40 m / min Internal cooling: 30/40/50 bar External cooling: 2 bar

Ref. -No.: 10286 Manufacturer: STARRAG HECKERT Year of construction: 2007 Type of control: CNC Control: Siemens Sinumerik 840 D Storage location: Halberstadt Country of origin: Schweiz Machine-No.: 24139 X-Travel: 2800 mm Y-Travel: 2100 mm Z-Travel: 1900 mm Table Dimensions (Lengthxwidth): 2 x 1.250 x 1.600 mm Max. Tool Weight: 35 kg Workpiece Diameter At Full Load: 110 mm Tool Piece Magazine With: 60 Pcs./pcs. Tool dimensions (with occupied adjacent spaces): 125 mm Numbers Of Pallets: 2 Operating hours: 26180 H spindle running time: 26180h 43m 46s h/m/s automatic mode: 28559 H on time: 120 H pallet change time: 60 s Further information: internal coolant supply

Total length with gutter for cooling liquid mm 15000 Overall width mm 11380 Overall height mm 5780 Grinding width mm 2500 Clamping surface of the table mm 4500х2240 Distance between columns mm 2680 Maximum length of grinding mm 4000 Grinding length at table speed 1-40 m/min Grinding height mm 1250 Number of T-shaped slots pcs. 9 Distance between T-shaped slots mm 36 H 12 T-slot width mm 8x250 Workpiece weight kg 40 000 Machine weight kg 125 000

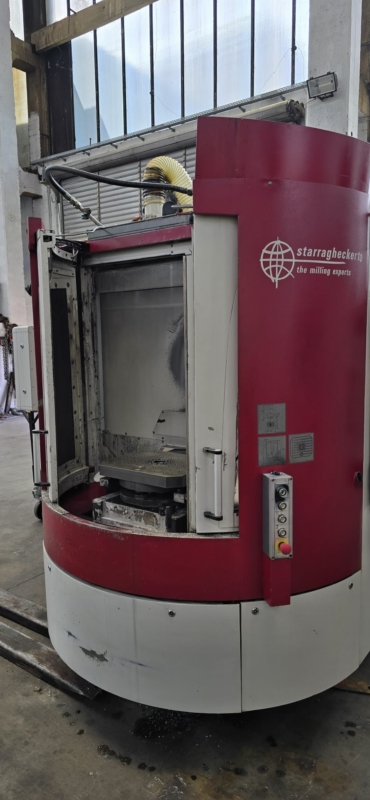

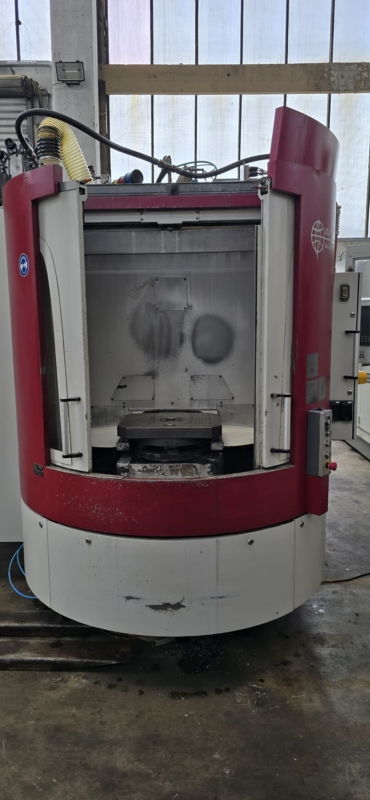

This 4-axis Starrag Heckert HEC 400 D was manufactured in 2012. It features a maximum spindle speed of 12,000 rpm and a tool magazine capacity of 80 tools, allowing for efficient machining operations. The machine includes two workpiece pallets with a size of 400 × 500 mm. If you are looking to get high-quality machining capabilities, consider the Starrag Heckert HEC 400 D horizontal machining centre we have for sale. Contact us for further details.

x-travel: 1250 mm y-travel: 910 mm z-travel: 875 mm Control: Siemens type: 840 D size of pallet: 800x800 mm numbers of pallets: 2 turning speeds: 20-6000 U/min transmission ratio: 2 Feed: 1-32000 mm/min : 360x1 ° turning speeds: 16,5 U/min Table load: 1150 kg spindle taper ISO: 50 Tool changer: 165 Pos. total power requirement: kW weight of the machine ca.: 18,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel:1120 mm y-travel:370 mm z-travel:410 mm total power requirement:14,5 kW weight of the machine ca.:3850 kg dimensions of the machine ca.:3,5 x 3,5 x 2,2 m Table dimensions:400 x 1600 mm spindle taper ISO:50

x-travel:1120 mm y-travel:345 mm z-travel:400 mm total power requirement:14,5 kW weight of the machine ca.:3,85 t dimensions of the machine ca.:3.500 x 2.920 x 2.710 mm table-size:1600 x 400 mm spindle taper:SK 50

Max.turning length: 600 mm Max swing diameter over bed: 250 mm Quick Change Toolposts:1 Coolant tank:50l Made in Germany Control: manual

x-travel: 750 mm y-travel: 750 mm z-travel: 725 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC control Sinumerik 840D NC-rotary table B-axis automatic tool changer for 320 tools pallet changing device, 2 pallets 500 mm x 500mm coolant through spindle device IKZ (80 bar) chip conveyor coolant device Technische Daten / technical details: X-Weg längs / X-travel longitudinal 750 mm Y-Weg senkrecht / Y-travel vertical 750 mm Z-Weg quer / Z-travel cross 725 mm B-Achse / B-axis 360 ° Spindelaufnahme / spindle taper HSK 63A Drehzahlbereich Spindel / spindle speed 50-10000 Upm /rpm Werkzeugplätze / tool places in changer 320 Vorschub / infeed 60000 mm/min Eilgang / rapid feed 60 m/min Antriebsleistung Spindel 40/100% ED / drive capacity spindle 40/100%ED 37/24 kW Gewicht der Maschine ca. / weight ca. 15000 kg Technische ...

x-travel: 650 mm y-travel: 650 mm z-travel: 680 mm dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Length of the grinding (mm) 6000 Width of the grinding (mm) 2000 Height of the grinding (mm) 1250 Weight: 60T Overall dimensions Width 2940 mm Height 5120 mm Length 16640 mm

Key data: 750 mm, 750 mm, 725 mm

GENERAL Project No.: 905674 Quantity: 1 pcs. Manufacturer: HECKERT (STARRAG) Type: HEC 500 D Control: Siemens 840 D solutionline Year of Make: 2011 Condition: Used machine Layers approx.: 2-3 layers DESCRIPTION MILL Travel in X 750 mm Travel in Y 750 mm Travel in Z 725 mm Max. rapid traverse speed in X/Y/Z 100/100/100 m/min Max. acceleration in X/Y/Z 11/14/11 m/s2 Tool holder HSK 63 Max. speed milling spindle 15000 1/min Max. power at ED 10-40/100% 31/– kW Max. torque at ED 10-40/100% 200/– Nm Spindle diameter in the front bearing 75 mm 1 pc. horizontally arranged milling spindle/s Torque support for multi-spindle drill heads Tool magazine 60 stations Max. tool diameter 160 mm Max. tool length 400 mm Max. tool weight 10 kg Chip to chip time 2.7 s Rotary pallet changer 2-fold Pallet size 500×630 mm Max. workpiece weight per pallet 600 kg Rotary  ...

Inv. Num. : 7814 Type: CWK 800 Producer: Starrag Heckert Created: 2004 Parameters: Control system: Siemens Sinumeric Switch-on hours: 60035 h Hours: 31689 h Work table length: 800 mm Work table width: 800 mm Maximum workpiece weight: 1500 kg Spindle power: 28 kW Machine length: 6330 mm Machine width: 5760 mm Machine weight: 18100 kg In 2021 repairs: Replacement of linear guides and ball screws on the X, Y and Z axes Spindle replacement and ATC cabling Machine geometry ATC Function Test

Inv. Num. : 7815 Type: HEC 800 Producer: Starrag Heckert Created: 2008 Parameters: Switch-on hours: 46529 h Hours: 19542 h Work table length: 800 mm Work table width: 800 mm Maximum workpiece weight: 2000 kg Spindle drive power: 28 kW X-axis travel: 1450 mm Y-axis travel: 1100 mm Travel distances Z-axis: 1300 mm Cone: SK 50 Machine length: 8300 mm Machine width: 5500 mm Machine weight: 27000 kg

max. workpiece diameter: 500 mm threading length: 1250 mm max. module: 10 min. module: 1 workpiece dia. over saddle: 250 mm spindle bore of workspindle: 102 mm quill stroke: 100 mm workpiece turning speeds: 0,0032 - 2,6 U/min feeds - rolls: 0,027 - 5,66 mm/WU feeds - longitudinal: 0,3 - 198 mm/min main drive: 4 kW swivel angle for work spindle: 90/120 ° diameter of hob: 150 mm milling width: 100 mm hob turning speeds: 45 - 560/900 U/min total power requirement: 9,5 kW weight of the machine ca.: 4,2 t Machine equiped with: - Heavy Duty Hob Head ApFw - change gears - Milling Head ApFF - Single Indexing Device ETE - Bush Rest - Coolant Tank The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 4000 mm grinding width: 1450 mm workpiece height: 1250 mm column daylight: 1500 mm Passage height: 1420 mm table surface area: 4240x1250 mm T-slot - distance: 160 mm T-slot - width: 28H12 mm T-slots: 10 workpiece weight: 20.000 kg table speed -stepless-: 1-50 m/min grinding motor: 22 kW turning speeds: 960 U/min total power requirement: 125 kW weight of the machine ca.: 67 t dimensions of the machine ca.: 13,2x7,8x5,1 m Peripheral grinding support: 960 rpm, 22 kW Universal grinding support: 7 kW, 500-2900 rpm Dressing device The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are inter ...

floor-plate length: 1800 mm floor-plate width: 1600 mm floor-plate height: 160 mm width of T-slots: 28/48 mm T - slots distance: 200 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

BAZ Heckert H55 (4 axle) BJ 2019

Inv. Num. : 8589 Type: CWK 400D Dynamic Producer: Heckert Created: 2002 Parameters: Control system: Siemens Sinumerik 840D Work table length: 400 mm Work table width: 400 mm Maximum table load (uniform): 400 kg Spindle drive power: 19 kW Number of axes: 4 pieces Tool magazine: 120 pieces Minimum spindle speed: 50 1/min Maximum spindle speed: 15000 1/min X-axis travel: 650 mm Y-axis travel: 650 mm Travel travel Z-axis: 650 mm Cone: HSK A63 Max. tool length: 350 mm Max. tool weight: 10 kg Machine height: 2600 mm Machine length: 8500 mm Machine width: 4500 mm Machine weight: 12000 kg Equipment: 2 pallets 4th axis – rotary table Chip conveyor KNOLL 450 K – 1/250 Emulsion Filtration KNOLL 210/1350 Oil mist extraction

max. workpiece diameter: 500 mm threading length: 5000 mm max. module: 10 min. module: 2 workpiece dia. over saddle: 250 mm center height over bed: 260 mm workpiece dia. over bed: 500 mm workpiece spindle bore: 102 mm thread pitch: 1 - 800 mm speed of workpiece (milling): 0,0034 - 2,65 U/min feeds - longitudinal: 0,256 - 195 mm/min feeds - rolls: 0,0256 - 5,17 mm/WU hob turning speeds: 45 - 900 U/min electrics - voltage/frequency: 380 / 50 V/Hz total power requirement: 8,5 kW weight of the machine ca.: 6,6 t dimensions of the machine ca.: 7,0 x 1,7 x 1,6 m Thread-, Worm-,gear shafts- and Spline Milling Machine with : equipped with: - Thread Milling Head ApGs - Counter Stay - 1 Bush Rest - 2 Steadies - Cabinet with change Gears The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CONTROLS   conventional BASIC DESIGN   basic design: cross bed WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 3   X-axis travel: 1120 mm   Y-axis travel: 350 mm   Z-axis travel: 400 mm   distance spindle nose - table surface (max.): 420 mm TABLE   table surface (left-right): 1600 mm   table surface (front-back): 400 mm   workpiece load (max): 1500 kg SPINDLE / HEAD   spindle type: tilting head   - mode of operation: manual   - mode of operation: manual   spindle revolutions (max): 28 /min   number of gears: 1400   tool fixture: ISO SK 40 AXIS DRIVES   feed velocity (min): 16 mm/min   feed velocity (max): 800 mm/min ELECTRICAL SPECIFICATIONS   total power consumption: 14.5 ...

This 4-axis Starrag Heckert Dynamic CWK 400D was manufactured in 2005. It features a Siemens Sinumerik 840D control system, spindle speeds up to 10,000 rpm, and a dual pallet system with rapid 8-second pallet changes. The machine includes a tool magazine with 60 positions and a high-capacity coolant system. Ideal for complex machining tasks. Contact us for more information about this machine.

Horizontal milling center Type: HFZ 2000x1800x6000/444 Manufacturer: Heckert Year: 1983 Table: 1800 x 2000 mm Working length: 6000 mm Machine fully functional Find more here - / Contact us at -

This 4-axis Starrag Heckert CWK500D was manufactured in 2002. It features an impressive X-axis travel of 750 mm, Y-axis travel of 750 mm, and Z-axis travel of 700 mm. The machine includes a robust pallet size of 500 × 500 mm and a maximum pallet load of 500 kg. If you are looking to get high-quality machining capabilities, consider the Starrag Heckert CWK500D horizontal machining centre we have for sale. Contact us for further details.

BAZ Heckert CWK 800 BJ 1999

Various CNC and conventionally controlled milling machines, make Fritz Heckert, are available. 1) Fritz Heckert FU 315/E, weight: approx. 4000kg. 2) Fritz Heckert FU 315 2/PS, weight: approx. 3900kg. 3) Fritz Heckert FU 315 2/PS, weight: approx. 3900kg. 4) Fritz Heckert FU 315 2/PS, weight: approx. 3900kg. 5) Fritz Heckert FU 315/E, weight: approx. 3200kg. 6) Fritz Heckert FW 400/E, weight: approx. 3700kg. 7) Fritz Heckert FU 315 x 12. 8) Fritz Heckert FU 315, weight: approx. 3100kg. An on-site inspection is possible.

CONTROLS   CNC controls SIEMENS 840 D WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 4   .. among of them simultaneous CNC axes: 3   X-axis travel: 2200 mm   Y-axis travel: 1600 mm   Z-axis travel: 1850 mm   rotating range B-axis from: 0 °   rotating range B-axis up to: 360 ° TABLE   table surface (left-right): 1000 mm   table surface (front-back): 1250 mm   workpiece load (max): 5000 kg SPINDLE / HEAD   spindle revolutions (min): 20 /min   spindle revolutions (max): 10000 /min AXIS DRIVES   rapid traverse: 40000 mm/min TOOL MAGAZINE   number of positions: 60   tool diameter max.: 110 mm   - with free neighbour positions: 250 mm   tool length max.: 450 mm   tool  ...

Speed: 355-1800/min, nominal voltage: 380V, 50Hz, 3 AC, control voltage: 220/24V, protection class: IP54, nominal current: 100A, control: Heidenhain TNC 355, weight: 2.95t, with handwheel, coolant system, hose nozzle, hydraulic/lubrication unit, pressure accumulator/ hydraulic accumulator, solenoid valves, Bosch components and ORSTA directional control valve. An on-site inspection is possible.

x-travel: 1450 mm y-travel: 1100 mm z-travel: 1300 mm control: Siemens 840D PL Main spindle:: power capacity - main spindel: 50 kW max. Torque: 1.500 Nm turning speed range - main spindle: 20 - 6.000 min/-1 spindle diameter: 110 mm tool taper: HSK A 100 Tool-Presetter:: Turmmagazin / Tool Tower : 180 pos. change-time chip to chip: 5,5 sec feed range: 1 - 65000 mm/min rapid traverse ( X / Y / Z ): 65 m/min pallet changer:: size of pallet: 1.000 x 800 mm max. palett load: 2000 kg max. workpiece height: 1.700 mm Number of pallettes: 2 pos. dimension of workpiece: 1400 x 1400 mm total power requirement: - kW weight of the machine ca.: 25 t dimensions of the machine ca.: 8100 x 5350 x 4150 m - Siemens 840D Powerline CNC control - 2-position pallet changer - 180-position tool changer (HSK A 100) - Milling head with 180° B-axis (0.001°) - C-axis table (0.001°) - 80 bar coolant system with  ...

x-travel:1190 mm total power requirement:25 kW feeds::3 - 2000 mm/min weight of the machine ca.:4,3 t table-size:1600 x 400, 5 Spannbacken mm dimensions of the machine ca.:4000 x 3600 x 2200 mm speeds:45 - 1800 U/min y-travel:530 mm z-travel:540 mm tool taper:ISO 50 control cabinet:940 kg

Universal tool-feeding machine, used universal milling machine, used Type FU 250 x 1000/2 Fabr. WMW Auerbach Built: 1988 Table size/ table: 1130 x 255 mm Laengsmotion/ longit. move: X 690 mm Horizontal movement/ horiz. Move: Y 190 mm Vertical movement/ Vert. move : Z 360 mm Tool holder/taper: ISO 40 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 56 - 2800 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t Specification: Vertical head,shock head

Universal tool milling machine, used universal milling machine, used Type FU 315 - V/2 Fabr. WMW Heckert Built: 1979 Table size/ table: 1250 x 315 mm Laengsmotion/ longit. move: X: 850 mm Horizontal movement/ horiz. Move: Y: 270 mm Vertical movement/ Vert. move : Z 355 mm Tool holder/taper: ISO 50 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 28 - 1400 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t

Max diam 250 , max lenght 2000, 3 x heads , change gears

Fully functional and still energized. Can be seduced by the owner with pleasure . Tons of accessories included.

Key data: 690 mm, 400 mm, 500 mm

Universal milling machine from WMW, type FW Good general condition Mechanically flawless function Milling Machine - Horizontal Make:WMW Fritz Heckert Type: FW 250x1000/2 Year of construction: approx. 1980 Control Type: Conventional Freight base: ex-site, freely loaded Location: 17034 Neubrandenburg Shipping time: immediately Price: 2,800 net free loading Technical details: x-travel: 690 mm Y-travel: 400 mm z-travel: 500 mm Table Mounting Surface:: 1250x250 max. table load: 1500 kg Spindle speeds:: 18 steps/step 55-2800 rpm Height above floor: 1350 mm Feed rate: 10-630 infinitely variable m/min Tool holder: SK40 Total power requirement: 6.3 kW Machine weight approx.: 2.0 t Machine dimensions LxWxH: L:1.8xW:1.7xH:2.0 m The work table can also be adjusted manually. The projection of the counter-holder boom = 500mm, the total length = 1050mm. with end pos ...

Horizontal Bracket Milling Machine Universal milling machine WMW Heckert FU 250 x 1000 • Table LxW: 1,250 x 335 mm • Spindle: 28 – 2800 rpm • Tool holder: SK 40 • Rapid traverse in: X-Y-Z • 3-axis digital display • Coolant device • Task lighting • Connected load 6 kW • Accessories: according to picture • Dimensions: L x W x H.: 1800 x 1600 x 1900 mm • Weight: 1,700 kg Good condition flawless operation Currently still with 400V collar plug -> will be converted to CEE plug on request Includes a wide range of accessories A function video can be sent via WhatsApp. The machine can be viewed in our showrooms at any time. You are very welcome - metalworking machines and accessories on more than 1000 square meters On-site loading with forklift no problem

MAX DIAM 250 MAX LENGHT 800

MAX DIAM 250 X 2000

Wood router, adjustable WMW VWF 35 - 01 ( 35-01 ) n 6000 rpm 220 x 50 x 35 left New ! Dimensions: 250 x 250 x 150 mm

Wood router WMW VWF 35 - 01 ( 35-01 ) n 6000 rpm 220 x 50 x 35 right New ! Dimensions: 250 x 250 x 150 mm

Milling cutter mandrel , tool holder, with tightening thread WMW 4 x 25 x 160 ( 4x25x160 ) TGL 30-4113 MK4 shaft diameter: Ø 20 mm Tool holder: Ø 25 mm New ! Dimensions: 490 x 45 x 45 mm

Cutter mandrel , tool holder, with tightening thread WMW 4 x 25 x 80 ( 4x25x80 ) TGL 30-4113 MK4 shaft diameter: Ø 16 mm Tool holder: Ø 25 mm New ! Dimensions: 300 x 45 x 45 mm

Milling cutter mandrel, tool holder, with tightening thread WMW 3 x 25 x 160 ( 3x25x160 ) TGL 30-4113 MK3 shaft diameter: Ø 20 mm Tool holder: Ø 25 mm New ! Dimensions: 425 x 45 x 45 mm

Travel X/Y/Z: 850mm/280mm/355mm, table dimensions X/Y: 1250mm/315mm, feed X/Y: 800mm/min, feed Z: 250mm/min, spindle mount: ISO 50, spindle speed: 1400rpm. Machine dimensions X/Y/Z: approx. 2000mm/2000mm/2400mm, weight: approx. 3300kg. On-site inspection is possible.

Travel X/Y/Z: 820mm/300mm/485mm, table dimensions X/Y: 250mm/1000mm, spindle mount: SK40, speed: 2800rpm, spindle head swivel: +/-45°, quill stroke: 100mm, feed: 630mm/min, connected load: 9.5kW, machine weight: approx. 1600kg. Documentation available. On-site inspection is possible.

Feed rate: 250mm/min, speed: 2800rpm, tool diameter: 200mm, weight: approx. 850kg. An on-site inspection is possible.

CNC vertical jig boring machine WMW MIKROMAT Type BKoZ 900x1400/5NC Travel X 1120 mm Travel Y 710 mm Spindle travel Z 315 mm Travel W 630 mm Numerical Command CNC NUM 1060 Spindle Ø 125 mm Cone SA40 Rotation from 36 to 2240 RPM Table size 1400 x 900 mm Distance between colums 1080 mm Maxi distance spindle nose/table from 0 to 900 mm max Maxi eligible load on table 1000 kg max Separate electrical panel Machine renewed in 2000 with CN NUM1060 Voltage 380 V Dimensions (L x W x H) 4000 x 2460 x 3030 mm Weight approx. 9 T MACHINE IN OUR STOCK IN FRANCE.
