haco sac levha çalışması kullanılmış satılık

Hydraulic Shear HACO HS 3010 Capacity: 3000 x 10 mm Back gear gauge travel: 1000 mm Year of construction: 1983 Manual adjustment of the clearance between blades Cutting angle: 1° to 3° Voltage: 380 V Dimensions (L x W x H): 4000 x 2100 x 2200 mm Weight: approx 8 T

Inv. Num. : 8739 Type: TS 3006 Producer: HACO Created: 2004 Parameters: Maximum cutting length: 3000 mm Maximum cutting thickness: 6 mm

A Haco hydraulic shear is available. Working width: 4000mm, max. sheet thickness: 8mm, cutting angle range: 0.5°-3°, stroke rate: 11 strokes/min, backgauge: 1000mm, machine dimensions X/Y/Z: approx. 5000mm/2000mm/1800mm. On-site inspection is possible.

HACO OMATIC 130 DTRH punching machine was built in 2014 in Belgium. The machine is used to punch various size shapes and holes in workpieces weighing up to 150 kg and having a maximum thickness of 6.5, a width of 1500 mm and a length of 4000 mm. The machine operator manually operates the punching machine by loading the workpiece on the working table and changing the punching tools using a special device offered in the price of the machine. The punching process takes place on the brush table of the punching machine, which significantly reduces noise levels and adequately protects the sheet metal surfaces against various types of scratches and nicks. Depending on the choiceed mode, the machine performs between 1,000 and 1,500 punches per minute with a press force of 30 tonnes. The equipment includes amongst others a TPC 69C Graphics CNC controller for graphical programming of the desire ...

HACO ERM 30175 CNC press brake built in Belgium in 1999, performs precise bending of workpieces with a maximum length of 3100 mm. The robust, stable construction of the machine, together with a high press force of up to 175 tonnes, guarantee excellent machining results. The press is equipped with operator conveniences such as a pedal for foot control and a HACO bc40 GRAPHIC CNC control located on the arm. The total weight of the machine is 10 tonnes. Technical data of the HACO ERM 30175 press - CNC controller: HACO bc40 GRAPHIC - maximum press force: 175 t - maximum workpiece length: 3100 mm - bending speed: 8 mm/s - approach speed: 100 mm/s - return speed: 80 mm/s - distance between carcase walls: 2600 mm - reach: 300 mm - working stroke: 200 mm - safety distance: 300 mm - pedal for foot control - main motor power: 15 kW - waiting time: 75 ms - maximum pressure: 255 bar ...

Haco BC 59 T Graphics

: 150 t : 3100 mm : 2600 mm : 400 mm : 200 mm : 600 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 150 t : 3100 mm : 2600 mm : 400 mm : 270 mm : 800 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Haco Rack BC 40

Haco BC59T graphics

Control unit, control panel, control panel, control unit, keyboard, screen, control -Manufacturer: HACO, control panel with foot switch from press brake type PPES 30135 -Footswitch: Amber, with 2 pedals -Connections: see photos -Dimensions: 800/740/H1095 mm -Weight: 25 kg

Crowning for press brake, bending bench, die holder with displacement device -Manufacturer: HACO, die holder with crowning for press brake type PPES 30135 -Matrix length total: 3050 mm -Individual components: see photos -Transport dimensions: 3570/260/H405 mm -Weight 374 kg

Haco PC15

Offer 22564 Specifications: - Printing capacity 150 t - Working width 2600 mm - Passage between uprights 2100 mm - Table width 180 mm - Projection 250 mm - Installation height 325 mm - Drive 400 V / 7.5 kW - Space requirement approx. W 3000 x H 2400 x D 1600 mm - Weight approx. 7000 kg - With: - Two-hand control panel with foot switch

Key data: 4050 mm, 10 mm, 1000 mm

brand new, with control SC100T Specifications: max. cutting length 4050 mm max. sheet thickness for ST 45 10 mm Cutting angle 0.5 - 3° degrees Cutting gap adjustment 0.05 - 1 mm Hold-down 23 Back gauge area 1000 mm Stroke rate 7 - 11 strokes Length of the angle stop 1000 mm Weight approx. 13,000 kg Standard equipment: - SC 100T control - Cutting length limitation - Motorized back gauge 1,000 mm - Electronic cutting gap adjustment - Cutting line lighting with wire - Electro-hydraulic cutting angle adjustment via 2 push buttons or CNC - Angle stop 1,000 mm with scale, T-slot and fold-down cam - Scissor table with square supports and roller support - Mobile foot pedal for easy and safe handling - Hydraulic and mechanical overload protection - Finger guard made of round steels with recessed grip - Light barriers and protective fences - Machine according to CE  ...

pressure: 400 t chamfer lenght: 4000 mm distance between columns: 3500 mm Control: CNC type: BC 25 Graphic throat: 400 mm total power requirement: kW weight of the machine ca.: 25 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

1989 Haco SL 3016 Shear Spanning 380 16mmX3050 Find more here - / Contact us at -

2011 HACO HSLX 6008 Hydraulic Shearing Machine Technical Condition: operational Manual: Attached Specifications: Mild steel capacity: 8 mm Cutting length: 6020 mm Cutting angle adjustment: 105°-3° Number of plate holders: 33 Number of strokes max. min. angle 4-8 Stroke backgauge: MOT(1) version: 1000 mm SAB(2) version: 1000 mm/s Working height 1130 mm Motor power: 15 kW Weight approx.: 26 tonnes Voltage: 3x400V Year of construction: 2011 Find more here - / Contact us at -

Specifications: Maximum cutting width: 2550 mm Maximum cutting capacity steel 400 N/mm2: 13.0 mm Adjustable rip fence: 1000 mm Adjustable cutting gap adjustment Adjustable cutting angle adjustment Working height: 940 mm Dimensions (length x width x height): approx. 3700 x 2800 x 1950 mm Weight: approx. 9,6 tons

Specifications: Retrofit in 2024 by HACO Maximum cutting width: 3100 mm Maximum cutting capacity steel: 16.0 mm Maximum cutting capacity stainless steel: 12.0 mm CNC control: SP 9 (new) Mot. Adjustable rip fence: 1000 mm Cutting gap adjustment Working height: 1050 mm new knives CE mark Motor power: 30 kW Dimensions (length x width x height): approx. 4800 x 2300 x 2350 mm Weight: approx. 15,5 tons

Specifications: Retrofit in 2024 by HACO Maximum cutting width: 3200 mm Maximum cutting capacity steel St40: 6.0 mm Maximum cutting capacity stainless steel: 3.0 mm Mot. Adjustable rip fence: 650 mm Working height: 800 mm Dimensions (length x width x height): approx. 3850 x 1650 x 1750 mm Weight: approx. 6,3 tons

: 3050 mm : 06,5 mm : - : 0,5-2,5 ° : 1000 mm work height max.: 900 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 3050 mm : 06,5 mm : - : 0,5-2,5 ° : 1000 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 180 t chamfer lenght: 3050 mm distance between columns: 2550 mm throat: 250 mm stroke: 150 mm return speed: 65 mm/sec ajustment speed: 50 mm/sec work height max.: 1010 mm oil volume: 150 l total power requirement: 11 kW weight of the machine ca.: 9500 kg dimensions: 3100 x 1750 x 2850 mm Furnishing: - DELEM CNC control DA65 - controlled axes: Y1 + Y2 + X + R - Electric crowning device WILA, controlled via CNC - Electric back stop, travel range 600 mm - hydr. Upper tool holder WILA - hydr. WILA lower tool holder - front laser protection device FIESSLER - 5x manually adjustable stop fingers, foldable - 2x front support arms sliding system” - side + back protection device - Hand and foot controls - Operation manual ? The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Haco HSL 4100 x 12 mm Cutting length: 4100 mm Max sheet thickness st 45: 12 mm Strokes/min: 7 > 11 str/min Adjustable cuttingedge: 0,5 > 3° Length: 4900 mm Depth: 2180 mm Height: 2250 mm Weight: 11 ton Number of sheet holders: 23x

SC7 CNC-besturing: - automatische snijhoek - mes spel automatisch - automatische achteraanslag Cutting length: 3100 mm Max sheet thickness st 45: 16 mm Strokes/min: 5 > 10 str/min Backgauge: CNC - 1000 mm Adjustable cuttingedge: 0,5 - 4°30´ Electric motor (power): 37,5 kW Length: 4160 mm Depth: 2220 mm Height: 2450 mm Weight: 12 ton

Haco PPM 135 ton x 3100 mm Capacity: 135 ton x 3100 mm Backgauge: electric Passage between uprights: 2600 mm Max stroke: 120 mm Max distance between table -- ram: 325 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 70 mm/sec Working speed: 7 mm/sec Returning speed: 60 mm/sec Electric motor (power): 10 HP Length: 3270 mm Depth: 1550 mm Height: 2240 mm Weight: 7,5 ton

Key data: 400 t, 30000 mm

The machine is in good technical condition, inspection and test drive is possible by prior arrangement.

Key data: 40 t, 2000 mm

Inv. Num. : 8524 Type: PPM 20040 Producer: HACO Created: 2015 Parameters: Compressive force: 40 t Maximum bending length: 2000 mm

Haco PPM 100 ton x 3100 mm CNC Capacity: 100 ton x 3100 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 2600 mm Max stroke: 120 mm Max distance between table -- ram: 325 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 70 mm/sec Working speed: 7,2 mm/sec Returning speed: 60 mm/sec Electric motor (power): 6 kW Length: 3270 mm Depth: 1550 mm Height: 2240 mm Weight: 7 ton

Haco PPH 135 ton x 4100 mm CNC Capacity: 135 ton x 4100 mm Backgauge: CNC Control: Delem DA-41T Passage between uprights: 3600 mm Max stroke: 120 mm Max distance between table -- ram: 325 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 70 mm/sec Working speed: 7,2 mm/sec Returning speed: 62 mm/sec Electric motor (power): 11 kW Length: 4270 mm Depth: 1500 mm Height: 2470 mm Weight: 9,1 ton

sheet width: 6020 mm plate thickness: 6.0 mm thickness at Niro-steel: 4.0 mm back stop - adjustable: max. 1000 mm work height max.: 1030 mm no. of strokes: 5 - 10 Hub/min cutting angle: 0.5 - 3.0 ° down holder: 33 Stück Control: SC 100 T engine output: 11.0 kW weight of the machine ca.: ca. 27000 kg range L-W-H: 7650 x 2400 x 2885 mm New price in 2021 ~ 160.000 Euro Special price upon request Equipment: - Robust electro-hydraulic guillotine shear Design: Guide rail - HACO CNC control model SC 100 T, pivoting at the front left Control unit with LCD display Pre-selected positioning of the backgauge Digital display of actual position Electro-hydraulic cutting angle adjustment Electro-hydraulic cutting gap adjustment Programmable retraction from the backgauge Programmable cutting length limitation Automatic + manual programming mode Emergency stop switch - CNC electro-motor-dri ...

3 assen: Y1 / Y2 / X Capacity: 220 ton x 3100 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 2600 mm Max stroke: 200 mm Max distance between table -- ram: 450 mm Depth of throat: 300 mm Locking speed: 100 mm/sec Working speed: 8 mm/sec Returning speed: 80 mm/sec Electric motor (power): 19 kW Length: 3500 mm Depth: 1900 mm Height: 2700 mm Weight: 10,5 ton

: 3050 mm : 12,0 mm : - : 0,5-3,0 ° : 1000 mm table height: 930 mm work height max.: 930 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer: HACO Model: PPM 30150 Year of Manufacture: 2007 Voltage: 380V 50Hz Capacity : 3000 x 150T Find more here - / Contact us at -

sheet width: 3000 mm plate thickness: 6 mm distance between columns: 3200 mm speed: . m/min rear stop: 1000 mm total power requirement: 7,5 kW weight of the machine ca.: t dimensions of the machine ca.: m The backgauge is electric. The technical data is provided by the manufacturer or operator and is therefore non-binding. We reserve the right to sell the machine prior to sale, our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution ...

Inv. Num. : 8497 Type: HSLX 3008 Producer: HACO Created: 2016 Parameters: Maximum cutting length: 3000 mm Maximum cutting thickness: 8 mm Back gauge: 1000 mm Equipment: Set of knives Truck with rear handling

Offer 25500 Specifications: - Cutting length 3050 mm - Cutting thickness at 400 N/mm², strength 13 mm - Cutting thickness at 400 N/mm², strength up to 1000 mm, length 15 mm - Cutting angle 0.5 - 3 ° - Number of sheet hold-downs 18 pcs - Stroke rate 10 - 23 min -Mot. Back gauge up to 1000 mm - Rear area protection with light barrier - Front angle stop 1000 mm - HSLX version: - CNC control HACO SC 5 controller when entering the sheet thickness in mm -Auto. Cutting angle adjustment according to sheet thickness - Cutting length limitation -Auto. Positioning of the backgauge (8 programs – 80 sets) with - Digital display and autom. Backgauge retraction - Possibility of mot. Adjustment of the backgauge by 2 push buttons - Drive 400 V / 22 kW - E - Footswitch - Space requirement without support arms approx. W 4200 x H 2250 x D 2200 mm - Weight ...

Haco TSX 3100 x 6 mm CNC Cutting length: 3100 mm Max sheet thickness st 45: 6 mm Strokes/min: 8 > 14 str/min Backgauge: 750 mm Adjustable cuttingedge: 0,5 > 3° Electric motor (power): 7,5 kW Length: 3880 mm Depth: 1650 mm Height: 1700 mm Weight: 4,5 ton Number of sheet holders: 18x

Haco PPM 175 ton x 3600 mm Capacity: 175 ton x 3600 mm Backgauge: electric Passage between uprights: 3150 mm Max stroke: 200 mm Max distance between table -- ram: 450 mm Depth of throat: 300 mm Locking speed: 80 mm/sec Working speed: 9 mm/sec Returning speed: 95 mm/sec Electric motor (power): 15 kW Length: 3880 mm Depth: 1750 mm Height: 2750 mm Weight: 13,4 ton

Offer 25493 Specifications: - Cutting length 3050 mm - Cutting thickness at 400 N/mm², strength 13 mm - Cutting thickness at 400 N/mm², strength up to 1000 mm, length 15 mm - Cutting angle 0.5 - 3 ° - Number of sheet hold-downs 18 pcs - Stroke rate 10 - 23 min -Mot. Back gauge up to 1000 mm - Rear area protection with light barrier - Front angle stop 1000 mm - HSLX version: - CNC control HACO SC 5 controller when entering the sheet thickness in mm -Auto. Cutting angle adjustment according to sheet thickness - Cutting length limitation -Auto. Positioning of the backgauge (8 programs – 80 sets) with - Digital display and autom. Backgauge retraction - Possibility of mot. Adjustment of the backgauge by 2 push buttons - Drive 400 V / 22 kW - E - Footswitch - Space requirement without support arms approx. W 4200 x H 2250 x D 2200 mm - Weight ...

The machine is in good technical condition, testing is possible by prior arrangement.

table length: 3048 mm table width: 1524 mm burner heads: 1 stroke: 270 mm speed: 100 m/min dimensions: 8900 x 2260 x 2220 mm weight of the machine ca.: 7.500 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 25496 Hydr.- Univ. - Two-station – sheet metal notching machine + hole punch Technical data: Station 1. Notching device - Cutting length up to 220 mm - Cutting thickness - steel with 400N/mm² strength 6 mm - Infinitely variable cutting angle adjustment by handwheel 30 - 140 ° - Pneumatic clamping - Locking stops left + right - Table support surface 1020 x 940 mm - With T-slots and depth stops - Table height approx. 920 mm Station 2. Kanteinrichtung oder Lochstanzeinrichtung - Max. pressure capacity 200 kN - Working speed 0 to 10 mm/sec - Bending device up to 800 mm - Hole punching up to 50 in 3 mm - Depth stops - Drive 400 V / 4 kW - E – Footswitch - Space requirement approx. W 1000 x H 1350 x D 1110 mm - Weight approx. 1100 kg

Haco ERM 320 ton x 6100 mm CNC Capacity: 320 ton x 6100 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 5050 mm Max stroke: 250 mm Max distance between table -- ram: 500 mm Depth of throat: 330 mm Locking speed: 80 mm/sec Working speed: 8 mm/sec Returning speed: 100 mm/sec Electric motor (power): 22,5 kW Length: 6500 mm Depth: 1980 mm Height: 3700 mm Weight: 33 ton

met handmatige kroon Capacity: 135 ton x 3100 mm Backgauge: electric Passage between uprights: 2600 mm Max stroke: 120 mm Max distance between table -- ram: 325 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 70 mm/sec Working speed: 7 mm/sec Returning speed: 60 mm/sec Electric motor (power): 10 hp Length: 3270 mm Depth: 1550 mm Height: 2240 mm Weight: 2,4 ton

CNC punching machine Type: OMATIC 130 DTRH Manufacturer: Haco Year: 2014 Control: TPC 69C Graphics Pressing force: 30 t Max. sheet size: 4000 × 1500 mm Max. sheet thickness: 6.5 mm (steel) Positioning accuracy: ±0.05 mm Features and equipment: CNC turret punch Brush work table - sheet metal surface protection Hydraulic clamps High punching speed, also suitable for nibbling Stable construction, reliable industrial operation The machine comes with an extensive set of die-cutting tools in excellent condition Tools intended for black sheet in thicknesses of approx. 0.8 – 3 mm Machine in good condition, under power Find more here - / Contact us at -

Haco PPES 110 ton x 4100 mm CNC Capacity: 110 ton x 4100 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 3600 mm Max stroke: 130 mm Max distance between table -- ram: 325 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 11 mm/sec Returning speed: 100 mm/sec Electric motor (power): 11,4 kW Length: 4210 mm Depth: 1500 mm Height: 2530 mm Weight: 11 ton

met plaatsteunsysteem Cutting length: 4100 mm Max sheet thickness st 45: 6 mm Strokes/min: 11 > 24 str/min Backgauge: electric - 1000 mm Adjustable cuttingedge: 0,5 > 2,5° Electric motor (power): 20 HP Length: 4500 mm Depth: 1942 mm Height: 2050 mm Weight: 8,3 ton Number of sheet holders: 23x

pressure: 200 t chamfer lenght: 3100 mm distance between columns: 2550 mm stroke of upper beam: 200 mm throat: 300 mm dayligth: 440 mm working feed: 9.0 mm/sec return speed: 80.0 mm/sec : 265 bar Control: konv. work height max.: 965 mm total power requirement: 15.0 kW weight: 10500 kg range L-W-H: 3360 x 1750 x 2800 mm Equipment: - simple / conventional electro-hydraulic press brake - pivoting operation, front left - electric, infinitely variable depth adjustment (Y1 Y2 axis) Torsion shaft for parallelism - Electro-motorized backgauge (X axis) with handwheel for fine adjustment on recirculating ball screws 2x manually adjustable stop fingers - manual (jog mode) and automatic cycle selector switch - manual table crowning - split set of roe foot upper tools ... H = 210 mm - 1x as good as new universal V-die block, reversible with anti-corrosion grease V openings in mm : 12/35/25 50 1 ...

3 assen: Y1 / Y2 / X Handmatige bombeertafel De achterkant van de machine is gesloten. Capacity: 175 ton x 3600 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 3150 mm Max stroke: 200 mm Max distance between table -- ram: 450 mm Depth of throat: 300 mm Locking speed: 80 mm/sec Working speed: 9 mm/sec Returning speed: 95 mm/sec Electric motor (power): 15 kW Length: 3880 mm Depth: 1750 mm Height: 2750 mm Weight: 13,4 ton

hydraulic shears Type: HSLX 4008 Manufacturer: Haco Year: 2019 max. cutting thickness: 8mm cutting length: 4050mm rear motorized automatic stop length 1000mm automatic rebound of the rear stop automatic hydraulic adjustment of the cutting gap and cutting angle according to the thickness of the material programmable cutting length hydraulically adjustable pressure of the holders electric motor 15 kw number of cuts 11/min total length 5200 mm machine width 3700 mm machine height 1880 mm total weight 10,000 kg table height 880 mm touch graphic screen 5.7" memory capacity of 500 programs CNC system SC100 Machine in good condition, under power Find more here - / Contact us at -

sheet width: 3050 mm plate thickness: 6,0 mm distance between columns: 3000 mm cutting angle: 0,5 - 3 ° no. of strokes: 9 / 14 Hub/min down holder: 18 total power requirement: 10 kW weight of the machine ca.: 4800 kg dimensions of the machine ca.: 3750 x 1600 x 1650 mm Features: - Hydraulic / slide-guided sheet metal guillotine shears - Electric backgauge 10-750 mm - Electric cutting angle adjustment - Manual cutting gap adjustment - 1x side stop - Front finger guard - Foot switch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

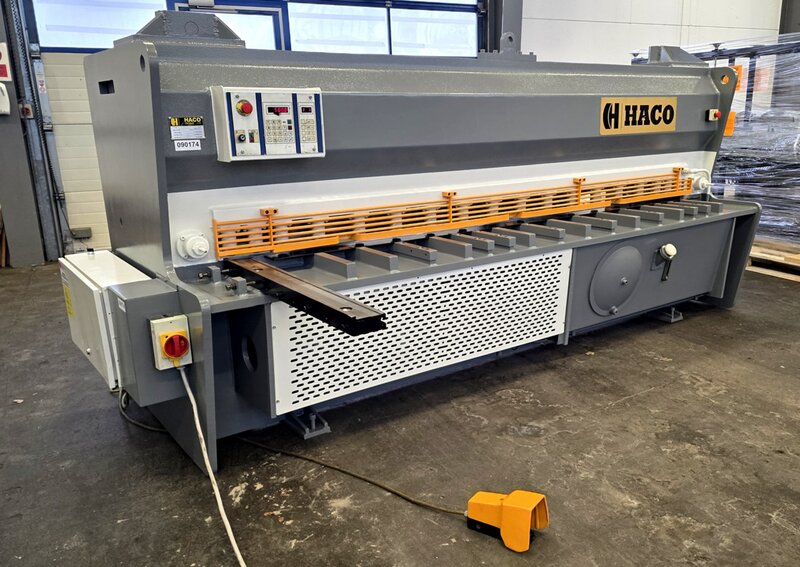

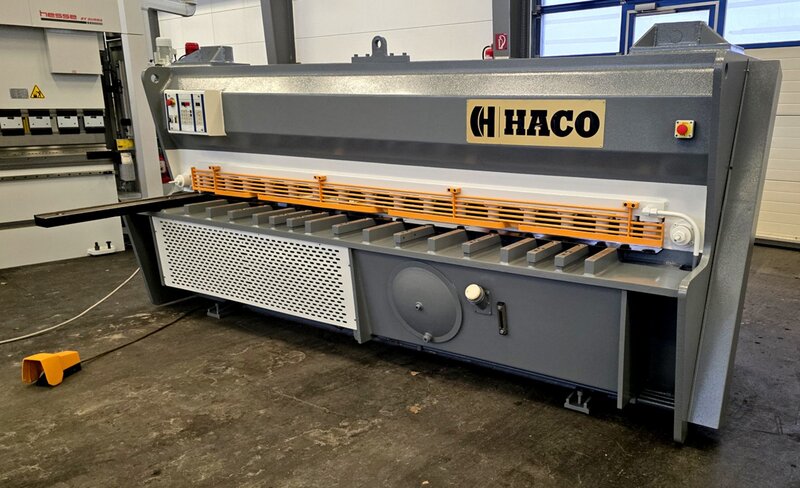

: gebraucht : 1992 : 090174 : März 2026, Zwischenverkau : Belgien : 17800 € : 1 : 3050 mm : 6 mm : 11 - 25 1/min : 0.5 - 3 ° : 18 : 750 mm : 11 kW : 3850 mm : 1750 mm : 1720 mm : 4600 kg : 770 mm SC 5 control for: - Sheet thickness input - Automatic cutting angle and gap adjustment - Cutting length limitation - Programmable backgauge length Motorized backgauge 750 mm Downholder protection guard Foot pedal Table supports with ball bearings 1 side fence 1000 mm Operating manual in German Machine does not comply with German accident prevention regulations (UVV) or Austrian AMVO NEW BLADES The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

guillotine shears AG TS 2 Working thickness 2mm Adjustable stop Hold Length 1.80 m Width 1 m Height 1.40 m Weight 300 kg

Line Salvagnini S4 P4 Year 2001/2003 S4 30 + P4 2220 + MD with unloading robot. Working line, regular assistance performed by the manufacturer

Mechanical Shear BOMBLED type 9G Capacity: 2500 mm x 4 mm Manual Back gear gauge travel: 500 mm Supplied with 2 front length stops Voltage: 380 V Dimensions (L x W x H): 4000 x 1500 x 1500 mm Weight: approx 4,5 T

Inv. Num. : 8740 Type: VR 13-31 Producer: EHT Generated: Parameters: Maximum cutting length: 3100 mm Maximum cutting thickness: 13 mm

older Gebr. Lever shears on base frame Technical data Knife length 500 mm Cutting range approx. 3-4 mm Dimensions 800 x 170 x 1300 mm dto. incl. base frame 1300 x 600 x 1780 mm Remarks / Accessories: Underframe, small damage to the knife Maschinenladen Oeben GmbH Krahnendonk 116 D-41066 Mönchengladbach Phone: + 49 2161 662701 maschinenladen.de InfoMachine Shop

Year 1996, CE norm, complete instructions, control Delem, machine in TOP condition with warranty, more details on request

Key data: 300 , 4

Bandwidth - up to 460 mm Band thickness - 0,5-4 mm Motor drive - 6 kW together with Reel 1.5 T - non-powered

lechrichter, used,       sheet leveller, used,   Type: UBR 10 x 2000 /1-16 Manufacturer / make: WMW Gotha max. sheet width: 2000 mm max. sheet thickness ( St 50): 10 mm    min. sheet thickness / min. sheethickness: 3 mm   Number of straightening rollers: 13 rollers / rollers Directionroller Diameter/diameter of     straihgtening rollers: 145 mm Directional speed / speed of straightening: 16 m / min Bale length / convexity length of rollers: 2330 mm Center distance of directional rollers/ distance b/n rollers centers: 150 mm Support roller diameter / diameter of bottom rollers: 290 mm Number of bottom rollers 21/24 Number of supports (top/bottom): 3 /3 Lifting speed of the traverse / speed   ...

specifications: Max sheet width 3,000 mm Max sheet thickness at max yield strength 240 N/mm2 when bending to max. sheet width 35 mm when rounding Bend length 2.2 x S Max passage between rollers 145 mm Roller diameter upper roller 552 mm Underroller 532.4 mm Side rollers 400 mm Number of rollers 4 Powered rollers 2 top and bottom roller Drive of the rollers hydraulically Arrangement of the rollers symmetrically Rotation speed of the rollers 2-4 m/min Adjustable rollers 3 Type of adjustment of the rollers hydraulically Adjustment speed lower roller 0-200 mm/min. Side rollers 0-700 mm/min. Brake of the rollers pneumatic Actuation of the folding bearing hydraulically Operating voltage 3 x 380 V / 50 Hz Display device of the roll positions 4 x optical/analog Weight of the machine approx. 42 to Area 2.71 x 6.4 m Height 3.12 m

Capacity , ton: 800 Stroke, mm: 320 Strokes/min: 20 Shut height, mm: 900 Bed to ram adjustment stroke, mm: 320 Bed dimensions, mm: 2500x1600 Main drive motor power, kW: 75 Overall dimensions, mm: 4220x3500x8356 Weight, ton: 96,6

NC - controlled mechanical sheet metal panel scissors in backdrop cutting design, maximum cutting length 1,050 mm, maximum cutting capacity 4 mm steel sheet/ST40, cutting angle 1.5°, NC - controlled rear stop with 1,000 mm travel range - automatic removal of the stop rail at sections lower than 1,000 mm - optionally available with a foldable sheet support at the rear stop or a conveyor belt with upliftrs, drive power 5 kW, weight approx. 2,500 kg

Qty. 1 Second-hand strip rolling mill Mfc.: United Engineering Type: 4-Hi Built: Strip Width: 393 mm (15.5”) Thickness Entry: 4 mm (0.16”) Exit: 1.2 mm (0.05”) Mill Speed: 405 m/min. (1330 Fpm) Strip Tension: 2670 kg (5875 Lbs) Coil ID 406 mm (16”) Coil OD 1448 mm (57”) Coil weight: 3180 kg (7000 lbs)

sheet width: 1050 mm plate thickness: 1 mm roll diameter: 56 mm dimensions of the machine ca.: 1600 x 700 x 1050 mm Domestic equipments: - Upper roller can be swung out manually The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

VERRINA CLR 216 X 4050 Sheet metal round bending machine Double roller with 4 rollers and double pressure Year of manufacture 1979 Capacity 4000 mm x 16 mm Roll length 4050 Roll diameter side rolls 370mm top & bottom roll 410mm Roll rise and fall 370mm Input 400/3/50 Hz 52 kW Rolling speed 2.9 / 3.9 / 6.8 meters per minute Control control panel Equipped with hydraulic drop, safety cable hoist Length 9000mm Width 2350 mm Height 2400 mm Net weight approx. approx. 29,500 kg

sheet width: 2100 mm plate thickness: 13 mm pre-bending: 10 mm upper roll diameter: 230 mm lower roll diameter: 210 mm side roll diameter: 190 mm total power requirement: 7,5 kW weight of the machine ca.: 4.620 kg dimensions of the machine ca.: 4150x1400x1300 mm Accessories / equipment: - Conical bending device - induction hardened rolls - digital display for side rollers - Machine made of steel construction - Separate control panel - two speeds - all rollers on ball bearings - Folding and support bearing from the top roller is actuated from the control panel. When the folding bearing is opened, the roller moves automatically upwards. - Conical adjustment of the rollers via control panel - Central rollers are via hydraulic motor and rotary reduction gear driven. (Top and bottom rollers) - Calibration The data for this ad was created with ModulMWS - the software solution of LogoTech oHG ...

sheet width: 1050 mm plate thickness: 3,3 mm pre-bending: 3,0 mm roll diameter: 90 mm min. dia.: 130 mm total power requirement: 1,1 kw weight of the machine ca.: 570 kg dimensions of the machine ca.: 2100 x 800 x 1130 mm Domestic equipments: - Asymmetrical 3-roll round bending machine with motor drive - Upper roller swung out - Conical bending device - Main engine with brake device Additional equipment: - motorized rear roller adjustment - Digital display for back roller - induction hardened rolls The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 1250 mm plate thickness: 5,5 mm pre-bending: 5,0 mm roll length: 1280 mm min. dia.: 210 mm roll diam. toproll: 140 mm weight: 1365 kg range L-W-H: 2.020 x 900 x 1.200 mm Standard features: - Central rollers via electric motor, planetary reduction gear and Gear drive driven - Swivel top roller - Main engine with brake device - Conical bending device - Mobile controller and foot pedal - CE mark / Declaration of Conformity Additional equipment: - motorized rear roller adjustment - Digital display for back roller - induction hardened rolls The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 1000 mm plate thickness: 5,0 mm distance between columns: 1070 mm diameter of upper rolls: 130 mm total power requirement: 4,0 KW weight of the machine ca.: 1,15 t dimensions of the machine ca.: 2,55 x 0,65 x 1,1 mm - Electrically adjustable rear roller - Electrically adjustable lower roll (material clamping) - Digital readout for rear roller movement - Digital readout for lower roll movement (material clamping) - Hardened rolls - Conical rolling - Swiveling top roll - Brake motor - Emergency stop - Documentation - 400V The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 1290 mm plate thickness: 5 mm pre-bending: ja roll diameter: 120 mm roll speed: 1 - 6 m/min total power requirement: 1,1 kW weight of the machine ca.: 825 kg Asymmetry roll arrangement, pre-bending ist possible. This new machine is in the following sizes obtainable: working length from 1040 until 2540 mm, max. plate thickness ( 400 N/mm² ) from 1 until 6,5 mm. We are distributor only for Germany. Machine dealer with own stock of 2500 m². The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 3554 mm plate thickness: 42 mm pre-bending: 36 mm Control: total power requirement: kW weight of the machine ca.: 49 t dimensions of the machine ca.: 7.3x2.4x2.5 m Stocknumber 2210024 Type of machine 4-roll CNC Plate bending machine Make FACCIN Type 4HEL 3554 Build in 2000 Type of control CNC Additional information Cap. 3554 x 42 mm prebending 36 mm Toprolldiam. 540 mm underrolldiam. 530 mm siterolldiam. 430 mm 55 Kw LxWxH= 7350 x 2400 x 2500 mm weight of the machine 49 ton The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 3050 mm plate thickness: 53 mm pre-bending: 45 total power requirement: 60 kW weight of the machine ca.: t dimensions of the machine ca.: m Stocknumber 2210020 Type of machine 4-Roll Plate Bending machine Make DAVI Type MCB 3053 Build in 1998 Type of control Conventional Additional information max. Plate widht 3050 mm Max. plate thickness 53 mm Max. thickness prebending 45 mm Toprol diameter 525 mm under roll diam. 470 mm Site rolls diam. 400 mm Power 78 Hp Hardened rolls Conical bending Dimensions: 6000 x 3100 x 6700 mm in very good condition The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC - Sheet Metal Parts - Roll Straightening Machine for plane straightening and relaxing of thermally cut sheet metal parts, for stamped parts, for sheet metal parts that have been cut to size with the sheet shear. Our roller straightening machine is a purely electric machine, not hydraulics, the electronically controlled servo motors enable automatic CNC – controlled face straightening in the continuous process. CNC – controlled precision sheet metal parts roll straightening machine for sheets from 0.7 mm to a maximum of 14 mm sheet thickness at 500 mm sheet width Largest sheet width 1,500 mm Guideline power over the full width - - Steel sheet quality SR235 from 0.7 mm to 10 mm - Stainless steel sheet from 1 mm to 6 mm Planning by - 19 piece straightening rollers with Ø 50 mm 21 pieces of intermediate rollers with Ø 30 mm 13 pieces of support roller sets with ...

CNC - Sheet Metal Parts - Roll Straightening Machine for plane straightening and relaxing of thermally cut sheet metal parts, for stamped parts, for sheet metal parts that have been cut to size with the sheet shear. Our roller straightening machine is a purely electric machine, not hydraulics, the electronically controlled servo motors enable automatic CNC – controlled face straightening in the continuous process. CNC – controlled precision sheet metal parts roll straightening machine for sheets from 0.7 mm to a maximum of 14 mm sheet thickness at 500 mm sheet width Largest sheet width 1,500 mm Guideline power over the full width - - Steel sheet quality SR235 from 0.7 mm to 10 mm - Stainless steel sheet from 1 mm to 6 mm Planning by - 19 piece straightening rollers with Ø 50 mm 21 pieces of intermediate rollers with Ø 30 mm 13 pieces of support roller sets with ...

Make: RIJVA Model: 502/1 S/N: 405 Cap: 12 tons

Year 2014 - twin orbital grinding/polishing pads. with extraction & filtration

material width: 300 mm material thickness: 2,0 mm : max. 90° Grad weight: 12 Kg dimensions: 400 x 250 x 100 m Combined sheet metal working machine with: - Bending, tool widths 25 - 50 - 75 - 75 - 105 mm. - Rolls, roll diameter 38 mm - scissors, max. 1015 x 1mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Various parts for straightening machines Ungerer, strip width 1500 - 1700 mm - Straightening rollers, stutz rollers, bearing frames, coupling shafts .. - Gears - Engine - Gearboxes, etc. More info on request

Plate shears Cutting capacity 1 mm Cutting width 1.10 m Foot operation, the cross step is missing.

4-roll plate bending machine Mod. VRM NG HY 3000x40 Country of manufacture: Switzerland YOM: 1997 Brand: HAEUSLER AG Roll diameter 560/540/400 mm Roll thickness 40mm Roll length 3000mm Motor motor Power:55kW System: Hydraulic Voltage: 380V/3 phase Weight 45 000kg The quality of the machine is still very good.

Inv. Num. : 5464 Type: 1250x1.2 Producer: China Created: 2014 Parameters: Maximum sheet thickness when cutting: 1.2 mm Maximum length of sheet plate: 1250 mm Equipment: 7-cylinder sheet metal straightening machine 2 knives for longitudinal cutting Unwinding and rewinding of sheet metal
