doosan daewoo torna kullanılmış satılık

Key data: 370 mm, 650 mm, 3500 1/min

Machine Details Stock-No. 1105-04067 Type of machine CNC Lathe Make DAEWOO Type PUMA 250 B Year of manufacture 1998 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Corea Delivery time to be agreed Freight basis ex Site Technical details turning diameter 370 mm turning length 648 mm control Fanuc 18 t bar diameter 77 mm swing dia. 570 mm swing diameter over cross slide guide 255 mm max. turning diameter 255 mm drive capacity - spindle motor 18.5/22 kW turning speeds 3500 rpm Turret (X-Stations) 10 pos. JAPAN rapid traverse X-axis 24 m/min total power requirement 32 kW weight of the machine approx. 6 t dimensions of the machine approx. 3.43 X 1.85 X 2 m Additional information GOOD MACHINE WITH CNC FANUC 21 IT 3 JAW CHUCK DIA 250 MM SCHIP CONVoYEUR TOOL SETTER COOLANT INTERLOKED GUARDS

Key data: 700 mm, 1000 mm

Machine Details Stock-No. 1105-03950 Type of machine CNC Lathe Make DAEWOO DOOSAN Type PUMA 400 M Year of manufacture 2014 Type of control CNC Storage location HAGUENAU FRANCE Country of origin KOREA Delivery time to be agreed Freight basis ex Site Technical details turning diameter 700 mm turning length 1043 mm control FANUC 21 IT turning diameter over bed 550 mm bar diameter 116 mm spindle nose A2 11 turning speeds 15~ 2000 rpm drive capacity - spindle motor 26/22 kW Torque 125 Turret (X-Stations) 12 Shank diameter 32 x 32 mm Drill shank diameter 50 mm Travel -X Axis 362 mm Travel -Z AXIS 2505 mm tail stock YES 120 MM slide. of quill 120 mm Quill Stroke 120 mm taper MK 6 rapid traverse X-axis 16 m/min rapid traverse Z-axis 20 m/min total power requirement 50 kW Additional information 700 X 1000 LENG FANUC 21 ITB CHUCK + CHIP CONVOYER

Key data: 500 mm, 1180 mm, 3500 1/min

Machine Details Stock-No. 1105-04053 Type of machine CNC Lathe Make DOOSAN DAEWOO Type PUMA GT 2600 L Year of manufacture 2021 Type of control CNC Storage location HAGUENAU Country of origin KORREA Delivery time immediately Freight basis ex site , loaded free Price Technical details turning diameter 780 mm turning length 1280 mm control FANUC i SERIES turning diameter over bed slide 630 mm centre height 350 mm spindle motor 26/22 kW spindle turning speed range 3500 rpm Chucking diameter 254 mm Feed - Longitudinal/Cross 24 mm/min rapid traverse: longitudinal and cross 36 mm/min max. workpiece weight between centres 1500 kg total power requirement 45 kW weight of the machine approx. 7.3 t dimensions of the machine approx. 7 X 2.5 m Additional information - CNC fanuc i series ONLY 2 AXIS MACHINE - Tailstock - automatic tool measuring device with swivel arm  ...

Key data: 1000 mm, 3000 mm

achine details Stock-No. 1105-04069 Type of machine CNC Turning- and Milling Center Make DOOSAN DAEWOO Type PUMA 700 LM b Year of manufacture 2006 Type of control CNC Storage location FRANCE Country of origin KORREA Delivery time IMMEDIATELY Freight basis EX WORK Price Technical details turning diameter 900 mm turning length 3050 mm control FANUC 21 i TB swing dia. 1030 mm Standard Turning Diameter 750 mm Bar Material Dia. 165 mm Spindle bore 110 mm Travel -X Axis 471 mm Travel -Z AXIS 2100 mm Rapid Travel - Longitudinal/Face 15/ 20 m/min Spindle RPM 3000 1/min spindle drive 45 kW turret stations / rotary tool stations 12 / 6 BMT 85 speed of driven tools 3000 1/min total power requirement 62.2 kVA Weight of the machine approx. 22.2 t dimensions of the machine approx. 6.1 x 2.2 x 2.2 m Accessories Chip conveyor YES Parts and total counter Tool holders  ...

Machine Details Stock number 1105-03752 Machine type machining center - vertical Make DOOSAN DAEWOO Type MYNX 550 Year of construction 2002 Control type CNC Storage location HAGUENAU Country of origin KORREA Delivery time IMMEDIATELY Freight base ex works Technical details longitudinal 1270 mm transverse 510 mm vertical 625 mm Tool changer 30 pos. tool length 250 mm tool diameter 80 mm tool through. with free neighbor box. 130 mm Rapid traverse 30 m/min Machine weight ca. 8 t Drive power 100% ED 15 kW Drive power 40 % ED 13 kW Speed range 8000 1/min Tool holder SK 40 Table surface 1200 x 500 mm Permissible load (central table) 800 kg Information FANUC 21 M B El. Handwheel Conveyor 8000 RPM 30 TIMES ATC BT 40 CHIP CONVOYER

Machine Details Stock number 1105-03821 Machine type machining center - vertical Make DOOSAN Type DNM 650 II Year of construction 2015 Control type CNC Storage location FRANCE Country of origin Korea Delivery time ON REQUEST Freight base from stock HAGUENAU FRANCE Technical details x-travel 1270 mm y-travel 670 mm z-travel 625 mm CNC control SIEMENS 840 D Table size 1300 x 670 mm table load 1000 kg Spindle holder ISO SK 40 Spindle speeds 8000 rpm Feed infinitely variable 8000 mm/min Rapid traverse 36 / 36 / 30 m/min Drive power - spindle motor 18,5 (15 min) kW Tool changing device 30 items. Operating voltage 380 V Total power requirement 40 kVA Machine weight ca. 8,5 t Space requirement approx. 3.20 x 2.45 x 2.40 m Chip conveyor 4.10 x 0.65 x 1.50 Coolant device 3.60 x 2.20 x 0.80 m Information Excellent condition! LIKE NEW with internal coolant supp ...

achine-Details Stock-No. 1105-03801 Type of machine Machining Center - Vertical Make DOOSAN DAEWOO Type DNM 5700 Year of manufacture 2021 Type of control CNC Storage location HAGUENAU FRANCE Country of origin KORREA Delivery time IMMEDIATELY Freight basis Ex works Technical details longitudinal 1020 mm cross 570 mm vertical 510 mm Tool Changer 30 Pos. max. tool length 300 mm max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm Rapid Traverse 36 m/min Weight of the machine approx. 7 t power capacity at 100 % load 11 kW power capacity at 40 % load 12000 kW turning speed range 8000 1/min tool taper BT 40 table surface area 1200 x 500 mm groove width 18 mm Additional information direct measuring system, El. handwheel, internal coolant supply package (chipconveyor, cooling trought the spindle, 12000rpm spindle) SIEMENS 828D CONTROL LIKE NEW ONL ...

Key data: 1050 mm, 540 mm, 510 mm

Machine Details Stock-No. 1105-04012 Type of machine Machining Center - Vertical Make DOOSAN DAEWOO Type DN 500 Year of manufacture 2008 Type of control CNC Storage location HAGUENAU FRANCE Country of origin KORREA Delivery time IMMEDIATELY Freight basis Ex works Technical details longitudinal 1020 mm cross 540 mm vertical 510 mm Tool Changer 30 Pos. max. tool length 300 mm max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm Rapid Traverse 36 m/min weight of the machine approx. 7 t power capacity at 100 % load 11 kW power capacity at 40 % load 18 kW turning speed range 12000 1/min tool taper SK 40 table surface area 1200 x 500 mm groove width 18 mm Number of noches 4 St. Additional information direct measuring system, El. handwheel, internal coolant supply package (chipconveyor, cooling trought the spindle, 12,000rpm spindle) fanuc SERIES  ...

Vertical machining center Daewoo (Doosan) ACE VC500 The machine can be seen working in our warehouse in Gussago BS. Mimu Machine Tools Gussago BS Italy, Vertical machining center - 2-pallet, Daewoo ACE VC500, CNC Model Fanuc, CNC version 18-M, Spindle Taper toolholders iso 40, Power spindle 15 Kw, RPM 10000, Number of tools 30, X-axis travel 760 mm, Y-axis travel 510 mm, Z-axis travel 570 mm, Changer pallet yes, Pallet dimensions 860x560 mm, Maximum load allowed 300 Kg, Swing type pallet yes, High coolant pressure yes, Cheap conveyor yes, Brand Daewoo, Model ACE VC500, Construction year 2000, DIMENSIONS AND WEIGHT, Length 3600 mm, Width 3700 mm, Height 2935 mm, Weight 9200 Kg The machining center is a machine tool equipped with numerical control capable of performing multiple mechanical operations with a single set-up on multiple surfaces of the same work piece. It is generally equipped  ...

CNC lathe Daewoo Lynx 200 B CNC Fanuc 21t, 10 tool turret tailstock, bar feeder The machine can be seen under power in our warehouse (M i m u)

DAEWOO PUMA 300 LB (Doosan), 2-axis CNC lathe, CNC Fanuc 18T, Hydraulic tailstock, Condition: very good. This machine can be inspected in our warehouse, under power., Mimu machine tools Italy

Key data: 1020 mm, 510 mm, 510 mm

Machine Details Stock number 1105-04058 Machine Type Machining Center - Vertical Make DOOSAN DAEWOO Type MYNX 540 Year of construction 2002 Condition Control type: CNC Storage location HAGUENAU FRANCE Country of origin KORREA Delivery time IMMEDIATELY Ex-works freight base Technical details longitudinal 1020 mm landscape 510 mm vertical 625 mm Tool Changer 30 Pos. max. tool length 250 mm max. tool diameter 80 mm max. tool diameter. with a free neighboring box. 130 mm Rapid traverse 30 m/min Machine weight approx. 7 t Drive power 100% ED 15 kW Drive power 40 % ED 13 kW Speed range 8000 1/min Tool holder SK 40 Table surface 1200 x 500 mm Permissible load (centre of the table) 800 kg Information FANUC 21 M B El. Handwheel Conveyor 8000 RPM 30 SPEED ATC BT 40

Torni CNC, Doosan Puma TW2600, 2016 (low hours), complete with robot, it can be inspected in our warehouse in Gussago BS

HORIZONTAL LATHE DAEWOO PUMA TT1800SY :::TECHNICAL SPECIFICATIONS::: CNC Model: Fanuc - CNC Version: 18iTB - Main Spindle Nose: ASA 6 - Main Spindle Power: 22.4Kw Main spindle bar passage: 65mm - Turning diameter: 230mm - Turning length: 980mm - Main spindle speed: 5000 Number of tool turrets: 2 Number of tool positions for the first turret: 12 Number of Motorized First Turret: 12 First turret X-axis travel: 165mm Y-axis travel first turret: +- 50mm Z-axis travel first turret: 700mm Second turret X-axis travel: 190mm Second turret Z-axis travel: 720mm Sub-spindle: yes Spindle nose: ASA 6 Number of counter-spindle speeds: 5000 Counter spindle power: 22Kw Bar loader model and brand: Iemca Master 880 Chip conveyor: belt Machine equipment: device for unloading long pieces Set of fixed and motorized tool holders :::D DIMENSIONS AND WEIG ...

:::TECHNICAL SPECIFICATIONS::: CNC Model: Fanuc CNC Version: 18-T Main spindle nose: ASA 11 Main spindle power: 37Kw Main spindle self-centering diameter: 450mm Main spindle bar passage: 117.5mm Turning diameter: 650mm Turning length: 1575mm Number of tool turrets: 1 Number of fixed tool positions for the first turret: 12 First turret X-axis travel: 370mm First turret Z-axis travel: 1575mm Tailstock: yes Steerer stroke: 150mm Chip conveyor: belt :::D DIMENSIONS AND WEIGHT::: Length: 4930mm Width: 2460mm Height: 2587mm Weight: 13690Kg

DAEWOO LYNX 200B LATHE with FANUC control system

This 3-axis DAEWOO PUMA TT 2000 SY was manufactured in 2005. It features a turning diameter over bed of 800 mm and a maximum bar diameter of 65 mm. Equipped with a Fanuc 18i-TB control system, it offers spindle speeds up to 5000 rpm and includes a tool turret with 12 stations. Consider the opportunity to buy this DAEWOO PUMA TT 2000 SY horizontal turning machine. Contact us for more information about this machine.

Fabricante DAEWOO Modelo PUMA 2000 SY Año 2003 CNC FANUC 18i – T Capacidades Diámetro máx. sobre bancada 600 mm. Diámetro máx. sobre carro 550 mm. Diámetro máx. torneable 330 mm. Longitud máx. torneable 510 mm. Recorridos y avances Recorrido Eje X 250 mm. Recorrido Eje Z 580 mm. Recorrido Eje Y 100 (±50) mm. Recorrido Eje B 580 mm. Avance Rápido eje X 20 m/min. Avance Rápido eje Z 24 m/min. Avance Rápido Y 7,5 m/min Avance Rápido B 20 m/min. Cabezal Eje C INCLUIDO Indexación eje C 0.001 º Paso de barra 76 mm Nariz A2#6 Velocidad 4.500 rpm. Potencia 15 kW Sub-cabezal Eje C INCLUIDO Indexación eje C 0.001º Paso de barra 45 mm Velocidad 6.000 rpm Potencia 7.5 kW Torreta y Herramientas motorizadas Numero de Posiciones Torreta 12 Dimensiones de la Herramienta 25 mm Tiempo de Indexación Torreta 0.1 s Velocidad Herramienta Motorizada 5 ...

This 5-axis DAEWOO PUMA 2000 SY turn-mill centre was manufactured in 2003. It features a max turning diameter of 330 mm, length of 510 mm, and rapid feeds up to 24,000 mm/min. Includes main and sub-spindle capabilities, both with C-axis, and a 12-station turret with live tooling. Consider the opportunity to buy this DAEWOO PUMA 2000 SY turn-mill centre. Contact us for more information about this machine.

This DAEWOO Puma 160 was manufactured in 2004. A robust horizontal turning machine featuring a Fanuc 0i-T control system, it supports a turning diameter up to 160 mm and a length up to 250 mm. With a spindle speed of up to 6000 rpm and a main motor power of 11.1 kW, its ideal for precise operations. Machine weight ranges from 3,000 to 3,500 kg. Contact us for more information about this machine.

This DAEWOO Lynx 210B was manufactured in 2004. A robust horizontal turning machine featuring a spindle speed of up to 5000 rpm and motor power of 11 Kw. It supports a maximum turning diameter of 280 mm and a length of 305 mm. Equipped with a 12-position turret and useful accessories like a chip conveyor and tool presetting. If you are looking to get high quality turning capabilities consider the DAEWOO Lynx 210B machine we have for sale. Contact us for more information.

connected load frequency: 230 V battery: 24V / 100Ah Brush diameter: 510 mm turning speeds: 175 U/min 0: Luft 24 L / s tank capacity: 50 / 50 Liter weight: 160 kg range L-W-H: 1,1 x 0,52 x 1,0 mm Daewoo floor cleaning machine: Packed with battery and charger Theoretical surface cleaning: Output: 2000 m²/h Suction width: 850 mm Cleaning width: 510 mm Max. working area incline: 2% Fresh/waste water tank volume: 50/ 50 L The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Daewoo X: 1250 - Y: 1000 - Z: 1000 mm CNC X-axes: 1250 mm Y-axes: 1000 mm Z-axes: 1000 mm Table dimensions: 800 x 800 mm Max weight on the table: 2000 kg Admission in spindle (ISO): ISO 50 Power on the spindle: 25 kW Control: Fanuc OM Number of axes: 4 axes: X,Y,Z,B Toolstore: yes Tools: 90 positions Frequency : 20 -> 4500 rpm Number of pallets : 2x Power principal motor: 70 kva Length: 4100 mm Depth: 6850 mm Height: 3240 mm Weight: 18 ton ACCESSORIES: yes Cooling-system: yes

This 4-Axis Daewoo ACE-HP 4000 horizontal machining centre was manufactured in 2006, controlled by a FANUC Series 18i-MB system. It features comprehensive travel dimensions: 600mm in X, 560mm in Y, and 565mm in Z, along with table rotation capability. The machine is equipped with spindle cooling, a chip conveyor, and external workpiece cooling, ensuring optimal operation. A robust choice for precision machining, it combines extensive operating hours with dependable performance. Reach out for further details regarding this horizontal machining centre.

The machine is in good technical condition, after prior agreement it is possible to test it. Spindle completely overhauled summer 2023 Ball screw replaced in Z axis in 2020. Feeds: X axis 850 mm Y axis 700 mm Z axis 750 mm Working feed 1-24000 Positioning accuracy +/- 0.005 Rapid feed – 48m/min all axes. Distance spindle face – front of table 150-900 mm Distance spindle axis – pallet surface 50-750 mm Pallet – 500 x 500 Spindle alfaP22/8000 Motor power (continuous/15') – 11/15/18.5 Spindle speed – 8000 rpm Base speed – 8000 rpm Tool clamping force – 1000 N Max. torque (15') 29.2 Nm Orientation built-in sensor Taper ISO 40, taper 7/24 Power transmission – synchronizing belt and pulley Cooling through the spindle – 70 kg/cm2, max flow 20 L/min, pump power 3.7 KW Magazine for 60 tools – chain – be careful, the catalogue incorrectly states 40.

This 3-axis DAEWOO ACE-V400 vertical machining center was manufactured in 2000. It features a working envelope of XYZ dimensions 560 x 400 x 570 mm and includes a hand wheel. If you are looking to get high-quality milling capabilities, consider the DAEWOO ACE-V400 machine we have for sale. Contact us for more information.

This 3-axis DAEWOO ACE V 600 was manufactured in 1997. It features an impressive X-axis travel of 1,260 mm, Y-axis travel of 650 mm, and Z-axis travel of 560 mm. The machine includes a robust table size of 1,400 x 700 mm and a maximum table load of 1,200 kg. If you are looking to get high-quality machining capabilities, consider the DAEWOO ACE V 600 vertical machining centre we have for sale. Contact us for further details.

MAX DIAMETER OF ROTATION: 750 MM MAX DIAMETER SWITCHABLE: 680 MM SWITCHABLE LENGTH: 1195 MM CNC: FANUC 18i-TB MAIN SPINDLE: MAX SPEED. OF ROTATION: 2800 RPM DIN 55026 8 ' ' CHUCK NOSE BAR PASS: 95 MM MOTOR POWER: 30 KW SELF-CENTRING DIAMETER: 315 MM Tailstock: POSITIONING STROKE: 1310 MM RACEWAY: 150 MM TUBE DIAMETER: 115 MM TORRETA TOOLHOLDER: MOTOR POWER: 10-17.5 KW TOOL DIMENSIONS: 25X25 MM BARENI DIA DIMENSIONS: 32-40 MM

Control Fanuc ... i Series Turning diameter ... 600mm Turning length ... 330mm Inclined bed Spindle bore ... 61mm Turret Circumferential diameter over bed ... 600mm Circumferential diameter via support ... 400mm Axis X ... 205mm Axis Z ... 340mm Rapid traverse of the X axis ... 30m/min Rapid traverse of the Z axis ... 36m/min Spin speed... 0-6000 rpm. Max. spindle torque ... 127Nm Main engine power ... 11/15kW Doosan Robot Cell Assembly: 2x LYNX 2100A + ROBOTEC APC7 (Fanuc AM-100 iC6L) - The machines are supplied with chucks and pliers - High pressure cooling 20bar - Arm for picking up workpieces (Ø65 x L130 mm, weight 3 kg) - Automatic door opening - Spindle bladders for cleaning the clamping jaws - Oil separator - OIL SKIMMER - Tool Load Monitor (works with X-, Z-axis and S-spindle) - Workpiece conveyor The machine is in good condition, possible to test un ...

The machine is in good technical condition, a test run is possible by prior arrangement. Hours: 8,981 Upper driven tool turrets with Y-axis, lower driven turret, double slide with two spindles. Control: FANUC 31i-B. Max. circumferential diameter above the bed: 300 mm Max. circumferential diameter over the support: 230 mm Max. turning diameter above the bed with upper turret: 230 mm Max. turning diameter above the bed with lower turret: 230 mm Max. turning length: 600 mm Max. distance between the ends of the right and left spindle: 980 mm Milling area outside the axis of rotation due to Y-axis: 100 mm (+/- 50 mm) Max. rod diameter (left spindle): 65 mm Max. rod diameter (right spindle): 65 mm Max. permissible workpiece weight without sub-spindle (incl. chuck weight = 23 kg): 12 kg Total weight: 7,800 kg Accessories: SS 2500 bar feeder, length 200–1 ...

CNC lathe LYNX 2100 B Manufacturer: DOOSAN Year: 2017 Control Fanuc ... i Series Turning diameter ... 350mm Rotation length ... 330mm inclined bed Spindle bore ... 76mm Turret Machine weight... 2750kg Axis X ... 300mm Axis Z ... 360mm Feed diameter ... 210mm Spindle speed ... 1-4500/min. L x W x H ... 2350x1595x1693mm The machine is in good condition, possible to test under electricity.

Inv. Num. : 5839 Type: PUMA TT 1800 SY Producer: DOOSAN Created: 2013 Parameters: Control system: FANUC 31i-B Duty cycle: 8981 h Maximum turning length: 600 mm Maximum turning diameter over bed: 300 mm Maximum turning diameter over support: 230 mm Number of spindles: 2 pieces Maximum main spindle power: 22 kW Spindle clearance: 76 mm Maximum spindle speed: 5000 1/min Maximum workpiece weight: 120 kg Max. rod diameter: 65 mm Axis X1/X2: 165/190 mm Axle Z1/Z2: 700/720 mm Axis Y: 100 mm B-axis: 770 mm C1/C2 axis: 360 Weight: 7800 kg Equipment: Bar feeder SS 2500 Conveyor Feeder/Dispenser

1 CNC lathe (lathe) 2 CNC lathe (lathe) 3 CNC lathe (lathe) 4 CNC milling machine (lathe) 5 2x conventional lathe (lathe) 6 Band saw 7 2x Stand drill All machines work perfectly Pick-up or delivery not until the end of July 2024

Key data: 760 mm, 1540 mm

CNC turning/milling center DOOSAN PUMA MX2600ST Year of construction 08-2012 Fanuc 31i-A with Manual Guide i Max. turning diameter: 760 mm Max. swing diameter over bed: 1,000 mm Max. turning length: 1,540 mm Max. bar passage: 76 mm Travel: X1 axis: 630 mm Y1 axle: 230 mm Z1 axle: 1,585 mm B-axis: -120° + 120° X2 axis: 220 mm Z2 axis: 1,515 mm A-axis: 1,550 mm Spindle motor main spindle 22/26 kW Spindle nose A2-8 Max. spindle speed 4,000 rpm Spindle motor sub-spindle 22/26 kW Max. spindle speed 4,000 rpm Spindle nose A2-8 Spindle motor milling spindle 22/18.5 kW Capto C6 Max. spindle speed 12,000 rpm B-axis, 0.001° Tool magazine with 40 tool positions Lower turret, 12-speed BMT65P Max. speed driven tools: 4,000 rpm Cooling by the spindle, 1.5 kW, 2.0 MPA, 21.6 l/min Coolant pump for lower turret, 2.2 kW, 1.0 MPA, 30l/min Coolant for powered tools Co ...

Inv. Num. : 7971 Type: Lynx 2100 LYB Producer: Doosan Created: 2022 Parameters: Control system: Siemens Sinumerik 828D Maximum turning length: 510 mm Max. turning diameter: 300 mm Maximum length of travel in the X-axis: 205 mm Maximum length of travel in the Y-axis: 105 mm Maximum feed in the Z-axis: 560 mm Maximum main spindle power: 15 kW Maximum spindle speed: 4500 1/min Length: 2880 mm Width: 1711 mm Height: 1921 mm Weight: 3900 kg

Used machine in good condition. Available for immediate delivery. - Number of tool stations: 4 - Spindle power : 15 kW - Spindle power : 5.5 kW - Cutting feed rate (X x Z): 205 x 580 mm / min - Max. spindle speed: 4.500 rpm - Weight: 4.500 - Dimensions (long x wide x high): 2.997 x 1.592 x 1.740 mm

Turning Diameter 830 mm Turning lenght 750 mm Spindle speed 2000 rpm Controller FANUC-i Chuck size 24"

Used machine in good condition. Available for immediate delivery. - Number of tool stations: 4 - Spindle power : 15 kW - Spindle power : 5.5 kW - Cutting feed rate (X x Z): 205 x 580 mm / min - Max. spindle speed: 4.500 rpm - Weight: 4.500 - Dimensions (long x wide x high): 2.997 x 1.592 x 1.740 mm

Key data: 330 mm, 730 mm, 3500 1/min

Stock number: 3953 CNC LATHE Manufacturer: DOOSAN, Type: S390 LM Aircraft NO.: LNV-1019, Year of manufacture: 2001 Specifications: Max. circumferential diameter 330 mm dia. Turning length 730 mm Turning over planing slide 580 mm dia. Main motor power 22 kw Main spindle speed range 3500 rpm Hole through drawing tube 77 mm dia. X axis movement 245 mm Z ash movement 750 mm Tool turret with 12 stations Powered stations revolver 1 12 pieces. Total power consumption 40 kva Control Fanuc 18I Fabr. Spindle operating hours 9482 hours Accessories: Hydr. Chuck main spindle 300 mm dia Chip conveyance. Tailstock Length: 6550 mm, Height: 2200 mm, Width: 2200 mm, Weight: 5000 kg

DOOSAN LYNX2100LMB (installed new in 2021). Model: LYNX 2100LMB Power Connection: AC 380V, 3-phase, PE, 50/60 Hz Rated Power: 27.07 kVA Interruption Capacity: 5 kA Full Load Current: 41.14 A Short-Circuit Capacity: 10 kA Control System Output: L22SYH404A05 Weight: 3000 kg Manufacturing Date: November 2020 (2020.11) Machine has the following list of toolholders ; A. Turning Holder - OD Tool Holder (Right & Left) - Quantity: 2 pieces - Face Tool Holder (Right & Left) - Quantity: 1 piece - Double OD Tool Holder (Right) - SUB- Quantity: 1 piece - Cut-off Tool Holder (Right Hand) - Quantity: 1 piece B. Boring Holder - ID Tool Holder - Quantity: 2 pieces - Triple ID Tool Holder - Quantity: 1 piece - U-Drill Cap - Quantity: 1 each C. Milling Tool Unit - Straight (Short) - Quantity: 2 pieces - Angular - Quantity: 2 pieces D. Tool Sleeves - Boring Sleeves (Main) - Quantity: 1 ki ...

DOOSAN LYNX2100LSYA (installed new in 2021) Model: LYNX 2100LSYA Power Connection: AC 380V, 3-phase, PE, 50/60 Hz Rated Power: 37.43 kVA Interruption Capacity: 5 kA Full Load Current: 56.87 A Short-Circuit Capacity: 10 kA Control System Output: L220SYH840A05 Weight: 4150 kg Manufacturing Date: November 2020 (2020.11) Machine has the following list toolholders ; Turret Type (Mechanism/Station): Servo/24ST Holder Mounting Type Tool Size (Turning/Boring): BMT-45P 20/32 mm Tooling Parts Detail A. Turret Head/Tool Table - - Quantity: 1 ea B. Turning Holder - OD Tool Holder (Right & Left) _MAIN - Quantity: 1st - Face Tool Holder (Right & Left) _MAIN - Quantity: 1st - Double OD Tool Holder (Right & Left) _MAIN/SUB - Quantity: 1st - Double OD Tool Holder (Right & Left) _MAIN - Quantity: 1st - Double OD Tool Holder (Right & Left) _MAIN - Quantity: 1st - Double OD Tool H ...

:::TECHNICAL SPECIFICATIONS::: CNC Model: Fanuc - CNC Version: 18-T - Spindle Nose: ASA 6 - Spindle Power: 18.5Kw - Turning Diameter: 310mm Turning length: 200mm - Main spindle speed: 3500 - Sub spindle speed: 3500 Number of tool positions for the first turret: 12 Number of fixed tool positions for the first turret: 12 Number of second turret tool positions: 12 Number of fixed tool positions for the second turret: 12 :::D DIMENSIONS AND WEIGHT::: Length: 2800mm Width: 2240mm Weight: 7000Kg

CNC Model: Fanuc - CNC Version: 18i - TB - Main Spindle Nose: ASA 8 - Main Spindle Power: 26Kw Main spindle bar passage: 81mm - Turning diameter: 300mm - Turning length: 350mm - Main spindle speed: 3500 Number of tool turrets: 2 Number of tool positions for the first turret: 12 Number of Motorized First Turret: 12 First turret X-axis travel: 255mm Y-axis travel first turret: +- 60mm First turret Z-axis travel: 800mm Number of second turret tool positions: 12 Number of motorized second turret: 12 Second turret X-axis travel: 190mm Second turret Z-axis travel: 900mm Fast feeds for linear axes X Y Z: 24m/min Sub-spindle: yes Spindle nose: ASA 8 Number of counter-spindle speeds: 3500 Counter spindle power: 26Kw Bar Passage: 81mm Z stroke sub-spindle : 810mm Chip conveyor: belt Presetting: yes Machine equipment: Machine supplied wit ...

Max Turning diameter 480 mm Max Turning lenght 790 mm Main spindle speed 2800 rpm Sub spindle speed 4500 rpm Main spindle power 22 kw With 4 pieces life tool

turning diameter: 800 mm turning length: 900 mm control: Fanuc 0 total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The machine is in good technical condition, a visit and test drive is possible by prior arrangement. - Spindle passage 65 mm - without driven tools, with replaced bearings and belts.

Key data: 376 mm, 760 mm, 3500 1/min

Main parameters: Controller: FANUC 0iD/31iA Chuck.: SAMCHULLY 10" Spindle bore.: 86mm With jacket tube.:78mm Revolver head.: 12 main positions 12 secondary positions, BMT65 connection, Programmable hydraulic Tailstock.: MT5 Main spindle power: 22kW S1max=3500 1/min Living tool power: 5.5kw S2max=5000 1/min X movement range.: 260mm Z axis movement range.: 830mm Y axis movement range: + - 52mm (104mm) C axis Maximum turning length: L=760 Largest turning diameter: D=376mm Fast travel speed.: 30m/min Automatic tool measurement with probe arm Weight.: 6000 kg

Key data: 370 mm, 712 mm, 3500 1/min

DOOSAN LYNX300M (34000euro) -:CNC FANUC - Chuck diameter: 250 mm - Diameter over bed: 651 mm - Max. turning diameter: 370 mm - Max. turning length: 712 mm - Spindle bore: 76 mm - Spindle speed: 3,500 rpm - C-axis - Main spindle motor: 15 kW - Rapid feeds X/Z: 30/24 m/min - BMT 55 turret: 12 positions - Rotating tool speed: 5,000 rpm - Machine weight: 4.5 t - Overall dimensions: 3 x 1.8 x 1.7 m

Key data: 376 mm, 760 mm, 3500 1/min

Main parameters: Controller: FANUC 0iD/31iA Chuck.: SAMCHULLY 10" Spindle bore.: 86mm With jacket tube.:78mm Revolver head.: 12 main positions 12 secondary positions, BMT65 connection, Sub spindle: 4500 1/min Main spindle power: 22kW S1max=3500 1/min Living tool power: 5.5kw Tool speed max=5000 1/min X movement range.: 260mm Z axis movement range.: 830mm Y axis movement range: + - 52mm (104mm) C axis Maximum turning length: L=760 Largest turning diameter: D=376mm Fast travel speed.: 30m/min Automatic tool measurement with probe arm Weight.: 6450 kg

Stroj je v dobrém technickém stavu, po předchozí dohodě možnost odzkoušení.

Control Fanuc Max.workpiece diameter ... 800mm Table diameter ... 450mm Max. workpiece height ... 750mm Axis Z ... 780mm Number of positions in the tool changer ... 8 Axis X ... 390mm Axis Z ... 780mm Table speed ... 20-2000 rpm Main engine power ... 30/37kW Max. spindle torque ... 2243/2766Nm Machine weight ... 9000kg L x W x H ... 2000x2800x3300mm

Control: Siemens Sinumeric 828 D Turning length: 1,600 mm Turning diameter: 900 mm X axis travel: 470 mm Z axis travel: 1,650 mm Speed: 3 – 1,500 rpm Tool turret: 12 places (all driven) Tool holder: BMT 85P Equipment: Self-centering bezel Conveyor Touchsetter 3-jaw chuck Programmable tailstock Aspirator Coolant pump 20bar with cyclone filter Oil mist extraction

This DOOSAN PUMA 2100MS was manufactured in 2011. It features a 65 mm motorized bar passage and a counter-spindle, complete with accessories and an LNS bar loader. Ideal for precision horizontal turning operations. Contact us for more information about this machine.

This 3-axis DOOSAN Puma 2500XLY horizontal turning machine was manufactured in 2008. It offers robust performance for precision turning operations. If you are looking to get high-quality turning capabilities, consider the DOOSAN Puma 2500XLY machine we have for sale. Contact us for more information.

This DOOSAN PUMA 240B was manufactured in 2008. A robust horizontal turning machine featuring a 4500 rpm spindle speed and a 12-tool turret for efficient operations. Equipped with Fanuc Control and main dimensions of X242 mm and Z580 mm. If you are looking to get high quality turning capabilities consider the DOOSAN PUMA 240B machine we have for sale. Contact us for more information.

This DOOSAN PUMA GT2100 was manufactured in 2015. A robust horizontal turning machine featuring a main 8 inch chuck, X242 mm and Z580 mm travel, and a 4500 rpm spindle speed. It holds up to 12 tools on the turret. If you are looking to get high quality turning capabilities consider the DOOSAN PUMA GT2100 machine we have for sale. Contact us for more information.

This 5-axis DOOSAN 2600 SY turn-mill centre was manufactured in 2015. It features a Fanuc CNC, a maximum turning diameter of 375 mm, and lengths up to 760 mm. The machine includes a motorized turret with 24 positions and motorized tools capable of 5,000 rpm. Ideal for complex machining tasks. Consider the opportunity to buy this DOOSAN 2600 SY turn-mill centre. Contact us for more information about this machine.

This DOOSAN V740T vertical turning machine was manufactured in 2005. It features a maximum swing diameter of 800 mm, turning diameter of 740 mm, and a turning length of 760 mm. The main spindle supports a rotational speed up to 2000 RPM with a motor power of 30 kW. It includes a 12-position turret and rapid traverse rates of 20 m/min for both X and Z axes. If you are looking to get high quality turning capabilities consider the DOOSAN V740T machine we have for sale. Contact us for further details regarding this machine.

This 3-axis DOOSAN Puma 2600M was manufactured in 2011. A robust horizontal turning machine featuring a Fanuc I Series control system, it offers a maximum turning diameter of 376 mm and a length of 760 mm. Spindle speed reaches up to 3,500 rpm. Includes chip conveyor, tool holders, and driven tools. If you are looking to get high-quality turning capabilities consider the DOOSAN Puma 2600M machine we have for sale.Contact us for more information.

This 4-axis DOOSAN LYNX220LSYA horizontal turning machine was manufactured in 2014. It offers robust performance for precision turning operations. If you are looking to get high quality turning capabilities consider the DOOSAN LYNX220LSYA machine we have for sale. Contact us for more information.

This DOOSAN PUMA 4100B was manufactured in 2015. A robust horizontal turning machine featuring a Fanuc 32i CNC system, it offers a maximum turning diameter of 550 mm and a length of 1,042 mm. Equipped with a 10-station turret and a chip conveyor, its ideal for efficient machining with 7,200 hours of operation. If you are looking to get high-quality turning capabilities, consider the DOOSAN PUMA 4100B machine we have for sale. Contact us for more information.

This DOOSAN PUMA 240B was manufactured in 2005. A robust horizontal turning machine featuring a 4500 rpm spindle and a 12-tool turret. Ideal for precision machining tasks. If you are looking to get high quality turning capabilities consider the DOOSAN PUMA 240B machine we have for sale. Contact us for more information.

This 3-axis DOOSAN LYNX2100LMB was manufactured in 2022. It features a Fanuc control system, a maximum turning diameter of 300 mm, and a length of 510 mm. The X/Z axis travel is 205/560 mm, with a main spindle speed up to 4500 RPM and power of 15 kW. It includes a 12-position turret and various tool holders. Consider the opportunity to buy this DOOSAN LYNX2100LMB horizontal turning machine. Contact us for more information about this machine.

This 5-axis DOOSAN PUMA 2000SY was manufactured in 2005, designed for precision in horizontal turning. Ideal for complex machining tasks, it offers robust performance and reliability. Consider the opportunity to buy this DOOSAN PUMA 2000SY horizontal turning machine. Contact us for more information about this machine.

Key data: 376 mm, 760 mm

Description CNC turning-milling center Doosan Puma 2600 SYII with Fanuc control i series with accessories The machine has been used little, has about 2000 hours of operation so like new and is available now Additional Accessories Lathe Doosan Puma 2600 SY II -2 tool holders for external turning tool 25x25 -1 tool holder double for external turning tool 25x25 -1 tool holder for frontal machining 25x25 -2 tool holders for internal turning tools (boring rods) diameter 50mm -1 tool holder double for internal turning tools diameter 32 mm -1 tool holder for parting tool -1 tool holder double right for external tool (sub-spindle) -1 tool holder double left for external tool (main spindle) -4 motorized tool holders ER-32 radial (X axis) -5 Motorized Tool Holders ER-32 Axis (Z Axis) -1 motorized tool holder ER-32 radial (X axis) with internal coolant supply -1 motorized tool hold ...

This 9-axis DOOSAN PUMA TT 1800 SY was manufactured in 2014, offering advanced capabilities for horizontal turning. Ideal for complex machining tasks, this machine ensures precision and efficiency. If you are looking to get high-quality turning capabilities, consider the DOOSAN PUMA TT 1800 SY machine we have for sale. Contact us for more information.

control: Fanuc length: 3700 mm width: 1850 mm height: 2000 mm accessories:: ja weight of the machine ca.: 4,8 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This 3-axis DOOSAN PUMA 3050 LM lathe was manufactured in 2024. It features a robust 12-position BMT55 Servo Power Turret, a powerful main spindle motor at 18.5/15 kW, a spindle speed of 3.000 rpm, and a milling spindle speed of 5000 rpm. The machine includes a 12 hydraulic chuck, chip conveyor, and a FANUC - 0iPLUS control system. Ideal for precision, the DOOSAN PUMA 3050 LM machine we have for sale represents a significant opportunity. Contact us for further details regarding this turning machine.

This DOOSAN PUMA 215 turning machine was manufactured in 2011. It features a swing over bed of 510mm, a workpiece diameter of 270mm, and a length capacity of 522mm. Equipped with a DOOSAN FANUC i Series CNC system, it offers rapid traverses of 16 m/min in X and 20 m/min in Z. A great opportunity to buy this DOOSAN PUMA 215 turning machine. Contact us for further details regarding this vertical turning machine.

This DOOSAN Lynx 235II was manufactured in 2022. A robust horizontal turning machine featuring a 8 inch chuck, it handles a max turning diameter of 320 mm and length of 525 mm. With a bar working diameter of 65 mm and rapid traverse rates up to 36 m/min, its ideal for efficient operations. If you are looking to get high quality turning capabilities consider the DOOSAN Lynx 235II machine we have for sale. Contact us for more information.

This DOOSAN LYNX 2100LMA was manufactured in 2019. It features a 6-inch chuck, a maximum turning diameter of 300 mm, and a length of 510 mm. The machine offers rapid traverses of 30 m/min in the X-axis and 36 m/min in the Z-axis, with a spindle speed up to 6000 rpm. Ideal for precision turning, it also includes a 12-station turret. Contact us for more information about this machine.

This 3-axis DOOSAN LYNX 2100LYA was manufactured in 2020, featuring a chuck size of 6 inches, a maximum turning diameter of 300 mm, and a length of 510 mm. It boasts rapid traverses of 30 m/min on the X-axis and 36 m/min on the Z-axis, with a high spindle speed up to 6000 rpm. Consider the opportunity to buy this DOOSAN LYNX 2100LYA horizontal turning machine. Contact us for more information about this machine.

This 7-axis DOOSAN Puma MX2600ST was manufactured in 2014, featuring a robust horizontal turning machine design. It includes a B-axis of +/-120 degrees, extensive X, Y, Z travels, and a bar capacity of 76mm. The machine is equipped with a FANUC 31i-Model B5 control, a 40 station tool changer, and a 22kW spindle motor. If you are looking to get high-quality turning capabilities consider the DOOSAN Puma MX2600ST machine we have for sale. Contact us for more information.

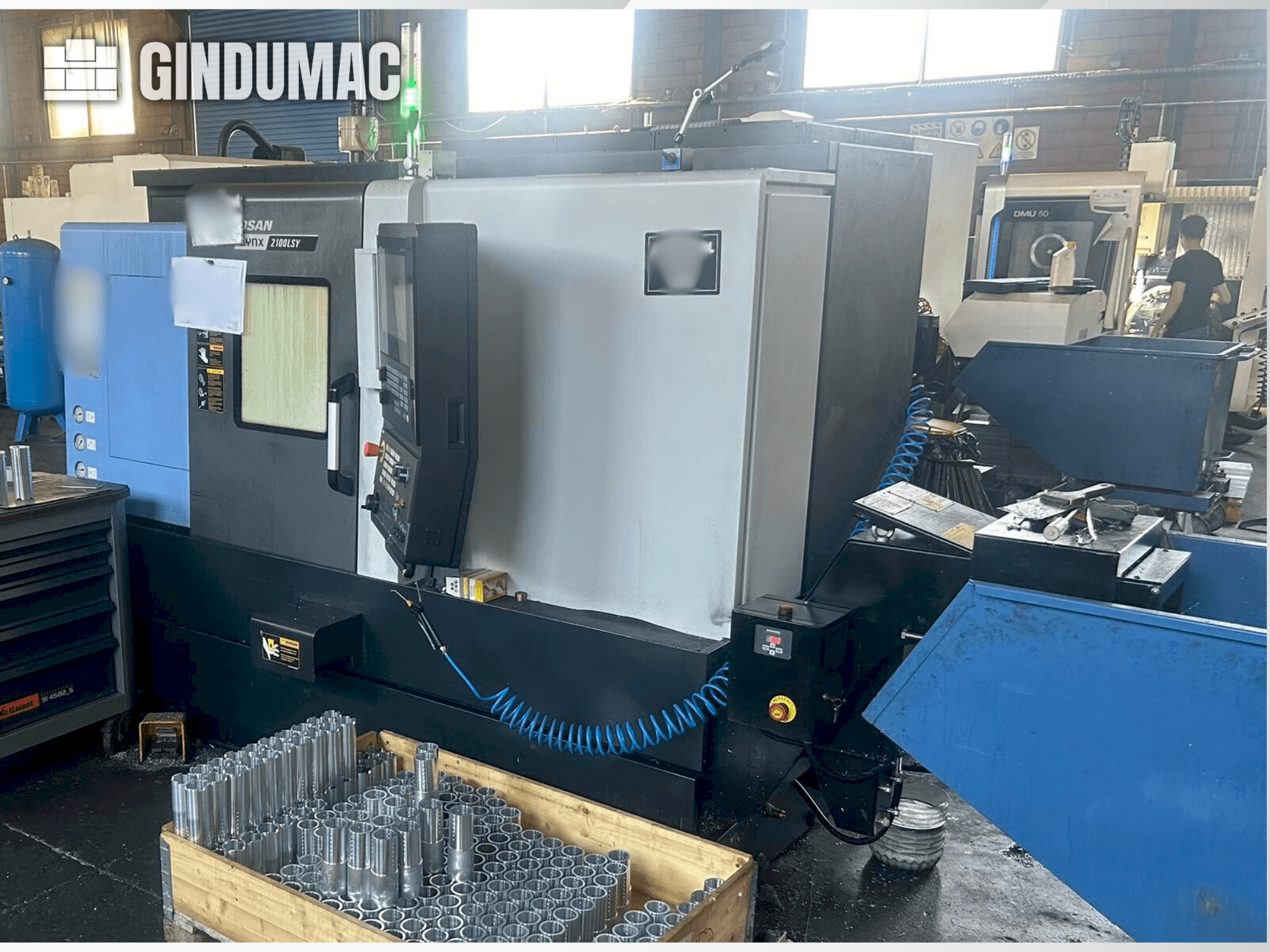

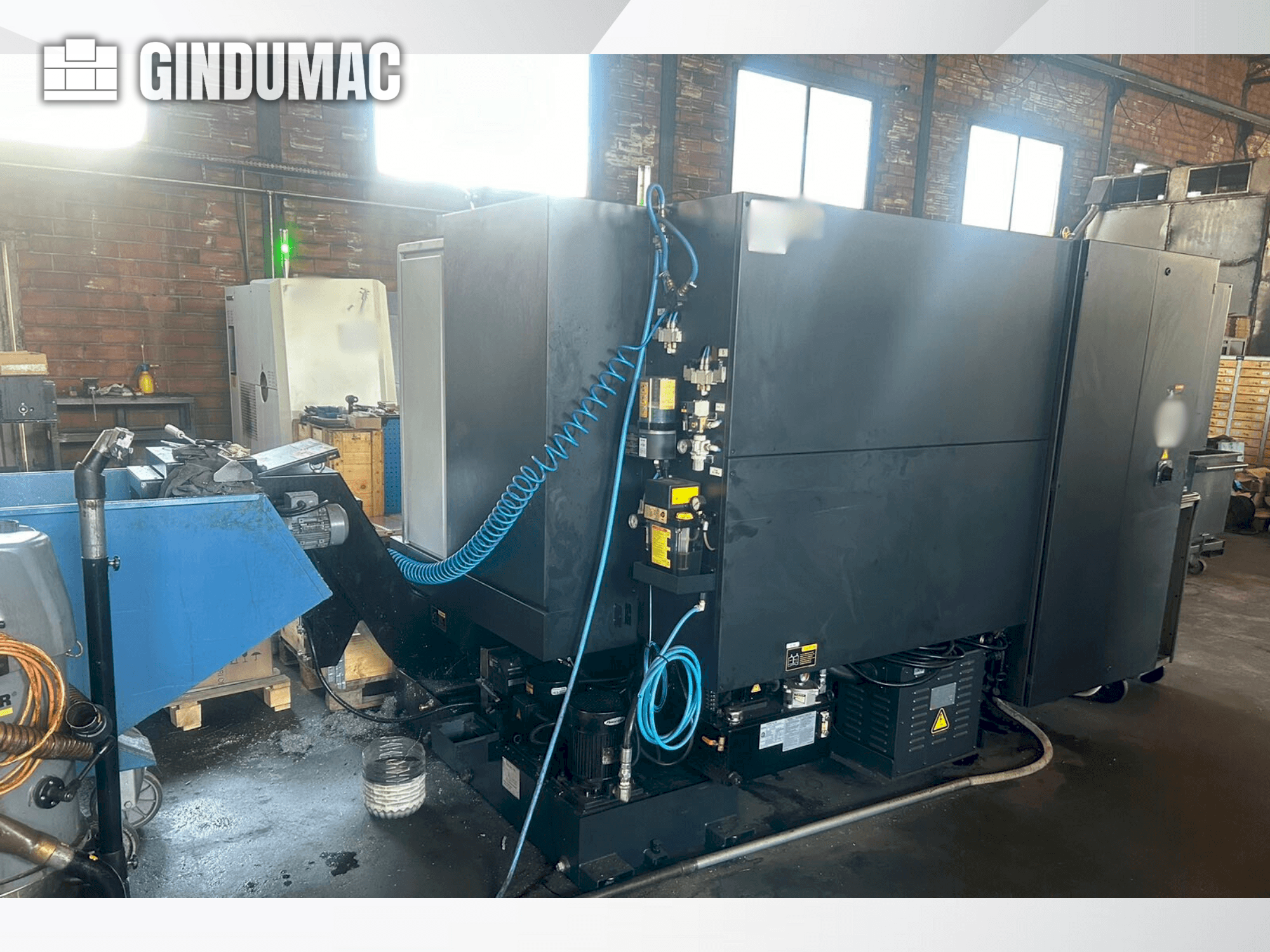

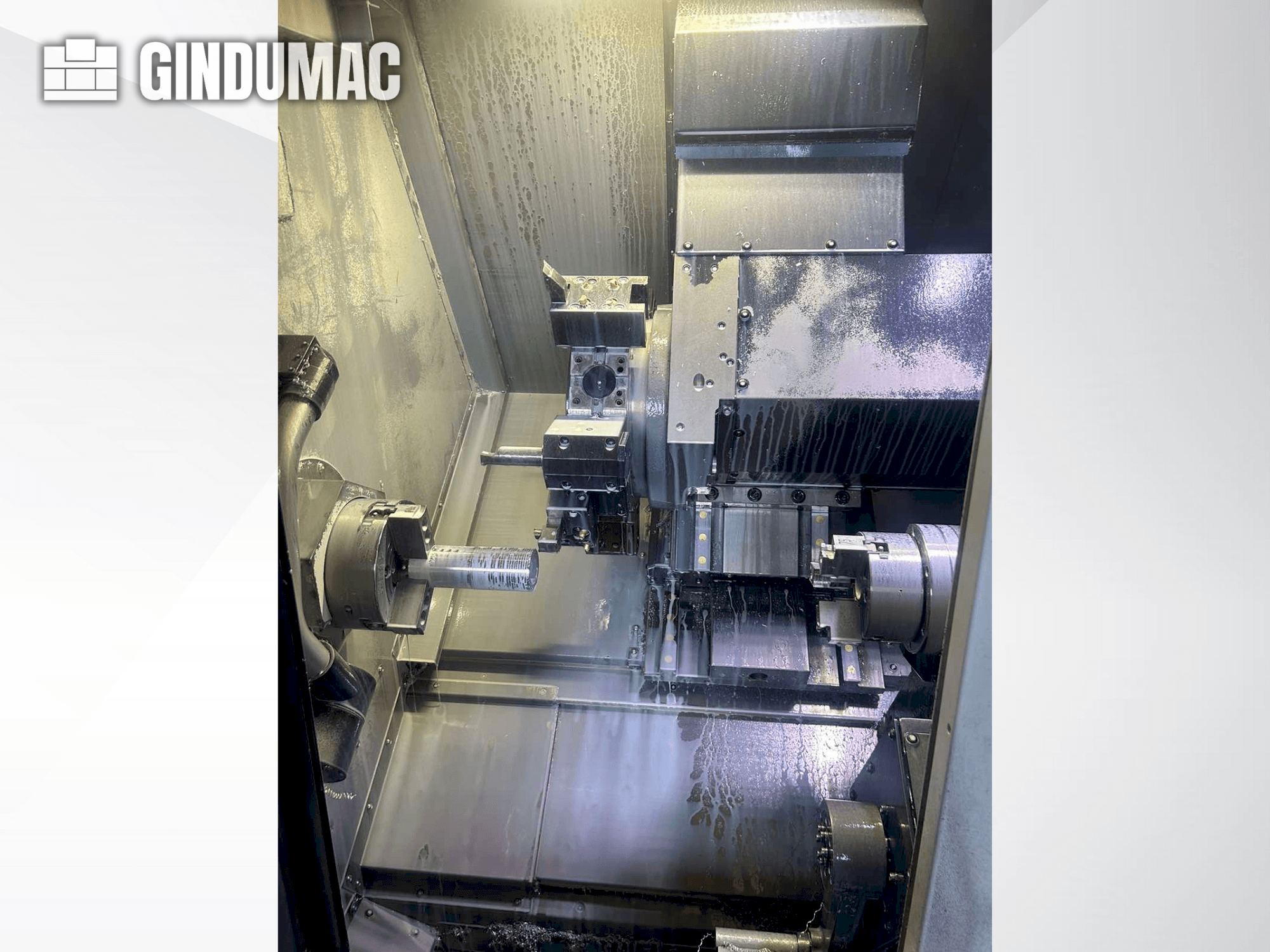

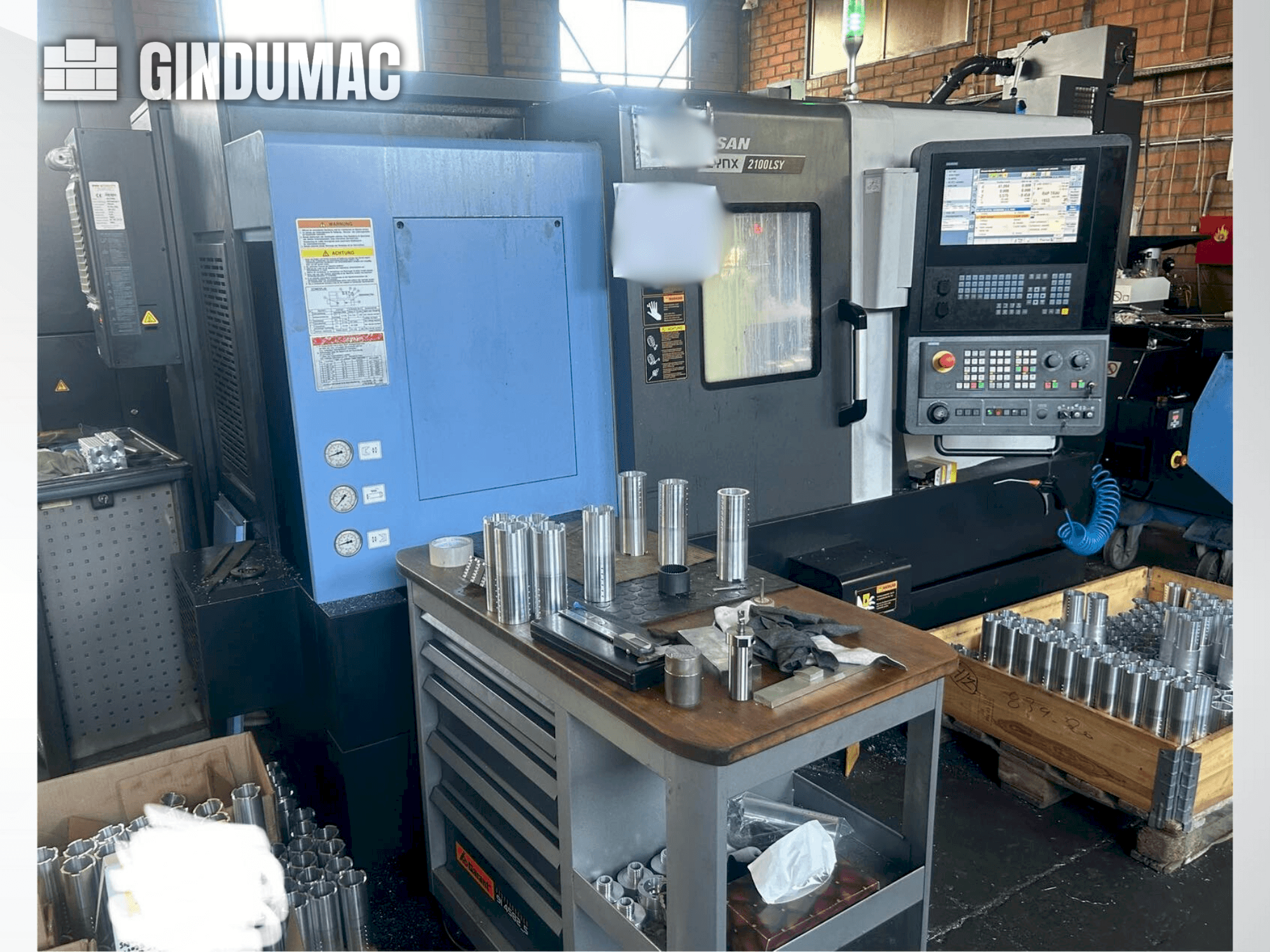

This 5-axis DOOSAN Lynx 2100LSYA lathe was manufactured in 2020. Featuring a SIEMENS SINUMERIK 828D control, it offers spindle speeds up to 6000 rpm and includes a sub-spindle for versatile operations. With a max turning diameter of 300 mm and length of 510 mm, it also has driven tools and rapid traverse rates up to 36 m/min. Consider this Doosan Lynx 2100LSYA lathe, ideal for advanced turning tasks. For more information, please reach out to us.

This DOOSAN PUMA 300 C horizontal turning machine was manufactured in 2006. It features a 12-inch chuck, a maximum turning diameter of 350 mm, and a maximum turning length of 760 mm. The spindle supports a speed of up to 3,500 rpm with a bar capacity of 76 mm. Ideal for precision turning, it also includes a servo indexing tool post with 12 tools. Contact us for more information about this machine.

This 6-axis DOOSAN Puma TT 2500 SY was manufactured in 2006. It is a multi-spindle turning machine featuring twin spindles and twin turrets, equipped with a Fanuc 18i-TB control. Key specifications include a maximum turning diameter of 330 mm, turning length up to 500 mm, and bar capacity of 76 mm. Main spindle speed reaches 3500 RPM, while the sub-spindle can go up to 6000 RPM. If you are looking to get high quality turning capabilities consider the DOOSAN Puma TT 2500 SY machine we have for sale. Contact us for more information.

Horizontal turning machine manufactured in 2016. This DOOSAN Puma 3100 ULY was designed for precision with a maximum turning length of 3,100 mm and a turning diameter of 420 mm. It features a tool turret with 12 positions and a spindle chuck diameter of 315 mm. If you are looking to get high-quality turning capabilities, consider the DOOSAN Puma 3100 ULY machine we have for sale. Contact us for further details.

This DOOSAN PUMA 4100 B horizontal turning machine was manufactured in 2019. It features a maximum turning diameter of 550 mm and a maximum turning length of 1,042 mm. With a spindle speed of 2,000 rpm and 10 tool stations, it offers efficient machining capabilities. If you are looking to get high-quality turning capabilities, consider the DOOSAN PUMA 4100 B machine we have for sale. Contact us for further details.

This 5-axis DOOSAN Puma MX2600ST turn-mill centre was manufactured in 2013. It features a maximum turning diameter of Ø 760 mm, part length up to 1540 mm, and bar capacity of Ø 76 mm. Equipped with a Fanuc 31i-A control, dual spindles with speeds up to 4000 rpm, and a milling spindle at 12,000 rpm. Includes a tool magazine with 80 positions and a swarf conveyor. Consider the opportunity to buy this DOOSAN Puma MX2600ST turn-mill centre. Contact us for more information.

This 3s DOOSAN PUMA 600LM was manufactured in 2007. It features a 45° inclined cast-iron bed and prismatic guideways with Rulon 142 antifriction material. The spindle offers a speed range of 15 – 1,800 rpm and a maximum torque of 9,025 Nm. With a bar capacity of 152 mm and continuous C-axis rotation, consider the opportunity to buy this DOOSAN PUMA 600LM horizontal turning machine. Contact us for further details.

Key data: 700 mm, 5050 mm

CNC Turning Milling Center Manufacturer: Doosan Type 700XLY ll Year of construction 11/20 IBN 2021 Control Fanuc iSeries Plus max. turning length 5050mm max. turning diameter 900mm 12-fold tool turret, all 12 of which are driven Full Y-axis and C-axis Switch-on hours approx. 25,000 on 22.05.25 Spindle hours approx. 5,000 on 22.05.25 Machine is in a very good condition. As accessories there are A large bezel SMW Three-jaw chuck 630mm Face Plate 800mm div. Powered Tools Various steel holders Accessories had cost 80,000 euros Machine is sold due to the poor order situation

This 4-axis DOOSAN H310T was manufactured in 2006. It features a maximum turning diameter of 310 mm and a turning length of 230 mm. The machine is equipped with twin spindles and twin turrets, allowing for efficient machining operations. With a spindle speed of up to 3,500 rpm and a robust construction, this CNC turning center is designed for high productivity. If you are looking to get high-quality turning capabilities, consider the DOOSAN H310T machine we have for sale. Contact us for further details.
