151 GILDEMEISTER satılık ikinci el makine

Turlama uzunluğu 450 mm Turlama çapı 210 mm C eksenli Mil borusu 52 mm Araç sayısı 12 Mil hızı 5000 rpm. Kontrolör Heidenhain Plus

Dönüş çapı 80 mm Çubuk çapı 20 mm İş mili hızı 10000 rpm X1, Y1, Z1, X2, Z2 eksenleri Denetleyici: Fanuc FANUC 160iB LNS çubuk besleyici

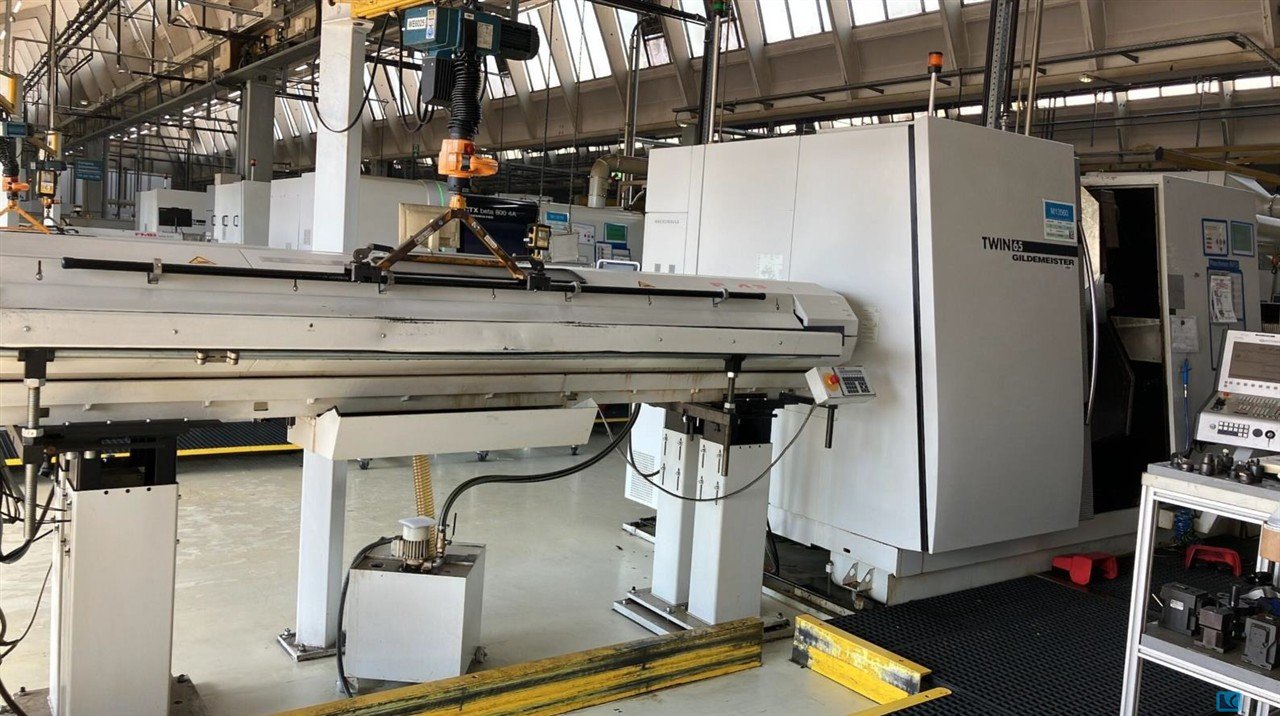

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:325 mm turning length:600 mm total power requirement:35 kW spindle drive:25 kW spindle turning speed range:5000 U/min speeds of tool:4500 U/min rapid traverse X-axis:60 m/min diverse toolholders:VDI 40 rapid traverse Z-axis:45 m/min weight of the machine ca.:6,5 t dimensions of the machine ca.:3,5 x 2,5 x 2,1 m Machine with SIEMENS 840 D control power line with shopturn - C and Y-axis, driven tools - bar loader IRCO ILS-RBK - coolant device with coolant throough revolving head - Revolver - counter spindle - chip conveyor - collet clamping - part catcher

turning diameter:145 mm turning length:210 mm total power requirement:40 kW swing diameter:145 mm Spindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mm greates pass round over bed:145 mm RPM Main Spindle:7.000 1/min number of workpiece supports:12 Shank diameter:25 mm C-axis RPM:2.000 1/min Chuck diameter spindle 1:140 mm Chuck diameter Spindle 2:140 mm Number of tools:12 fach St. Tool bore:VDI 25 Shank diameter:25 mm weight of the machine ca.:5.300 kg dimensions of the machine ca.:5.000 x 4.100 x 2.050 mm Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm ) Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm Vertical slide travel Y1: +/- 30mm Longitudinal spindle travel Z3: 380mm Clamping tube inner draw tube 46mm diameter Speed range main drive 1+2 up to 7,000 rpm Speed of driven tools up to 6,000 rpm Main and counter spindle collet chuck 1 axial ...

turning diameter:570 mm turning length:635 mm travel -x axis:220 mm travel -z axis:635 mm Torque:240 Nm feed::X: 20m/min; T: 24m/min disc turret:12 fach main spindle speeds::25-25.000 dimensions of the machine ca.:3210 x 1750 x 1750 mm weight of the machine ca.:5.300 t

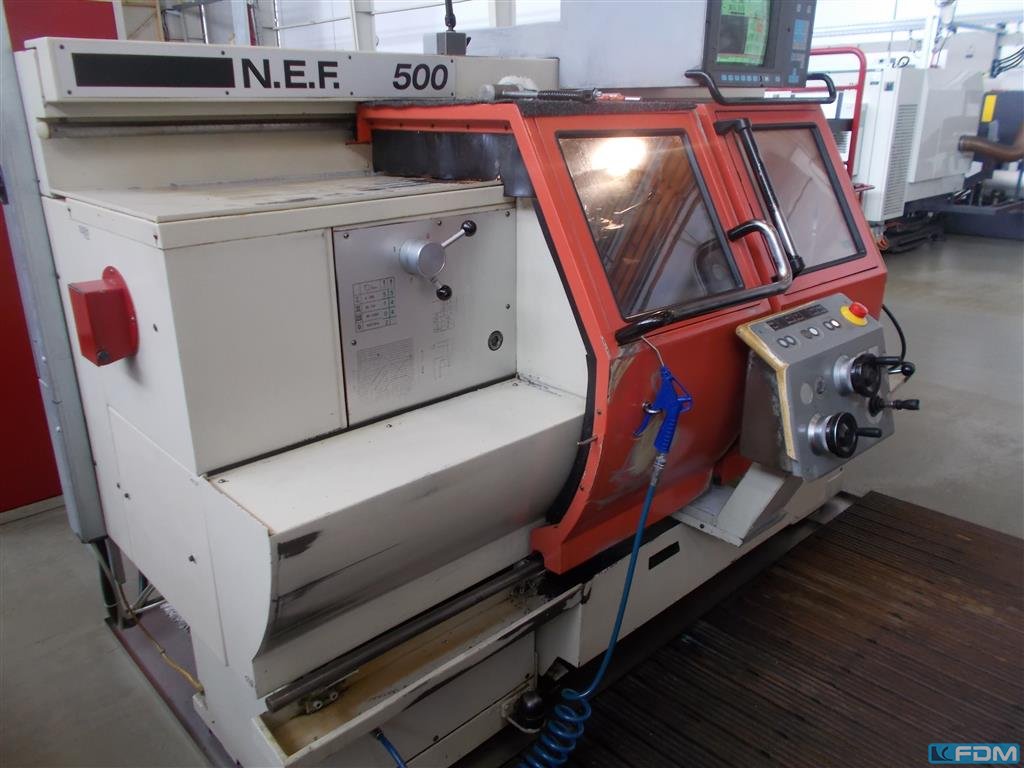

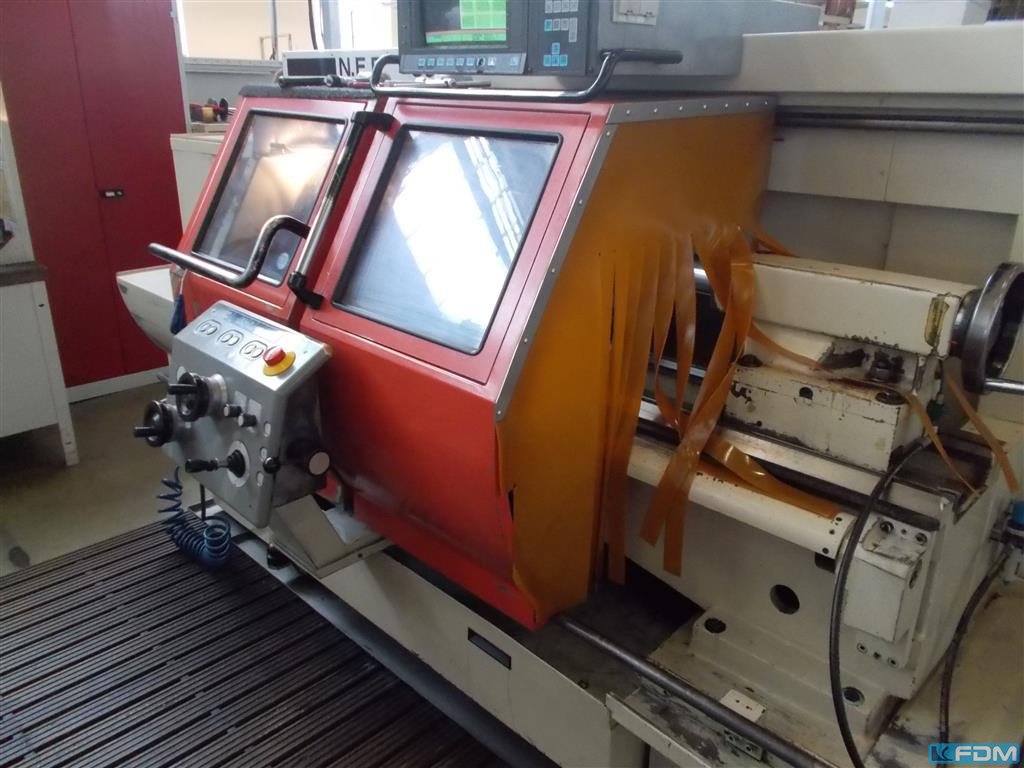

turning diameter:500 mm turning diameter over bed:500 mm turning dia. over base-slide:290 mm centre distance:1000 mm centre height:250 mm z-travel:1350 mm speeds:10 - 3000 U/min

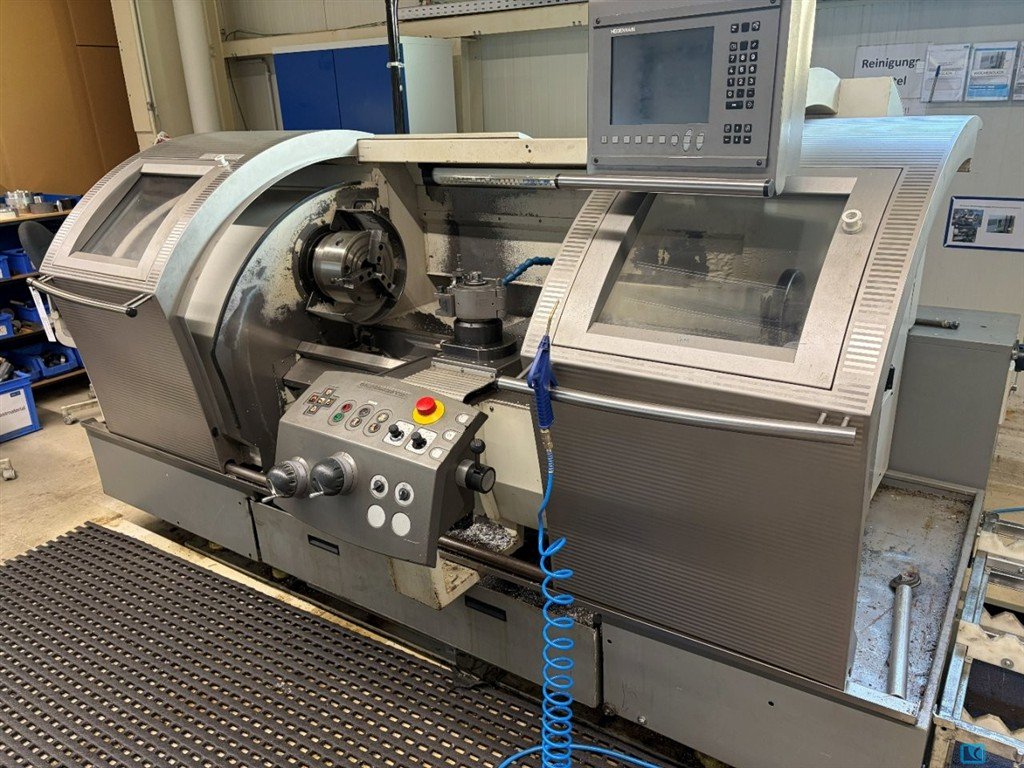

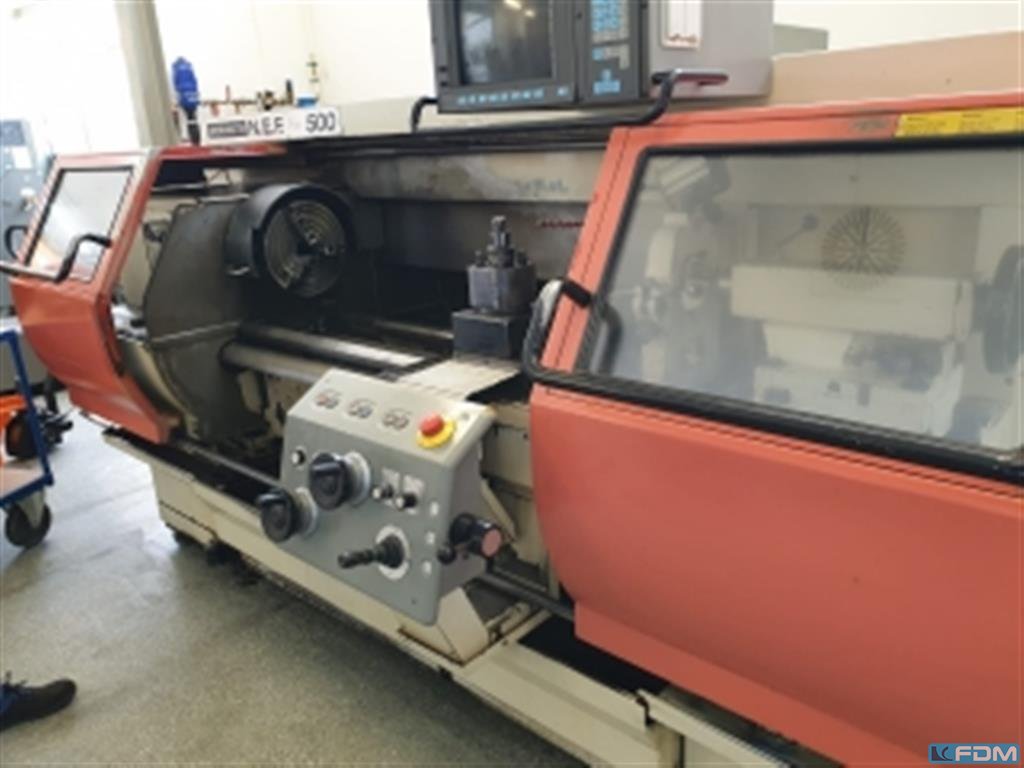

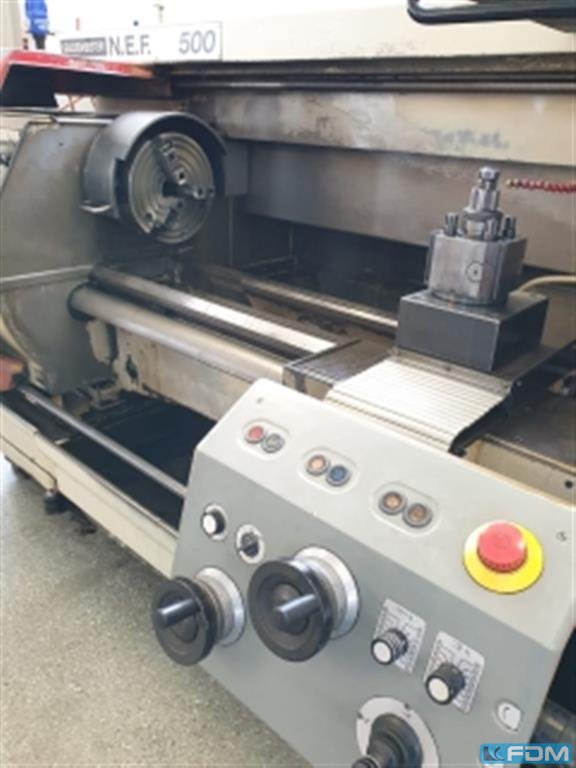

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5 Documents:vorhanden

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5

turning diameter: 16 mm spindle passage: 16 mm turning length: 160 mm control: GE FANUC Series 18 i-T spindle turning speed range: 8000 U/min rapid traverse: 30 m/min total power requirement: 2,2 kW weight of the machine ca.: 2,1 t Accessories: bar loader IEMCA, GENIUS 226-32 L, YOM 2002 (for bar dia. 2 - 26 mm and bar lengths 1500 - 3210 mm), chip conveyor, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

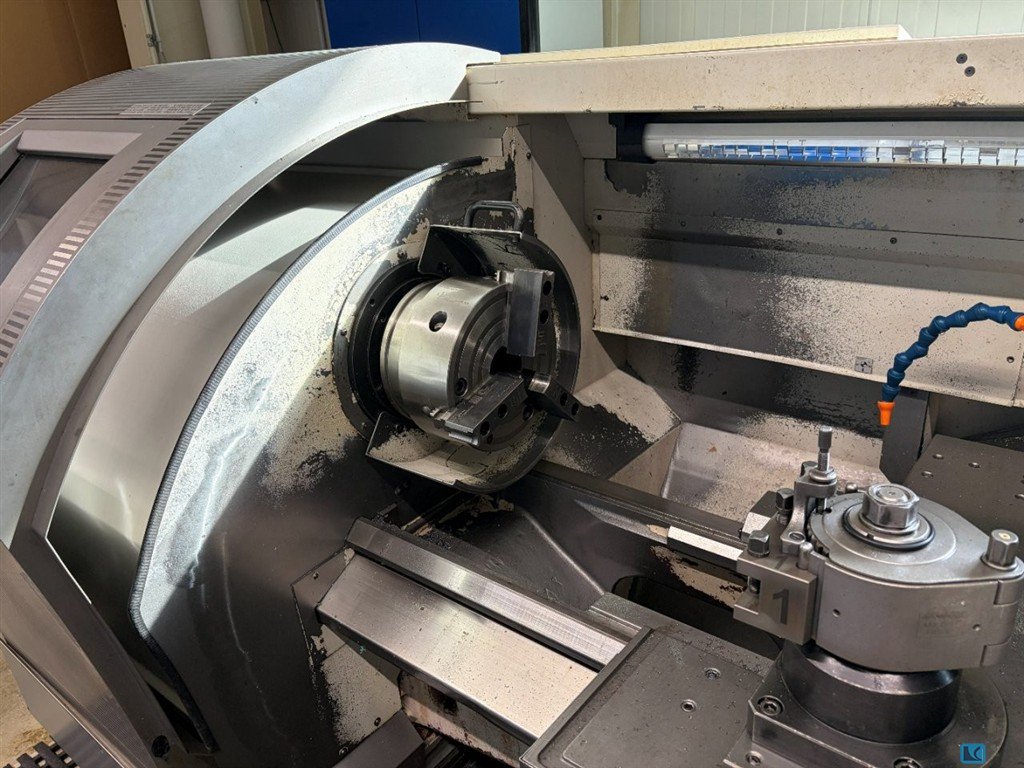

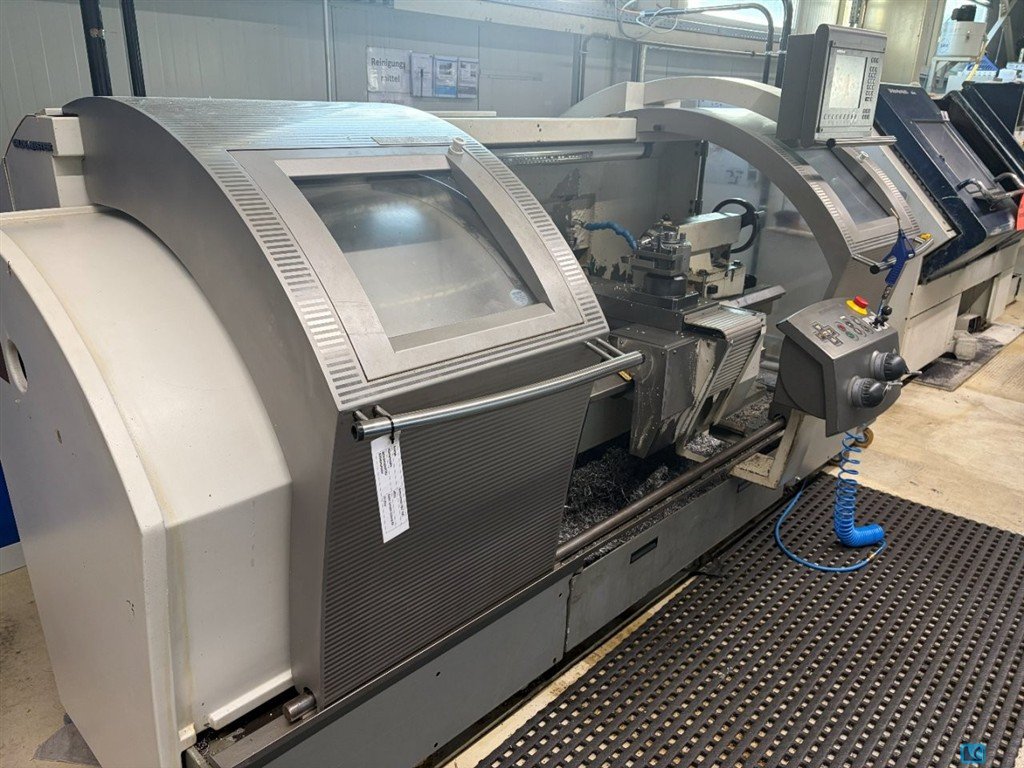

swing diameter max. over bed cover: 570 mm swing diameter over face slide: 420 mm control: Heidenhain CNC PILOT longitudinal stroke: 635 mm face stroke: 220 spindle bore: 79 mm centre distance: 1000 mm chucking diameter: 250 mm tailstock taper MT: 4 feed speed longitudal: 0,025-24.000 mm/min. feed speed face: 0,025-20.000 mm/min. power feed longitudinal: 7.000 N Feed Force Face: 3.500 N total power requirement: 44 weight of the machine ca.: 5,7 t dimensions of the machine ca.: 7,5 x 4,0 x 1,7 m Accessories: - 3 clamping jaws - various tool holders The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

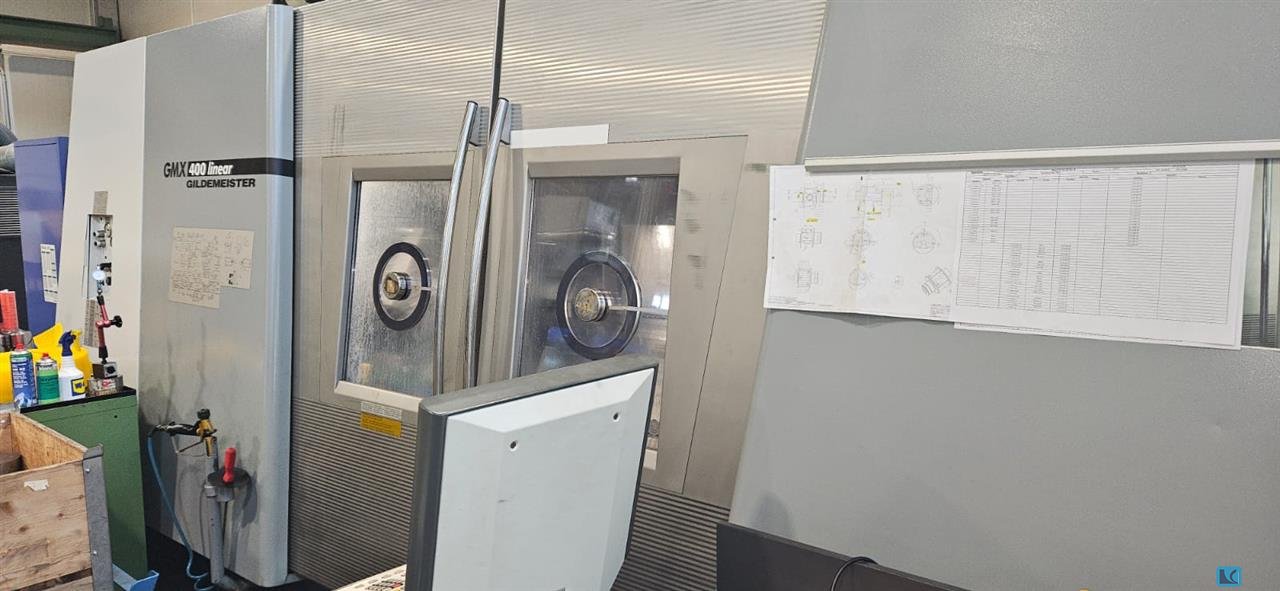

Manufacturer: Gildemeister Model: GMX 400 linear Year of Manufacture: 2007 Total Power Requirement: 100 kVA Voltage: 400 V Machine Weight: 24,000 kg Floor Space Required: 60 m2 Working Range - Centre height: 1,343 mm - Maximum turning diameter: 640 mm - Maximum turning length: 1,930 mm - Maximum turning length over bed: 550 / 180 mm - Slide travel longitudinal X1, X2: 1,585 / 1,400 / 1,500 mm - Slide travel vertical Y: plus/minus 110 mm - B-axis: plus/minus 120 degrees - Maximum circumference: 640 mm - Length of workpiece in crown area: not specified - Maximum workpiece weight: not specified Spindle Specifications - Spindle head flat flange DIN: Flachflansch - Spindle nose diameter front bearing: 220h5 mm - Spindle bore diameter: 107 mm - Spindle nose diameter: 150 mm - Max. chuck bore diameter in front bearing: 250 / 315 / 400 mm (internal taper) - Spindle speed HSP: 3,200 / 4 ...

turning diameter: 350 mm turning length: 650 mm control: 840 D SL ShopTurn Siemens greates pass round over bed: 385 mm Swing dia. over traverse guideway: 350 mm Main spindle:: turning speed range - main spindle: 0 - 4.500 min/-1 power capacity - main spindel: 11,5 / 8 kW max. Torque: 340 Nm spindle diameter in front bearing: 130 mm spindle bore: 87 mm bar material dia.: max. 65 mm max. chucking diameter: 250 mm spindle head: 170 h5 C-Axis: turret:: number of toolpositions: 12 pos. Shank diameter: DIN 69880: 30 mm Driven Tool Stations:: Number of driven toolspositions: 6 pos. Spindle speed - driven tool stations: max. 4.500 min -1 power capacity driven tool-stations: 5,5 kW axis stroke:: x-axis: 255 mm z-axis: 800 mm Tailstock:: tailstock: 680 mm taper of center: MK 4 clamping capacity: 6,8 kN feeds:: feed speeds: 0 - 30.000 mm/min rapid traverse ( X / Y / Z ): 30 / - / 30 m/min Fe ...

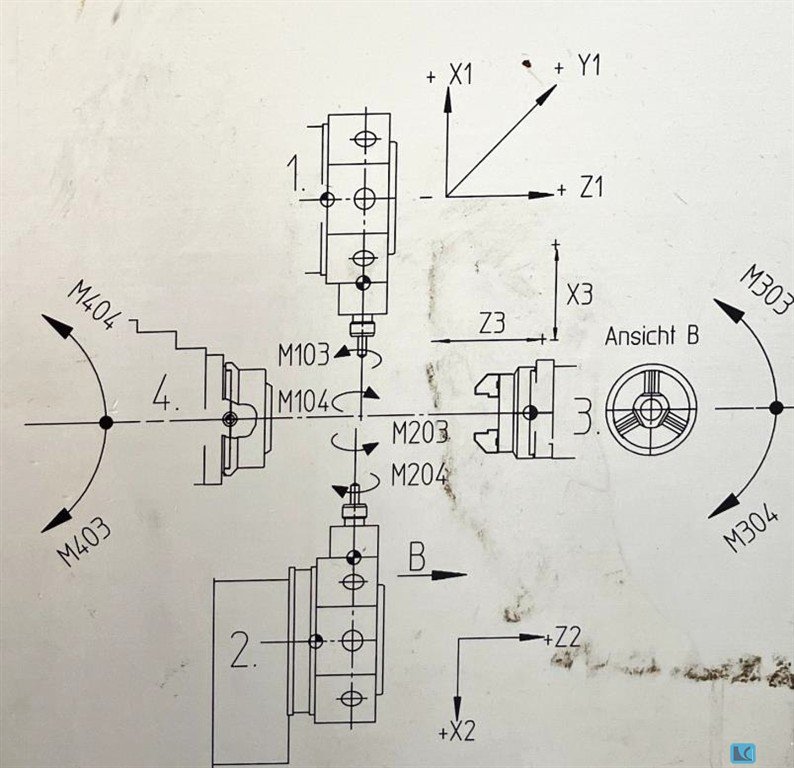

turning diameter: 100 mm turning length: 320 / 345 mm control: Siemens 840 D swing diameter: 145 mm spindle distance: 580 mm slide I:: slide I - cross travel: (X1) 220 mm slide I - longitudial travel: (Z1) 320 mm y-axis: +/- 30 mm rapid traverse: (X/Y/Z) 30/15/30 m/min slide II:: slide II - cross travel: (X2) 120 mm slide II - longitudial travel: (Z2) 345 mm rapid traverse: (X/Z) 30 m/min Subspindle:: Travel subspindle: (Z3) 380 mm vertical stroke: (X3) 145 mm bar material dia.: max. 36 mm rapid traverse: (X/Z) 20/30 m/min power capacity: (40/100 % ED) 26/21 kW spindle turning speed range: 40 - 7200 U/min total power requirement: 42 kVA weight of the machine ca.: 5,3 t dimensions of the machine ca.: m CNC turning and milling centre with Y-axis, 2 turrets, subspindle and bar feeder. A total of over 44,000 EUR has been invested in necessary repairs and maintenance over the last 5 years  ...

turning diameter: max. 400 mm turning length: 600 mm control: 840 D Siemens greates pass round over bed: 500 mm Swing dia. over traverse guideway: 300 mm centre distance: 615 mm Main spindle:: turning speed range - main spindle: 20 - 6.000 min/-1 power capacity - main spindel: 16 kW max. Torque: 155 Nm max. usable bar diameter: 65 mm spindle nose: 140H5 C-Axis: 0,001 ° Subspindel:: Spindle speed range subspindle: 20 - 6.000 min/-1 power capacity - Sub spindle: 7,5 kW max. Torque: 48 Nm spindle diameter in front bearing: 75 mm spindle bore: 37 mm max. usable bar diameter: ( - ) mm spindle nose: 140H5 C-Axis: 0,001 ° turret:: number of toolpositions: 12 pos. Number of driven toolspositions: 12 pos. Spindle speed - driven tools: max. 5.000 min -1 power capacity - driven tools: 3,7 kW max. Torque: 24 Nm tool taper: VDI 30 Tool dimensions with square shank: 20 x 20 mm axis stroke:: x-ax ...

uzunluk: 4000 mm genişlik: 1800 mm yükseklik: 1800 mm: 5000 x-seyahat: 600 mm kuyruk dip: ja tool adaptörü: VDI 30 makinenin ağırlığı ca.: 5,3 tBu reklamın verileri, LogoTech oHG'nin yazılım çözümü ModulMWS ile oluşturulmuştur.

turning diameter: 640 mm turning length: 1.185 mm control: SINUMERIK 840D swing diameter: 640 mm distance of spindle heads: 1500 mm slide I:: X1 / Y1 / Z1 / B slide travel X-axis: 550 mm slide travel Z-axis: 180 mm Z- Travel: 1.185 mm B - axis: 240 ° feed x-axis: 0 - 40.000 mm/min feed y- axis: 1 - 24.000 mm/min Feed z- axis: 1 - 70.000 mm/min feed B-axis: 1 - 20 1/min rapid traverse X/Y/Z: 40 / 24 / 70 m/min feed capacity X/Y/Z: S6: 7,00/11,00/7,50 kN tool taper: HSK 63 turning speed milling-spindle: 10 - 12.000 1/min power capacity at 100 % load: 13,20 kW power capacity at 40 % load: 22,00 kW torque milling spindle: 60 / 100 Nm tool magazin:: no. of workpieces in the magazine: 46 Stück tool length - max.: 350 / 200 mm tool diameter: 80 mm wotkpiece diameter with 2 vacant positions: 120 mm weight of tools max.: 6 / 10 kg slide II:: X2 / Z2 slide travel X-axis: 180 mm Z- Travel: 1.050 ...

Dönüş çapı: 246 mmDönüş uzunluğu: 445 mmkontrol: Fanuc 32 toplam güç gereksinimi: kWMakinenin ağırlığı yaklaşık: 4250 kgMakinenin boyutları yaklaşık: mBu ilanın verileri, LogoTech oHG'nin yazılım çözümü olan ModulMWS ile oluşturulmuştur.

turning diameter: 320 mm turning length: . mm control: Siemens type: . CCUO turning diameter over slide rest: . mm cross movement: . mm spindle passage: . mm turning speeds: . U/min transmission ratio: . quill stroke: . mm rapid traverse: . m/min main drive motor: . kW 3-jaw-chuck diameter: . mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appoin ...

turning diameter: . mm turning length: . mm control: . type: . CCUO turning diameter over slide rest: . mm cross movement: . mm spindle passage: . mm turning speeds: . U/min transmission ratio: . quill stroke: . mm rapid traverse: . m/min main drive motor: . kW 3-jaw-chuck diameter: . mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment.  ...

CNC Kontrolü, Sayısal Kontrol, GILDEMEISTER GDM 65/2AGILDEMEISTER Type Eltropilot EP20 GD-2AB1989 Yılım: 150 299Ser. No.: 0.854.183Güç kaynağı: 220 VAC 50 Hz20 modül boşluklu raf - 11 dahili modülBoyutlar G x Y x D 480x 260 x 220 mmAğırlık yaklaşık 7 kgKontrol, bir torna tezgahı olan Gildemeister GDM 42/2A'dan gelir. Gildemeister'ın diğer bileşenleri stok numaralarında bulunabilir: 60343, 60346, 60347; kullanılmı�

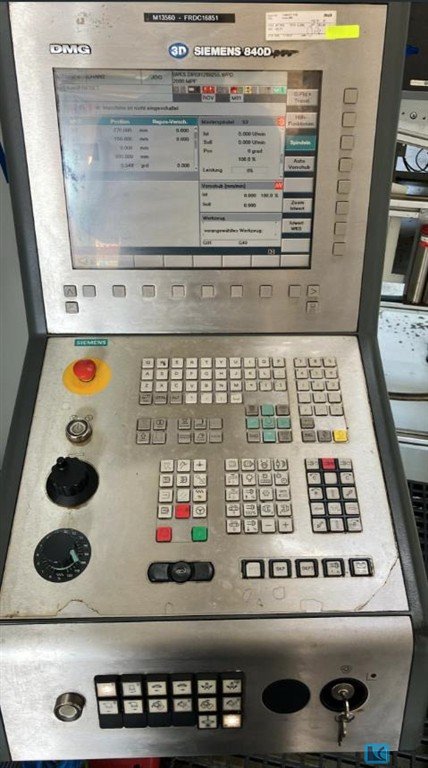

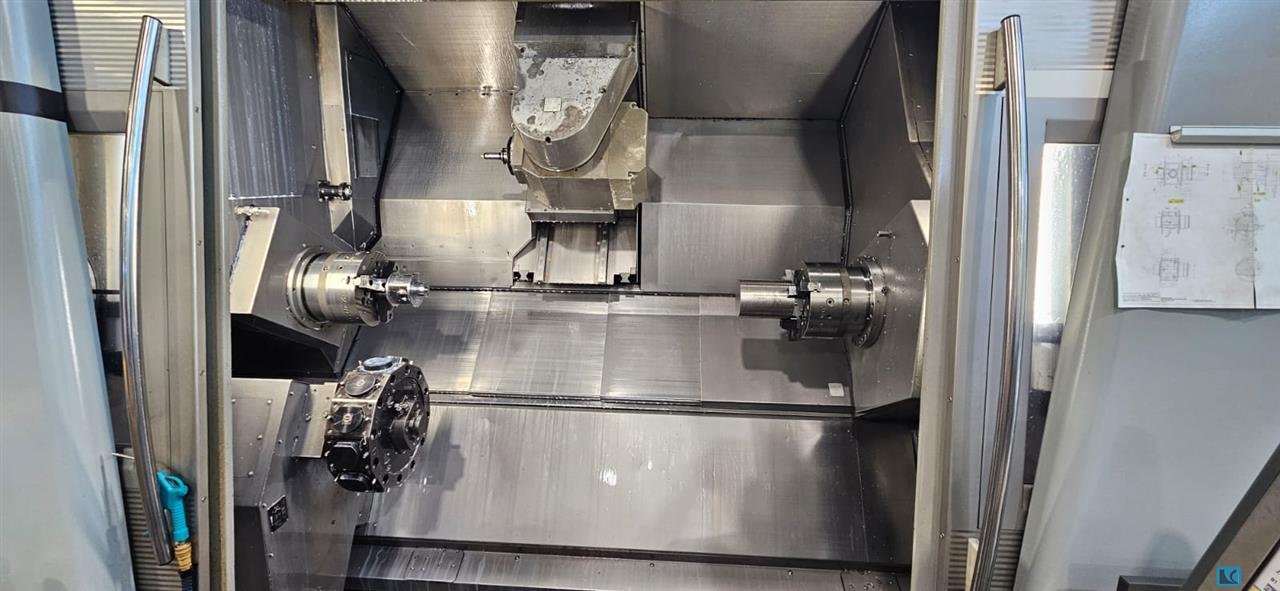

DMG GMX 300 linear year 2008. GMX 300 LINEAR with turning length 1585 mm (tailstock 1500mm) control: Siemens 840D Powerline Hours in picture The DMG GMX 300 Linear is a high-performance machine tool designed for complex turning and milling tasks, often used in industries such as aerospace, automotive, and precision engineering. Here are the key features and specifications for a 2008 model: Key Features: - Type: The GMX 300 Linear is a turn-mill machine, which combines both turning and milling operations in one setup, improving efficiency and reducing setup times. - Linear Motors: Equipped with linear motors for high-speed movements, which provide increased precision, dynamic performance, and reduced wear compared to traditional ball screw systems. - Axes: It usually offers multiple axes (up to 9), enabling simultaneous multi-axis machining for producing complex parts in a single se ...

DMG GMX 300 linear year 2008. GMX 300 LINEAR with turning length 1585 mm (tailstock 1500mm) control: Siemens 840D Powerline Hours in picture The DMG GMX 300 Linear is a high-performance machine tool designed for complex turning and milling tasks, often used in industries such as aerospace, automotive, and precision engineering. Here are the key features and specifications for a 2008 model: Key Features: - Type: The GMX 300 Linear is a turn-mill machine, which combines both turning and milling operations in one setup, improving efficiency and reducing setup times. - Linear Motors: Equipped with linear motors for high-speed movements, which provide increased precision, dynamic performance, and reduced wear compared to traditional ball screw systems. - Axes: It usually offers multiple axes (up to 9), enabling simultaneous multi-axis machining for producing complex parts in a single se ...

Bu Gildemeister Sprint 20-8 2010 yılında üretilmiştir. 600l kapasiteli ve 50μm filtreli soğutma sistemi ile 8 veya 20 bar yüksek basınçlı pompa seçeneği de bulunmaktadır. Makine, Bristol B270/E yağ sisi ayırıcısı ve 3m bar için IEMCA Boss 332E bar yükleyici içerir. 1.250mm çip deşarj yüksekliğiyle verimli çalışma için tasarlanmıştır. Bu makine hakkında daha fazla bilgi için bizimle iletişime geçin.

dönüş çapı: 200 mm dönüş uzunluğu: 635 mm kontrol: SIEMENS 840D Powerline harikalar yatağın üzerinden geçer: 250 mm iş mili dönüş hızı aralığı: 20-7000 U/dak taret kafası: 2x 12 makinenin ağırlığı ca.: 10 t Y ve B eksenleri Çeşitli aksesuarlar daha fazla bilgi

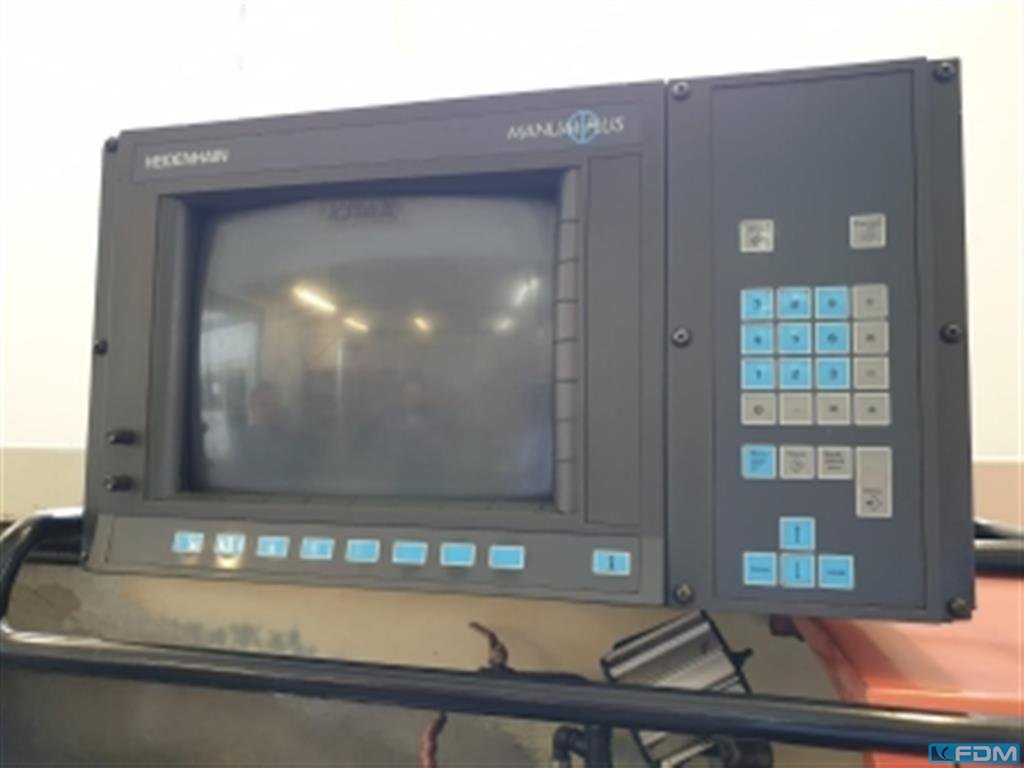

dönüş çapı: 212 mm dönüş uzunluğu: 750 mm kontrol: HEIDENHAIN Manual Plus iş mili dönüş hızı - kademesiz: 10-4000 U/dak taret kafası: 8 Makinenin istasyon ağırlığı yaklaşık: 2 t makinenin boyutları ca.: 2.85 x 1.65 x 1.80 m
