17 GERICKE satılık ikinci el makine

Kontrol tarama makinesi GERICKE Ekran sepeti yaklaşık ø ø 190 x 580 mm, kayış tahriki SPZ125-2 TL : SPZ 190-2 TL Rotor n=930 rpm, çıkış ø 245 mm ve 145 mm Ağ boyutundaki naylon ekran: 3 mm Yenilenmiş ve kullanıma hazır

Mikro Besleyici Gericke GLD 86 Karıştırıcı 0,03 kw - 16,5 rpm, burgu 0.08kw -210rpm, Kontrol

Dozaj

- > toz ölçeği.

Hacim : 1200 ltr. Malzeme : paslanmaz çelik ürünle temas eden alanlar; - > mikser taban çerçevesine monte edilmiştir.

Paslanmaz çelik versiyonda hassas spiral vidalı besleyicili, ön konteynerli ve tartım çerçevesi çerçeveli, oluk boyutları: 540 mm uzunluğunda x 370 mm genişliğinde x 320 mm yüksekliğinde, olukta büyük gevşetme spirali ile, triger kayışı ve redüksiyon dişlisi ile 0,47 kW tahrik terazisi, tahliye borusu çapı: 50 mm.

Tip: VGL 5000. 5.000 l. Net kapasiteli, silindirik karıştırma tankı ve konik alt parçalı, dikey orta vidalı, dağıtım kolu ve güç hattı ayarlayıcılı, cep filtresi için dikdörtgen nozullu, rögarlı, hava yıkamalı alt vidalı rulman, çıkışta pnömatik düz kaydırıcılı normal çelik versiyonda iki akışlı karıştırıcı.

Gericke CSM santrifüj döner elek Paslanmaz çelik Yıl 1998 CM 215009

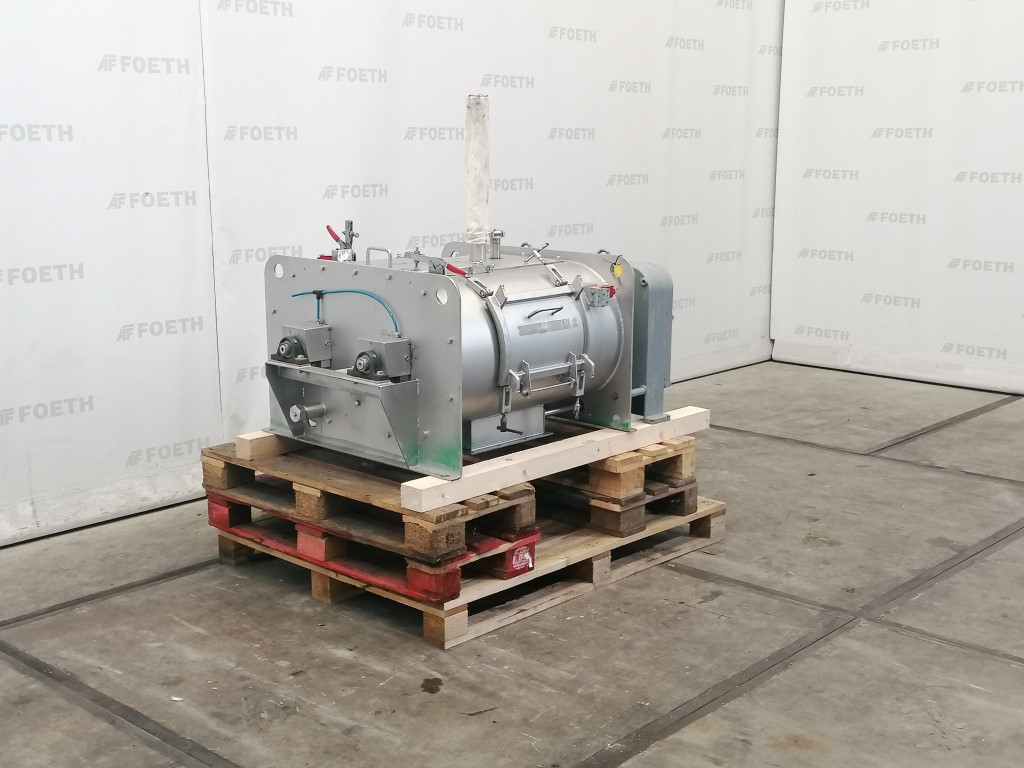

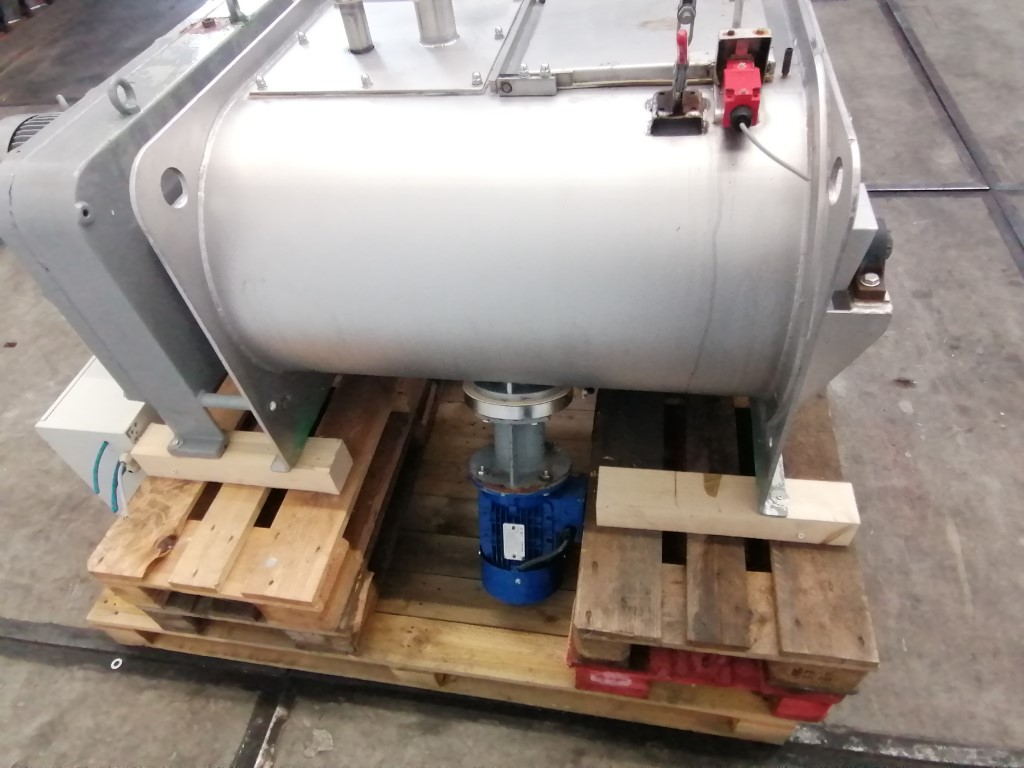

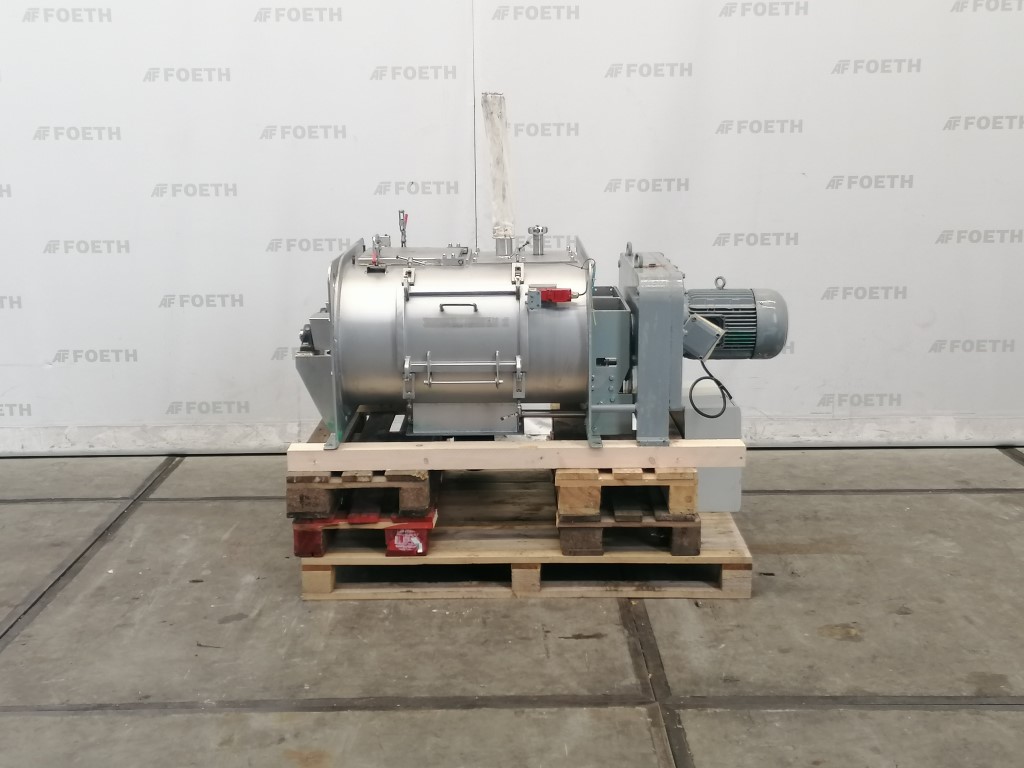

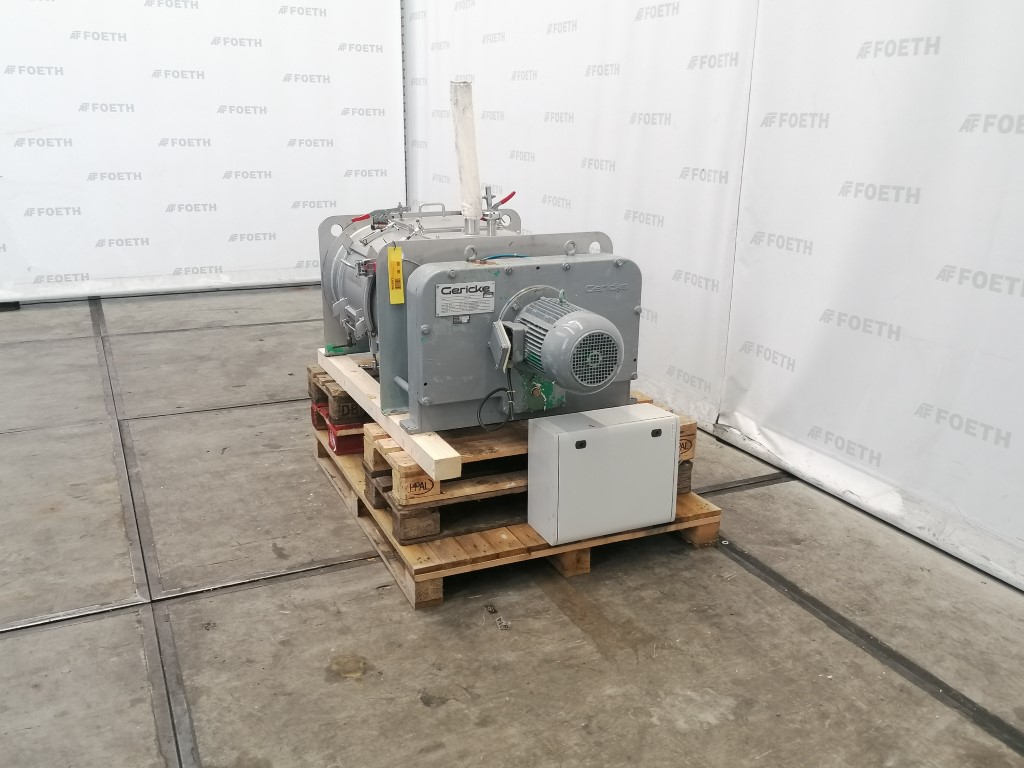

General SKU326S596 MakeGericke LocationBarneveld TypeGMS 300 Main Features MaterialStainless steel Volume240 Ltr. Motor4 KW Specified Features - Powder turbo mixer MaterialStainless steel Powder turbo mixers Paddle mixercheck Powder turbo mixercheck Capacity300 ltr. Useful capacity240 ltr. Trough sizes840x870x470mm Inlet305x310mm Top connectionsdia. 35mm (1x) Inspection hatch400x240mm Outlet300x100mm Glands air purgedcheck Motor4 kW 380 Volt With lump breakercheck Motor2,2 kW 230-240/400-415 Volt Speed lumpbreaker2772 rpm Information No.1005 Year of construction1991 Floorspace1,8x1,2 M Total height1,6 M Weight900 KgCatalysts & fillersFeed additivesPowder turbo mixersOther pharmaceuticsCosmeticsFood additivesSugarAnimal feedOther feedConfectionerySolid pharmaceuticsDyes & pigmentsMinerals & inorganicSpicesOther chemicalStarchTea, herbs & coffeeGeneric medic ...

General SKU223Y097 MakeGericke / Azo Magento base g_extra_specificationsWith hopper and control cabinet (frequency inverter inside). Main Features MaterialStainless steel Motor0.21 KW Inlet diameter160 mm Specified Features - Metering screw MaterialStainless steel 1.4301 (304) Metering screws Metering screwcheck Screw diameter2x 25 mm Screw length350 mm With hoppercheck Hopper sizes800 x 800 x 500 mm Inlet160 x 160 mm Outletø 90 mm With motor0,12 kW (400 V, 1300 rpm) Screw speed53 rpm With breaking/mixing shaftcheck Motor0,09 kW (400 V 1300/17 rpm) Information Mounted on framecheck LocationBarneveld With switchgearcheck (as is) Floorspace0,80 x 0,80 m Total height1,25 m Weight120 kg CEcheckMetering screwsGerickeDosing units > Metering screwsBrand > Gericke What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to  ...

General SKU292N353 MakeGericke ag LocationBarneveld Main Features MaterialStainless steel Specified Features - Silo Silocheck Closedcheck Diameter1000mm Cylindrical height1300mm Conical height800mm Flat topcheck Inlettangential (1x)80mm,( 1x)120mm Top connectionsts systemfilter 1194 0997/2 OutletGericke RA 550, dia 200mm MaterialStainless steel Information Floorspace1,4x1,4 M Total height3,2 M Weight500 KGSilosGerickeTanks > SilosBrand > Gericke What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherlands. Please visit us in Barneveld for many more machines!

General SKU276P416 MakeGericke (CH) Type50 No.2003 Year of construction1992 LocationBarneveld Pressure Working pressure3.9 Bar Main Features MaterialStainless steel Volume50 Ltr. Pressure3.9 Bar Specified Features - Pneumatic conveying system MaterialStainless steel 1.4571 (316Ti) Pneumatic air conveying systems Capacity50 Ltr Dished topcheck Dished bottomcheck Top connectionshopper (D600xd180xh700mm) with butterfly valve with actuator Outletdia.50mm, (butterfly halve with actuator) Max. temperature80 degr.C Information Mounted on consolesmobile Floorspace1,2x0,8 M Total height2,0 M Weight220 KGPneumatic conveying systemsGerickeConveying systems > Pneumatic conveying systemsBrand > Gericke What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome ...

General SKU276P412 MakeGericke (CH) TypePTA 20 No.20.3032 Year of construction2004 LocationBarneveld Pressure Working pressure3.9 Bar Main Features MaterialStainless steel Volume20 Ltr. Pressure3.9 Bar Specified Features - Pneumatic conveying system MaterialStainless steel 1.4571 (316Ti) Pneumatic air conveying systems Capacity20 Ltr Dished topcheck Dished bottomcheck Top connectionsCone valve DN200 with actuator Outletdia.50mm (butterfly valve with actuator) Information Mounted on consolesmobile With switchgearcheck Floorspace1,2x1,0 M Total height1,3 M Weight170 KGPneumatic conveying systemsGerickeConveying systems > Pneumatic conveying systemsBrand > Gericke What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Ba ...

General SKU276P418 MakeGericke (CH) Type50 No.50.3012 Year of construction2004 LocationBarneveld Pressure Working pressure3.9 Bar Main Features MaterialStainless steel Volume50 Ltr. Pressure3.9 Bar Specified Features - Pneumatic conveying system MaterialStainless steel 1.4571 (316Ti) Pneumatic air conveying systems Capacity50 Ltr Dished topcheck Dished bottomcheck Top connectionshopper (D500xd180xh450mm) Outletdia.50mm, with butterfly valve and actuator Max. temperature80 degr.C. Information Mounted on consolesmobile With switchgearcheck Floorspace1,9x1,0 M Total height1,5 M Weight250 KGPneumatic conveying systemsGerickeConveying systems > Pneumatic conveying systemsBrand > Gericke What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to ins ...

General SKU276P415 MakeGericke (CH) Type50 No.50.2154 Year of construction2002 LocationBarneveld Pressure Working pressure3.9 Bar Main Features MaterialStainless steel Volume50 Ltr. Pressure3.9 Bar Specified Features - Pneumatic conveying system MaterialStainless steel 1.4541 (321) Pneumatic air conveying systems Capacity50 Ltr Dished topcheck Dished bottomcheck Top connectionshopper (D500xd180xh700mm), with butterfly valve and actuator Outletdia.50mm, with butterfly valve and actuator Information Mounted on consolesmobile Floorspace1,1x0,8 M Total height1,8 M Weight220 KGPneumatic conveying systemsGerickeConveying systems > Pneumatic conveying systemsBrand > Gericke What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine  ...

General SKU292N352 LocationBarneveld MakeGericke ag Main Features MaterialStainless steel Specified Features - Silo MaterialStainless steel Silocheck Closedcheck Diameter1000mm Cylindrical height1500mm Conical height800mm Flat topcheck Inlettangential, (1x) 80mm Top connectionssystemfilter 4206 0306/10-2 OutletGericke RA 550, dia.200mm Information Mounted on framecheck Floorspace1,3x1,3 M Total height3,2 M Weight500 KGSilosGerickeTanks > SilosBrand > Gericke What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherlands. Please visit us in Barneveld for many more machines!

General SKU316S537 LocationBarneveld MakeGericke Typeingredënten dosering Main Features MaterialStainless steel Motor0.55 KW Inlet diameter250 mm Specified Features - Metering screw MaterialStainless steel 1.4571 (316Ti) Metering screws Metering screwcheck Screw diameter85 Pitch85 Shaft diameter21 Screw length600mm With hoppercheck InletDia: 250mm(2x), Dia: 100mm, 150x150mm OutletDia 145 and 100mm (3x) With motor0,55kW, 400Volt, 1400rpm Screw speed10,5-104 rpm Information Year of construction2010 Mounted on framecheck Floorspace2,3x2,1m Total height3,1m CEcheck Weight1000kg Extra Specificationsfitted with Gericke DBW-300 metering belt specifications: length: 1800mm width: 300mm this dosing unit includes 3 dosing screws: #1 Screw Dia: 85mm pitch: 85mm Length:600 with ribbon mixer:± 165mmx75, Length :250mm #2 screw Dia: 40mm pitch: 30mm length:600mm with rib ...
