Pencere üretimi için açısal sistemler WEINIG Unicotrol 6
ahşap çalışma makineleri / pencere üretim makineleri / Pencere üretimi için açısal sistemler
Window system WEINIG, Unicontrol 6, S/N 035-823, built in 1997 TECHNICAL DATA: Pneum cross-cut saw. clocked (3 KW) with laser directional light Slotted spindle 50 x 320 mm for 4 tools of 80 mm each - motor 11 KW Synchronous spindle 50 x 120 mm - motor 7.5 KW Longitudinal profiling ...
Üretici: WEINIG
model:Unicotrol 6
Makine türü: Pencere üretimi için açısal sistemler
madde-No: 169268863
miktar: 1
tarih: 04.04.2026
Üretim yılı: 1997
yer:
Almanya
37120 Bovenden
fiyat: 13,500 EUR
Stoktaki makine:evet

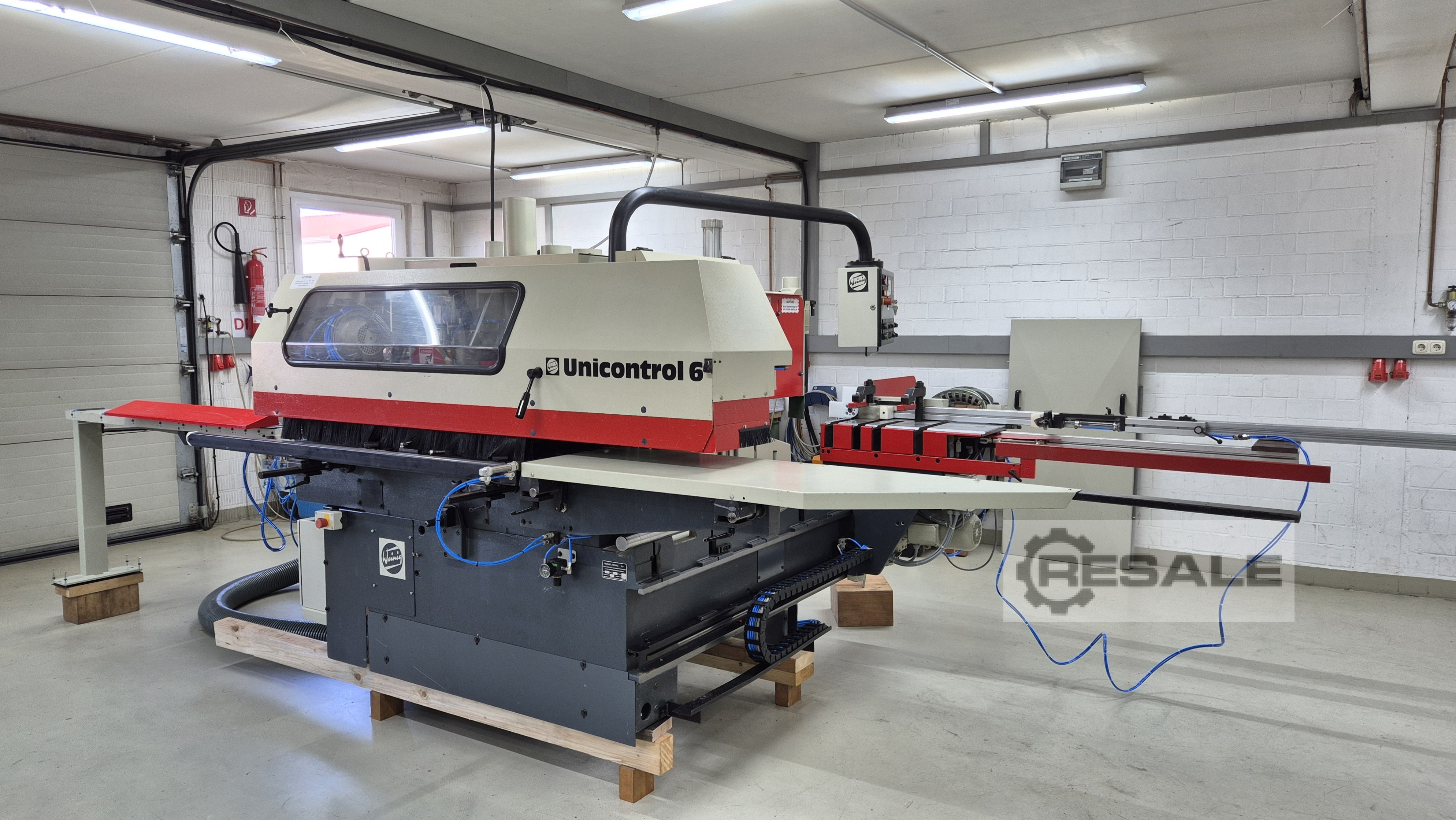

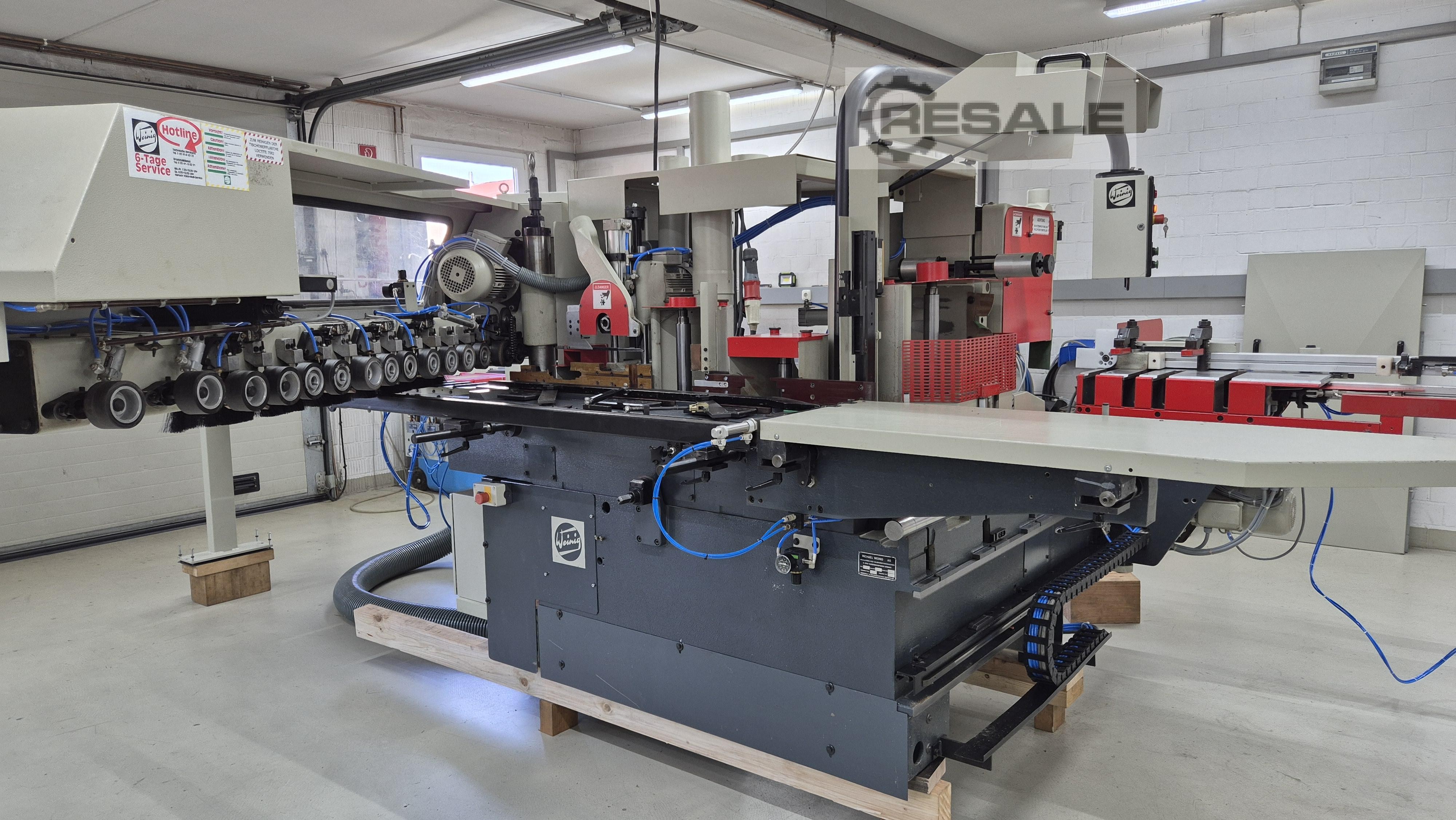

Window system WEINIG, Unicontrol 6, S/N 035-823, built in 1997
TECHNICAL DATA:
Pneum cross-cut saw. clocked (3 KW) with laser directional light

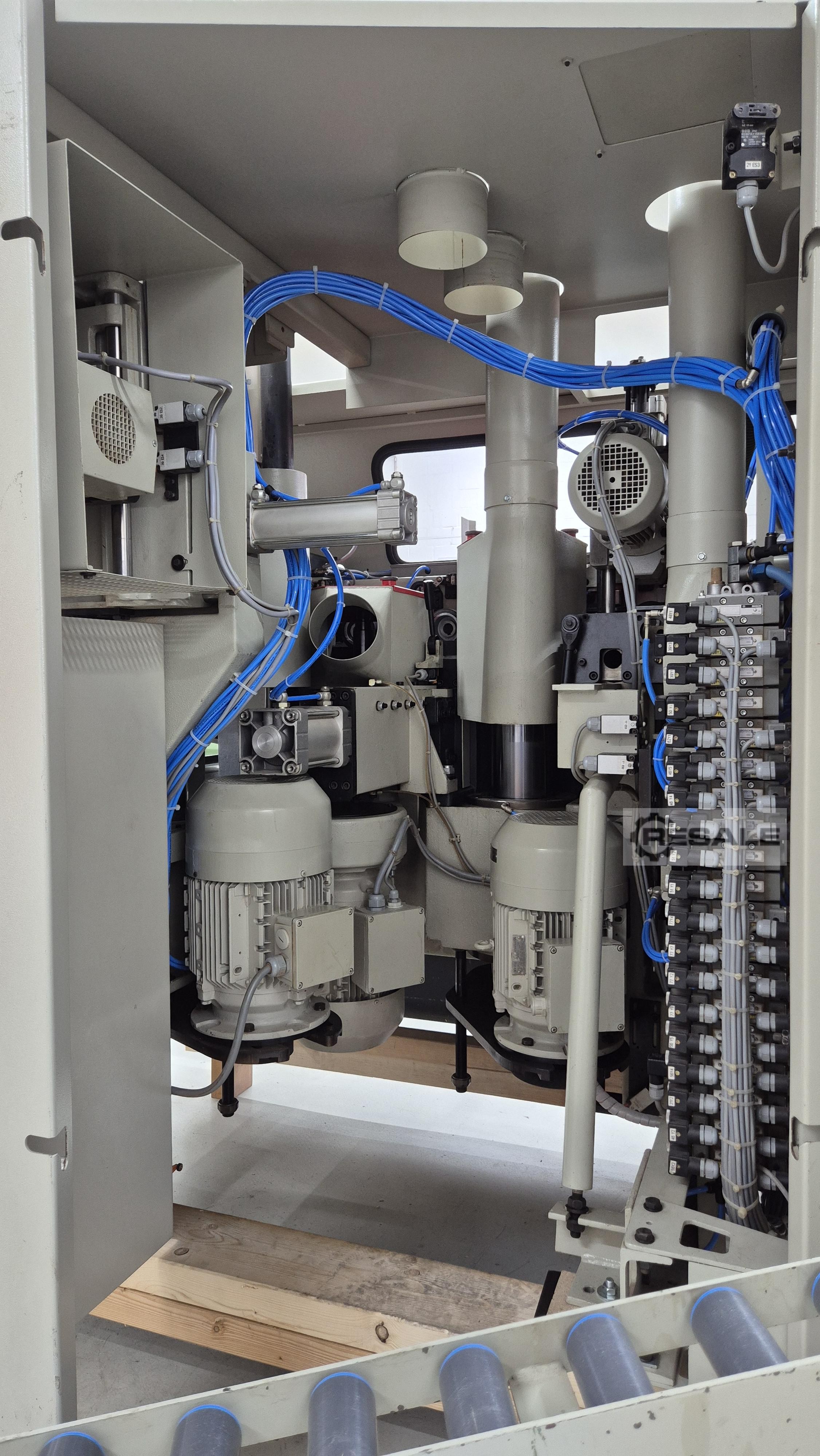

Slotted spindle 50 x 320 mm for 4 tools of 80 mm each - motor 11 KW
Synchronous spindle 50 x 120 mm - motor 7.5 KW
Longitudinal profiling spindle 50 x 320 mm for 4 tools of 80 mm each - motor 11 KW
Fitting spindle pneum. clocked 40 x 160 mm - motor 3 KW
Saw/groove spindle horizontal top, pneum. clocked - motor 3 KW
Feed adjustable from 6-12 m/min. - Motor 1.1 KW

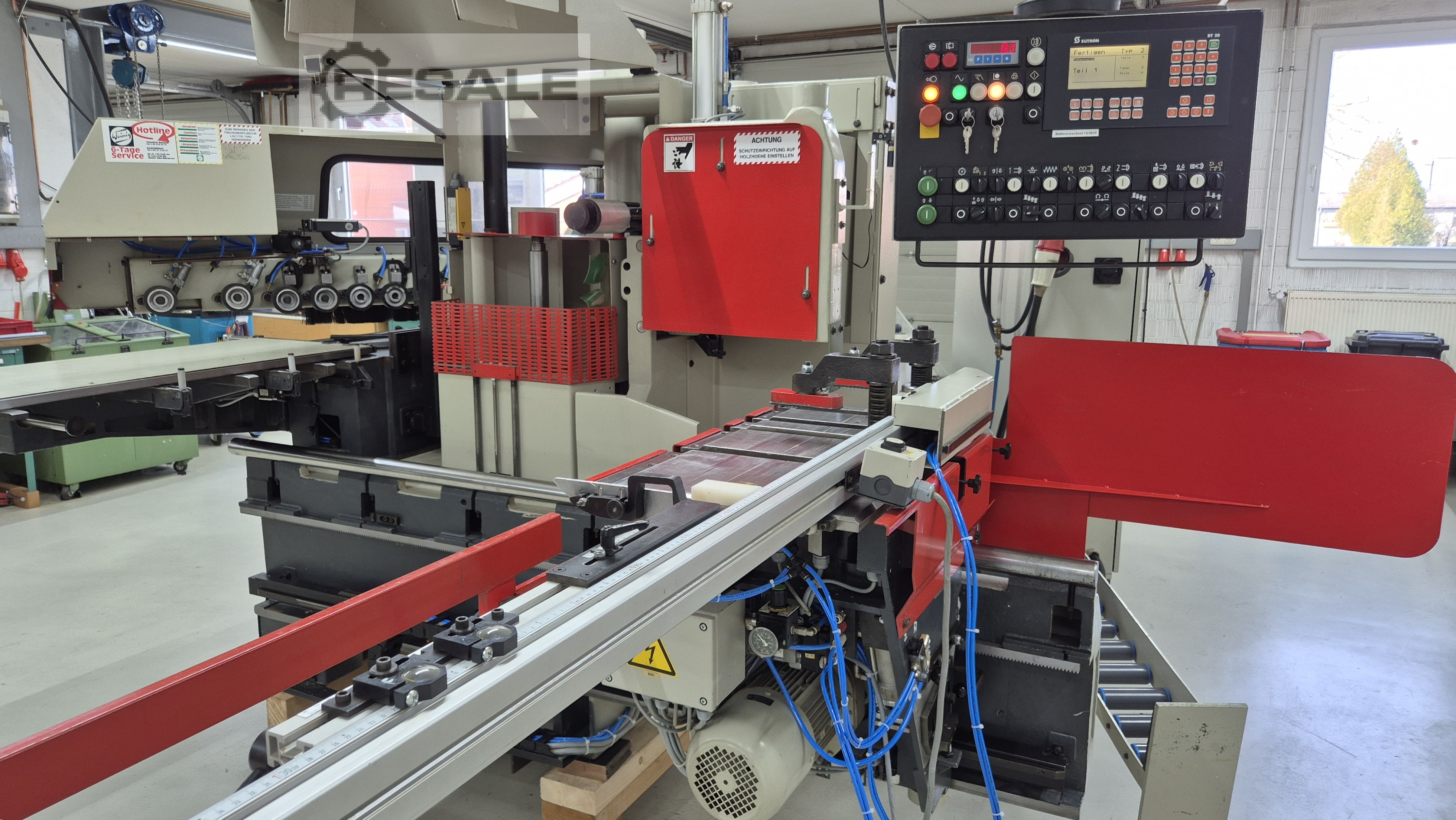

Screen control for 99 window types
Support strip for rung production pneum. Timed
Studio window setup with digital angle display
Length stop up to approx. 3,500 mm
Milling device with support rail
Return transport device to the machine operator
Machine complete with operating instructions, circuit diagrams, spare parts lists

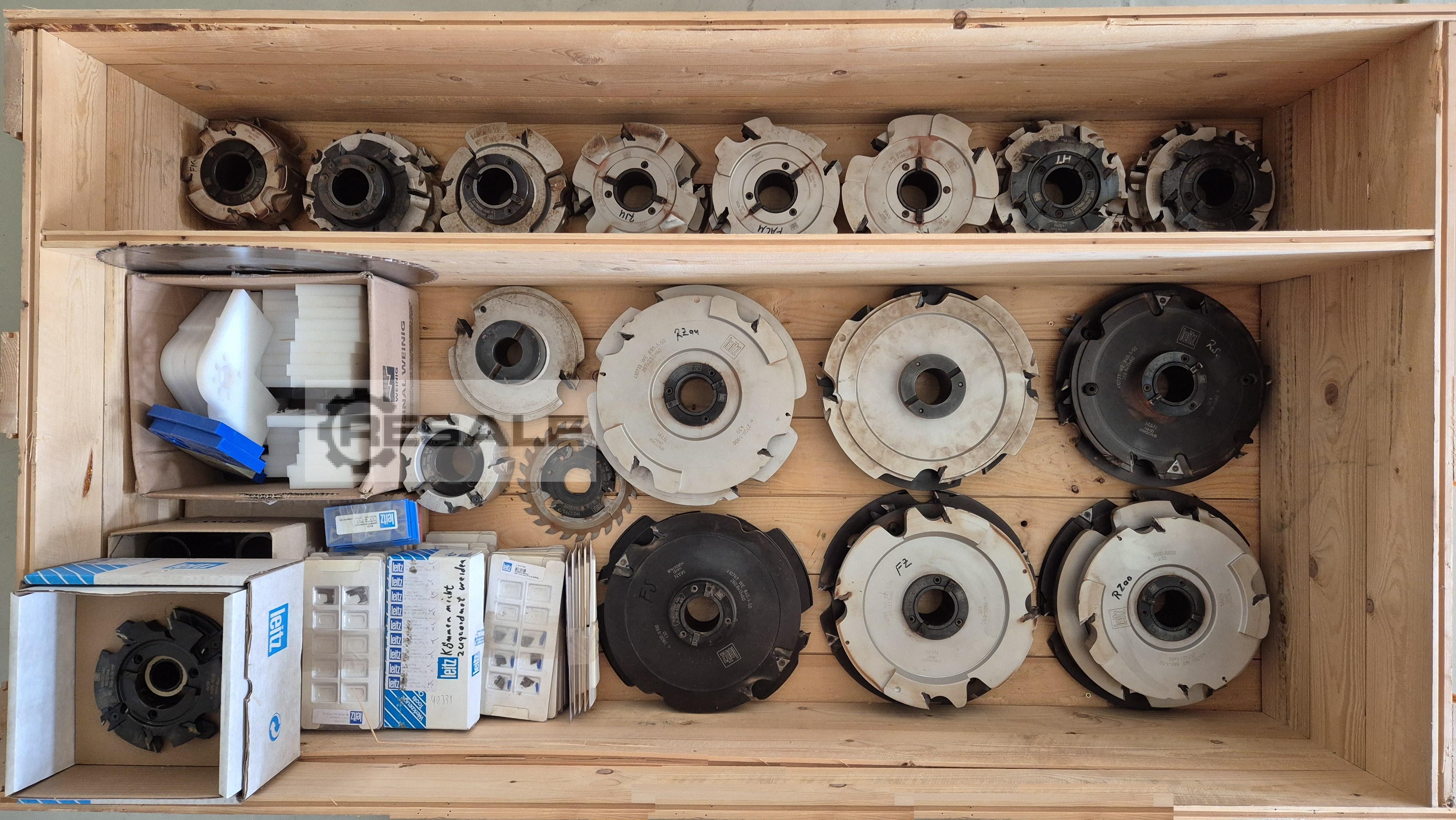

HM Inserts Tool Set LEITZ, IV-78
Machine technically and optically in very good working condition.
Delivery: EXW
Delivery time: at short notice by arrangement
Viewing: by arrangement
Payment: upon notification of readiness for shipment
TECHNICAL DATA:
Pneum cross-cut saw. clocked (3 KW) with laser directional light
Slotted spindle 50 x 320 mm for 4 tools of 80 mm each - motor 11 KW
Synchronous spindle 50 x 120 mm - motor 7.5 KW
Longitudinal profiling spindle 50 x 320 mm for 4 tools of 80 mm each - motor 11 KW
Fitting spindle pneum. clocked 40 x 160 mm - motor 3 KW
Saw/groove spindle horizontal top, pneum. clocked - motor 3 KW
Feed adjustable from 6-12 m/min. - Motor 1.1 KW
Screen control for 99 window types
Support strip for rung production pneum. Timed
Studio window setup with digital angle display
Length stop up to approx. 3,500 mm
Milling device with support rail
Return transport device to the machine operator
Machine complete with operating instructions, circuit diagrams, spare parts lists
HM Inserts Tool Set LEITZ, IV-78
Machine technically and optically in very good working condition.
Delivery: EXW
Delivery time: at short notice by arrangement
Viewing: by arrangement
Payment: upon notification of readiness for shipment
