Düzlem otomatikmatları WEINIG Hydromat 23

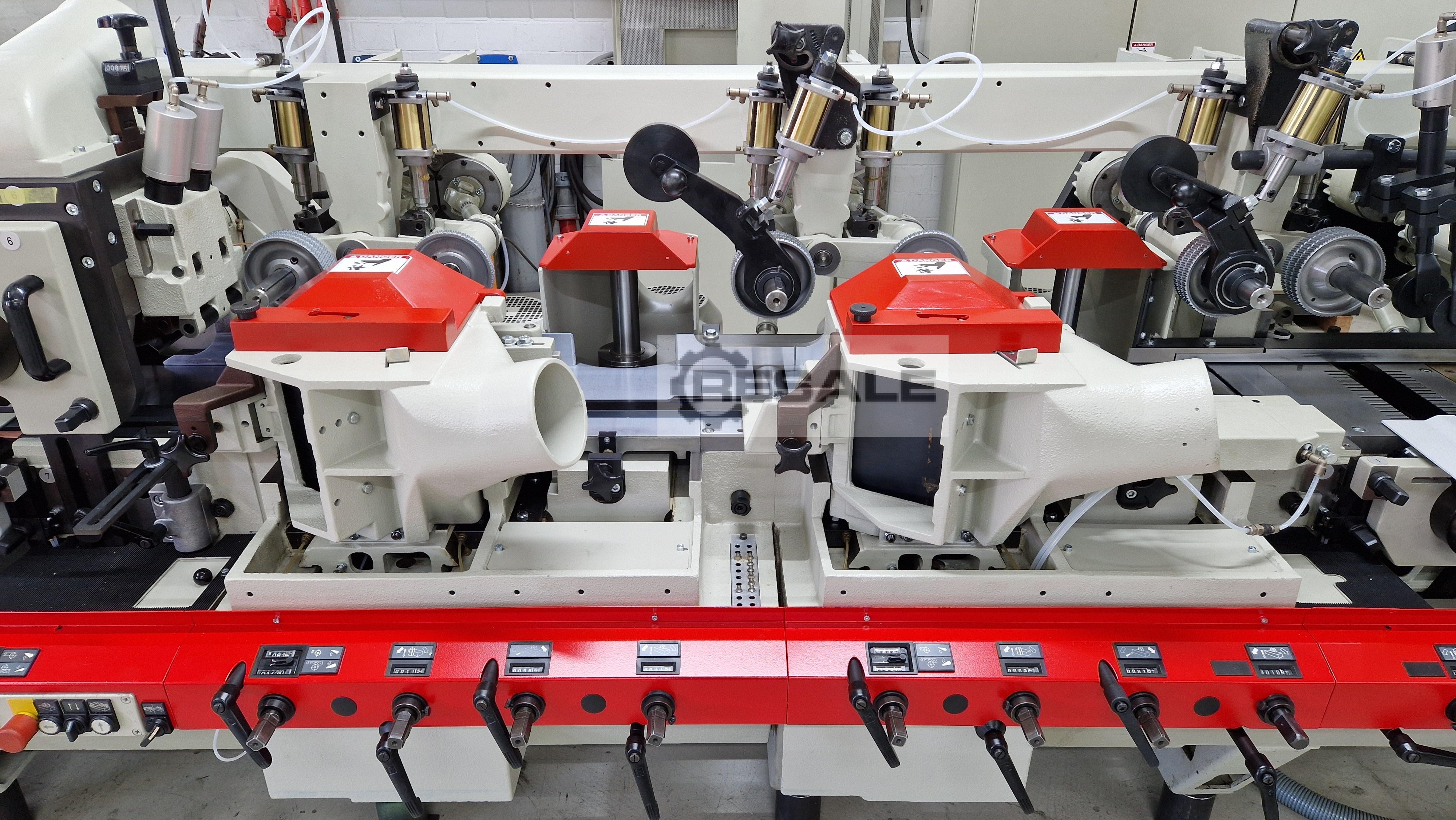

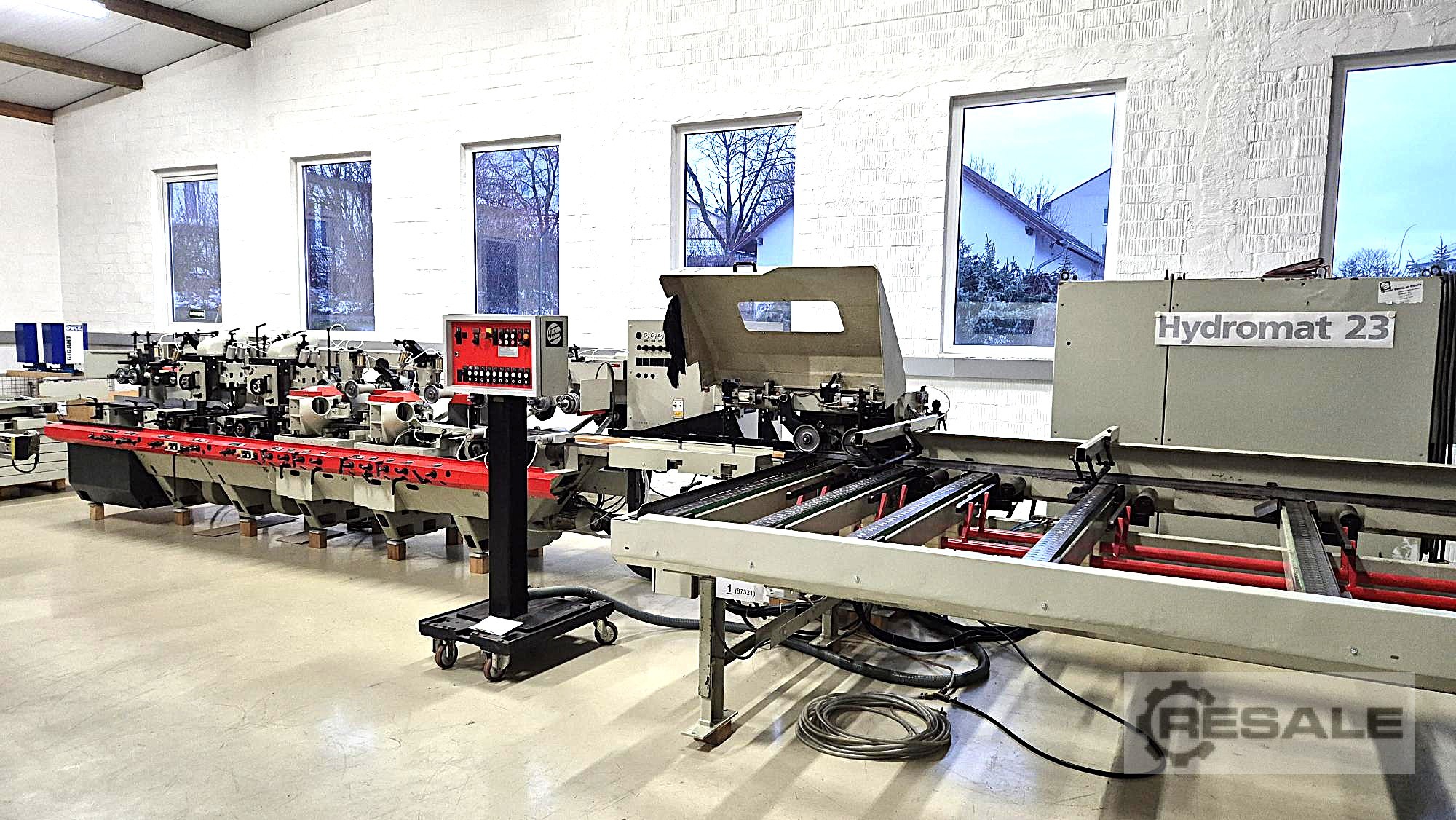

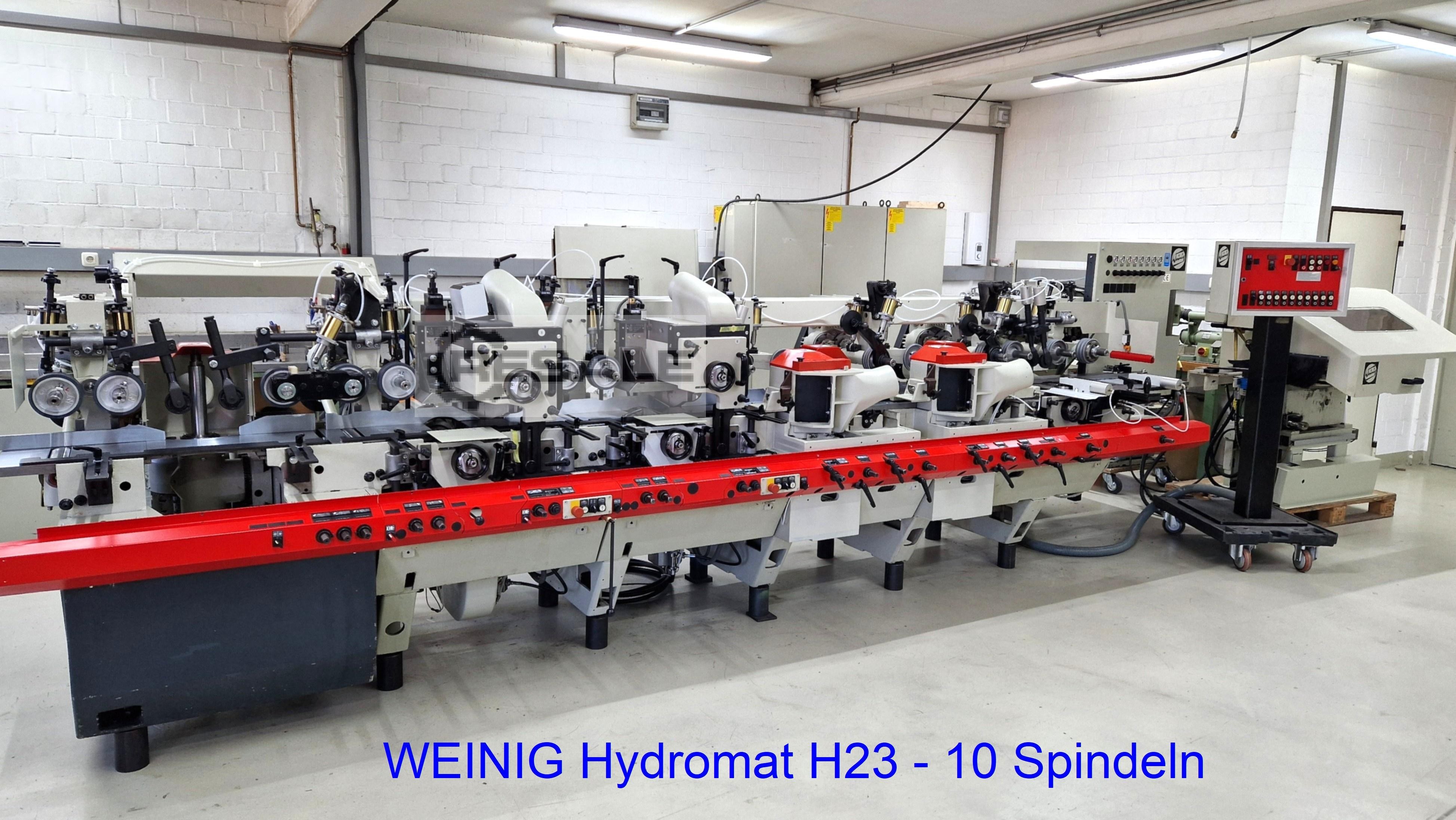

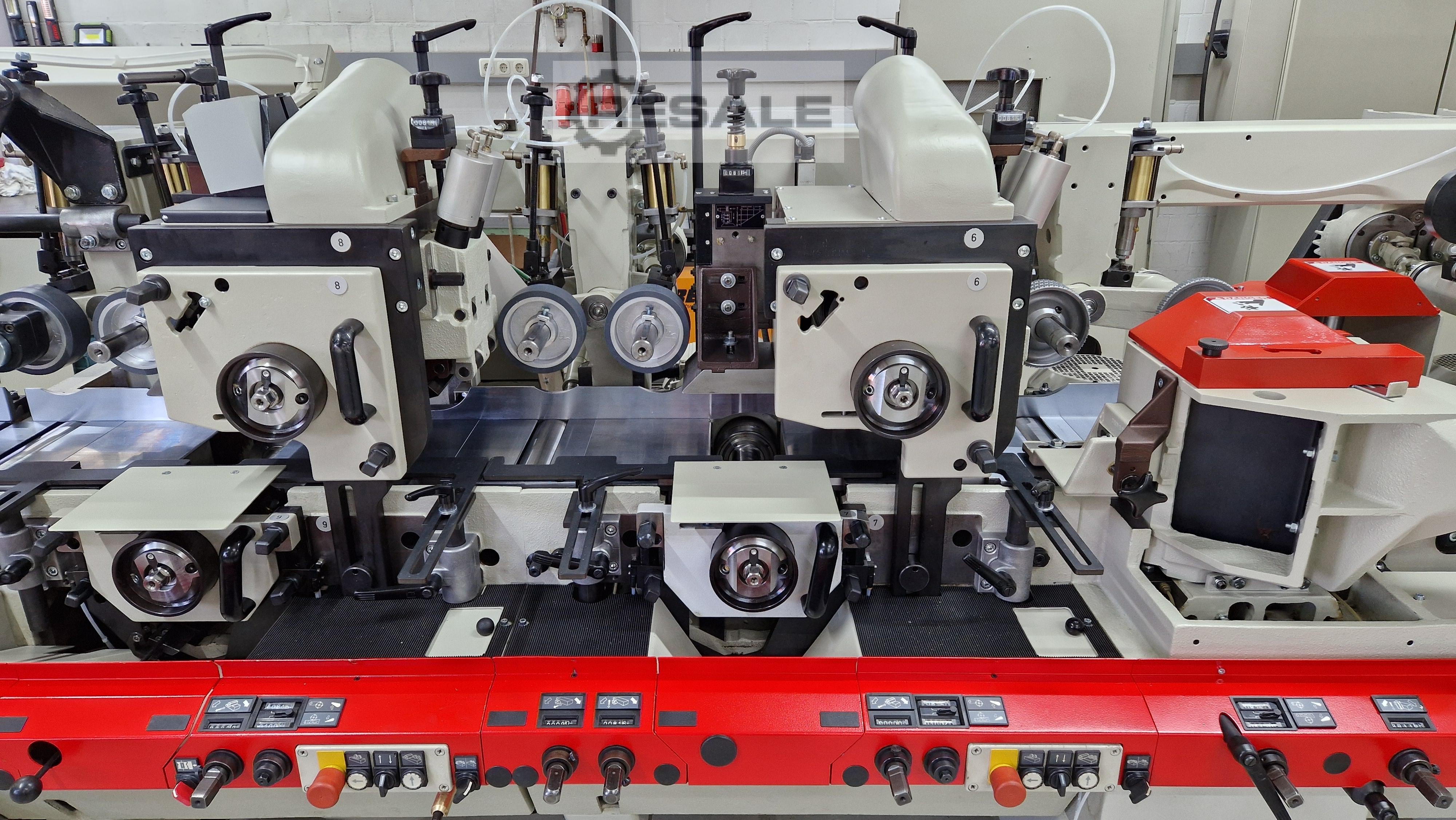

WEINIG Hydromat H23 – with 10 spindles, S/N 89321, built in 1999

WEINIG Cross Transport HighMech E-1, with 6 flat chains approx. 2000 x 3500 mm

Hydraulic WEINIG Roller Accelerator Model 814

Short infeed table with heavy 4-roller feed

Automatic planing machine with reinforced KASCHWIG soundproofing booth 3-sided

• Working width max. 230 mm
• Working height max. 160 mm

• Electronic feed frequency-controlled 8 – 80 m/min.
• Feed motor 18.5 KW

• 1st spindle bottom 11.0 KW
• 2nd spindle right 11.0 KW
• 3rd spindle left 11.0 KW
• 4th spindle right 11.0 KW
• 5th spindle left 11.0 KW
• 6th spindle top 15.0 KW
• 7th spindle bottom 11.0 KW
• 8th spindle top 15.0 KW
• 9th spindle bottom 15.0 KW
• 10th spindle universal 11.0 KW (4-sided)

• Spindle speed 6,000 rpm.
• Spindle diameter ø 50 mm
• All spindle motors with NEW soft-start brake combination

• Pneumatically assisted pressure rollers from above
• Feed rollers D=140 mm

• 6 powered rollers in the table
• Spindle 1 + 6 + 7 + 8 + 9 with counter bearing
• Spindle 8 + 9 with straight jointer
• Spindle 8 + 9 with profile jointer
• Spindle 6 + 8 pneumatic pressure
• Shortened feed roller spacing

• Hard chrome-plated table tops
• Hard chrome-plated stops

• Pneumatically assisted pressure rollers on the side
• Automatic table lubrication
• Central position of the lubrication points

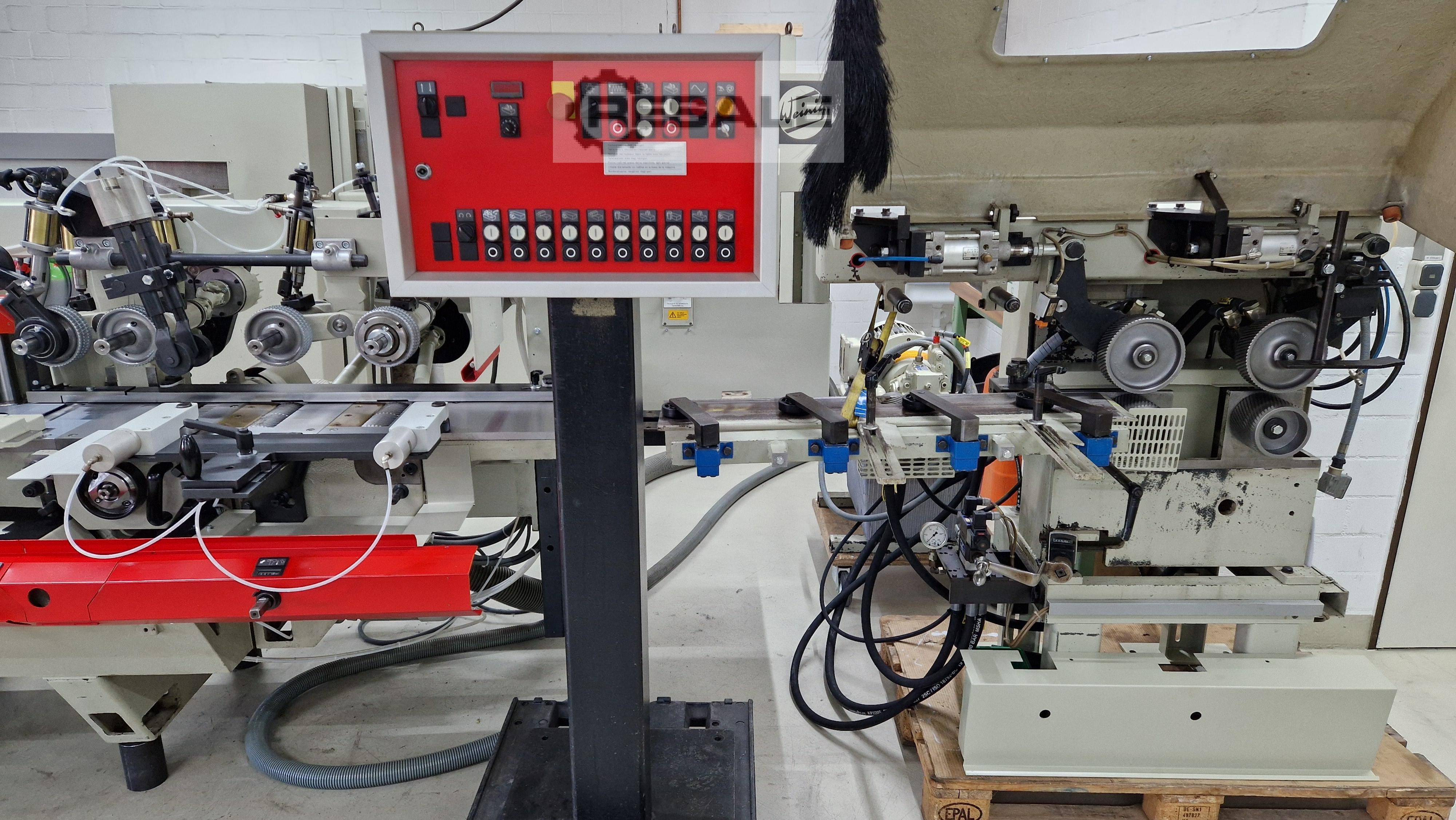

• Free-standing control panel

• Total connected load approx. 145 KW

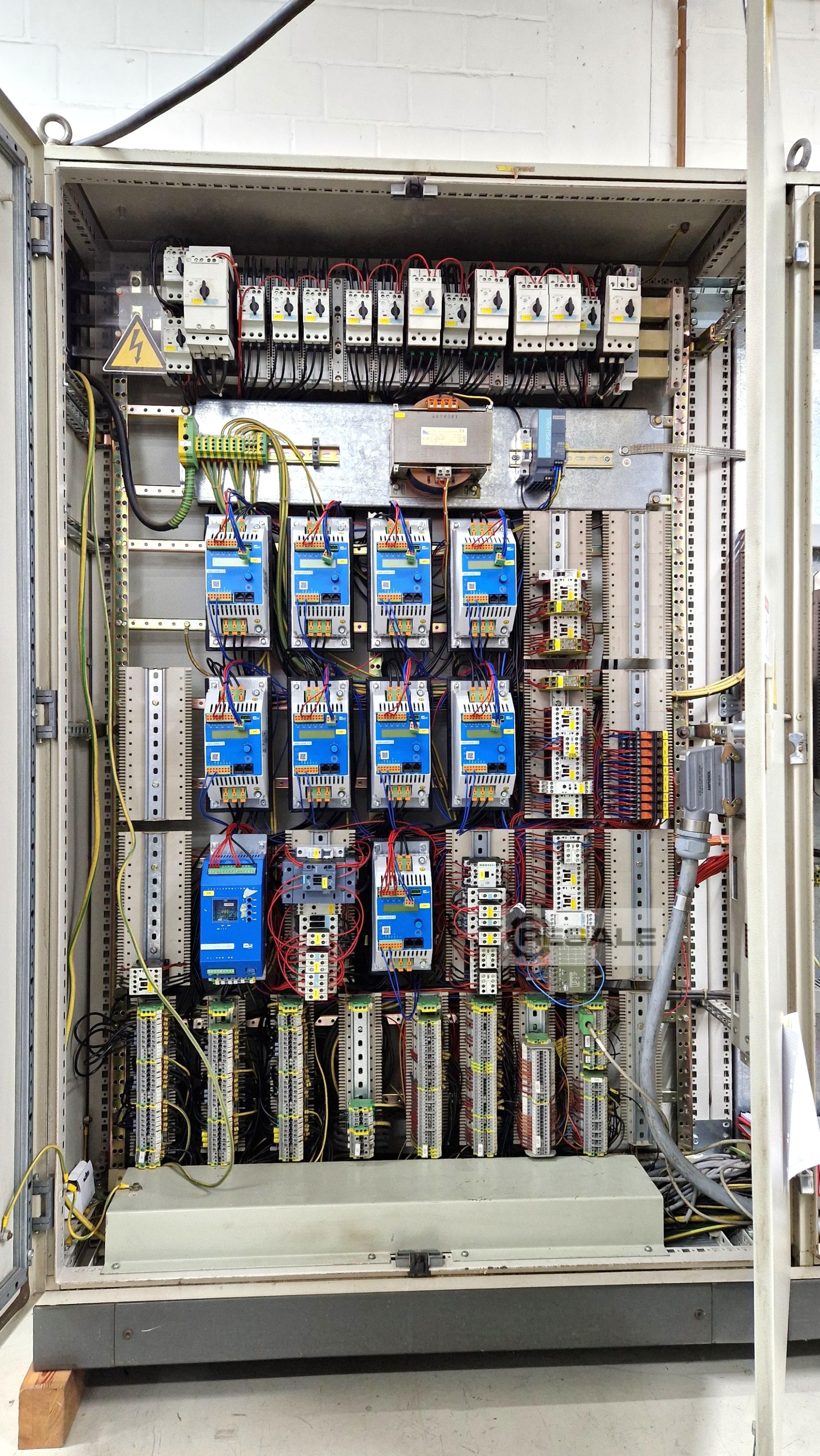

• Free-standing control cabinet (approx. 400 amps)
• Instruction manual, spare parts list and wiring diagram
• Machine without planer heads

Machine dimensions approx.:
• Length 6,000 mm
• Width 2,250 mm
• Height 1,800 mm
• Weight approx. 8,500 KG

Brand new WEINIG parts were used:

NEW horizontal/vertical spindle cores
NEW counter bearings
All spindles with HL bearings
All engines NEWLY mounted
NEW electronic Motorsoft start/brake devices
Many more NEW PARTS in the machine

Condition: as shown in the pictures, technically and optically in 1A condition
Inlet mechanization not overhauled – parts complete – functional
Payment: Before loading purely net cash register
Delivery time: By arrangement
Delivery: EXW
Viewing: Anytime by appointment

Errors and prior sale excepted.

seller offer No. resale 169268860
