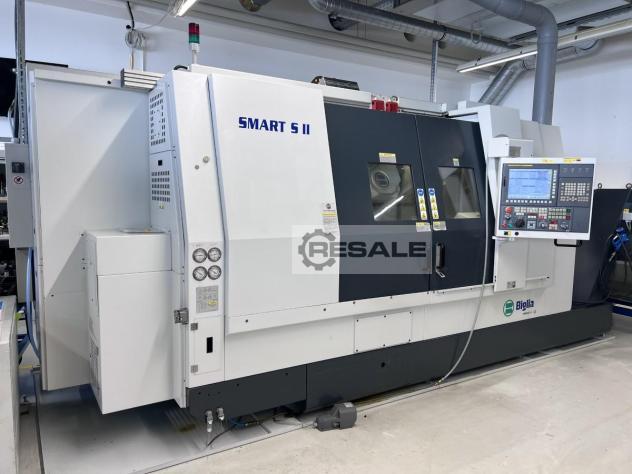

Cnc tornalama makineleri BIGLIA SMART 2-S

Control Fanuc 31i-B5
Rotary diameter. [mm] 500
Turning length [mm] 1280

Main spindle:
Motor spindle technology
Speed 3,000 rpm
Power (max.) 38 kW
Torque (max.) 1,014 Nm
Clamping Cylinder Hollow Clamping Cylinder
Bar passage 94 mm

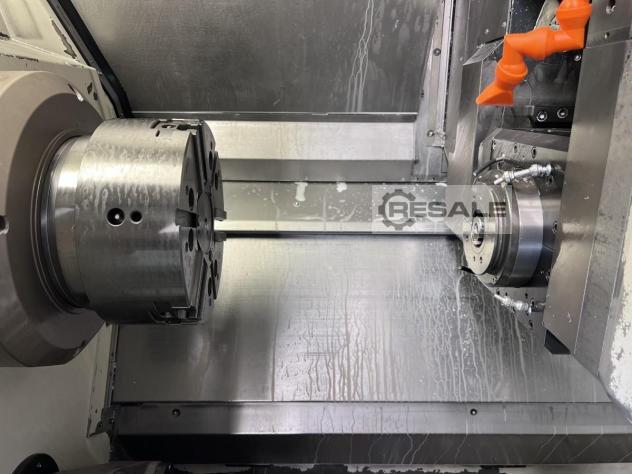

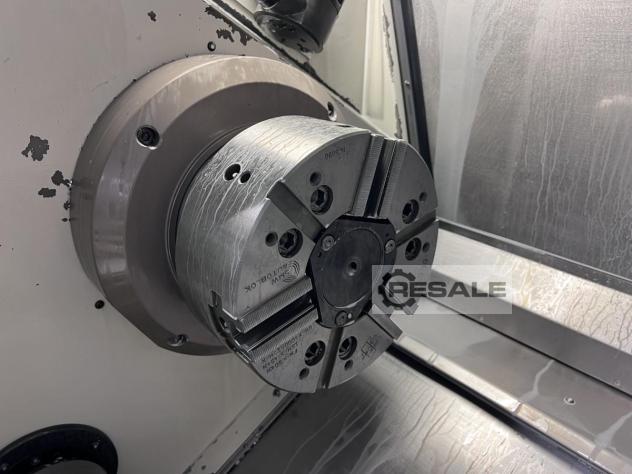

Workpiece Clamping 3-Jaw Chuck, SMW Autoblok 250BB

Sub-spindle:
Motor spindle technology
Speed 4,000 rpm
Power (max.) 40 kW
Torque (max.)
286 Nm clamping cylinder
Partial hollow clamping cylinder workpiece clamping
3-jaw chuck, SMW Autoblok HFK-N-210-52-3
Travel in W 1,130 mm

Tool carrier (X/Y/Z/B):

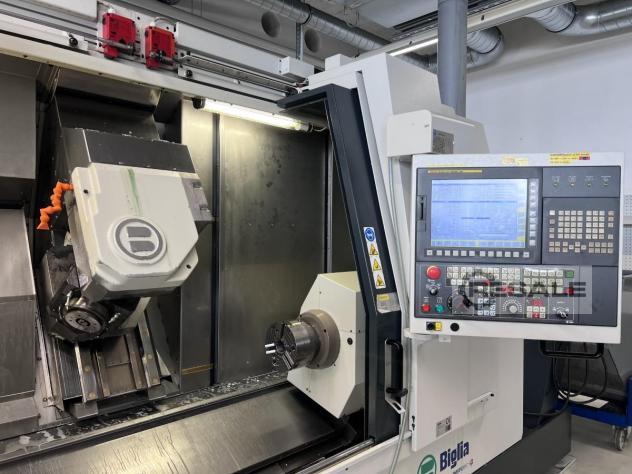

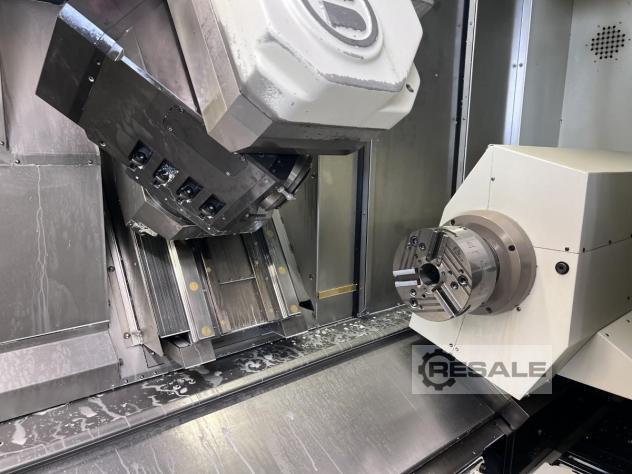

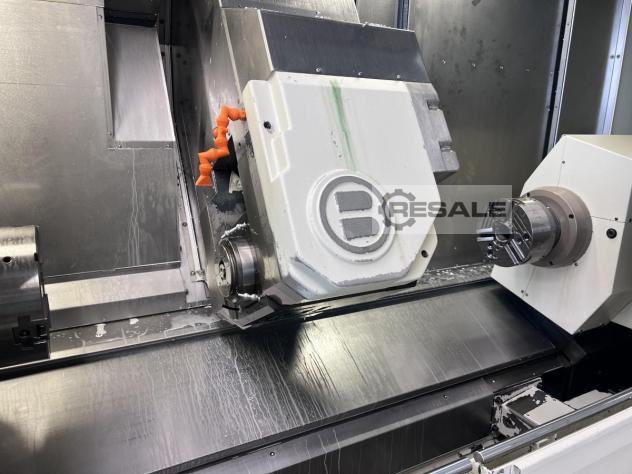

Technology Travelling column with milling spindle
Speed 10,000 rpm
Power (max.) 20 kW
Torque (max.) 110 Nm
Tool holder HSK-A63
Swivel range in B m+/- 105°

General:
Tool magazine Chain magazine, 40 stations
Travel in X/Y/Z 515/210/1,360 mm
Rapid traverse in X/Y/Z 18/18/30 m/min

Equipment/accessories:
Direct displacement measuring system (glass scales) in all axes
Chip Management Chip Conveyor
Coolant management IKZ system with paper belt filter and high pressure, 70 bar

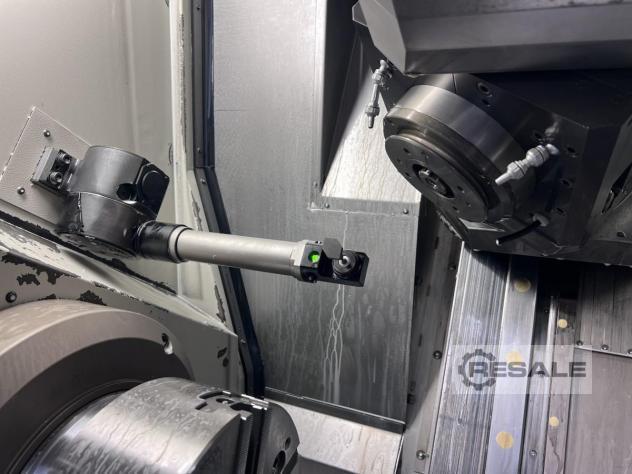

Tool Measurement Automatic Measuring Arm, Marposs TT30
Raw material feed interface bar feeder prepared
Finished part removal interface part catcher prepared
Oil mist extraction interface mechanically prepared
Tool holder Div. gebr. Tool holder HSK-A63
Other equipment Rinsing gun
seller offer No. resale 89-001731
