24 ANAYAK satılık ikinci el makine

x-travel:6.300 mm y-travel:2.000 mm z-travel:2.700 mm tool taper:ISO 50 surface area:7.000 x 3.000 mm turning speed range:60 - 4.000 U/min power capacity:22/30 kW feeds:0 - 10.000 mm/min rapid traverse:20.000 mm/min Tool changer:80 max. workpiece weight:8.000 kg Plate clamping area 7,000 x 3,000 mm CNC rotary table 1,500 mm Orthogonal milling head Deep drilling unit IKZ Paper belt filter Measuring probe

x-travel:2000 mm y-travel:1500 mm z-travel:1460 mm milling spindle motor:35/30 kW spindle taper ISO:50 spindle turning speed range:24 - 3000 U/min table surface area:1350 x 1550 mm table load:6 t feed speeds:10 - 3000 mm/min rapid speed:10 m/min total power requirement:48 kW weight of the machine ca.:24 t CNC HEIDENHAIN TNC 426 B-axis table round Horiz. and Vertikal automatic positioning Milling Head

x-travel: 4.000 mm y-travel: 1.700 mm z-travel: 1.500 mm control: HEIDENHAIN iTNC 530 clamping table: - surface area: 4.200 x 1.100 mm max. workpiece weight: 10.000 kg/m² T-slot number x size: 7 x 22 mm Abstand 150 mm feeds: - X-, Y- and Z-axis, stepless: 2 - 10.000 mm/min Orthogonal indexable milling head: - Swiveling area front/back level: 0,02 x 0,02 ° = 162 Pos., Power at S1/S6 ED: 30 kW Speed range, stepless: 60 - 6.000 min-1 max. torque: 1.500 Nm tool taper: SK 50 – DIN 69871 ZF - Gearbox: 2 Getriebestufen automatic tool changer ATC: - Tool places: 60 Plätze diameter of tools max.: 125/200 mm workpiece length: 400 mm weight of tools max.: 25 kg changing positions: Horizontal/Vertikal total power requirement: kW weight of the machine ca.: 50 t dimensions of the machine ca.: 11,0 x 6,0 x 4,6 m Equipment / Accessories Universal milling head UAD, 0.02x0.02°, positioning via inter ...

Key data: 2500 mm, 1000 mm, 1100 mm

CNC Yatak Frezeleme Makinesi Üretici: Anayak Type Performer 2500 Üretim yılı 2007 Control Heidenhain iTNC530 (yeni monitörle birlikte) Masa boyutu 2700 x 850mm Yük 6.000kg Seyahat X/Y/Z 2500/1000/1100mm Takım tutucu SK50 IKZ Dahili Soğutma Sıvısı Kaynağı Çip konveyörü Elektronik El Çarkı Heidenhain HR410 Kafa programın üzerinde döndürülemez Motor açık: 54.205 saat Mil açık: 14.850h Görünebilen aksesuarlar olmadan.

Bu 3 eksenli ANAYAK Performer 2500, 2007 yılında üretilmiştir. Heidenhain TNC530 kontrol ünitesi, çok yönlü EMENA-VAR-3 freze başlığı ve 2700 x 850 mm sağlam bir masa boyutuna sahiptir. 6 tona kadar masa yükünü taşıyabilen ve 2500 mm X inç, 1000 mm Y ve 1100 mm Z dönüş yollarına sahiptir. Yüksek kaliteli frezeleme yetenekleri arıyorsanız, satışımızdaki ANAYAK Performer 2500 makinesini düşünün. Daha fazla bilgi için bizimle iletişime geçin.

The ANAYAK VH plus 3000 is a versatile machine center, ideal for complex manufacturing tasks, featuring a HEIDENHAIN iTNC530 CNC controller. Built in 2007, it offers reliable operations with X, Y, Z-axis travels of 2,000 mm, 1,000 mm, and 1,100 mm, respectively, and a precise C-axis rotation of 0.001º. The sturdy worktable measures 1,250 x 1,400 mm and supports up to 5,000 kg. The powerful spindle achieves speeds from 60 to 5,000 rpm, delivering 38 kW through a 2-step gearbox. The machine includes 60-tool capacity, an electronic handwheel, a chip conveyor, and a 4th axis. Located in Europe, its equipped with ISO-50 DIN 69871A tool holders and provides superior cooling through the spindle, ensuring efficient performance for demanding production environments.

Introducing the versatile CNC Milling Machine with HEIDENHAIN iTNC530 control, designed for precision machining tasks across various industries. With impressive X, Y, and Z-axis travels of 3,000 mm, 1,700 mm, and 1,500 mm, respectively, this machine offers considerable flexibility for complex operations. The robust spindle delivers power between 28 kW and 38 kW, achieving speeds from 30 to 5,000 rpm, while the spacious worktable measures 3,200 x 1,200 mm and supports up to 8,000 kg. An electronic handwheel and chip conveyor enhance functionality, and the unit is 4th axis ready. Its ISO-50 DIN 69871A tool holder and cooling through the spindle further optimize performance. Available in [Location/Availability], this machine meets diverse manufacturing needs with reliable efficiency.

Seyahat: x=1600mm Y = 800mm Z=900mm İş mili hızı maks.dakikada 2000 devir HH 407 A kumandası Z ekseninin kapağı mevcut ancak arızalı.

x-travel: 2000 mm y-travel: 920 mm z-travel: 900 mm table surface area: 2200 x 750 mm table load: 3 t number of T-slots: 6 T - slots - width: 18 mm T - slots distance: 120 mm spindle taper: ISO 50 DIN 69871-B spindle speed max.: 3000 U/min transmission ratio: 1 speeds infinitely variable range 1: 60 - 3000 U/min weight of the machine ca.: 21,6 t feeds longditudinal/cross/vertical: 0 - 5000 mm/min rapid traverse: 15000 mm/min total power requirement: 38 kw weight of the machine ca.: 11 t Pull studs DIN69872-B | IKZ Hours: Control on: 43036 h Machine on: 41311 h Program run 13894 h The machine is already dismantled The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

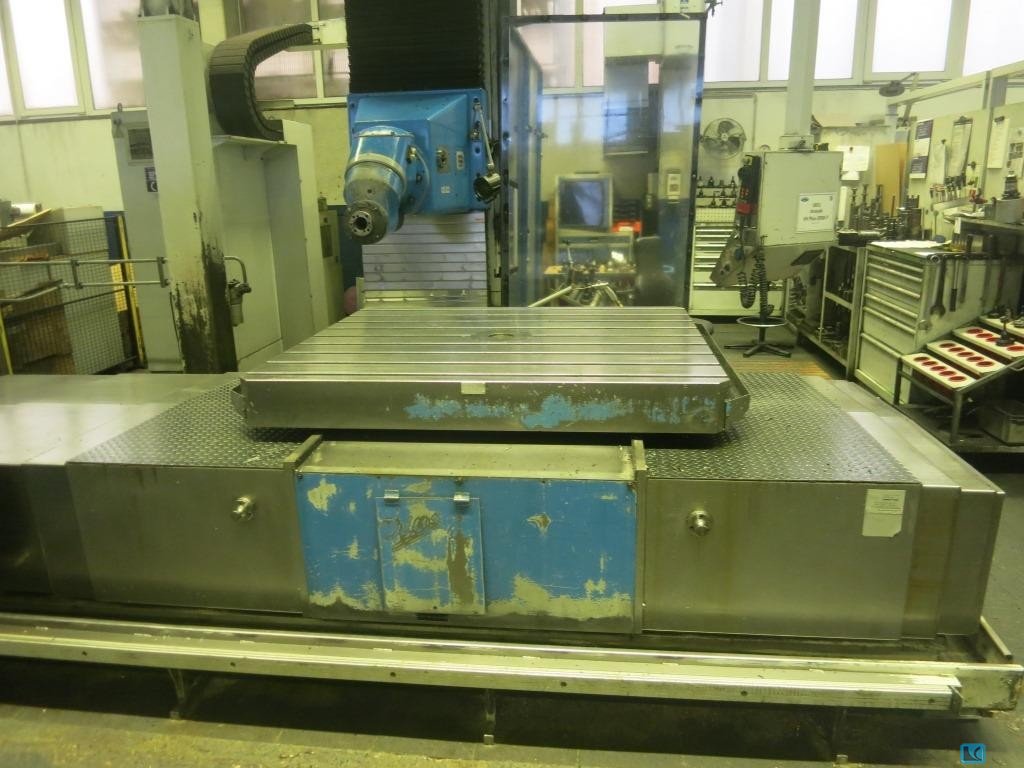

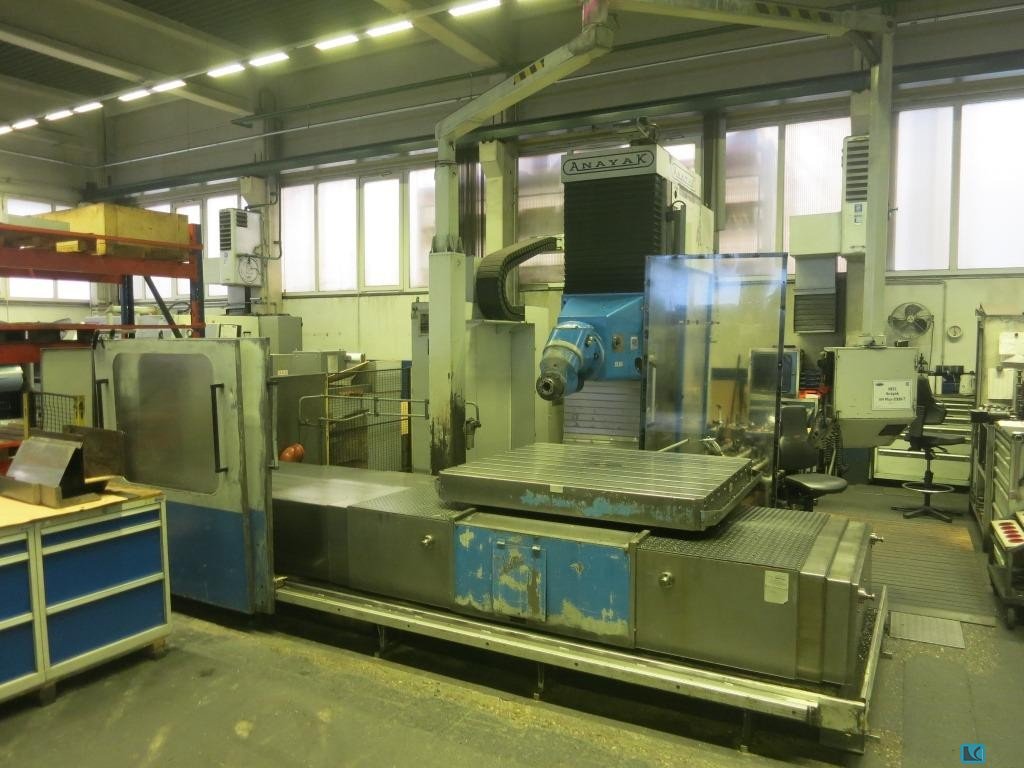

x-travel: 2000 mm y-travel: 1500 mm z-travel: 1460 mm Control: Heidemhain type: TNC 426 CB mm Rotary table: 1350x1550 mm turning speeds: 10-3000 U/min spindle taper ISO: 50 Table load: 6000 kg T-slot - width: 28h7 mm T-slot - distance: 150 mm number of T-slots: 150 Feed: 10-3000 mm/min total power requirement: kW weight of the machine ca.: 24 t dimensions of the machine ca.: m B-axis 0.1-1.5 rpm Feed rate 3 rpm The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours a ...

x-travel: 1600 mm y-travel: 920 mm z-travel: 900 mm table surface area: 1800x700 mm T-slot - distance: 120 mm Table load: 3000 kg spindle taper ISO: 50 power capacity: 22/30 kW spindle turning speed range: 60-3000 U/min total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m About usmore than 400 machines in the warehouse over 12000 m² storage area, crane capacity 70 tmore than 1000 items accessories for your workshopYou want to sell machines production lines or your company, then talk to us. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Dik CNC Freze Merkezi ANAYAK ANAMATİK 9 Yapım Yılı 7/97 Şu anda sökülmüş ve nakliye için hazırlanmıştır. Makine 2022 ortasına kadar üretimdeydi Hemen kullanılabilir ve kullanıma hazır Teknik parametreler: Çalışma masası uzunluğu 1300 mm Çalışma masası genişliği 530 mm Maksimum masa yükü (üniforma) 500 kg Saklama kabındaki alet sayısı 30 adet Minimum dikey iş mili hızı 70 1 / dak Maksimum dikey iş mili hızı 5000 1 / dak Mekanik besleme uzunluğu ekseni X 1070 mm Mekanik besleme uzunluğu aks Y 535 mm Mekanik besleme uzunluğu ekseni Z 510 mm Maksimum Eksen İlerleme Hızı X 250 mm/s Maksimum besleme hızı ekseni Y 250 mm/s Maksimum besleme hızı ekseni Z 250 mm/s Fanuc 160i-L ile Her zaman görüntüleme ve taşıma mümkündür Makinelerin ucuz finansmanı / taksitli satın alınması / takası sunuyoruz!  ...

x-travel: 2550 mm y-travel: 900 mm z-travel: 1200 mm Control: Heidenhain type: 355 table surface area: 2900x800 mm Center of spindle to wall or column: 1000 mm spindle taper ISO: 50 : chip conveyor: tool clamping electrical: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m About usmore than 400 machines in the warehouse over 12000 m² storage area, crane capacity 70 tmore than 1000 items accessories for your workshopYou want to sell machines production lines or your company, then talk to us. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 10500 mm y-travel: 2750 mm y-travel: (3350) mm z-travel: 1500 mm turning speeds: 3500 U/min Tool changer: 80 Control: Heidenhain TNC 430 M positioning accuracy: 1 ° milling-head swivable +/-: CNC Plate area: 12000x2500 mm chip conveyor: spindle taper ISO: 50 Spindle capacity: 37 KW Feed: 6000 mm/min Rapid movement: 15000 mm/min total power requirement: kW weight of the machine ca.: 65 t dimensions of the machine ca.: 18,1x6,7 m CNC angle head 360 ° with 1 ° Hirtverzahnung spindle hours 13500 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 800 mm y-travel: 450 mm z-travel: 400 mm table yüzey alanı: 1385 x 305 mm spindle konik: SK 40 kuz strok: 200 mm spindle dönüş hızı aralığı: 50 - 350 U/dk control: HEIDENHAIN control: TNC 155 toptal güç gereksinimi: Makinenin 5,8 kW ağırlığı: 2,5 t dimensiyon: 2,25 x 2,0 x 2,4 m Asıllar: elektron. El çarkı, soğutucu

Kullanılmış makine iyi durumda. Hemen teslimat için kullanılabilir. - Takım istasyonu sayısı: 24 - Kontrol: FANUC - Çalışma alanı (X x Y x Z): 1.300 x 600 x 600 mm iş parçası ağırlığı: 1.000 kg iş mili hızı: 9.000 rpm - Eksenler: 3 - Boyutlar (uzun x geniş x yüksek): 3.550 x 2.568 x 2.171 mm

Bu 4 eksenli ANAYAK 8-HS 2001 yılında üretilmiştir. 800 x 500 x 500 x 505 mm hareket mesafesine sahip Fanuc 18-M CNC ve 500 kg'ya kadar taşıyabilen bir masa sahiptir. Mil 10.000 rpm'de BT 40 konik ile çalışır ve 9 kW gücüne sahiptir. 24 pozisyonlu bir alet değiştirici ve 4. eksen, mil soğutucu ve yonga konveyörü gibi ek ekipmanlar içerir. Bu ANAYAK 8-HS dikey işleme merkezini satın alma fırsatını değerlendirin. Daha fazla bilgi için bizimle iletişime geçin.

Duplex milling are two machines located one opposite the other which can work seperately or as single machine, workpiece can be machined with 2 simultaneous spindles. - Production increase of up to 50% in relation to conventional solutions, i.e. individual milling machines - Improvements in part precision, by managing to do the machining of the part in one single setup, in most of the cases - One sole operator can control the DUPLEX milling machines - Reduced space and investment requirement comparing with two single machines - Fast investment amortisation due to the high productivity - Duplex solution admits different configurations: single working area, pendulum working areas For machining excavator arms / boom like, CAT, Caterpillar, Komatsu, Hitachi, Hyundai, Doosan, Case, Bobcat, JCB, Kobelco, Liebherr, Kubota, Takeuchi, Volvo

- Talaş konveyörü- Çift kapılı ön taraf- Zincir Takım değiştirici 30 pozisyonlu- Merkezi yağlama- IKZ 16 Bar ve 2,2 kW Debi 16L/Dak- Takım engelleme gücü 1968 daN- Tam set kitaplar ve 1e sahibi makine

Key data: 4300 mm, 1200 mm, 1050 mm

Marka: Anayak Motor No: F607 Türü: HVM-5000 CNC markası Heidenhain CNC Tipi TNC-426 Üretim tarihi 1997 Tabla uzunluğu 5.000 mm Tabla genişliği 1.000 mm X 4.300 mm Y 1.200 mm Z 1.050 mm Takım Değiştirici 40 Sonda Freze kafası B, gestuurd olarak Huron Freze Kafası Pivot BT 50 CNC kontrollü freze kafası 2,5 ° 'den sonra indeks Eksen sayısı 4 Mil ile soğutma Konveyör Makine ağırlığı +- 35000 kg Hareketli sütun

Key data: 6300 mm, 1800 mm, 2500 mm

Marka: Anayak Motor No: F712 HVM 7000-MG yazın CNC markası Heidenhain CNC tipi iTNC 530 Üretim tarihi 2005 Tabla uzunluğu 3.300 mm Tabla genişliği 1.200 mm Maksimum masa yükü 15.000 & 28.000 X 6.300 mm Y 1.800 mm Z 2.500 mm Tutucu SK 50 Hız: 60 - 3.000 RPM CNC kontrollü freze kafası 2,5 ° 'den sonra indeks Kontrollü döner tabla 360 ° - 2.000 x 3.000 mm Mil ile soğutma Konveyör 37/51 Kw milini açın iş parçası ağırlığı 28.000 kg Makine ağırlığı 65.000 kg

x-travel: 4300 mm y-travel: 1000 mm z-travel: 1050 mm total power requirement: kW weight of the machine ca.: 35 t dimensions of the machine ca.: m Brand: ANAYAK Type: HVM-5000 Build in : 1997 CNC Control HEIDEHAIN, TNC 426 Tablesize: 5000 x 1000 mm X= 4.300 mm Y= 1.200 mm Z= 1.050 mm Toolchanger for 40 tools Tools: BT 50 CNC Controlled head 2,5 degrees Cooling trough the spindle Number of controlles axes: 4 machineweight 35.000 kg Moveable column The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 6300 mm y-travel: 1200 mm z-travel: 2000 mm Control: total power requirement: kW weight of the machine ca.: 57 t dimensions of the machine ca.: 7000x1300x5000 mm Brand: Anayak Type: HVM7000 CNC brand: Heidenhain Year of make: 1997 Table length: 7.040 mm Table width: 1.000 mm X: 6.300 mm Y: 1.200 mm Z: 2.000 mm max. 3000 Rpm Machine dimensions (lxwxh): 7000 x 1300 x 5000 mm Machine weight: 57.000 kg including 6 angleplates 2500 x 700 mm this machine is in perfekt working order and can be inspected under power The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
