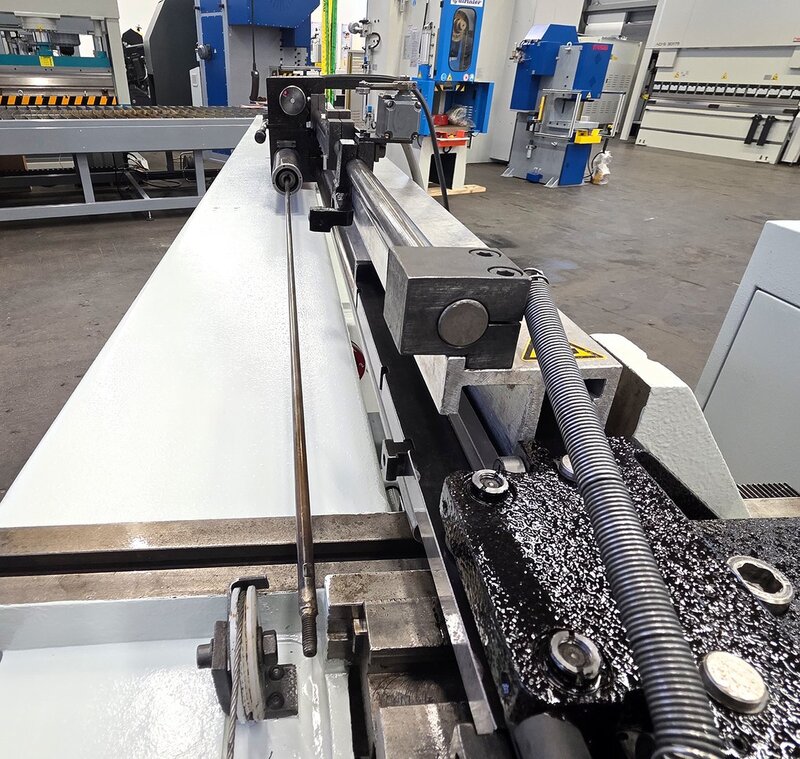

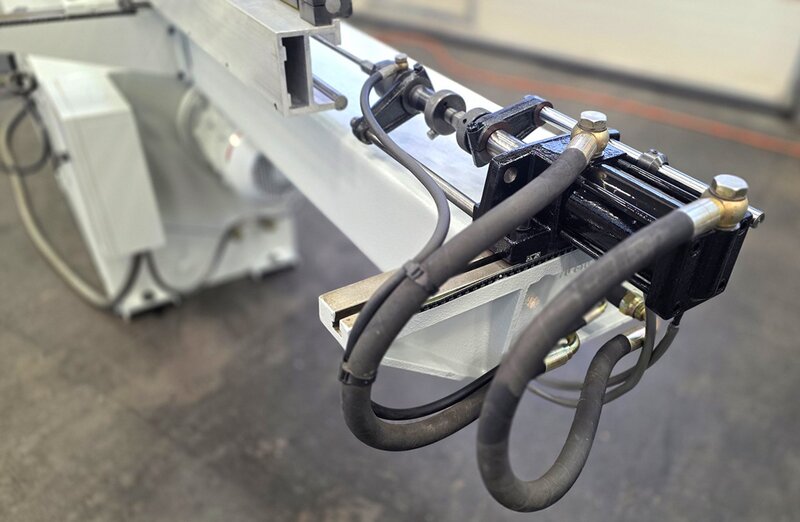

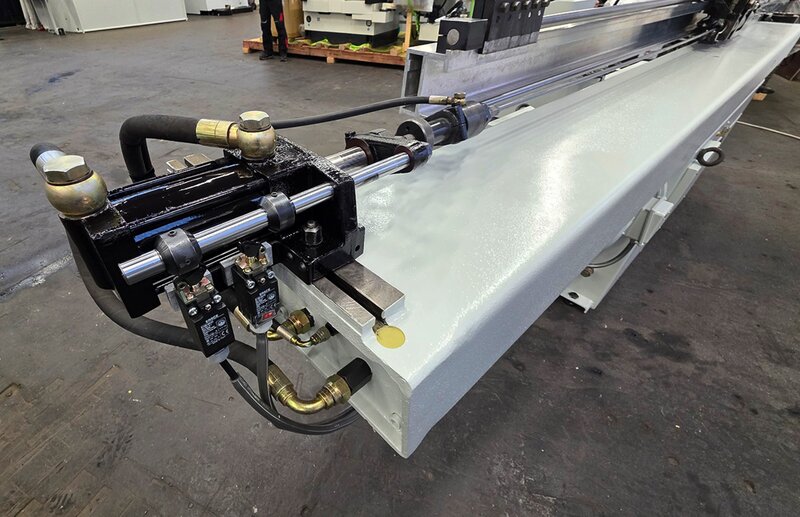

PEDRAZZOLI UNI 42 CD Mandrel boru bükme makineleri
ikinci elDoğrulanmış satıcı
1 / 7
Teknik veriler
· ID 170033486Mandrel boru bükme makineleri
- KDV hariç fiyat
- 12.800 € netto
- Durum
- ikinci el
- Üretim yılı
- 1988
- Konum
- 2351 Wiener Neudorf, Österreich
Identifikation
ÜreticiPEDRAZZOLI
ModelUNI 42 CD
Kalem numarası1069-2547
Technik
Adet1
Açıklama
: gebraucht
: 1988
: 090151
: prompt, Zwischenverkauf v
: Italien
: 12800 €
: 1
: 42 mm
: 4665 mm
: 800 mm
: 1160 mm
: 1470 kg
: 42 x 2,5 mm
: 40 x 1,2 mm
: 30 x 40 x 1,7 mm
: 40 x 30 x 1,3 mm
: 255 mm
: 22 mm
: 180 °
: 90 °/s
: 5.5 kW
: 120 l
Capacity specifications refer to 400 N/mm²
Maximum bending radius with pipe guide rollers: 255 mm
Maximum bending radius with pipe guide slide: 175 mm
Minimum bending angle: 4°
Maximum usable length without positioning device: 3900 mm
Maximum usable length with positioning device: 3370 mm
Adjustable mandrel extension travel from 8 mm
Opening and closing travel of the counter-clamping jaws: 0-45 mm
Opening and closing travel of the rollers or slides: 12-22-42 mm
Operating manual in German
Machine does not comply with AMVO or UVV regulations
Tools not included
