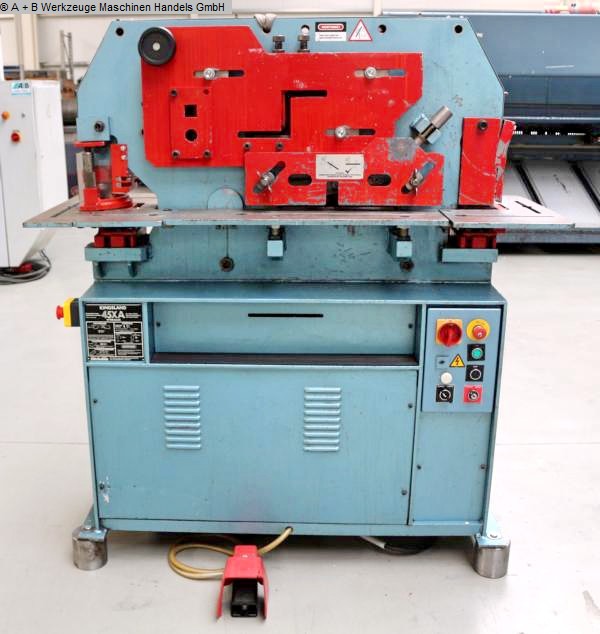

Profil çelik kesiciler KINGSLAND 45 XA HYDRAULIC
metal çalışma makineleri / sac levha çalışması / Profil çelik kesiciler
punching pressure: 45.0 tpunch diameter: 22 in 15.0 mmpunch diameter: 38 in 8.0 mmround bar steel: 30.0 mmsquare edge steel: 25.0 L-beam: 100 x 10.0 mmshear: flat material: 300 x 12.0 mmadjustment of stroke: 0 - 55 mmwork height max.: 940 / 1140 mmstrokes per minute: 34 punch diameter: max. 110 ...
Üretici: KINGSLAND
model:45 XA HYDRAULIC
Makine türü: Profil çelik kesiciler
İlan No.: 170033355
miktar: 1
tarih: 27.08.2026
Üretim yılı:
yer: 48683 Ahaus
fiyat:
Stoktaki makine:evet
Seller-item-No.:1125-9412193
punching pressure: 45.0 t
punch diameter: 22 in 15.0 mm
punch diameter: 38 in 8.0 mm
round bar steel: 30.0 mm
square edge steel: 25.0
L-beam: 100 x 10.0 mm
shear: flat material: 300 x 12.0 mm
adjustment of stroke: 0 - 55 mm
work height max.: 940 / 1140 mm
strokes per minute: 34
punch diameter: max. 110 mm
voltage: 400 V
total power requirement: 4.5 kW
weight: 1245 kg
dimensions: 1520 x 590 x 1700 mm
In good condition ()
New price ~ 13.000 Euro
Special price upon request
Features:
- Robust electro-hydraulic profile steel shear
- With multiple workstations:

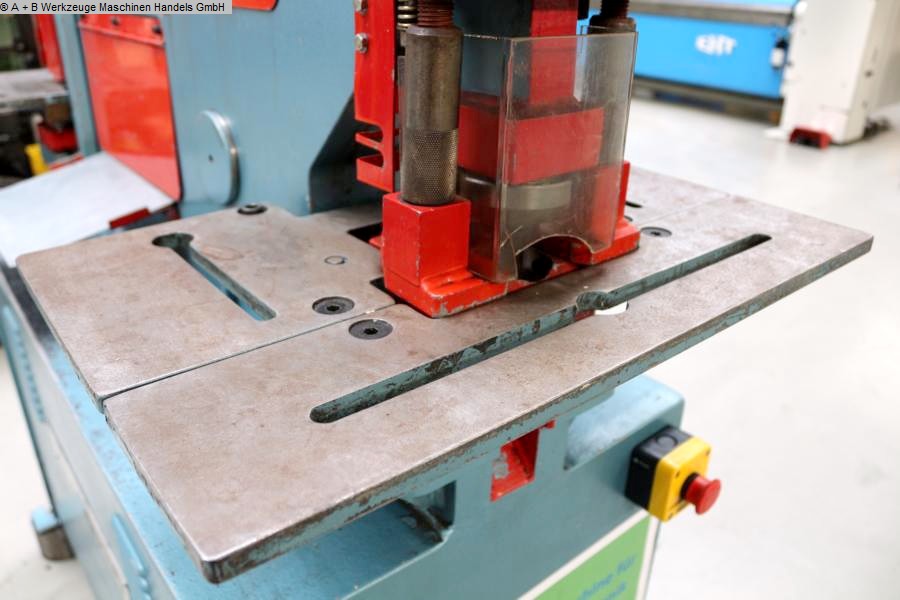

Punching station
Flat steel shear
Angle/profile steel shear
Notching station
- Continuously adjustable stroke
- Very compact design

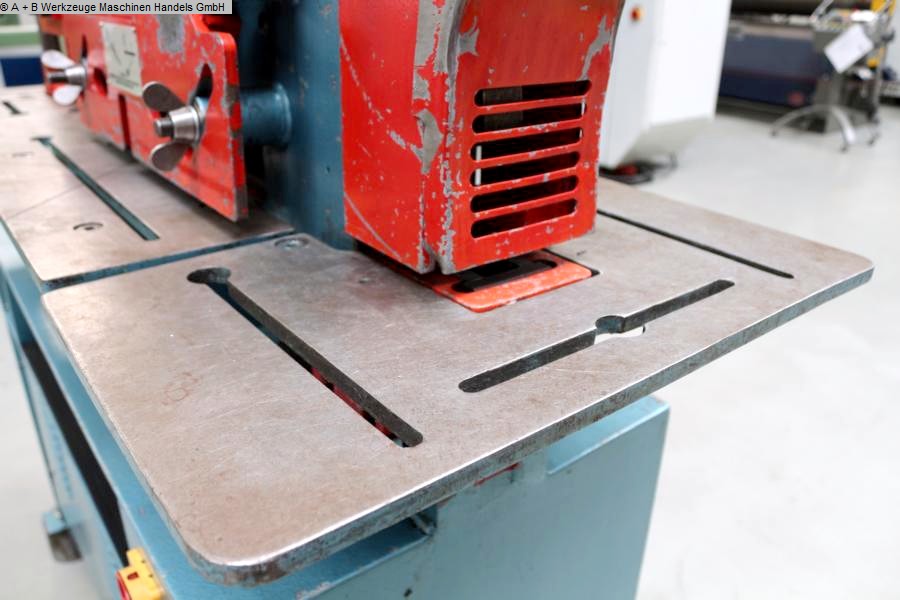

- Support table at the notching and punching station
- Side support surfaces
- 1x freely movable foot switch
- Central lubrication system
- Connection cable + connector
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
