KELLENBERGER KEL-VARIA UR 250-1000 Kelco120 Yuvarlak taşlama makineleri
ikinci elDoğrulanmış satıcı
Fiyat iste
Doğrudan satıcıya
1 / 6
Teknik veriler
· ID 170036517Yuvarlak taşlama makineleri
- Durum
- ikinci el
- Üretim yılı
- 2000
- Konum
- 73230 Kirchheim-BEMA
Identifikation
ÜreticiKELLENBERGER
ModelKEL-VARIA UR 250-1000 Kelco120
Kalem numarası1056-8380D
Technik
Adet1
Açıklama
grinding diameter: 500 mm
grinding length: 1000 mm
centre height: 250 mm
Control:
total power requirement: kW
weight of the machine ca.: t
dimensions of the machine ca.: m
-major maintenance
-New table geometry
-partial painting of the interior

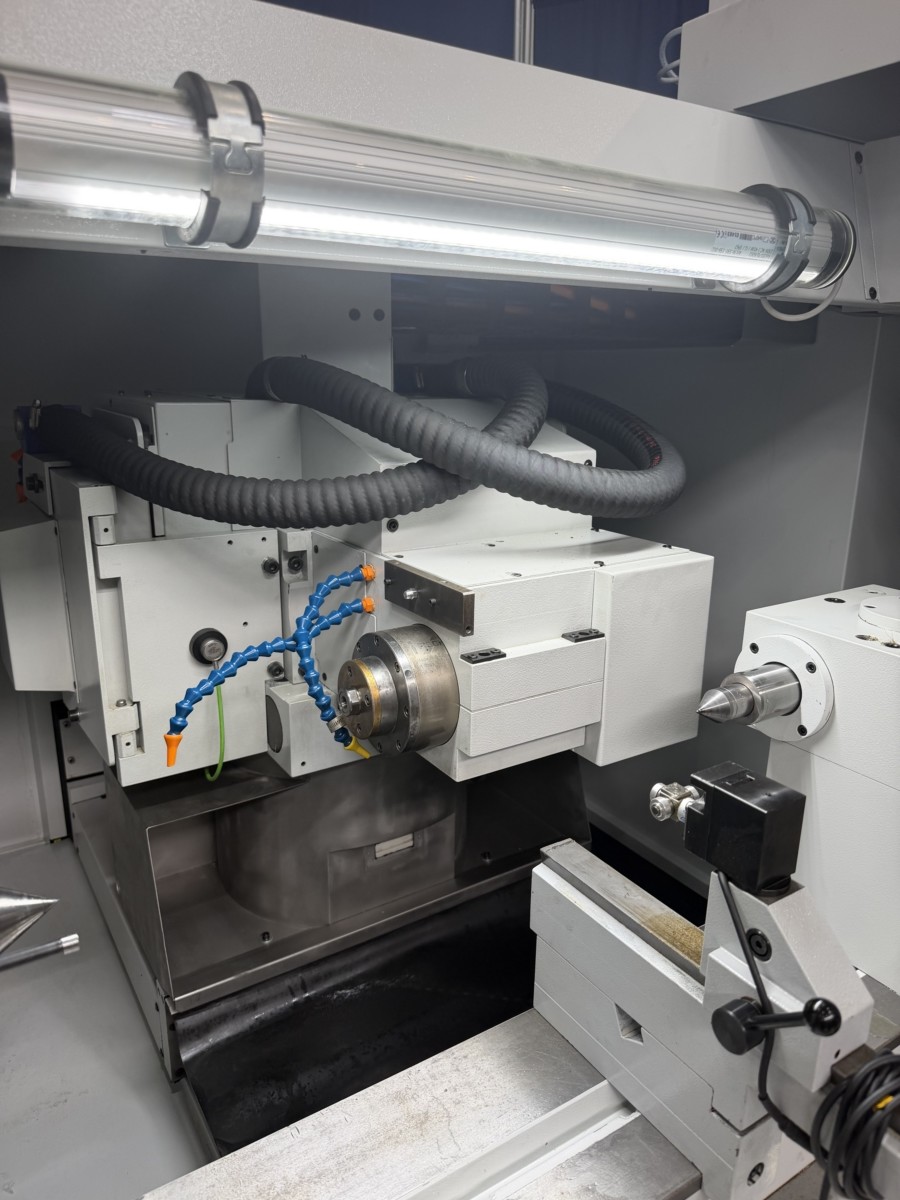

grinding wheel equipment LEFT 400x63x127mm (standard)
grinding wheel equipment RIGHT 300x40x127mm
Internal grinding unit Ø120mm for HF spindles

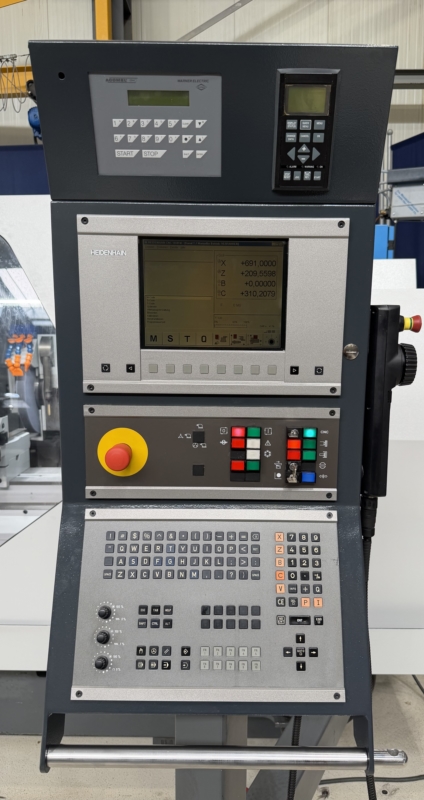

CNC control KELCO 120
C-axis for non-circular grinding. Kel-Poly
B-AXIS: CNC-controlled B-axis
KELCO 120: v constant 35m/s or 45m/s
High-frequency internal grinding spindle
Operating unit for MFV and MFZ spindles
Hydraulic quill retraction for the tailstock
NO micro-adjustment on the tailstock
Spring-loaded quill insert
Top table cooling
Standard workpiece headstock MK 5 DIN 55026 size 5
Micro-adjustment for the standard workhead
Dressing device on the lower table
Active longitudinal positioning KELPOS, MARPOSS, mounted on the grinding head
Tool measuring system KELSET, MARPOSS
MARPOSS gate sensor
Measuring control MARPOSS Minialsar prepared
Paper belt filter
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding length: 1000 mm
centre height: 250 mm
Control:
total power requirement: kW
weight of the machine ca.: t
dimensions of the machine ca.: m
-major maintenance
-New table geometry
-partial painting of the interior
grinding wheel equipment LEFT 400x63x127mm (standard)
grinding wheel equipment RIGHT 300x40x127mm
Internal grinding unit Ø120mm for HF spindles
CNC control KELCO 120
C-axis for non-circular grinding. Kel-Poly
B-AXIS: CNC-controlled B-axis
KELCO 120: v constant 35m/s or 45m/s
High-frequency internal grinding spindle
Operating unit for MFV and MFZ spindles
Hydraulic quill retraction for the tailstock
NO micro-adjustment on the tailstock
Spring-loaded quill insert
Top table cooling
Standard workpiece headstock MK 5 DIN 55026 size 5
Micro-adjustment for the standard workhead
Dressing device on the lower table
Active longitudinal positioning KELPOS, MARPOSS, mounted on the grinding head
Tool measuring system KELSET, MARPOSS
MARPOSS gate sensor
Measuring control MARPOSS Minialsar prepared
Paper belt filter
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
