Tepsi kapağı karton paketleyici J+P KWH200-DT

Used Tray Lid Packer

for STANDING products in bags or boxes - HORIZONTAL feeder


Good condition and functional but without warranty

- Make J+P type KWH200-DT
- No. 90764.2.00 Bj. 2015
- Stainless steel design, hygienic design
- Capacity: max. 15 cartons or 100 bags per minute
- Infeed conveyor approx. 1,000 mm long, 150 mm wide, transfer height approx. 860 mm
- Flap collection chain, 1-speed, servo-motor-driven
- Push-off gantry with push-off head and counter-support, 2-axis, servo-motor-driven
- Internal, glued lid
- Outfeed conveyor 250 mm wide, discharge height approx. 730 mm
- Control panel Siemens TP1200
- Schneider Elektric PacDrive
- Control cabinet painted
- Nordson hot melt system

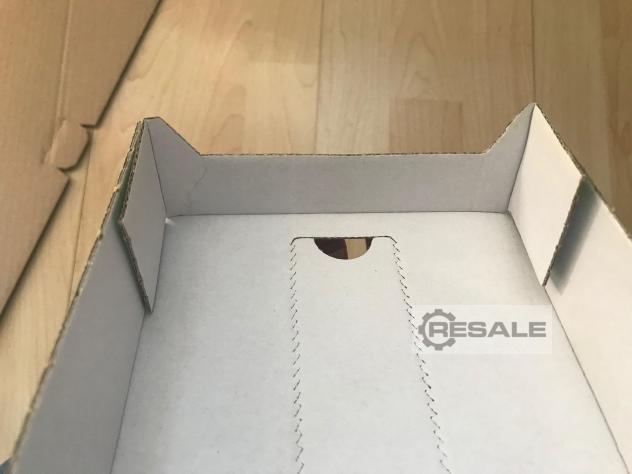

Format area tray:
Length: 200 – 400 mm
Width: 100 – 200 mm
Height: 40 – 250 mm
Height of tray outer plates max. 100 mm
Format area tray cutting:
Length: 400 – 900 mm
Width: 200 – 400 mm

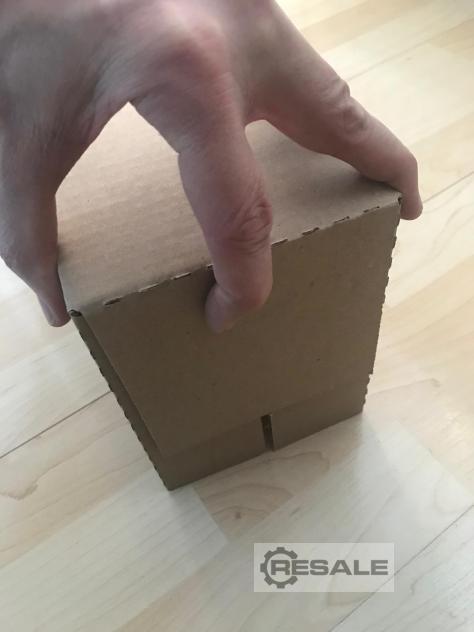

Format area lid:
Length: 200 – 400 mm
Width: 90 – 200 mm
Height: 140 – 250 mm

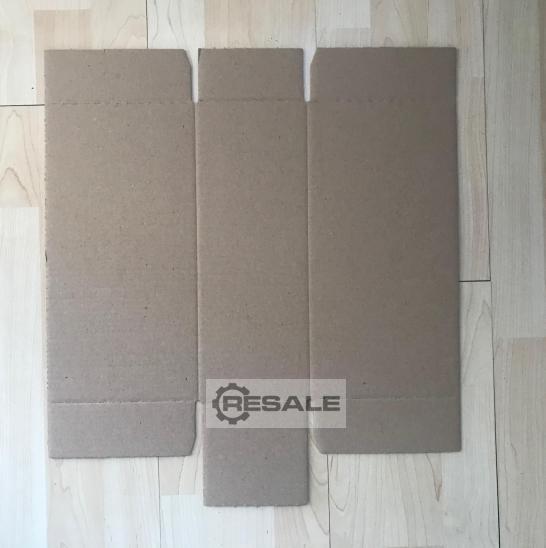

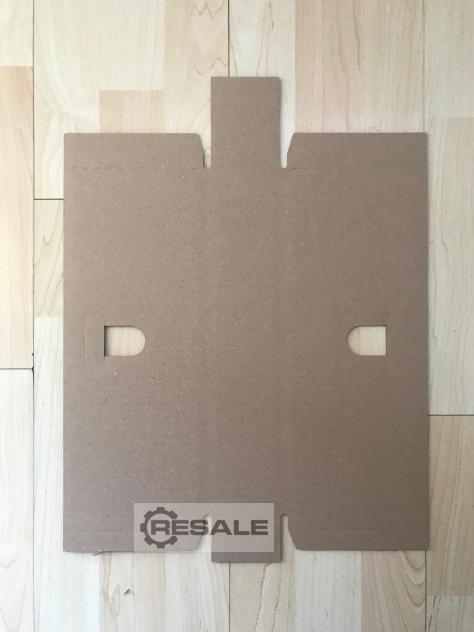

Format area cover cut-to-size:
Length: 380 – 900 mm
Width: 300 – 700 mm
Cardboard: Corrugated cardboard (tray E-flute, lid B-flute)
Folded edges sufficiently grooved/scored
Current carton dimensions
L x W x H 375 mm x 85-200 mm x 100-200 mm, internal lid.

Other format parts as well as conversion to your formats possible; Billing is based on expenditure.
We will be happy to send you a video link of the machine.
seller offer No. resale 170126367
