AMADA GX II 630 Cnc hidrolik plaka makası

sheet width: 3050 mm
plate thickness: 6.35 mm
thickness at Niro-steel: 4.00 mm
: 8.00 mm
down holder: 10 Stück
cutting angle: 0°40 - 2°20 Grad
: 3340 mm
work height max.: 860 mm
: 575 mm
Control: GP 37W2
: 13 - 33
0: max. 315 bar
oil volume: 100 ltr.
total power requirement: 6.0 kW
weight of the machine ca.: 6030 + 1850 kg
** In good condition (!!)
** current new price including accessories approx. 110.000 Euro
** Special price upon request
- in checked conditions - machinevideo -
https://www.youtube.com/watch?v=3JUqSaaJkFQ
Equipment:
- Robust CNC electro-hydraulic guillotine shear
- AMADA CNC touch control, front left (GP 37W2)
* Machine control including information display
* Main display with 4 control panels
* Control/operation of all functions
* Max. 50 cutting programs with 15 sequences each
- CNC electro-motorized backgauge
* Travel speed 100 mm/sec.
- CNC electro-hydraulic cutting angle adjustment
- CNC electro-hydraulic cutting gap adjustment
- Sighting device & cutting line illumination for viewing the scribe line
* ??Shear cutting according to the optical scribe line

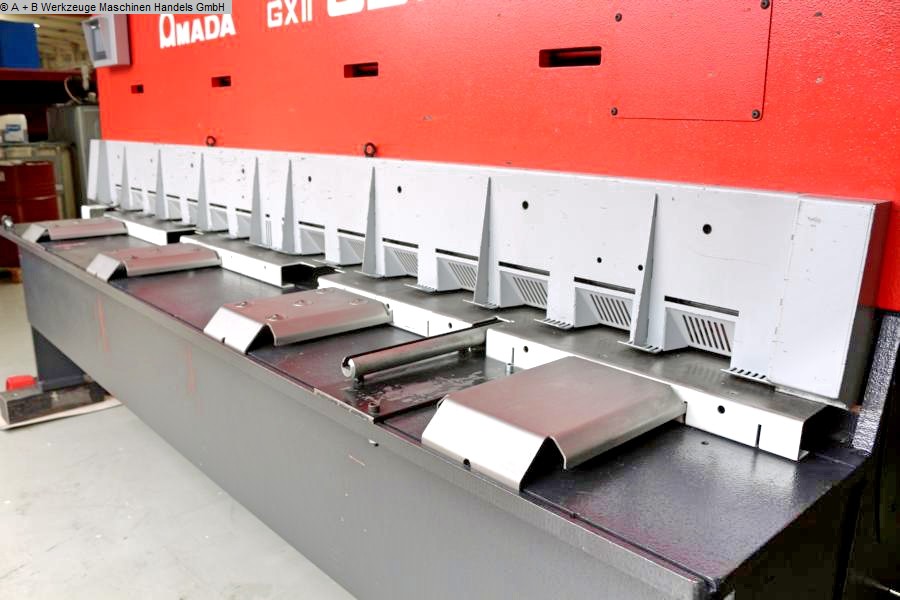

- Manually adjustable table support plates, including ball transfer units
* Grip recesses in the front support table
- 2x freely movable foot switches
- Operating instructions + circuit diagram
** SPECIAL ACCESSORIES included:
- Backgauge system with 3 stations + separate control:

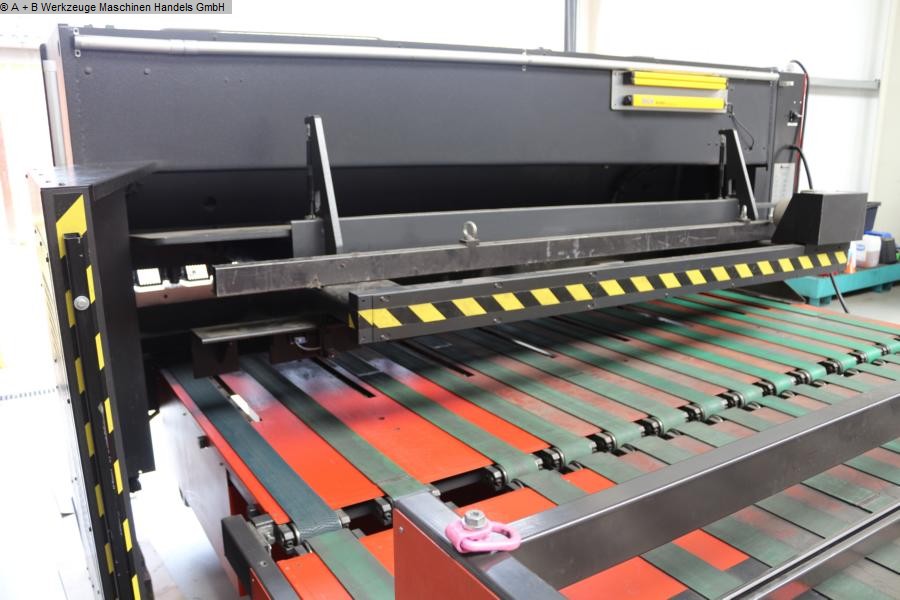

* STATION 1 - AMADA conveyor belt with pneumatic sheet support device
* STATION 2 - AMADA conveyor belt with pneumatic scrap deflector

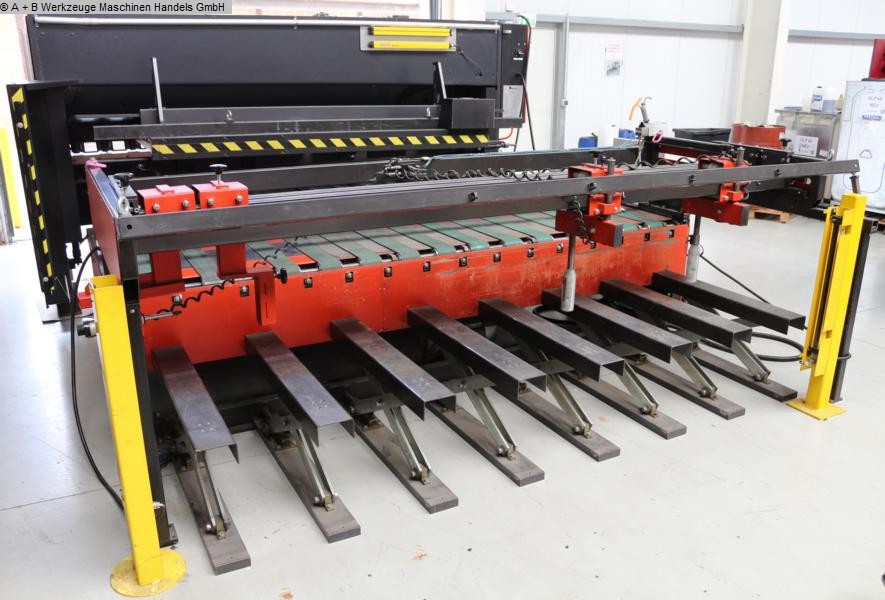

* STATION 3 - AMADA stacking device with scissor lift table device
- Wooden box with spare knives
- 1x AMADA extra-long side stop, with support foot
* Length approx. 3.000 mm
- 2x AMADA extra-long front support arms
